Электросхемы ПРИБОРНАЯ ПАНЕЛЬ Dodge Intrepid 1999

ПРИБОРНАЯ ПАНЕЛЬ

Электросхема панели приборов (1 из 2) для Dodge Intrepid 1999

Электросхема панели приборов (1 из 2) для Dodge Intrepid 1999 - Список элементов:

67

• (left rear of engine)
• (lower center of dash)
• A10
• Abs warning lamp
• Air bag warning lamp
• Analog clock
• B10
• Brake pres- sure switch (on master cylinder)
• Brake warning
• Brake warning lamp
• C1 (conn a)
• C10
• C2 (conn b)
• Charging system warning lamp
• Cruise engaged lamp
• Daytime running lamp module
• Door ajar lamp
• Engine coolant temperature gauge
• Engine coolant temperature lamp
• Engine oil pressure switch (right side of engine)
• Fuel gauge
• Fuse 1 10a
• Fuse 14 10a
• Fuse 19 10a
• Fuse 7 20a
• Fused (b+)
• Fused ign
• G114
• G206
• G206 (lower center of dash)
• Ground
• Hi beam indicator lamp
• Hot at all times
• Hot in off, run or start
• Hot in run or start
• Instrument cluster
• Interior lights system
• Junction block (left end of dash)
• Lamp driver
• Left turn signal indicator lamp
• Low fuel warning lamp
• Low washer fluid lamp
• Malfunction indicator lamp (check engine)
• Odometer
• Oil pressure warning lamp
• P r n d l
• Panel lamps
• Park brake switch (left kick panel)
• Pci bus
• Pnk
• Pnk/ red
• Pnk/red
• Prndl indicator
• Right turn signal indicator lamp
• S119
• S204
• S207 (dash harn, left side of dash)
• Seat belt warning lamp
• Speedometer
• Tachometer
• Tan
• Traction active lamp
• Traction control warning lamp
• Traction switch
• Trip odometer
• Trunk ajar lamp
• Washer fluid

Электросхема панели приборов (2 из 2) для Dodge Intrepid 1999

Электросхема панели приборов (2 из 2) для Dodge Intrepid 1999 - Список элементов:

32

• Air bag control module (on tunnel floor pan, forward of center console)
• Body control module
• Controller anti-lock brake (left front fender side shield, bottom of hydraulic ctrl unit)
• Decklid release solenoid/ ajar switch (trunk)
• Ect
• Engine controls
• Engine coolant temperature sensor (on engine, in water near thermostat housing)
• Fuel level in
• Fuel level sensor
• Fuel pump module (in fuel tank)
• G106 (behind left headlamp)
• G206 (lower center of dash)
• G303 (under right rear seat)
• G406 (center of decklid)
• Headlamp dimmer switch
• Interior lights
• Junction block (left end of dash)
• Pci bus
• Powertrain control module (left rear of engine compt)
• S110 (engine harn, right side of engine compt)
• S123
• S140
• S307 (body harn, left rear of vehicle)
• S405
• Seat belt sw
• Seat belt switch (left b-pillar)
• Sens gnd
• Tan
• Traction control switch
• Transmission control module (in engine compt, between left front fender & battery)
• Turn signal/hazard warning switch
• Washer fluid level sensor (behind left front fascia, in washer reservoir)

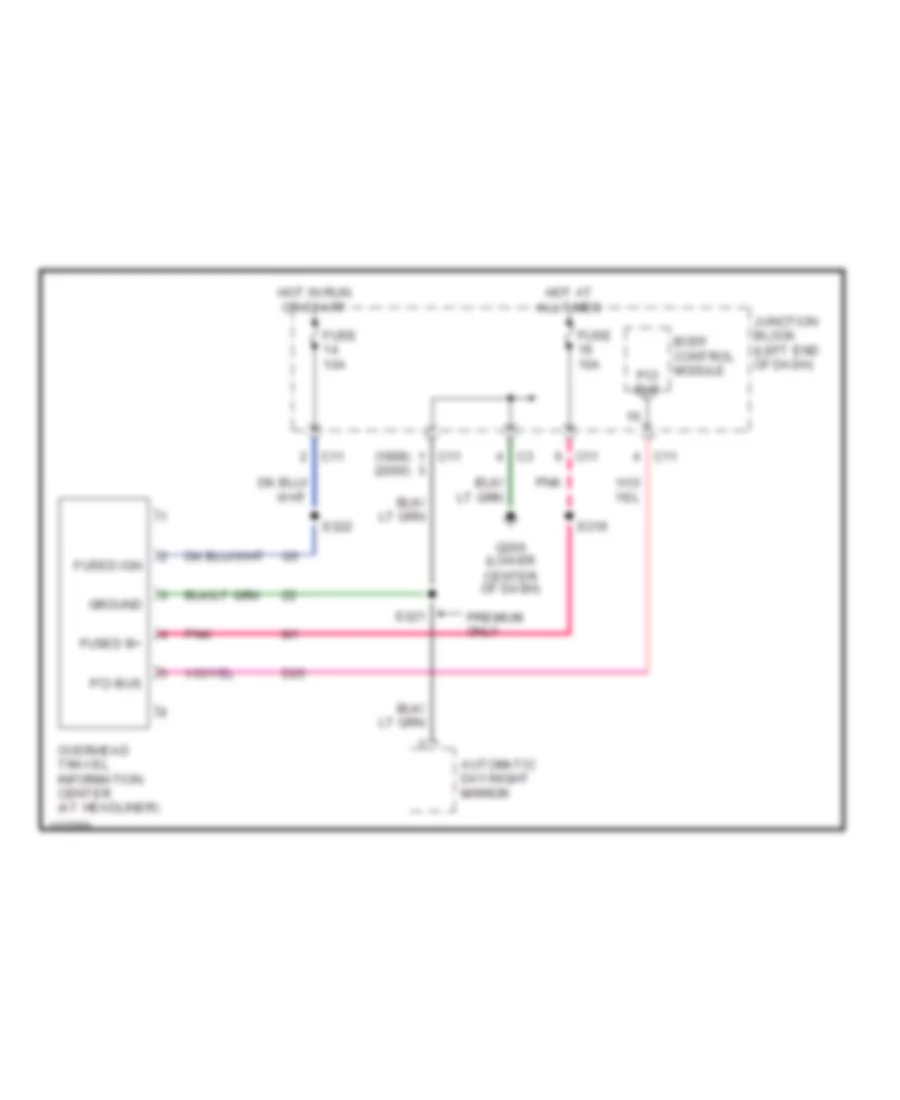

Электросхема верхней консоли управления для Dodge Intrepid 1999

Электросхема верхней консоли управления для Dodge Intrepid 1999 - Список элементов:

21

• (1999) (2000)
• Automatic day/night mirror
• Body control module
• C11
• Center of dash)
• D25
• Fuse 10a
• Fused b+
• Fused ign
• G206 (lower
• Ground
• Hot at all times
• Hot in run or start
• Junction block (left end of dash)
• Overhead travel information center (at headliner)
• Pci bus
• Pnk
• Premium only
• S319
• S321
• S322
