Электросхемы Система Фар Dodge Intrepid 1999

Система Фар

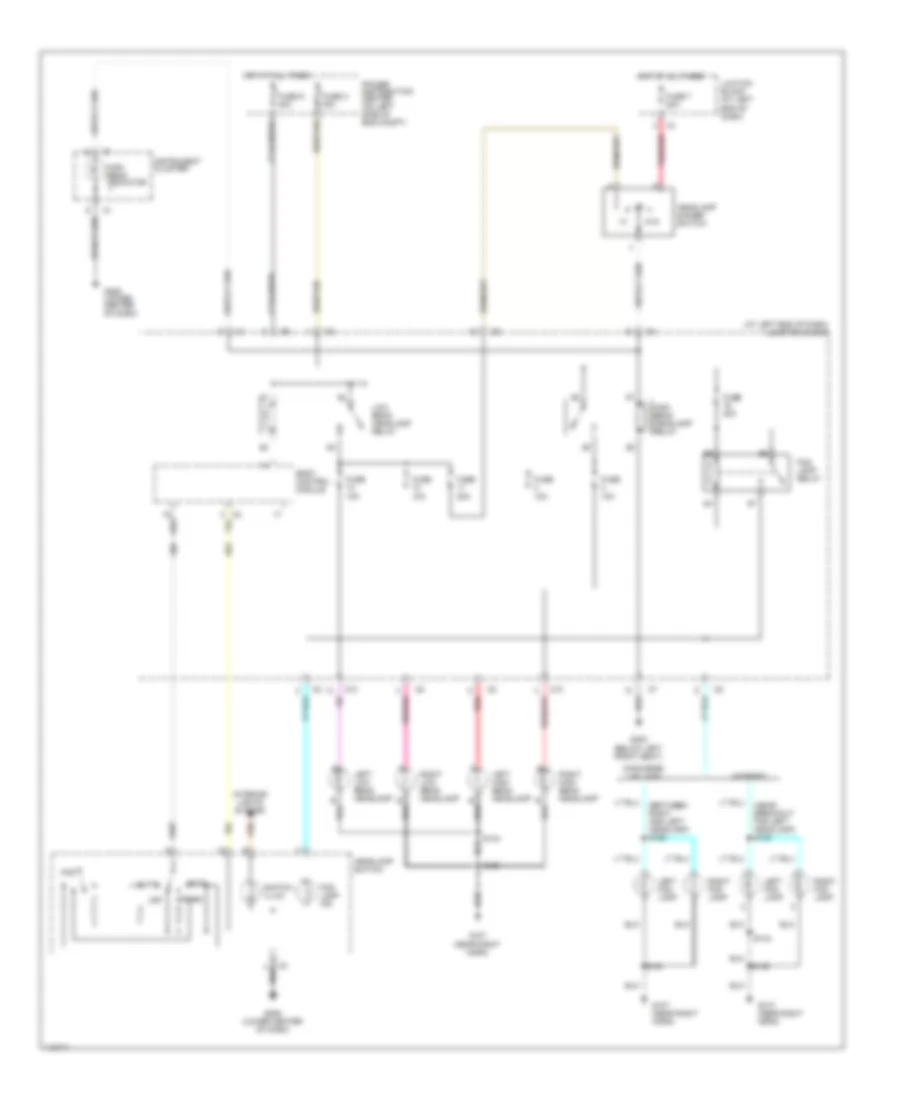

Электросхема фар, С DRL для Dodge Intrepid 1999

Электросхема фар, С DRL для Dodge Intrepid 1999 - Список элементов:

• (at left end of dash) junction block
• (between right and left headlamp) s162
• (near breakout for left headlamp) s132
• Auto
• Batt
• Body control module
• C10
• Concorde, lhs, 300m
• Daytime running lamp module
• Fog
• Fog lamp ind
• Fog lamp relay
• Ftp
• Fuse 10a
• Fuse 20a
• Fuse 7 20a
• Fuse c 30a
• Fuse d 40a
• G107 (near right horn)
• G206 (lower center of dash)
• G300 (below left front seat)
• G52
• Gnd
• Head
• Headlamp dimmer switch
• Headlamp switch
• Hi beam rly output
• High beam headlamp relay
• High beam indicator
• Hot at all times
• Hot in run
• Ign (run)
• Instrument cluster
• Interior lights system
• Intrepid
• Juction block (at left end of dash)
• L80
• Left fog lamp
• Left high beam headlamp
• Left low beam headlamp
• Lo beam rly output
• Low beam headlamp relay
• Off
• Park
• Park brake sense
• Park lamp switch (at left kick panel)
• Pnk/red
• Power distribution center (on left side of eng compt)
• Red
• Red/tan
• Right fog lamp
• Right high beam headlamp
• Right low beam headlamp
• S134
• S135
• S161
• Switch illum

Электросхема фар, без DRL для Dodge Intrepid 1999

Электросхема фар, без DRL для Dodge Intrepid 1999 - Список элементов:

• (at left end of dash) junction block
• (between right and left headlamp) s162
• (near breakout for left headlamp) s132
• Auto
• Body control module
• C10
• Concorde, lhs, 300m
• Fog
• Fog lamp ind
• Fog lamp relay
• Ftp
• Fuse 10a
• Fuse 20a
• Fuse 7 20a
• Fuse c 30a
• Fuse d 40a
• G107 (near right horn)
• G206 (lower center of dash)
• G300 (below left front seat)
• G52
• Head
• Headlamp dimmer switch
• Headlamp switch
• High beam headlamp relay
• High beam indicator
• Hot at all times
• Instrument cluster
• Interior lights system
• Intrepid
• Juction block (at left end of dash)
• L80
• Left fog lamp
• Left high beam headlamp
• Left low beam headlamp
• Low beam headlamp relay
• Off
• Park
• Pnk/red
• Power distribution center (on left side of eng compt)
• Red
• Red/tan
• Right fog lamp
• Right high beam headlamp
• Right low beam headlamp
• S134
• S135
• S161
• Switch illum
