Электросхемы Противоугонная система Сигнализация Dodge Grand Caravan ES 1999

Противоугонная система Сигнализация

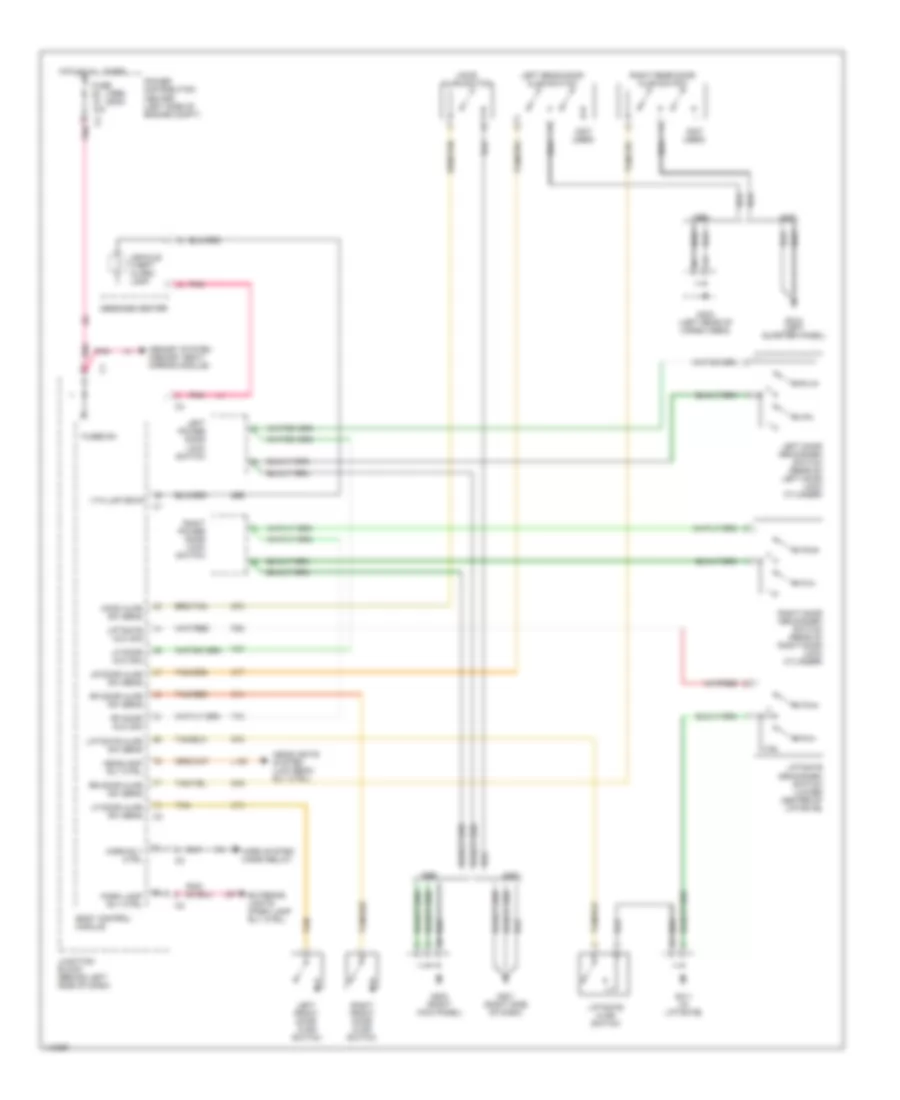

Электросхема противоугонной сигнализации для Dodge Grand Caravan ES 1999

Электросхема противоугонной сигнализации для Dodge Grand Caravan ES 1999 - Список элементов:

• (1999) (2000)
• (not used)
• Body control module
• Exterior lights (park lamp rly ctrl)
• Fuse 10a
• Fused b+
• G201 (right side of dash)
• G203 (right kick panel)
• G404 (left rear of cargo area)
• G411 (in liftgate)
• G414 (left quarter panel)
• G69
• G70
• G74
• G75
• G76
• G77
• G78
• Headlamp rly ctrl
• Headlights system (low beam rly ctrl)
• Hood ajar sw sens
• Hood ajar switch
• Horn rly ctrl
• Horn system (horn relay)
• Hot at all times
• Junction block (behind left side of dash)
• L193
• L97
• Left door arm/disarm switch (rear of left door lock cylinder)
• Left front door ajar switch
• Left power door lock switch
• Left rear door ajar switch
• Lf door ajar sw sens
• Lf door mux sig
• Liftgate ajar sw sens
• Liftgate ajar switch
• Liftgate arm/disarm switch (lower center of liftgate)
• Liftgate mux sig
• Lr door ajar sw sens
• Memory system (memory seat/ mirror module)
• Message center
• P96
• P97
• P98
• Park lamp rly ctrl
• Pnk
• Power distribution center (left side of engine compt)
• Rf door ajar sw sens
• Rf door mux sig
• Right door arm/disarm switch (rear of right door lock cylinder)
• Right front door ajar switch
• Right power door lock switch
• Right rear door ajar switch
• Rr door ajar sw sens
• Tan
• Tan/red
• Vehicle theft alarm lamp
• Vta lmp drvr
