Электросхемы ЗАЗЕМЛЕНИЕ ПОДКЛЮЧЕНИЕ МАССЫ Dodge Grand Caravan ES 1999

ЗАЗЕМЛЕНИЕ ПОДКЛЮЧЕНИЕ МАССЫ

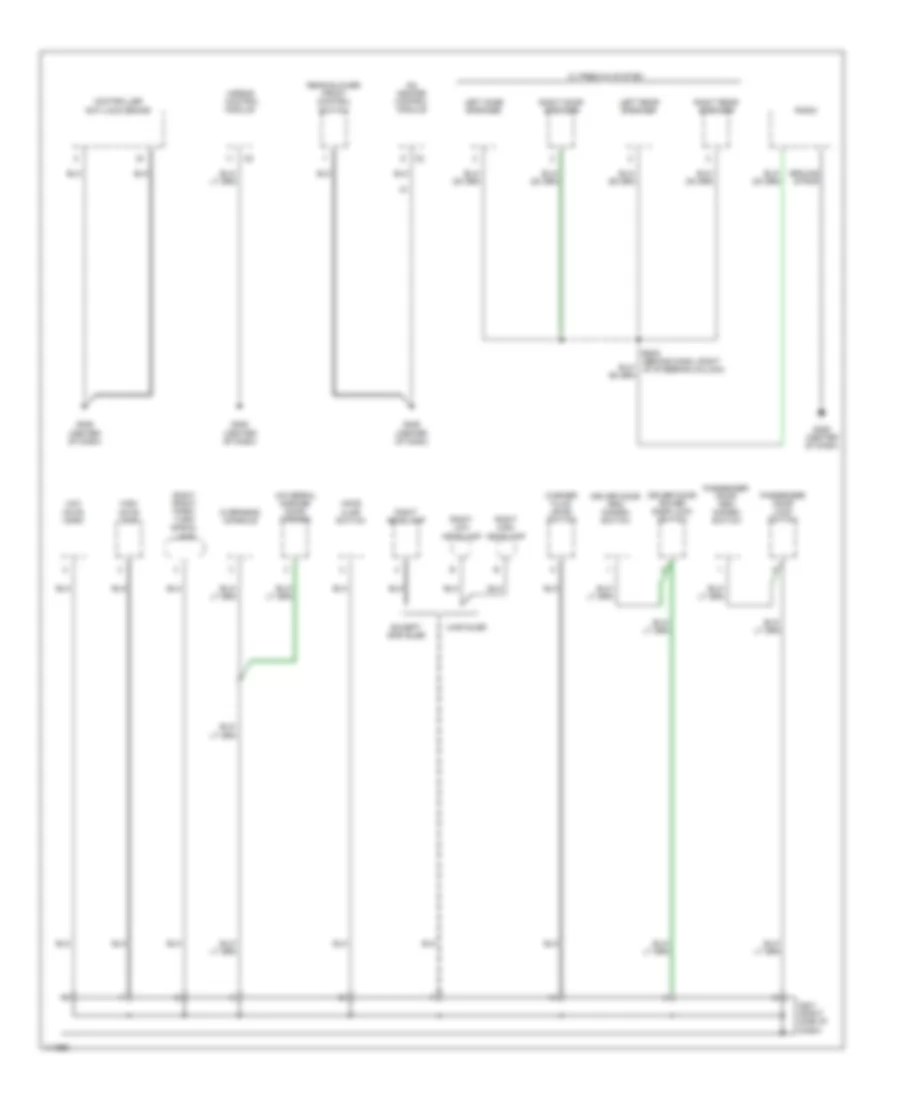

Электросхема подключение массы заземления (1 из 3) для Dodge Grand Caravan ES 1999

Электросхема подключение массы заземления (1 из 3) для Dodge Grand Caravan ES 1999 - Список элементов:

• (except chrysler) left headlamp
• (left cowl ground block)
• (w/ memory)
• (w/ overhead console)
• (w/o overhead console)
• 87a
• A/c compressor clutch
• Ash receiver lamp
• Automatic day/ night mirror
• Battery
• Body control module
• Brake pressure switch
• Chrysler
• Cigar/ accessory relay
• Combination flasher/ drl module
• Data link connector
• Door lock relay
• Door unlock relay
• Driver door unlock relay
• Driver heated seat back
• Driver heated seat cushion
• Driver heated seat module
• Driver heated seat switch
• Driver power seat switch
• Ds01 (in left door, near breakout to power window)
• Es11 (left side of engine compartment)
• Except heated seats
• Front blower motor relay
• G113 (left front frame rail)
• G115 (rear of engine)
• G202 (dash center support)
• G202 (left side of dash)
• Headlamp switch
• Heated seats
• Hs1
• Hs3
• Ignition switch
• Instrument cluster
• Junction block
• Key-in halo lamp
• Left door courtesy lamp
• Left front park/ turn signal lamp
• Left high headlamp
• Left low headlamp
• Left power window switch
• Memory power seat switch
• Memory seat/mirror module
• Memory set switch
• Message center
• Name brand speaker relay
• Oxygen sensor 1/1 upstream
• Oxygen sensor 1/2 downstream
• Passenger door courtesy lamp
• Passenger heated seat back
• Passenger heated seat cushion
• Passenger heated seat module
• Passenger heated seat switch
• Passenger power seat switch
• Passenger power window switch
• Power distribution center
• Power mirror switch
• Powertrain control module
• Radiator fan no1
• Radiator fan no2
• Radiator fan relay
• Rfs2
• Seat belt switch
• Stop lamp switch
• Terminal)
• Traction control switch
• Transaxle control module
• Transmission control relay
• Vehicle speed control servo
• W/ memory
• W/o memory
• Wiper module
• Wiper on relay
• With heated seats
• Z12
• Z13
• Z14

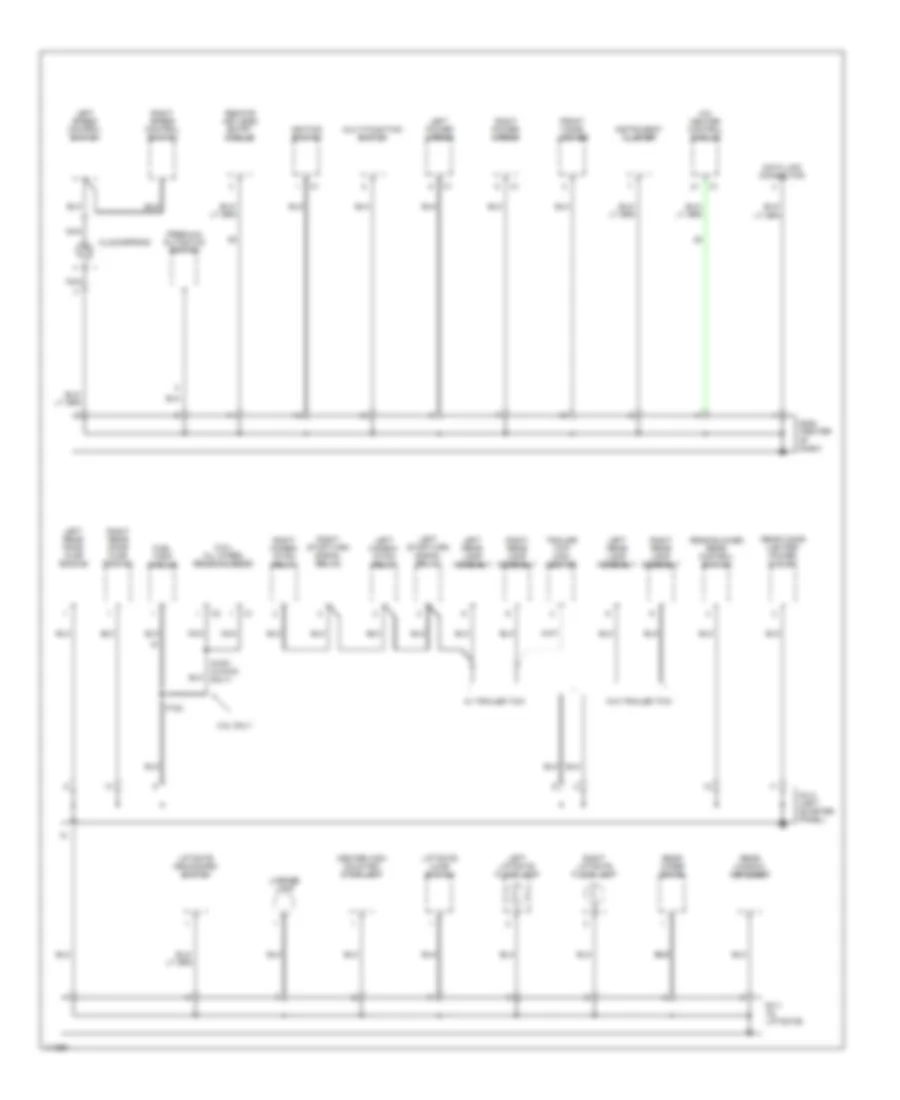

Электросхема подключение массы заземления (2 из 3) для Dodge Grand Caravan ES 1999

Электросхема подключение массы заземления (2 из 3) для Dodge Grand Caravan ES 1999 - Список элементов:

• (3.8l) all wheel drive solenoid
• (premium) autostick switch
• 3.8l only
• A/c heater control module
• Aws1 (w/awd only)
• Center high mounted stop lamp
• Clockspring
• Data link connector
• Front cigar lighter
• Fts1
• Fuel tank module
• G206 (center of dash)
• G411 (in liftgate)
• G414 (left quarter panel)
• Ignition switch
• Instrument cluster
• Left combin- ation relay
• Left liftgate flood lamp
• Left power mirror
• Left rear door ajar switch
• Left rear lamp assembly
• Left speed control switch
• Left stop/turn signal relay
• License lamp
• Liftgate ajar switch
• Liftgate arm/disarm switch
• Multi-function switch
• Nca
• Rear blower rear control switch
• Rear cigar lighter/ power outlet
• Rear window defogger
• Rear wiper motor
• Remote keyless entry module
• Right combin- ation relay
• Right liftgate flood lamp
• Right power mirror
• Right rear door ajar switch
• Right rear lamp assembly
• Right speed control switch
• Right stop/turn signal relay
• Trailer tow con- nector
• W/ trailer tow
• W/o trailer tow

Электросхема подключение массы заземления (3 из 3) для Dodge Grand Caravan ES 1999

Электросхема подключение массы заземления (3 из 3) для Dodge Grand Caravan ES 1999 - Список элементов:

• A/c heater control module
• Airbag control module
• Bs08 (behind dash, right of steering column)
• Chrysler
• Controller anti-lock brake
• Driver door arm/ disarm switch
• Driver door power door lock switch
• Except chrysler
• G201 (right side of dash)
• G206 (center of dash)
• Ground strap
• High note horn
• Hood ajar switch
• Left door speaker
• Left rear speaker
• Low note horn
• Overhead console
• Passenger door arm/ disarm switch
• Passenger door lock switch
• Radio
• Rear blower front control switch
• Right door speaker
• Right front park/ turn signal lamp
• Right headlamp
• Right high headlamp
• Right low headlamp
• Right rear speaker
• Universal garage door opener
• W/ premium system
• Washer fluid level switch
