Электросхемы Система Фар Dodge Grand Caravan ES 1999

Система Фар

Электросхема фар, С DRL для Dodge Grand Caravan ES 1999

Электросхема фар, С DRL для Dodge Grand Caravan ES 1999 - Список элементов:

• (center of dash)
• (left kick panel)
• (right kick panel)
• Acc
• Auto
• Auto headlamp sensor
• Body control module
• Brake pressure switch
• Brake warn lmp (red)
• Bs15 (near left head- lamp breakout)
• Combination flasher/drl module
• Fog lamp ind
• Fog lamp switch
• Fuse 10a
• Fuse 15a
• Fuse 20a
• G200
• G203
• G206
• Gnd
• Head
• Head- lamp switch
• Headlamp dimmer switch (in multi-function switch)
• Headlamp rly ctrl
• Headlamp sw sense
• Headlamp switch
• High beam ind
• High beam relay
• Hot at all times
• Ignition switch
• Illum
• Junction block (behind left side of dash)
• L110
• L307
• L308
• L93
• Left fog lamp
• Left headlamp
• Lock
• Low beam relay
• Message center
• Off
• Panel lmps driver
• Park
• Park brake switch (top of park brake)
• Park lmps sw sense
• Pnk
• Power distribution center (left side of eng compt)
• Red
• Right fog lamp
• Right headlamp
• Run
• Start

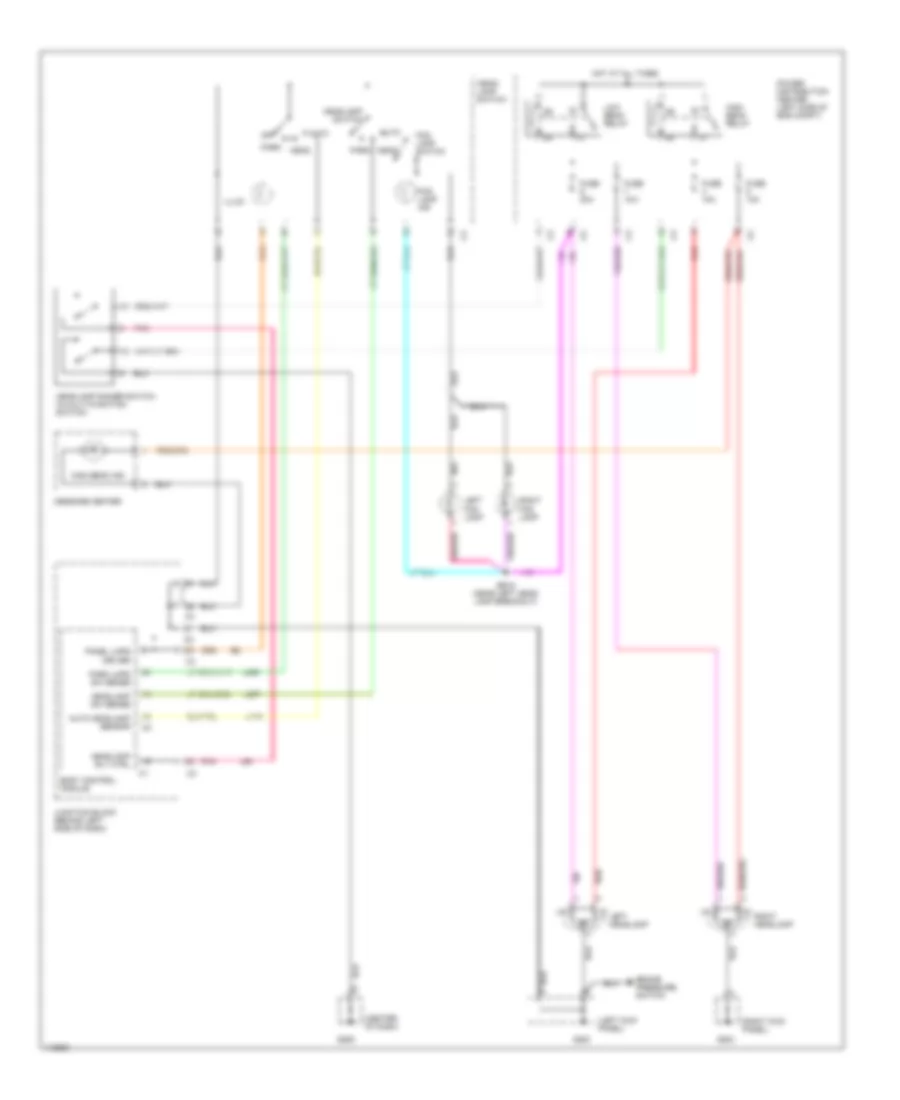

Электросхема фар, без DRL для Dodge Grand Caravan ES 1999

Электросхема фар, без DRL для Dodge Grand Caravan ES 1999 - Список элементов:

• (center of dash)
• (left kick panel)
• (right kick panel)
• Auto
• Auto headlamp sensor
• Body control module
• Brake pressure switch
• Bs15 (near left head- lamp breakout)
• Fog lamp ind
• Fog lamp switch
• Fuse 10a
• Fuse 15a
• Fuse 20a
• G200
• G203
• G206
• Head
• Head- lamp switch
• Headlamp dimmer switch (in multi-function switch)
• Headlamp rly ctrl
• Headlamp sw sense
• Headlamp switch
• High beam ind
• High beam relay
• Hot at all times
• Illum
• Junction block (behind left side of dash)
• L110
• L307
• L308
• L93
• Left fog lamp
• Left headlamp
• Low beam relay
• Message center
• Off
• Panel lmps driver
• Park
• Park lmps sw sense
• Pnk
• Power distribution center (left side of eng compt)
• Red
• Right fog lamp
• Right headlamp
