Электросхемы ВНЕШНЕЕ ОСВЕЩЕНИЕ Dodge Grand Caravan ES 1999

ВНЕШНЕЕ ОСВЕЩЕНИЕ

Электросхема заднего хода для Dodge Grand Caravan ES 1999

Электросхема заднего хода для Dodge Grand Caravan ES 1999 - Список элементов:

• Automatic day/ night mirror
• Awd solenoid
• Back- up lamp
• Bs02 (near fuel and under tank breakout)
• Controller anti-lock brake
• Fuse 10a
• G404 (left quarter panel)
• Hot in run
• Junction block
• Left rear lamp assembly
• Left stop/ turn signal relay
• Park/neutral position switch (on transmission)
• Right rear lamp assembly
• Trailer tow connector
• Transmission range sensor (top of transmission)
• W/ eat
• W/ trailer tow
• W/o eat

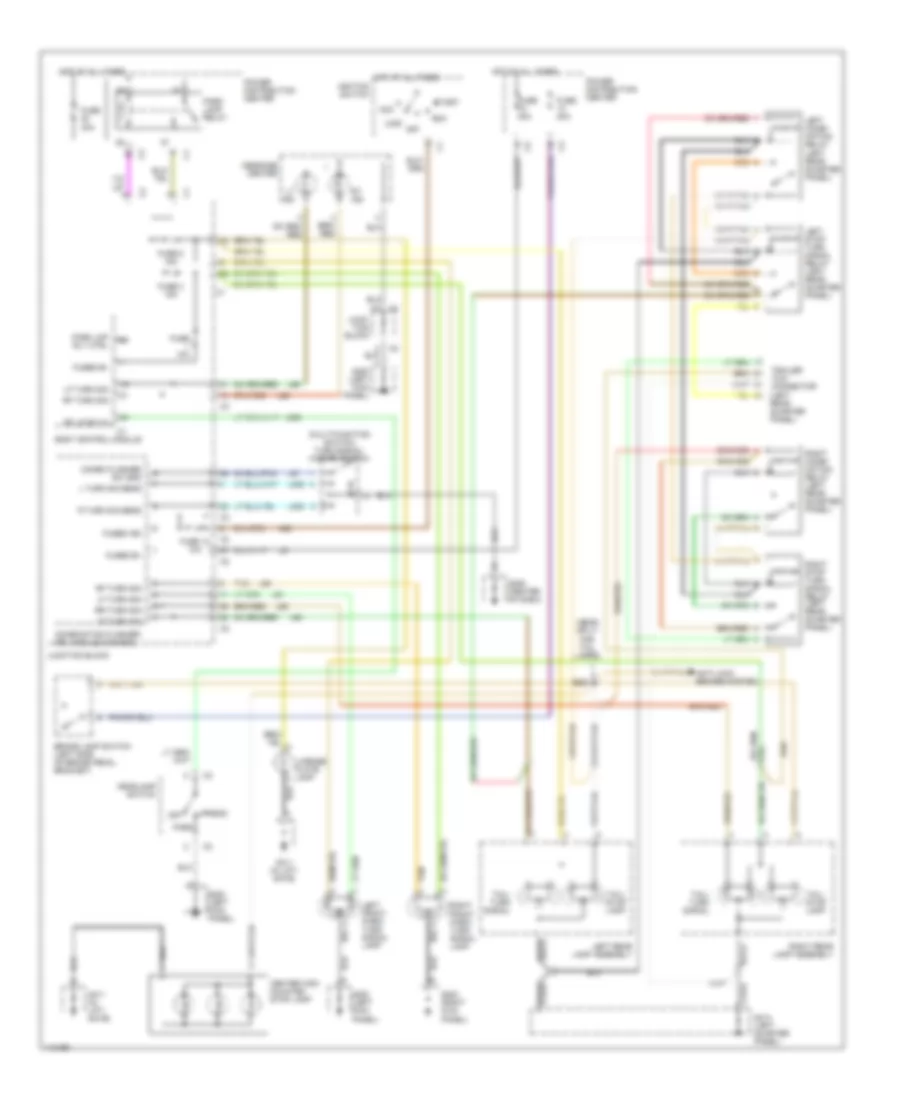

внешняя осветительная сеть, С буксировка трейлера для Dodge Grand Caravan ES 1999

внешняя осветительная сеть, С буксировка трейлера для Dodge Grand Caravan ES 1999 - Список элементов:

• (multi-function switch) turn signal/ hazard switch
• (near split for tail lamps)
• A22
• Acc
• Anti-lock brakes system
• Body control module
• Brake lamp switch (left side of brake pedal bracket)
• Bs01
• Center high mounted stop lamp
• Combination flasher/ drl module (canada)
• Combo flasher sw gnd
• Fuse 10a
• Fuse 12 10a
• Fuse 20a
• Fuse 3 15a
• Fuse 40a
• Fuse 5 15a
• Fused b+
• Fused ign
• G200 (left kick panel)
• G203 (right kick panel)
• G206 (center of dash)
• G411 (in lift- gate)
• G414 (left quarter panel)
• Head
• Headlamp switch
• Hot at all times
• Ignition switch
• Junc- tion block
• Junction block
• L turn sig sens
• L302
• L305
• L308
• L60
• L61
• L62
• L63
• L91
• L97
• Left combi- nation relay (left rear quarter panel)
• Left front park/ turn signal lamp
• Left rear lamp assembly
• Left stop turn signal relay (left rear quarter panel)
• Lf turn sig
• License plate lamp
• Lock
• Lr turn sig
• Lt ind
• Message center
• Off
• Park
• Park lamp relay
• Park lmp rly ctrl
• Pk lp sw in
• Power distribution center
• R turn sig sens
• Rf turn sig
• Right combi- nation relay (left rear quarter panel)
• Right front park/ turn signal lamp
• Right rear lamp assembly
• Right stop turn signal relay (left rear quarter panel)
• Rr turn sig
• Rt ind
• Run
• Start
• Tail/ stop lamp
• Tail/ turn signal
• Tan
• Trailer tow connector (left rear quarter panel)

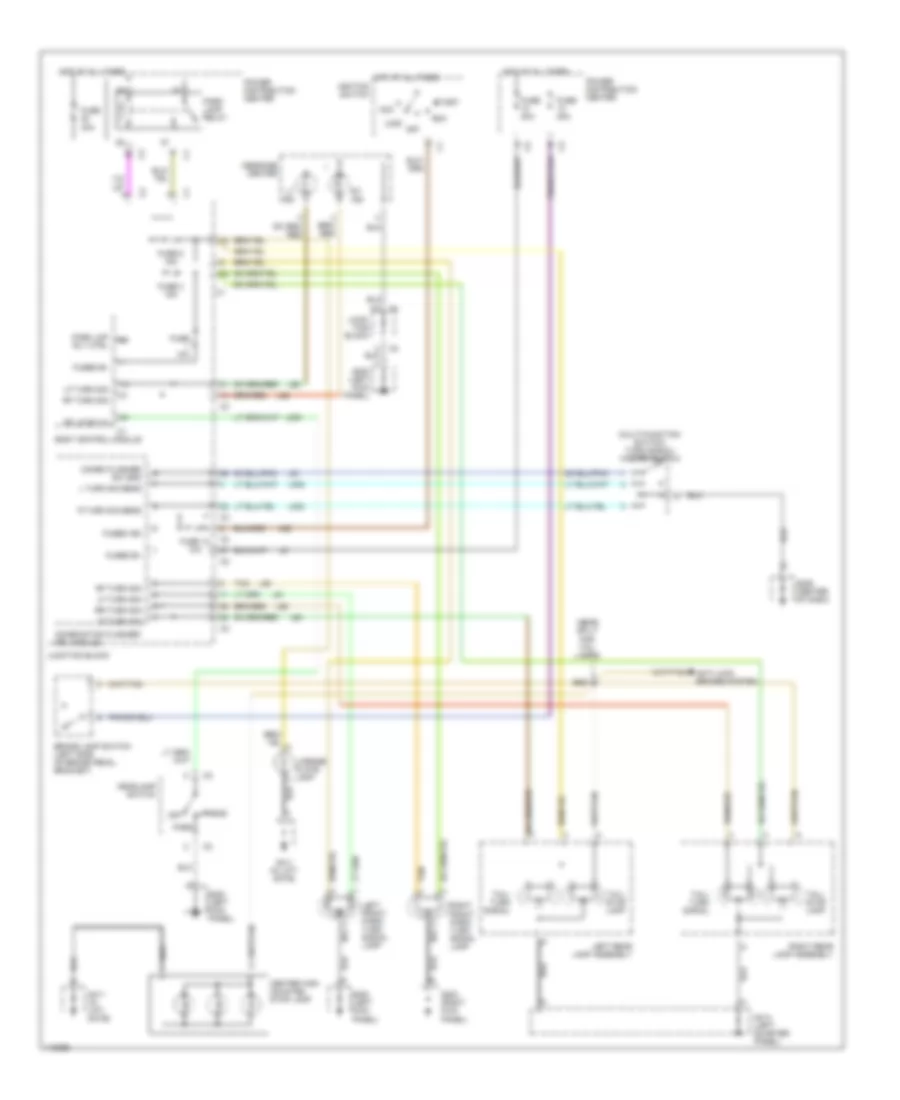

внешняя осветительная сеть, без буксировка трейлера для Dodge Grand Caravan ES 1999

внешняя осветительная сеть, без буксировка трейлера для Dodge Grand Caravan ES 1999 - Список элементов:

• (multi-function switch) turn signal/ hazard switch
• (near split for tail lamps)
• A22
• Acc
• Anti-lock brakes system
• Body control module
• Brake lamp switch (left side of brake pedal bracket)
• Bs01
• Center high mounted stop lamp
• Combination flasher/ drl module
• Combo flasher sw gnd
• Fuse 10a
• Fuse 12 10a
• Fuse 20a
• Fuse 3 15a
• Fuse 40a
• Fuse 5 15a
• Fused b+
• Fused ign
• G200 (left kick panel)
• G203 (right kick panel)
• G206 (center of dash)
• G411 (in lift- gate)
• G414 (left quarter panel)
• Head
• Headlamp switch
• Hot at all times
• Ignition switch
• Junc- tion block
• Junction block
• L turn sig sens
• L302
• L305
• L308
• L60
• L61
• L62
• L63
• L91
• L97
• Left front park/ turn signal lamp
• Left rear lamp assembly
• Lf turn sig
• License plate lamp
• Lock
• Lr turn sig
• Lt ind
• Message center
• Off
• Park
• Park lamp relay
• Park lmp rly ctrl
• Pk lp sw in
• Power distribution center
• R turn sig sens
• Rf turn sig
• Right front park/ turn signal lamp
• Right rear lamp assembly
• Rr turn sig
• Rt ind
• Run
• Start
• Tail/ stop lamp
• Tail/ turn signal
• Tan
