СИСТЕМА ОХЛАЖДЕНИЯ

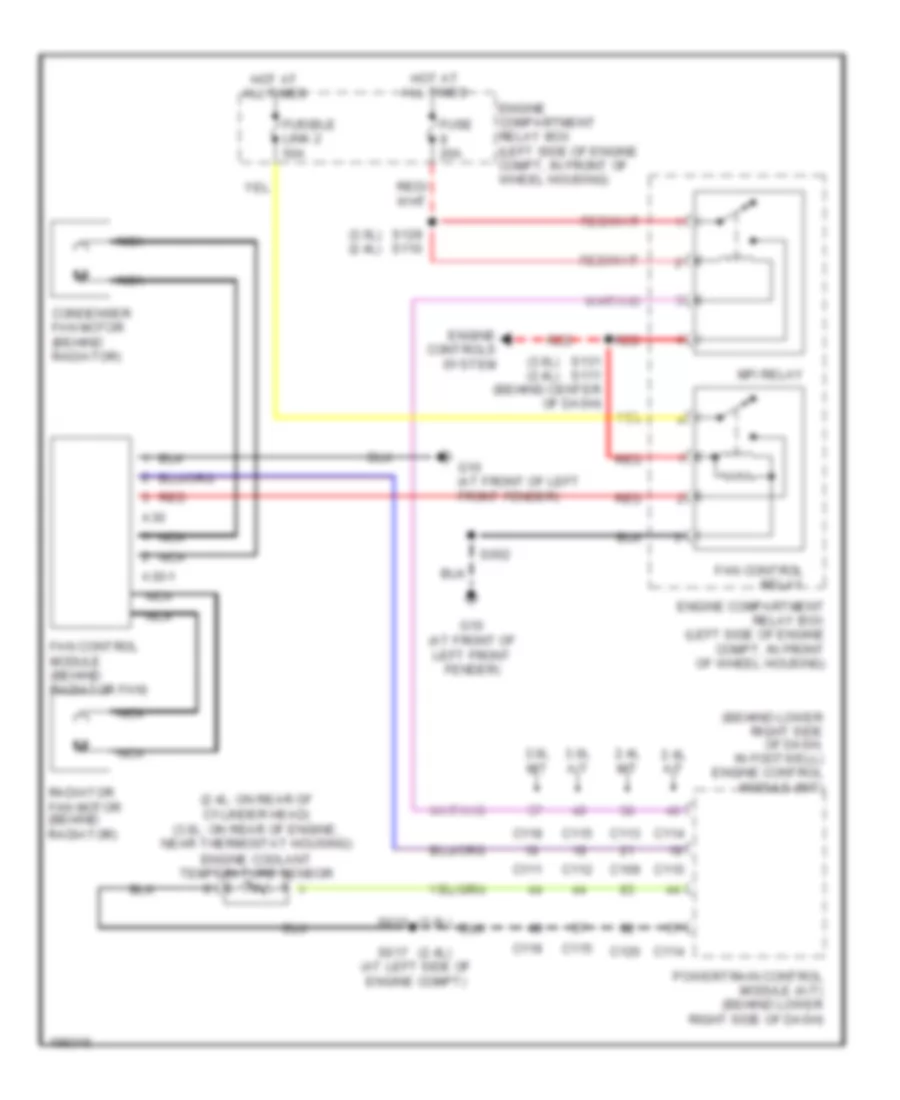

Электросхема системы охлаждения для Dodge Stratus R/T 2005

Электросхема системы охлаждения для Dodge Stratus RT 2005 https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Получить доступ ко всем электросхемам автомобиляDownload PDF file

Электросхема системы охлаждения для Dodge Stratus R/T 2005 - Список элементов:

  • (2.4l)
  • (2.4l: on rear of cylinder head) (3.0l: on rear of engine, near thermostat housing) engine coolant temperature sensor
  • (3.0l)
  • (3.0l) (2.4l)
  • (at left side of engine compt)
  • (behind lower right side of dash, in footwell) engine control module (m/t)
  • 2.4l a/t
  • 2.4l m/t
  • 3.0l a/t
  • 3.0l m/t
  • A30
  • A30-1
  • C109
  • C110
  • C111
  • C112
  • C113
  • C114
  • C115
  • C118
  • C120
  • Condenser fan motor (behind radiator)
  • Engine compartment relay box (left side of engine compt, in front of wheel housing)
  • Engine controls system
  • Fan control module (behind radiator fan)
  • Fan control relay
  • Fuse 20a
  • Fusible link 2 50a
  • G10 (at front of left front fender)
  • Hot at all times
  • Mfi relay
  • Nca
  • Powertrain control module (a/t) (behind lower right side of dash)
  • Radiator fan motor (behind radiator)
  • Red
  • S017
  • S033
  • S052
  • S129 s110
  • S131 s111 (behind center of dash)
