Электросхемы БЛОКИ УПРАВЛЕНИЯ КУЗОВОМ Porsche 911 Carrera 4S 2006

БЛОКИ УПРАВЛЕНИЯ КУЗОВОМ

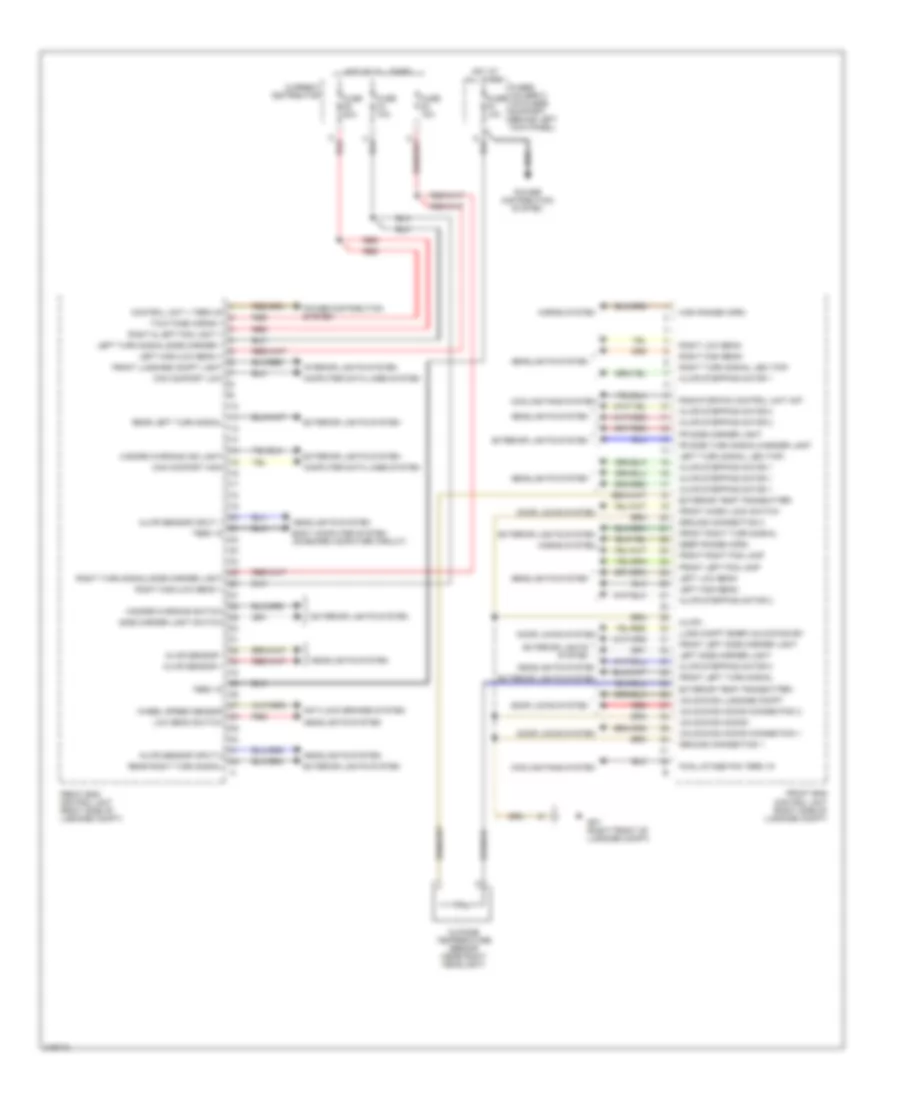

передняя схема контроллера для Porsche 911 Carrera 4S 2006

передняя схема контроллера для Porsche 911 Carrera 4S 2006 - Список элементов:

• Alwr -
• Alwr sensor +
• Alwr sensor -
• Alwr sensor input 1
• Alwr sensor input 2
• Alwr stepping motor 1
• Alwr stepping motor 2
• Anti-lock brakes system
• Body computer system (on-board computer circuit)
• Can comfort high
• Can comfort low
• Computer data lines system
• Control unit + term 30
• Cooling fans system
• Current distributor
• Deep range horn
• Door locks system
• Exterior lights system
• Exterior temp transmitter
• Exterior temp transmitter -
• Final stage fan term 15
• Fr side marker light
• Fr side turn signal/marker light
• Front end control unit (right side of luggage compt)
• Front left fog lamp
• Front left side marker light
• Front left turn signal
• Front luggage compt light
• Front micro lock switch
• Front right fog lamp
• Front right turn signal
• Fuse f3 10a
• Fuse f3 70a
• Fuse f8 70a
• Fuse f9 80a
• Fuses holder c (on fuses support, behind left kick panel)
• Gp1 (right front of luggage compt)
• Ground connection 1
• Ground connection 2
• Hazard-warning ind light
• Hazard-warning switch
• Headlights system
• High range horn
• Horns system
• Hot at all times
• Interior lights system
• Left high beam
• Left high/low beam +
• Left low beam
• Left side marker light
• Left turn signal led (top)
• Left turn signal/side marker +
• Low beam switch
• Lugg compt emer unlocking sw
• Outside temperature sensor (near right headlight)
• P red
• Power distribution system
• Radiator/fan control unit act
• Rear left turn signal
• Rear right turn signal
• Red
• Right & left fog light +
• Right high beam
• Right high/low beam +
• Right low beam
• Right turn signal led (top)
• Right turn signal/side marker light
• Side marker light switch
• Term 15
• Two-tone horns +
• Unlocking hooks -
• Unlocking hooks connection 1
• Unlocking hooks connection 2
• Unlocking luggage compt
• Wheel speed sensor

бортовая компьютерная схема для Porsche 911 Carrera 4S 2006

бортовая компьютерная схема для Porsche 911 Carrera 4S 2006 - Список элементов:

• (center of support frame) gp4
• 80a
• A14
• A21
• A24
• Active body system
• Automatic light switch
• B red
• Backup light switch
• Can comfort high
• Can comfort low
• Computer data lines system
• Control unit term 30
• Current distributor
• Defoggers system
• Dme control unit (left front of engine compt)
• Emergency light term 15
• Exterior lights system
• Fog light switch
• Front cover opener button
• Front end control unit (right side of luggage compt)
• Fuse f2 80a
• Fuse f6 7.5a
• Fuse f8 70a
• Fuses holder b (on fuses support, behind left kick panel)
• Garage door opener system
• Gateway control unit (in left footwell)
• Gear running wake up
• Gp3 (left side of support frame)
• Ground connection 1
• Ground connection 2
• Headlight cleaner pump relay
• Headlights system
• Home link led
• Home link lin
• Home link s1
• Home link s2
• Home link s3
• Home link transmitter (right front of luggage compt)
• Hot at all times
• Inside light -
• Inside light sw term 30
• Inside light term 30
• Inside light terminal
• Interior lights system
• Left seat heater
• Left seat heater +
• Light orientation terminal
• Maxi fuse (fan)
• Motor drive tank-folds conn 1
• Motor drive tank-folds conn 2
• Nca
• On board computer network control unit (behind left side of dash)
• Pas (driver's recognition) control unit (behind left side of dash)
• Power distribution system
• Rain sensor +
• Rain sensor -
• Rain sensor siganl
• Rear control unit (under driver's seat)
• Rear cover opener button
• Rear fog light switch
• Rear spoiler func light
• Rear spoiler mod button
• Rear window defogger relay
• Rear window unlocking button
• Red
• Reserve light func 1
• Right seat heater
• Right seat heater +
• Seats system
• Sport mode func light
• Tank cover -
• Tank cover term 30
• Term 15
• Term 15 start consumers
• Trunk, tailgate, fuel doors system
• Washing fluid pump
• Washing fluid pump +
• Windshield wiper motor parking sw
• Wiper motor +
• Wiper motor break stream -
• Wiper motor stage 1
• Wiper motor stage 2
• Wiper/washer system

схема единицы хвостового руля для Porsche 911 Carrera 4S 2006

схема единицы хвостового руля для Porsche 911 Carrera 4S 2006 - Список элементов:

• (under driver's seat)
• Active body system
• Alarm siren
• Alarm-horn
• Anti-theft system
• Backup light
• Body computer system (on-board computer circuit) exterior lights system
• Can comfort high
• Can comfort low
• Cls alarm
• Cls alarm function light
• Computer data lines system
• Convertible top locking micro sw
• Door locks system
• Exterior lights system
• Fuse f3 15a
• Fuse f6 15a
• Fuses holder a (on fuses support, behind left kick panel)
• Glove box micro sw
• Gp7
• High mounted stop light
• Hot at all times
• Interior lights system
• Interior sensor
• Left side marker light
• Left stop light
• License plate lighting
• Luggage compartment light
• Power distribution system
• Power tops system
• Rear control unit (under driver's seat)
• Rear fog light
• Rear hood micro sw
• Rear spoiler extension
• Rear spoiler retraction
• Rear window wiper
• Red
• Right side marker light
• Right stop light
• Spoiler extended micro sw
• Spoiler retracted micro sw
• Stop light switch
• Sun roof comfort close
• Sun roof comfort open
• Sun roof enabling signal
• Tailgate unlocking
• Term 15 energency light
• Term 30 left
• Term 30 motors
• Term 30 right
• Term 31
• Tilt sensor
• Wiper/washer system
