Электросхемы СИСТЕМА КОНДИЦИОНЕРА Porsche 911 Carrera 4S 2006

СИСТЕМА КОНДИЦИОНЕРА

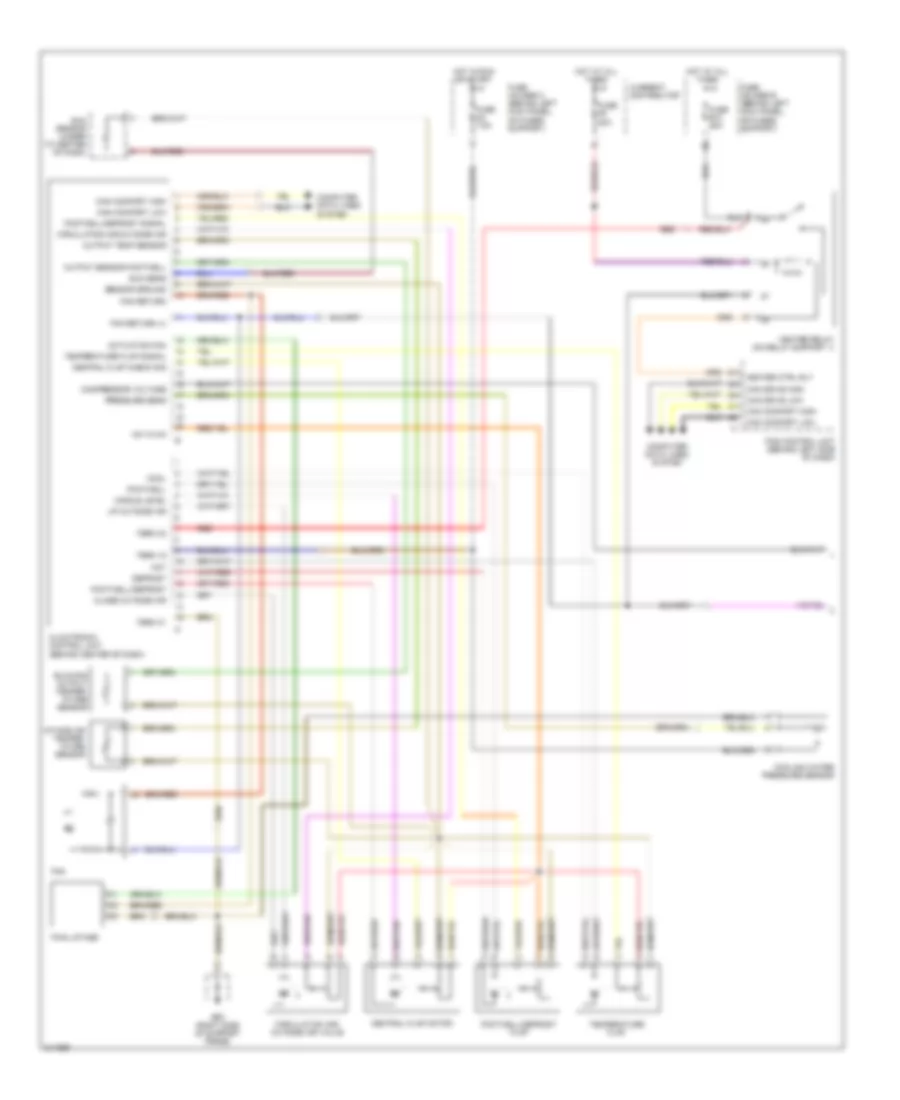

Электросхема кондиционера (1 из 2) для Porsche 911 Carrera 4S 2006

Электросхема кондиционера (1 из 2) для Porsche 911 Carrera 4S 2006 - Список элементов:

• +5v/10 ma
• Actuation fan
• Blowing output temper- ature sensor
• Can comfort high
• Can comfort low
• Can drive high
• Can drive low
• Central flap check sig
• Central flap motor
• Circulating air/outside air
• Circulation air/ outside air valve
• Climatronic control unit (behind center of dash)
• Close outside air
• Compressor voltage
• Computer data lines system
• Cool
• Cooling water pressure sensor
• Current distributor
• Defrost
• Fan
• Fan return
• Fan return (+)
• Final stage
• Footwell
• Footwell/defrost
• Footwell/defrost flap
• Footwell/defrost signal
• Fuse b10 25a
• Fuse c2 7.5a
• Fuse f6 80a
• Fuse holder b (behind left kick panel, on fuses support)
• Fuse holder c (behind left kick panel, on fuses support)
• Gp5 (right side of support frame)
• Heater ctrl rly
• Heater relay (on relay support 1)
• Hot
• Hot at all times
• Hot in run or start
• Intake air temper- ature sensor
• Middle level
• Output sensor footwell
• Output temp sensor
• Pas control unit (behind left side of dash)
• Pressure sens
• Red
• Sensor ground
• Sun sens
• Sun sensor (under to center of dash)
• Temperature flap
• Temperature flap signal
• Term 15
• Term 30
• Term 31
• Up outside air

Электросхема кондиционера (2 из 2) для Porsche 911 Carrera 4S 2006

Электросхема кондиционера (2 из 2) для Porsche 911 Carrera 4S 2006 - Список элементов:

• A/c relay
• Air conditioning compressor
• Air conditioning compressor relay (on relay support 2)
• Can high
• Can high comfort
• Can low
• Can low comfort
• Computer data lines system
• Cooling water blower control unit (right side of luggage compt)
• Dme control unit (left front of eng compt)
• Eng compt blower hi rly ctrl
• Eng compt blower lo rly ctrl
• Engine compartment blower motor
• Engine compartment high relay (on relay support 2)
• Engine compartment low relay (on relay support 2)
• Engine controls system
• Extended spoiler
• Fan final stage term 15
• Front end control unit (right side of luggage compt)
• Fuse 15a
• Fuse d5 40a
• Fuse holder d (behind left kick panel, on fuses support)
• Fuse holder f (behind left rear seat well)
• Gp1 (right front of luggage compt)
• Gp8 (left rear of eng compt)
• Gp9 (right rear of eng compt)
• Hot at all times
• Hot w/ mfi-di relay energized
• Left cooling water blower motor (under left headlight)
• Left fan (+)
• Left fan (-)
• Maxi fuse 80a
• Nca
• Outside temp transmitter
• Outside temperature sensor (near right headlight)
• Pwm actuation input
• Rad fan actuator ctrl
• Red
• Right cooling water blower motor (under right headlight)
• Right fan +
• Right fan -
• Term 15
• Term 30
• Term 31
• Term 87
