Электросхемы СИСТЕМЫ ПАМЯТИ Porsche 911 Carrera 4S 2006

СИСТЕМЫ ПАМЯТИ

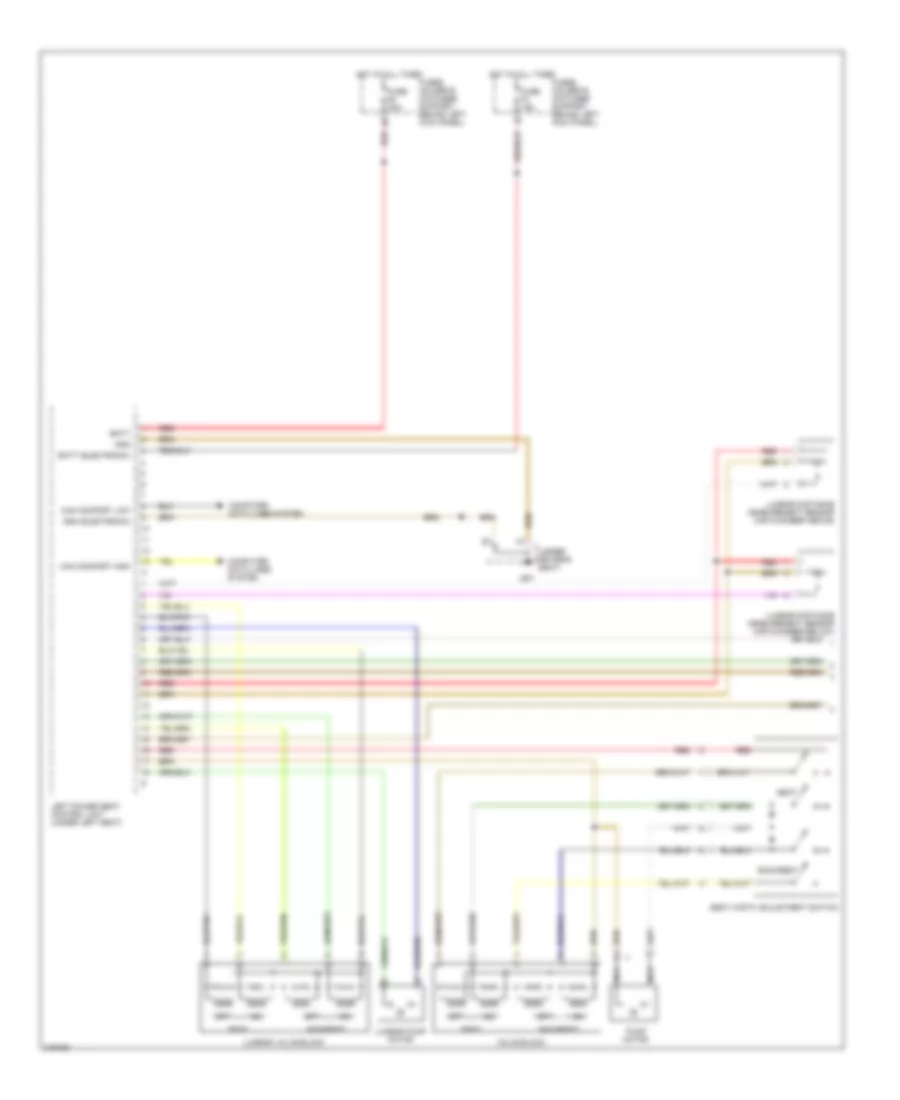

Электросхема системы памяти (1 из 2) для Porsche 911 Carrera 4S 2006

Электросхема системы памяти (1 из 2) для Porsche 911 Carrera 4S 2006 - Список элементов:

• (under driver's seat)
• Backrest
• Batt
• Batt (electronic)
• Can comfort high
• Can comfort low
• Computer data lines system
• Fuse e1 30a
• Fuse f3 15a
• Fuses holder b (on fuses support, behind left kick panel)
• Fuses holder e (on fuses support, behind left kick panel)
• Gnd
• Gnd (electronic)
• Gp7
• Hot at all times
• Left power seat control unit (under left seat)
• Lumbar distance measurement sensor (air chamber above)
• Lumbar distance measurement sensor (air chamber below)
• Lumbar pump motor
• Lumbar valve block
• Nca
• Off
• Pump motor
• Red
• Seat
• Seat width adjustment switch
• Valve block

Электросхема системы памяти (2 из 2) для Porsche 911 Carrera 4S 2006

Электросхема системы памяти (2 из 2) для Porsche 911 Carrera 4S 2006 - Список элементов:

• Backrest back
• Backrest fwd
• Front seat cushion height control motor
• Left power seat control unit (under left seat)
• Longitudinal back
• Longitudinal fwd
• Lumbar back
• Lumbar down
• Lumbar fwd
• Lumbar up
• Power seat switch
• Rear seat cushion height control motor
• Seat back forward control motor
• Seat backrest control motor
• Seat front down
• Seat front up
• Seat rear down
• Seat rear up
