Электросхемы ЦЕНТРАЛЬНЫЙ ЗАМОК Porsche 911 Carrera 4S 2006

ЦЕНТРАЛЬНЫЙ ЗАМОК

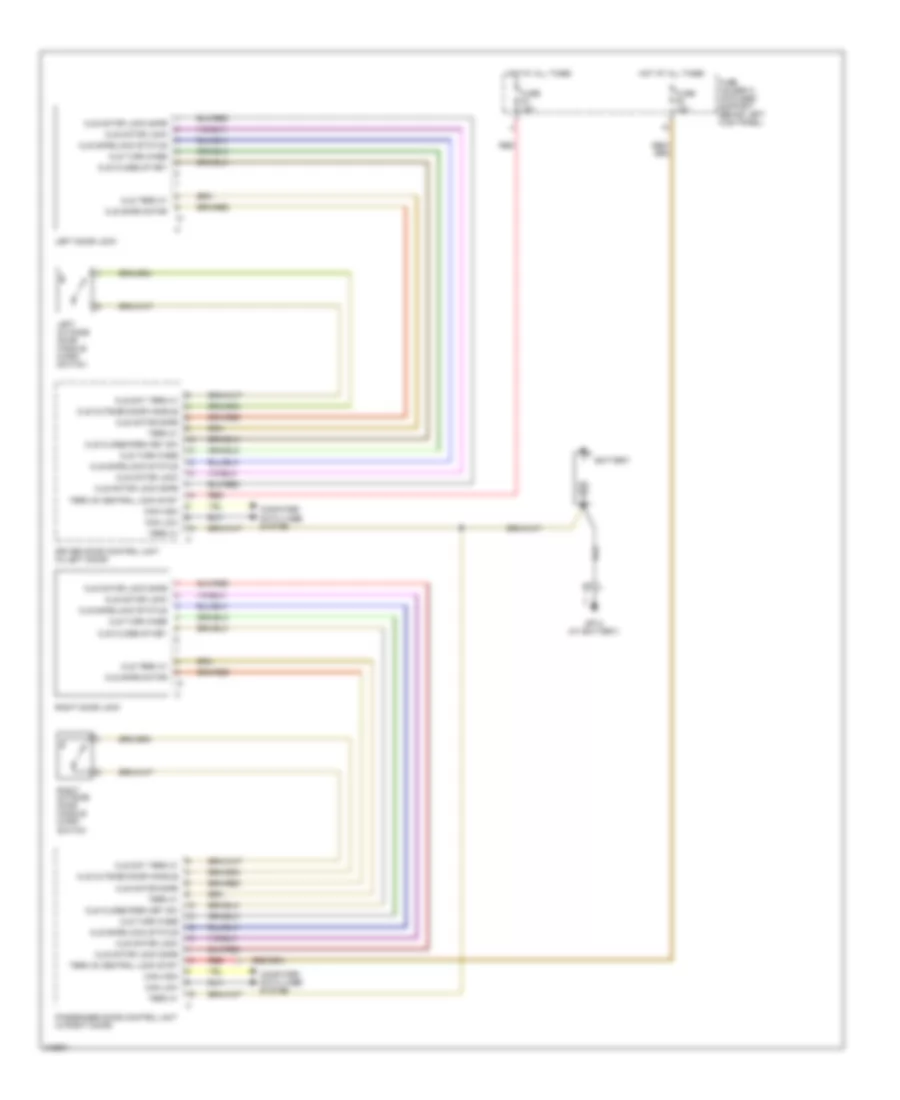

Электросхема центрального замка (1 из 2) для Porsche 911 Carrera 4S 2006

Электросхема центрального замка (1 из 2) для Porsche 911 Carrera 4S 2006 - Список элементов:

• Battery
• Can high
• Can low
• Cls close/open key sw
• Cls close/up key
• Cls day term 31
• Cls motor lock
• Cls motor lock safe
• Cls motor safe
• Cls outside door handle
• Cls safe motor
• Cls safe/lock status
• Cls term 31
• Cls turn case
• Computer data lines system
• Driver door control unit (in left door)
• Fuse f2 15a
• Fuse f5 15a
• Fuse holder a (on fuses support, behind left kick panel)
• Gp13 (at battery)
• Hot at all times
• Left door lock
• Left outside door handle micro switch
• Passenger door control unit (in right door)
• Red
• Red red
• Right door lock
• Right outside door handle micro switch
• Term 30 central lock syst
• Term 31

Электросхема центрального замка (2 из 2) для Porsche 911 Carrera 4S 2006

Электросхема центрального замка (2 из 2) для Porsche 911 Carrera 4S 2006 - Список элементов:

• (in front of right front fender)
• (left rear of eng compt)
• (left side of frame support)
• (right front of luggage compt)
• (right side of support frame)
• (under driver's seat)
• B b
• Batt
• Batt (left)
• Batt (right)
• Can high
• Can low
• Central locking switch
• Cls alarm
• Computer data lines system
• Current distributor
• Drive hooks
• Emer unlock lugg compt
• Emergency luggage compartment open switch
• Emergency power pin
• Front end control unit (right side of luggage compt)
• Front hood
• Front hood open sw
• Front lock micro sw
• Front lock micro- switch
• Function light
• Function lt cls alarm
• Fuse f3 10a
• Fuse f6 15a
• Fuse f6 80a
• Fuse f7 15a
• Fuses holder a (on fuses support, behind left kick panel)
• Fuses holder c (on fuses support, behind left kick panel)
• Gnd
• Gp1
• Gp3
• Gp5
• Gp7
• Gp8
• Hooks unlock con 1
• Hooks unlock con 2
• Hot at all times
• Hot w/ term 15 relay energized
• Ignition (pos ii/iii)
• Illum
• Interior lights system
• Lugg compt unlock
• Luggage compartment hood drive
• Onboard net work control module (under behind side of dash)
• Power distribution system
• Rear control unit (under driver's seat)
• Rear hood
• Rear hood lock micro switch
• Rear hood micro sw
• Rear hood open sw
• Red
• Still button module
• Tailgate unlock drive
• Tailgate unlock dvr
