Электросхемы ВНУТРЕННЕЕ ОСВЕЩЕНИЕ Porsche 911 Carrera 4S 2006

ВНУТРЕННЕЕ ОСВЕЩЕНИЕ

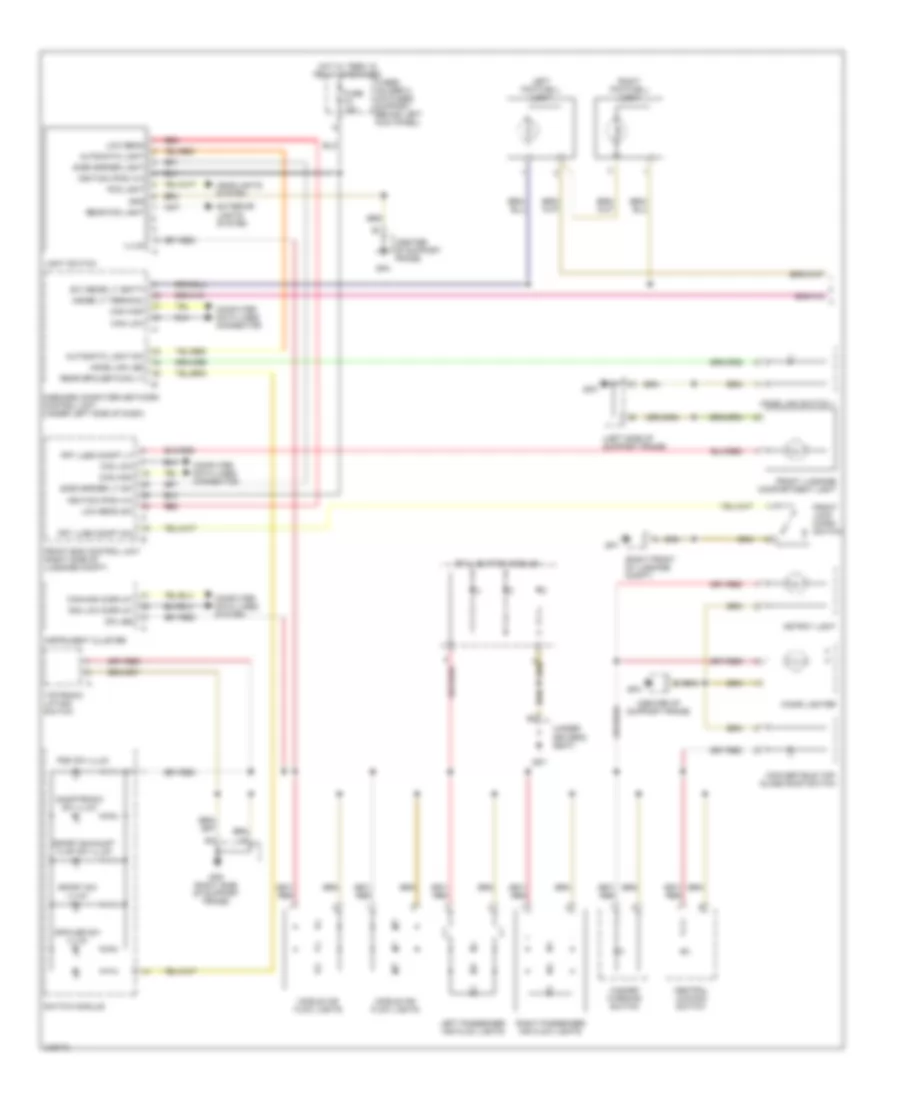

Электросхема освещения салона (1 из 2) для Porsche 911 Carrera 4S 2006

Электросхема освещения салона (1 из 2) для Porsche 911 Carrera 4S 2006 - Список элементов:

• (center of support frame)
• (left side of support frame)
• (right front of luggage compt)
• (under driver's seat)
• Astray light
• Automatic light
• Automatic light sw
• Can high
• Can high display
• Can low
• Can low display
• Central locking switch
• Cigar lighter
• Computer data lines connector
• Computer data lines system
• Convertible top/ glass roof switch
• Damptronic sw illum
• Dim led
• Exterior lights system
• Fog light
• Front end control unit (right side of luggage compt)
• Front lock micro- switch
• Front luggage compartment light
• Frt lugg compt lt
• Frt lugg compt sw
• Fuse f3 10a
• Fuses holder c (on fuses support, behind left kick panel)
• Gnd
• Gp1
• Gp3
• Gp4
• Gp5 (right side of support frame)
• Gp7
• Hazard warning switch
• Headlights system
• Home link led
• Home link switch 1
• Hot w/ term 15 relay energized
• Ignition (pos ii/iii)
• Illum
• Inside lt terminal
• Instrument cluster
• Left footwell light
• Left passenger air flow lights
• Light switch
• Low beam
• Low beam sw
• Middle air flow lights
• Onboard computer network control unit (under left side of dash)
• Psm sw illum
• Rear fog light
• Rear spoiler func lt
• Red
• Right footwell light
• Right passenger air flow lights
• Side marker light
• Side marker lt sw
• Spoiler sw illum
• Sport exhaust flap sw illum
• Sport sw illum
• Still button module
• Sw inside lt (batt)
• Switch module
• Tiptronic lifting switch

Электросхема освещения салона (2 из 2) для Porsche 911 Carrera 4S 2006

Электросхема освещения салона (2 из 2) для Porsche 911 Carrera 4S 2006 - Список элементов:

• (left side of support frame)
• (right side of support frame)
• Can high
• Can high comfort
• Can low
• Can low comfort
• Change- over sw front/rear
• Computer data lines system
• Dme control unit (left front of eng compt)
• Door lock lt
• Door lock lt gnd
• Door open light
• Driver sw light
• Driver's door control unit
• Driver's power window switch
• Extended spoiler
• Glove box light
• Glove box micro sw
• Glove box micro- switch
• Gnd
• Gp3
• Gp5
• Gp8 (left rear of eng compt)
• Inside door handle lt
• Inside light
• Left door lock light
• Left make up mirror
• Left outside door handle micro switch
• Luggage compartment light
• Luggage compt lt
• Memory switch
• Mirror adjustment switch
• Operation gnd sw
• Outside cls door handle
• Passenger sw light
• Passenger's door control unit
• Passenger's power window switch
• Rear control unit (under driver's seat)
• Rear lock micro sw
• Rear lock micro- switch
• Right door lock light
• Right make up mirror
• Right outside door handle micro switch
• Tl sw position i & ii
