AIR CONDITIONING

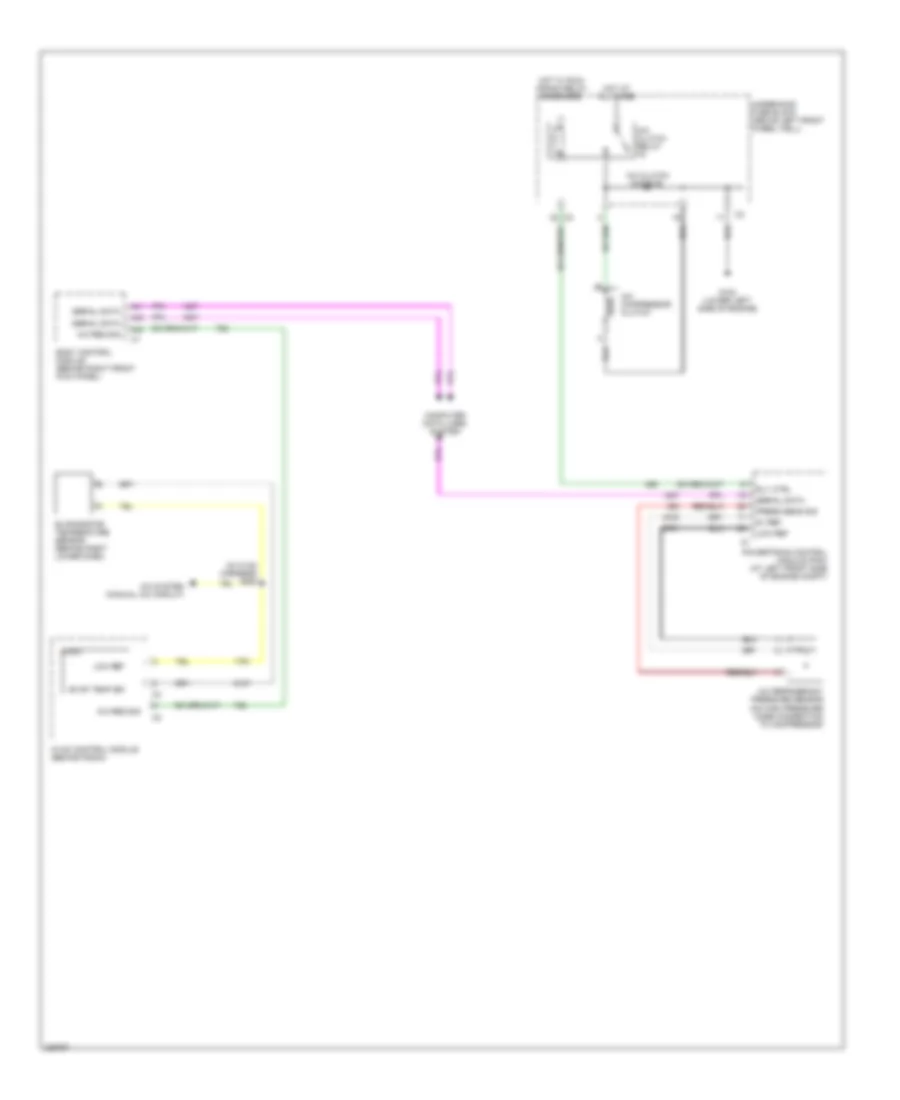

Compressor Wiring Diagram for Hummer H3 2006
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO List of elements for Compressor Wiring Diagram for Hummer H3 2006:
- (in hvac harness) s250
- 5v ref
- A/c clutch diode 90
- A/c clutch relay
- A/c compressor clutch
- A/c refrigerant pressure sensor (on high pressure hose connection to compressor)
- A/c req sig
- A/c system (manual a/c circuit)
- A41
- A42
- A43
- Body control module (behind right front kick panel)
- Computer data lines system
- Evap temp sig
- Evaporator temperature sensor (behind right lower dash)
- G103 (lower left side of engine)
- Hot at all times
- Hot w/ run/ crank relay energized
- Hvac control module (behind radio)
- Logic
- Low ref
- Powertrain control module (pcm) (at left front side of engine compt)
- Press sens sig
- Rly ctrl
- Serial data
- Underhood fuse block (above left front wheel well)
Manual A/C Wiring Diagram (1 of 2) for Hummer H3 2006
List of elements for Manual A/C Wiring Diagram (1 of 2) for Hummer H3 2006:
- 5v ref
- A/c req sig
- A26
- A41
- A42
- A43
- Air temp a
- Blower motor (below right side of dash)
- Blower motor resistor assembly (on rear of hvac case)
- Blower motor switch
- Body control module (behind right front kick panel)
- Computer data lines system
- Evap temp sig
- G106 (on right inner front wheel well)
- G300 (under driver seat carpet)
- Grd
- High
- High speed blower motor
- Hot at all times
- Hvac blwr fuse 82 30a
- Hvac cntrl hd fuse 59 10a
- Hvac control module (beneath radio)
- Hvac relay
- Ign 3 relay
- Ign 3 volt
- Ign 3 voltage
- L air temp b
- L air temp sig
- Logic
- Low
- Mode door b
- Mode door sig
- Off
- R air temp b
- R air temp sig
- Rdo fuse 13 10a
- Recirc a
- Recirc b
- S205
- S206
- S251
- Serial data
- Tan
- Underhood fuse block (left front side of engine compt)
Manual A/C Wiring Diagram (2 of 2) for Hummer H3 2006
List of elements for Manual A/C Wiring Diagram (2 of 2) for Hummer H3 2006:
- (in hvac harness)
- (in hvac harness) s240
- (in hvac harness) s250
- (in hvac harness) s260
- (not used)
- 5v ref
- A/c clutch diode 90
- A/c clutch relay
- A/c compressor clutch
- A/c refrigerant pressure sensor (on high pressure hose connection to compressor)
- Computer data lines system
- Engine coolant temperature (ect) sensor (on left rear of engine)
- Evaporator temperature sensor (behind right lower dash)
- G103 (lower left side of engine)
- Hot at all times
- Hot w/ run/ crank relay energized
- Left air temperature actuator (left side of hvac module assembly)
- Logic
- Low ref
- Mode actuator (on side of heater box)
- Nca
- Powertrain control module (pcm) (at left front side of engine compt)
- Press sens sig
- Recirculation actuator (upper right conrner of heater case)
- Right air temperature actuator (left side of hvac module assembly)
- Rly ctrl
- S230
- Sens sig
- Serial data
- Tan
- Underhood fuse block (above left front wheel well)
