INTERIOR LIGHTS – Ford Pickup F250 1994 – SYSTEM WIRING DIAGRAMS

INTERIOR LIGHTS

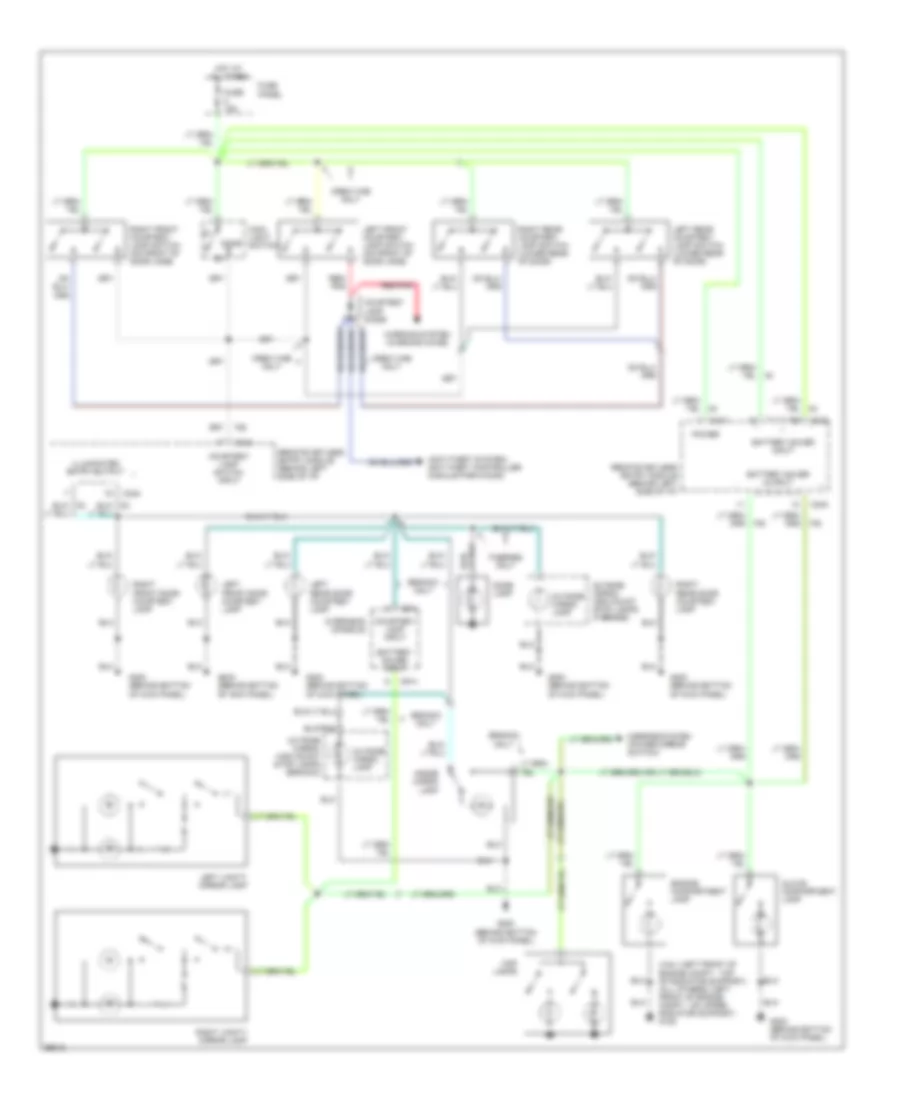

Courtesy Lamps Wiring Diagram, with Keyless Entry for Ford Pickup F250 1994

List of elements for Courtesy Lamps Wiring Diagram, with Keyless Entry for Ford Pickup F250 1994:

• (4.9l) (left front of engine compt., top of radiator support) (all others) (left front of engine compt., on upper radiator support) g108
• (anti-theft system) anti-theft controller module pin#14/c238)
• Battery saver input
• Battery saver output
• Bronco only
• C240
• C241
• C242
• C914
• Courtesy lamp diode
• Courtesy lamp input
• Courtesy lamp switch input
• Crew cab only
• Dome
• Dome lamp
• Engine compartment lamp
• F-series only
• Fuse 15a
• Fuse panel
• G200 (behind bottom of kick panel)
• Glove compartment lamp
• Hot at all times
• Illuminated entry output
• Inside cargo lamp
• Left front courtesy lamp switch (on front of door jamb)
• Left front door courtesy lamp
• Left rear courtesy lamp switch (lower rear of door)
• Left rear door courtesy lamp
• Left vanity mirror lamp
• Main light switch
• Map lamps
• Mirrors system (power mirror switch)
• Outside cargo lamp
• Outside cargo/ high mount stop lamps (bronco)
• Outside cargo/ high mount stop lamps (f-series)
• Overhead console
• Power
• Red/ pnk
• Red/pnk
• Remote keyless entry module (behind left side of i/p)
• Right front courtesy lamp switch (on front of door jamb)
• Right front door courtesy lamp
• Right rear courtesy lamp switch (lower rear of door)
• Right rear door courtesy lamp
• Right vanity mirror lamp
• Warning system (warning chime)

Courtesy Lamps Wiring Diagram, without Keyless Entry for Ford Pickup F250 1994

List of elements for Courtesy Lamps Wiring Diagram, without Keyless Entry for Ford Pickup F250 1994:

• (crew cab only)
• (not used)
• Battery saver input
• Bronco only
• C914
• Courtesy lamp input
• Crew cab only
• Crew cab w/ xlt
• Dome
• Dome lamp
• Engine compartment lamp
• F-series only
• Fuse 15a
• Fuse panel
• G108 radiator support) (4.9l) (left front of engine compt., top of radiator support) (all others) (left front of engine compt., on upper
• G200 (behind bottom of kick panel)
• Glove compartment lamp
• Hot at all times
• Inside cargo lamp
• Left front courtesy lamp switch
• Left front courtesy lamp switch (on front of door jamb)
• Left front door courtesy lamp
• Left rear courtesy lamp switch (lower rear of door)
• Left rear door courtesy lamp
• Left vanity mirror lamp
• Main light switch
• Map lamps
• Mirror system (power mirror switch)
• Outside cargo lamp
• Outside cargo/ high mount stop lamps (bronco)
• Outside cargo/ high mount stop lamps (f-series)
• Overhead console
• Red/ pnk
• Right front courtesy lamp switch (on front of door jamb)
• Right front door courtesy lamp
• Right rear courtesy lamp switch (lower rear of door)
• Right rear door courtesy lamp
• Right vanity mirror lamp
• Vanity mirrors (bronco/f-series) & overhead console (bronco only)
• Warning system (warning chime)

Instrument Illumination Wiring Diagram for Ford Pickup F250 1994

List of elements for Instrument Illumination Wiring Diagram for Ford Pickup F250 1994:

• (all)
• (premium sound)
• (standard)
• Ashtray illumination
• Auxiliary power socket
• Bronco only
• C211
• C250
• C257
• C267
• C278
• C914
• Cigar lighter
• Electronic shift control switch
• Fuse 15a
• Fuse 4a
• Fuse panel
• G200 (behind bottom of left kick panel)
• Gnd
• Head
• Headlights system
• Heater control illumination
• Hot at all times
• I/p feed
• I/p illum feed
• Ign
• Instrument cluster (5 bulbs)
• Main light switch
• Off
• Overhead console
• Park
• Power distribution system (fuse panel) (fuse 11)
• Radio
• Rear window defrost control
• Sound systems (radio)
