STARTING/CHARGING – Ford Pickup F250 1994 – SYSTEM WIRING DIAGRAMS

STARTING/CHARGING

4.9L

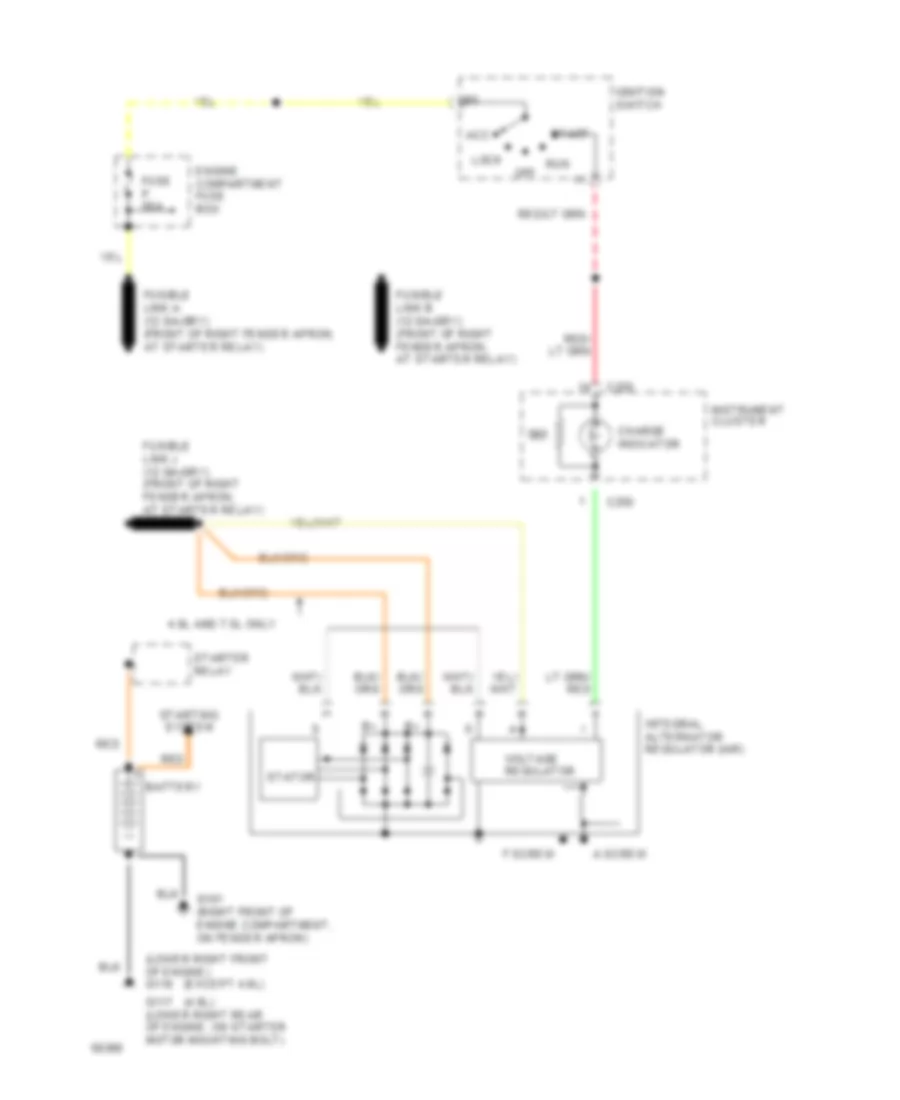

4.9L, Charging Wiring Diagram for Ford Pickup F250 1994

List of elements for 4.9L, Charging Wiring Diagram for Ford Pickup F250 1994:

• (4.9l)
• (except 4.9l)
• (lower right front of engine) g119
• 4.9l and 7.5l only
• A screw
• Acc
• Battery
• C250
• Charge indicator
• Engine compartment fuse box
• F screw
• Fuse p 50a
• G101 (right front of engine compartment, on fender apron)
• G117 (lower right rear of engine, on starter motor mounting bolt)
• Ignition switch
• Instrument cluster
• Integral alternator regulator (iar)
• Lock
• Off
• Red
• Run
• Start
• Starter relay
• Starting system
• Stator
• Voltage regulator

4.9L, Starting Wiring Diagram for Ford Pickup F250 1994

List of elements for 4.9L, Starting Wiring Diagram for Ford Pickup F250 1994:

• (4.9l)
• (except 4.9l)
• (left side of transmission)
• (lower right front of engine) g119
• Acc
• Anti-theft controller module (behind left side of i/p)
• Battery
• C238
• C6 transmission
• Clutch pedal position switch (top right side of brake/clutch pedal support)
• Clutch pedal positon switch jumper (behind left side of i/p, taped to harness)
• E4od or 4r70w transmission
• Engine compartment fuse box
• Except 5.8l lightning
• Fuse j 20a
• G101 (right front of engine compartment on fender apron)
• G117 (lower right rear of engine, on starter motor mounting bolt)
• Hold
• Ignition switch
• Lock
• Manual lever position sensor
• Manual transmission
• Off
• Park/neutral position switch (left side of transmission)
• Pull-in
• Red
• Run
• Sta
• Start
• Starter motor/solenoid
• Starter relay (front of right fender apron, behind battery)
• W/ anti- theft system
• W/o anti- theft system

5.0L

5.0L, Charging Wiring Diagram for Ford Pickup F250 1994

List of elements for 5.0L, Charging Wiring Diagram for Ford Pickup F250 1994:

• (4.9l)
• (except 4.9l)
• (lower right front of engine) g119
• 4.9l and 7.5l only
• A screw
• Acc
• Battery
• C250
• Charge indicator
• Engine compartment fuse box
• F screw
• Fuse p 50a
• G101 (right front of engine compartment, on fender apron)
• G117 (lower right rear of engine, on starter motor mounting bolt)
• Ignition switch
• Instrument cluster
• Integral alternator regulator (iar)
• Lock
• Off
• Red
• Run
• Start
• Starter relay
• Starting system
• Stator
• Voltage regulator

5.0L, Starting Wiring Diagram for Ford Pickup F250 1994

List of elements for 5.0L, Starting Wiring Diagram for Ford Pickup F250 1994:

• (4.9l)
• (except 4.9l)
• (left side of transmission)
• (lower right front of engine) g119
• Acc
• Anti-theft controller module (behind left side of i/p)
• Battery
• C238
• C6 transmission
• Clutch pedal position switch (top right side of brake/clutch pedal support)
• Clutch pedal positon switch jumper (behind left side of i/p, taped to harness)
• E4od or 4r70w transmission
• Engine compartment fuse box
• Except 5.8l lightning
• Fuse j 20a
• G101 (right front of engine compartment on fender apron)
• G117 (lower right rear of engine, on starter motor mounting bolt)
• Hold
• Ignition switch
• Lock
• Manual lever position sensor
• Manual transmission
• Off
• Park/neutral position switch (left side of transmission)
• Pull-in
• Red
• Run
• Sta
• Start
• Starter motor/solenoid
• Starter relay (front of right fender apron, behind battery)
• W/ anti- theft system
• W/o anti- theft system

5.8L

5.8L, Charging Wiring Diagram for Ford Pickup F250 1994

List of elements for 5.8L, Charging Wiring Diagram for Ford Pickup F250 1994:

• (4.9l)
• (except 4.9l)
• (lower right front of engine) g119
• 4.9l and 7.5l only
• A screw
• Acc
• Battery
• C250
• Charge indicator
• Engine compartment fuse box
• F screw
• Fuse p 50a
• G101 (right front of engine compartment, on fender apron)
• G117 (lower right rear of engine, on starter motor mounting bolt)
• Ignition switch
• Instrument cluster
• Integral alternator regulator (iar)
• Lock
• Off
• Red
• Run
• Start
• Starter relay
• Starting system
• Stator
• Voltage regulator

5.8L, Starting Wiring Diagram for Ford Pickup F250 1994

List of elements for 5.8L, Starting Wiring Diagram for Ford Pickup F250 1994:

• (4.9l)
• (except 4.9l)
• (left side of transmission)
• (lower right front of engine) g119
• Acc
• Anti-theft controller module (behind left side of i/p)
• Battery
• C238
• C6 transmission
• Clutch pedal position switch (top right side of brake/clutch pedal support)
• Clutch pedal positon switch jumper (behind left side of i/p, taped to harness)
• E4od or 4r70w transmission
• Engine compartment fuse box
• Except 5.8l lightning
• Fuse j 20a
• G101 (right front of engine compartment on fender apron)
• G117 (lower right rear of engine, on starter motor mounting bolt)
• Hold
• Ignition switch
• Lock
• Manual lever position sensor
• Manual transmission
• Off
• Park/neutral position switch (left side of transmission)
• Pull-in
• Red
• Run
• Sta
• Start
• Starter motor/solenoid
• Starter relay (front of right fender apron, behind battery)
• W/ anti- theft system
• W/o anti- theft system

7.3L

7.3L DI Turbo Diesel, Charging Wiring Diagram for Ford Pickup F250 1994

List of elements for 7.3L DI Turbo Diesel, Charging Wiring Diagram for Ford Pickup F250 1994:

• A screw
• Acc
• C250
• Charge indicator
• Engine compartment fuse box
• F screw
• Fuse p 50a
• G101 (right front of engine compartment, on fender apron)
• G109 (right front of engine compartment, on upper radiator support)
• G110 (lower left front of engine)
• G119 (lower right front of engine)
• Ignition switch
• Instrument cluster
• Integral alternator regulator (iar)
• Left battery
• Lock
• Off
• Red
• Right battery
• Run
• Start
• Starter relay
• Starting system
• Stator
• Voltage regulator

7.3L DI Turbo Diesel, Charging Wiring Diagram, with 165A Alternator for Ford Pickup F250 1994

List of elements for 7.3L DI Turbo Diesel, Charging Wiring Diagram, with 165A Alternator for Ford Pickup F250 1994:

• A/c terminal
• Acc
• Air conditioning system
• C250
• Charge indicator
• Charge indicator lamp relay (below starter relay)
• Engine compartment fuse box
• Fuse p 50a
• Fuse u 30a
• G101 (right front of engine compartment, on fender apron)
• G109 (right front of engine compartment, on upper radiator support)
• G110 (lower left front of engine)
• G119 lower right front of engine)
• Ignition switch
• Instrument cluster
• Leece/ neville alternator
• Left battery
• Lock
• Off
• Red
• Right battery
• Run
• Start
• Starter relay
• Starting system
• Stator
• Voltage regulator

7.3L DI Turbo Diesel, Starting Wiring Diagram for Ford Pickup F250 1994

List of elements for 7.3L DI Turbo Diesel, Starting Wiring Diagram for Ford Pickup F250 1994:

• (left side of transmission)
• A/t
• Acc
• Anti-theft controller module (behind left side of i/p)
• C238
• Clutch pedal position switch (top right side of brake/clutch pedal support)
• Clutch pedal positon switch jumper (behind left side of i/p, taped to harness)
• Engine compartment fuse box
• Fuse j 20a
• G101 (right front of engine compartment on fender apron)
• G109 (right front of engine compartment on upper radiator support)
• G110 (lower left front of engine)
• G119 (lower right front of engine)
• Hold
• Ignition switch
• Left battery
• Lock
• M/t
• Manual lever position sensor
• Off
• Pull-in
• Red
• Right battery
• Run
• Sta
• Start
• Starter motor/solenoid
• Starter relay (front of right fender apron, behind right battery)
• W/ anti- theft system
• W/o anti- theft system

7.3L IDI Diesel, Charging Wiring Diagram for Ford Pickup F250 1994

List of elements for 7.3L IDI Diesel, Charging Wiring Diagram for Ford Pickup F250 1994:

• A screw
• Acc
• C250
• Charge indicator
• Engine compartment fuse box
• F screw
• Fuse p 50a
• G101 (right front of engine compartment, on fender apron)
• G109 (right front of engine compartment, on upper radiator support)
• G110 (lower left front of engine)
• G119 (lower right front of engine)
• Ignition switch
• Instrument cluster
• Integral alternator regulator (iar)
• Left battery
• Lock
• Off
• Red
• Right battery
• Run
• Start
• Starter relay
• Starting system
• Stator
• Voltage regulator

7.3L IDI Diesel, Charging Wiring Diagram, with 165A Alternator for Ford Pickup F250 1994

List of elements for 7.3L IDI Diesel, Charging Wiring Diagram, with 165A Alternator for Ford Pickup F250 1994:

• A/c terminal
• Acc
• Air conditioning system
• C250
• Charge indicator
• Charge indicator lamp relay (below starter relay)
• Engine compartment fuse box
• Fuse p 50a
• Fuse u 30a
• G101 (right front of engine compartment, on fender apron)
• G109 (right front of engine compartment, on upper radiator support)
• G110 (lower left front of engine)
• G119 lower right front of engine)
• Ignition switch
• Instrument cluster
• Leece/ neville alternator
• Left battery
• Lock
• Off
• Red
• Right battery
• Run
• Start
• Starter relay
• Starting system
• Stator
• Voltage regulator

7.3L IDI Diesel, Starting Wiring Diagram for Ford Pickup F250 1994

List of elements for 7.3L IDI Diesel, Starting Wiring Diagram for Ford Pickup F250 1994:

• (left side of transmission)
• A/t
• Acc
• Anti-theft controller module (behind left side of i/p)
• C238
• Clutch pedal position switch (top right side of brake/clutch pedal support)
• Clutch pedal positon switch jumper (behind left side of i/p, taped to harness)
• Engine compartment fuse box
• Fuse j 20a
• G101 (right front of engine compartment on fender apron)
• G109 (right front of engine compartment on upper radiator support)
• G110 (lower left front of engine)
• G119 (lower right front of engine)
• Hold
• Ignition switch
• Left battery
• Lock
• M/t
• Manual lever position sensor
• Off
• Pull-in
• Red
• Right battery
• Run
• Sta
• Start
• Starter motor/solenoid
• Starter relay (front of right fender apron, behind right battery)
• W/ anti- theft system
• W/o anti- theft system

7.5L

7.5L, Charging Wiring Diagram for Ford Pickup F250 1994

List of elements for 7.5L, Charging Wiring Diagram for Ford Pickup F250 1994:

• (4.9l)
• (except 4.9l)
• (lower right front of engine) g119
• 4.9l and 7.5l only
• A screw
• Acc
• Battery
• C250
• Charge indicator
• Engine compartment fuse box
• F screw
• Fuse p 50a
• G101 (right front of engine compartment, on fender apron)
• G117 (lower right rear of engine, on starter motor mounting bolt)
• Ignition switch
• Instrument cluster
• Integral alternator regulator (iar)
• Lock
• Off
• Red
• Run
• Start
• Starter relay
• Starting system
• Stator
• Voltage regulator

7.5L, Starting Wiring Diagram for Ford Pickup F250 1994

List of elements for 7.5L, Starting Wiring Diagram for Ford Pickup F250 1994:

• (4.9l)
• (except 4.9l)
• (left side of transmission)
• (lower right front of engine) g119
• Acc
• Anti-theft controller module (behind left side of i/p)
• Battery
• C238
• C6 transmission
• Clutch pedal position switch (top right side of brake/clutch pedal support)
• Clutch pedal positon switch jumper (behind left side of i/p, taped to harness)
• E4od or 4r70w transmission
• Engine compartment fuse box
• Except 5.8l lightning
• Fuse j 20a
• G101 (right front of engine compartment on fender apron)
• G117 (lower right rear of engine, on starter motor mounting bolt)
• Hold
• Ignition switch
• Lock
• Manual lever position sensor
• Manual transmission
• Off
• Park/neutral position switch (left side of transmission)
• Pull-in
• Red
• Run
• Sta
• Start
• Starter motor/solenoid
• Starter relay (front of right fender apron, behind battery)
• W/ anti- theft system
• W/o anti- theft system
