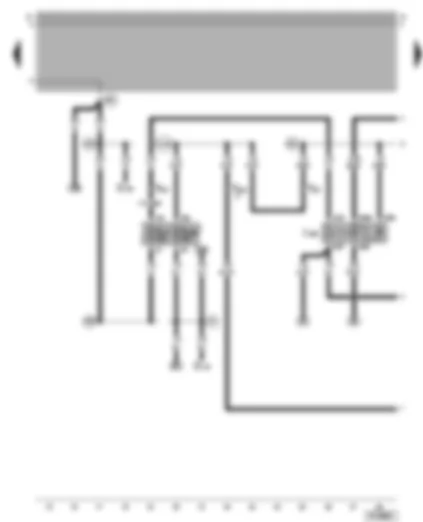

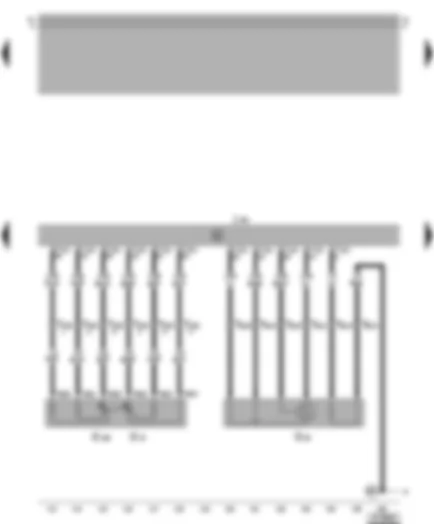

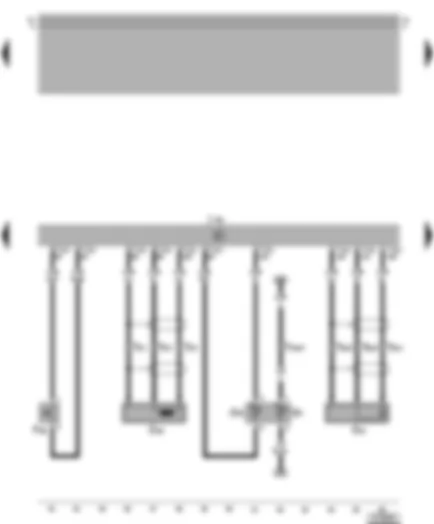

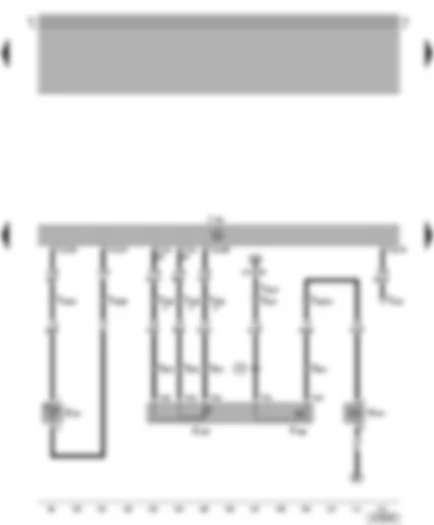

| A | Battery |
| B | Starter |
| C | Alternator |
| C1 | Voltage regulator |
| D | Ignition/starter switch |
| J59 | X-contact relief relay |
| J226 | Starter inhibitor and reversing light relay |
| S162 | Fuse 1 (30), in fuse holder on battery |
| S163 | Fuse 2 (30), in fuse holder on battery |
| S176 | Fuse 4 (30), in fuse holder on battery |
| S177 | Fuse 5 (30), in fuse holder on battery |
| T2e | 2-pin connector, near starter (in models without air conditioning system) |
| T4 | 4-pin connector, near starter (in models with air conditioning system) |
| T6 | 6-pin connector, brown, in connector protective housing, on left in plenum chamber |
| 500 | Screw connection 1 (30), on relay plate |
| 502 | Screw connection (30a), on relay plate |
| A41 | Positive connection (50), in dash panel wiring harness |
| D97 | Connection (50), in engine compartment wiring harness |
| * | only models with manual gearbox |
| --- | models with automatic gearbox only |
| ** | up August 2000 |
| -●●- | from September 2000 |
| D | Ignition/starter switch |
| J363 | Current supply relay for Simos control unit, in protective housing on left in engine compartment (control number 30) |
| S10 | Fuse 10 in fuse holder |
| S229 | Fuse 29 in fuse holder |
| T6 | 6-pin connector, brown, in connector protective housing, on left in plenum chamber |
| T14a | 14-pin connector, near battery (from May 2000), in cable channel left in engine compartment (up to April 2000) |
| 501 | Screw connection 2 (30), on relay plate |
| A2 | Positive connection (15), in dash panel wiring harness |
| A32 | Positive connection (30), in dash panel wiring harness |
| A98 | Positive connection 4 (30), in dash panel wiring harness |
| A104 | Positive connection 2 (15), in dash panel wiring harness |
| D51 | Positive connection 1 (15), in engine compartment wiring harness |
| G186 | Throttle valve drive (electric power control) |
| G187 | Throttle valve drive angle sender 1 (electric power control) |
| G188 | Throttle valve drive angle sender 2 (electric power control) |
| J338 | Throttle valve module |
| J361 | Simos control unit, in centre plenum chamber |
| N152 | Ignition transformer |
| P | Spark plug connector |
| Q | Spark plugs |
| T4a | 4-pin connector |
| T6a | 6-pin connector |
| T10w | 10-pin connector, white, in connector protective housing, on left in plenum chamber |
| T121 | 121-pin connector |
| D51 | Positive connection 1 (15), in engine compartment wiring harness |
| F88 | Power assisted steering pressure switch |
| G2 | Coolant temperature sender |
| G28 | Engine speed sender |
| G61 | Knock sensor 1 |
| G62 | Coolant temperature sender |
| J361 | Simos control unit, in centre plenum chamber |
| T3 | 3-pin connector, on front of engine |
| T3a | 3-pin connector, on front of engine |
| T14a | 14-pin connector, near battery (from May 2000), in cable channel left in engine compartment (up to April 2000) |
| T121 | 121-pin connector |
| F265 | Map-controlled engine cooling system thermostat |
| G40 | Hall sender |
| G212 | Exhaust gas recirculation potentiometer |
| J217 | Automatic gearbox control unit, in centre plenum chamber |
| J361 | Simos control unit, in centre plenum chamber |
| N18 | Exhaust gas recirculation valve |
| N156 | Variable intake manifold change-over valve |
| T2a | 2-pin connector, in cable channel left in engine compartment |
| T3b | 3-pin connector, on front of engine |
| T6d | 6-pin connector |
| T10 | 10-pin connector, orange, in connector protective housing, on left in plenum chamber |
| T68 | 68-pin connector |
| T121 | 121-pin connector |
| D101 | Connection 1, in engine compartment wiring harness |
| ** | connection air conditioning system |
| --- | models with automatic gearbox only |
| *** | radiator fan control unit connection |

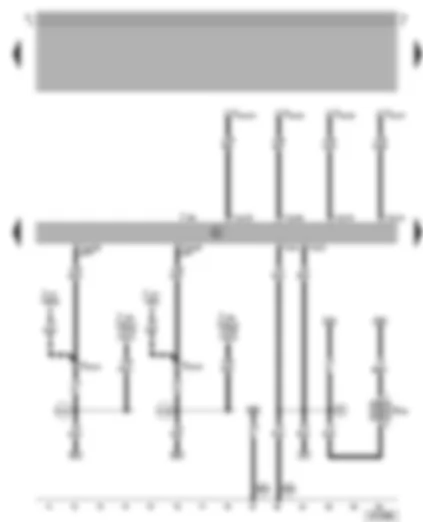

| J104 | ABS/ABS control unit with EDL |
| J217 | Automatic gearbox control unit |
| J361 | Simos control unit, in centre plenum chamber |
| N79 | Heater element for crankcase breather |
| T10w | 10-pin connector, white, in connector protective housing, on left in plenum chamber |
| T25 | 25-pin connector, on ABS/ABS control unit with EDL |
| T47 | 47-pin connector, on ABS with EDL control unit /TCS/ESP (up to July 2000) |
| T47a | 47-pin connector, on ABS/ ABS with EDL control unit /TCS/ESP (from August 2000) |
| T68 | 68-pin connector |
| T121 | 121-pin connector |
| 131 | Earth connection -2-, in engine compartment wiring harness |
| 608 | Earth point, in centre of plenum chamber |
| 609 | Earth point, on right in plenum chamber |
| A121 | Connection (high bus), in dash panel wiring harness |
| A122 | Connection (low bus), in dash panel wiring harness |
| --- | models with automatic gearbox only |
| J361 | Simos control unit, in centre plenum chamber |
| N30 | Injector, cylinder 1 |
| N31 | Injector, cylinder 2 |
| N32 | Injector, cylinder 3 |
| N33 | Injector, cylinder 4 |
| S232 | Fuse 32 in fuse holder |
| T10d | 10-pin connector, green, in connector protective housing, on left in plenum chamber |
| T10w | 10-pin connector, white, in connector protective housing, on left in plenum chamber |
| T14a | 14-pin connector, near battery (from May 2000), in cable channel left in engine compartment (up to April 2000) |
| T121 | 121-pin connector |
| A101 | Connection 3 (87), in dash panel wiring harness |
| D95 | Connection (injectors), in engine compartment wiring harness |
| * | Radiator fan control unit connection |
| F269 | Temperature flap position switch* |
| G83 | Radiator outlet coolant temperature sender |
| G267 | Potentiometer, temperature selection rotary knob* |
| J361 | Simos control unit, in centre plenum chamber |
| N147 | 2-way valve for coolant shut-off valve |
| T4e | 4-pin connector, behind centre dash panel (models without air conditioning system) |
| T5 | 5-pin connector |
| T8f | 8-pin connector, behind centre dash panel |
| T10 | 10-pin connector, orange, in connector protective housing, on left in plenum chamber |
| T10d | 10-pin connector, green, in connector protective housing, on left in plenum chamber |
| T10j | 10-pin connector, behind centre dash panel (models with air conditioning system) |
| T121 | 121-pin connector |
| L73 | Connection (15a), in fresh air blower wiring harness |
| * | F269 is closed when G267 is positioned on left limit stop. component not for Climatronic exist |

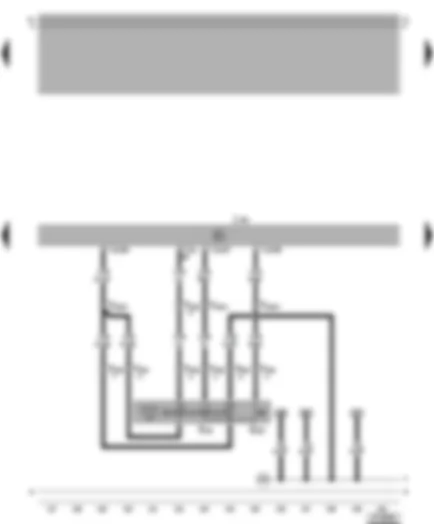

| G79 | Accelerator position sender |
| G39 | Lambda probe |
| G185 | Accelerator position sender -2- |
| J361 | Simos control unit, in centre plenum chamber |
| T6b | 6-pin connector |
| T6c | 6-pin connector, near catalytic converter |
| T10h | 10-pin connector, blue, in connector protective housing, on left in plenum chamber |
| T121 | 121-pin connector |
| E30 | Connection (87a), in engine wiring harness |
| E45 | Cruise control system switch** |
| E227 | Cruise control system (CCS) SET button** |
| J361 | Simos control unit, in centre plenum chamber |
| T10e | 10-pin connector, black, in connector protective housing, on left in plenum chamber |
| T10s | 10-pin connector, next to steering column |
| T121 | 121-pin connector |
| A20 | Connection (15a), in dash panel wiring harness |
| ** | only models with GND |
| F | Brake light switch |
| F36 | Clutch pedal switch |
| F47 | Cruise control system brake pedal switch |
| J299 | Secondary air pump relay, in protective housing on left in engine compartment (control number 100) |
| J361 | Simos control unit, in centre plenum chamber |
| N112 | Secondary air inlet valve |
| S13 | Fuse 13 in fuse holder |
| T10e | 10-pin connector, black, in connector protective housing, on left in plenum chamber |
| T10w | 10-pin connector, white, in connector protective housing, on left in plenum chamber |
| T121 | 121-pin connector |
| V101 | Secondary air pump motor |
| A18 | Connection (54), in dash panel wiring harness |
| A20 | Connection (15a), in dash panel wiring harness |
| * | only models with manual gearbox |
| G70 | Air mass meter |
| G130 | Lambda probe after catalytic converter |
| J17 | Fuel pump relay |
| J234 | Airbag control unit, behind the lower console |
| J361 | Simos control unit, in centre plenum chamber |
| N80 | Activated charcoal filter system solenoid valve 1 |
| T4b | 4-pin connector, near catalytic converter |
| T6 | 6-pin connector, brown, in connector protective housing, on left in plenum chamber |
| T10 | 10-pin connector, orange, in connector protective housing, on left in plenum chamber |
| T75 | 75-pin connector |
| T121 | 121-pin connector |
| A27 | Connection (speed signal), in dash panel wiring harness |
| A125 | Connection (crash signal), in dash panel wiring harness |
| G | Fuel gauge sender |
| G6 | Fuel pump |
| G32 | Coolant shortage indicator sender |
| S228 | Fuse 28 in fuse holder |
| S234 | Fuse 34 in fuse holder |
| S243 | Fuse 43 in fuse holder |
| T6 | 6-pin connector, brown, in connector protective housing, on left in plenum chamber |
| T14a | 14-pin connector, near battery (from May 2000), in cable channel left in engine compartment (up to April 2000) |
| 42 | Earth point, next to steering column |
| 81 | Earth connection 1, in dash panel wiring harness |
| 135 | Earth connection 2, in dash panel wiring harness |
| 269 | Earth connection (sender earth) 1, in dash panel wiring harness |
| 504 | Screw connection (87F), on relay plate |
| A99 | Connection 1 (87), in dash panel wiring harness |
| A100 | Connection 2 (87), in dash panel wiring harness |
| E30 | Connection (87a), in engine wiring harness |
| *** | from May 2000 |
| -●-- | up to April 2000 |
| F1 | Oil pressure switch |
| G22 | Speedometer sender (Hall sender, on gearbox) |
| G266 | Oil level and oil temperature sender |
| J285 | Control unit with display in dash panel insert |
| K3 | Oil pressure warning lamp |
| K28 | Coolant temperature/coolant shortage warning lamp |
| K38 | Oil level warning lamp* |
| S5 | Fuse 5 in fuse holder |
| S7 | Fuse 7 in fuse holder |
| T14a | 14-pin connector, near battery (from May 2000), in cable channel left in engine compartment (up to April 2000) |
| T32 | 32-pin connector, blue |
| T32a | 32-pin connector, green |
| 85 | Earth connection -1-, in engine compartment wiring harness |
| 608 | Earth point, in centre of plenum chamber |
| B163 | Positive connection 1 (15), in interior wiring harness |
| * | only flexible service interval display |
| G1 | Fuel gauge |
| G3 | Coolant temperature gauge |
| G5 | Rev. counter |
| G21 | Speedometer |
| H3 | Warning buzzer |
| J285 | Control unit with display in dash panel insert |
| K2 | Alternator warning lamp |
| K105 | Reserve fuel warning lamp |
| T12a | 12-pin connector, Climatronic connection only |
| T32 | 32-pin connector, blue |
| 42 | Earth point, next to steering column |
| 49 | Earth point, on steering column |
| 135 | Earth connection 2, in dash panel wiring harness |
| A13 | Connection (door contact switch), in dash panel wiring harness |
| A27 | Connection (speed signal), in dash panel wiring harness |
| * | revolution signal engine control unit |
| *** | from May 2000 |
| E86 | Multifunction display call-up button |
| E109 | Multifunction display memory switch |
| G17 | Ambient temperature sensor |
| J119 | Multifunction display |
| J285 | Control unit with display in dash panel insert |
| J533 | Data bus diagnostic interface, in dash panel insert |
| K132 | Electric power control fault lamp |
| T6e | 6-pin connector |
| T16 | 16-pin connector, in centre dash panel, self-diagnosis connection |
| T32 | 32-pin connector, blue |
| T32a | 32-pin connector, green |
| A76 | Connection (diagnosis wire K), in dash panel wiring harness |
