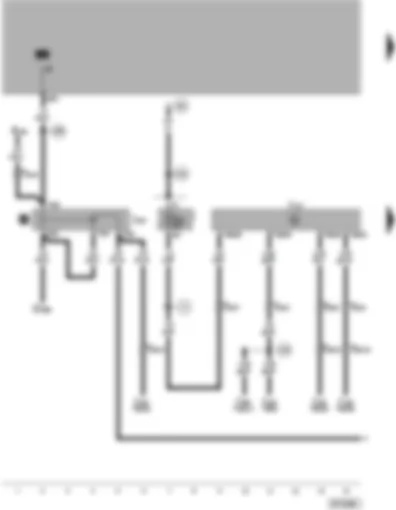

B | Starter |
D | Ignition/starter switch |
J207 | Starter inhibitor relay (204), on 13 position additional relay carrier |
J217 | Automatic gearbox control unit, in front right footwell |
J220 | Motronic control unit |
J285 | Control unit with display in dash panel insert |
S15 | Fuse in relay plate fuse box |
T6n | 6-pin connector, red, on protective housing for control units, in left engine compartment |
T9 | 9-pin connector, on starter inhibitor relay |
T10h | 10-pin connector, blue, on protective housing for control units, in left engine compartment |
T10i | 10-pin connector, blue, coupling station right A-pillar |
T32a | 32-pin connector, blue, on dash panel insert |
T80 | 80-pin connector, on Motronic control unit |
T88 | 88-pin connector, on automatic gearbox control unit |
501 | Screw connection -2- (30), on relay plate |
A1 | Positive (+) connection (30a), in dash panel wiring harness |
A32 | Positive connection (30), in dash panel wiring harness |
A45 | Connection (engine speed signal), in dash panel wiring harness |
A86 | Connection (50a), in dash panel wiring harness |
E45 | Cruise control system switch |
F125 | Multi-function switch |
G38 | Gearbox speed sender |
J104 | ABS with EDL control unit |
J217 | Automatic gearbox control unit, in front right footwell |
T8 | 8-pin connector, on left lower of gearbox |
T10i | 10-pin connector, blue, coupling station right A-pillar |
T10m | 10-pin connector, brown, coupling station right A-pillar |
T16a | 16-pin connector, on gearbox |
T31 | 31-pin connector, on ABS with EDL control unit |
T88 | 88-pin connector, on automatic gearbox control unit |
A87 | Connection (RL), in dash panel wiring harness |
114 | Earth connection (dash panel insert), in automatic gearbox wiring harness |
* | For vehicles with TC only |
--- | For vehicles with cruise control system only |
F | Brake light switch |
G68 | Road speed sender |
G93 | Gearbox oil temperature sender |
J217 | Automatic gearbox control unit, in front right footwell |
J285 | Control unit with display in dash panel insert |
N88 | Solenoid valve 1 |
N89 | Solenoid valve 2 |
N90 | Solenoid valve 3 |
N91 | Solenoid valve 4 |
N92 | Solenoid valve 5 |
N93 | Solenoid valve 6 |
N94 | Solenoid valve 7 |
T16 | 10-pin connector, self-diagnosis connector, in centre console near handbrake lever |
T16a | 16-pin connector, on gearbox |
T10m | 10-pin connector, brown, coupling station right A-pillar |
T32a | 32-pin connector, blue, on dash panel insert |
T88 | 88-pin connector, on automatic gearbox control unit |
A76 | Connection (diagnosis wire K), in dash panel wiring harness |
A89 | Connection -2- (54), in dash panel wiring harness |
W1 | Positive (+) connection (54), in rear wiring harness |
F8 | Kick-down switch |
J104 | ABS with EDL control unit |
J217 | Automatic gearbox control unit, in front right footwell |
J220 | Motronic control unit |
T10e | 10-pin connector, yellow, on protective housing for control units, in left engine compartment |
T10h | 10-pin connector, blue, on protective housing for control units, in left engine compartment on protective housing for control units, in left engine compartment |
T10i | 10-pin connector, blue, coupling station right A-pillar |
T10m | 10-pin connector, brown, coupling station right A-pillar |
T31 | 31-pin connector, on ABS with EDL control unit |
T80 | 80-pin connector, on Motronic control unit |
T88 | 88-pin connector, on automatic gearbox control unit |
Y5 | Selector lever position display |
12 | Earth point, in engine compartment, left |
33 | Earth point, behind dash panel, right |
114 | Earth connection, in automatic gearbox wiring harness |
124 | Earth connection, in engine compartment right wiring harness |
A75 | Connection (kick-down switch), in dash panel wiring harness |
* | For vehicles with TCS only |
D | Ignition/starter switch |
F189 | Tiptronic switch |
J17 | Fuel pump relay (208) |
J217 | Automatic gearbox control unit, in front right footwell |
K142 | Selector lever position P/N warning lamp |
L101 | Selector lever display illumination |
N110 | Selector lever lock solenoid |
S231 | Fuse in fuse holder |
T10i | 10-pin connector, blue, coupling station right A-pillar |
T10m | 10-pin connector, brown, coupling station right A-pillar (air conditioning system) |
T10q | 10-pin connector, under centre console |
T88 | 88-pin connector, on automatic gearbox control unit |
114 | Earth connection (dash panel insert), in automatic gearbox wiring harness |
A2 | Positive (+) connection (15), in dash panel wiring harness |
A19 | Connection (58d), in dash panel wiring harness |
A70 | Connection (15a, fuse 231), in dash panel wiring harness |
