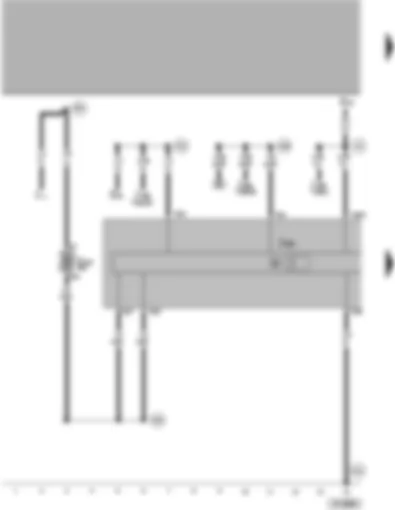

D | Ignition/starter switch |
J... | Engine control unit |
J285 | Control unit with display in dash panel insert |
J503 | Control unit with display for radio and navigation |
S237 | Fuse in fuse holder |
T8 | 8-pin connector, black |
T26 | 26-pin connector, black |
T32a | 32-pin connector, blue, on dash panel insert |
T32a | 32-pin connector, green, on dash panel insert |
501 | Screw connection -2- (30), on relay plate |
A2 | Positive (+) connection (15), in dash panel wiring harness |
A21 | Connection (86s), in dash panel wiring harness |
A23 | Connection (30al), in dash panel wiring harness |
A60 | Connection (road speed signal), in dash panel wiring harness |
611 | Earth connection, on fuel tank filler neck |
J412 | Telephone operating electronics control unit |
J503 | Control unit with display for radio and navigation |
L76 | Button illumination |
R41 | CD changer, in luggage compartment, left |
R50 | Navigation aerial (GPS), in base of roof aerial |
R51 | Radio/telephone/auxiliary heater aerial |
T1 | Single connector, near roof aerial |
T1a | Single connector, near roof aerial |
T1b | Single connector, near roof aerial |
T10t | 10-pin connector, red, coupling station left A-pillar |
T12 | 12-pin connector, red, on CD changer |
T20 | 20-pin connector |
613 | Earth point (audio), on left in luddage compartment |
E20 | Switches and instruments - lighting control |
F4 | Reversing light switch |
J104 | ABS with EDL control unit |
J412 | Telephone operating electronics control unit |
J503 | Control unit with display for radio and navigation |
T8 | 8-pin connector, black |
T10w | 10-pin connector |
T16 | 16-pin connector, self-diagnosis connector, near handbrake lever |
T18 | 18-pin connector |
T20 | 20-pin connector |
T26 | 26-pin connector, black |
T31 | 31-pin connector |
A19 | Connection (58d), in dash panel wiring harness |
A76 | Connection (diagnosis wire K), in dash panel wiring harness |
A87 | Connection (RL), in dash panel wiring harness |
* | For vehicles with telephone only |
J412 | Telephone operating electronics control unit |
R12 | Amplifier, under rear shelf |
R16 | Treble loudspeaker, rear right |
R17 | Bass loudspeaker, rear right |
T6d | 6-pin connector, black, B-pillar right |
T10u | 10-pin connector, orange, coupling station right A-pillar |
T15 | 15-pin connector, white, coupling station left A-pillar |
T18 | 18-pin connector |
T23 | 23-pin connector |
T24 | 24-pin connector |
57 | Earth point, left rear pillar |
255 | Earth connection -1-, in radio wiring harness |
R12 | Amplifier, under rear shelf |
R14 | Treble loudspeaker, rear left, in door |
R15 | Bass loudspeaker, rear left, in door |
R20 | Treble loudspeaker, front left, in door |
R21 | Bass loudspeaker, front left, in door |
R22 | Treble loudspeaker, front right, in door |
R23 | Bass loudspeaker, front right, in door |
S260 | DSP for amplifier fuse, on additional relay carrier, behind relay plate |
T4 | 4-pin connector, black, coupling station right A-pillar |
T4b | 4-pin connector, black, coupling station left A-pillar |
T4c | 4-pin connector, black, coupling station left A-pillar |
T6c | 6-pin connector, red, on B-pillar, left |
T4c | 8-pin connector, black, coupling station left A-pillar |
T8d | 8-pin connector, black, coupling station right A-pillar |
T23 | 23-pin connector |
501 | Screw connection -2- (30), on relay plate |
V21 | Positive connection (30), in radio - amplifier wiring harness |
