Электросхемы Автомтическая коробка Передач (АКПП) Полная привод (4WD) Блокировка Дифференциала Audi Q5 Premium Plus 2014

Автомтическая коробка Передач (АКПП) Полная привод (4WD) Блокировка Дифференциала

Электросхема автоматической коробки передач АКПП (1 из 2) для Audi Q5 Premium Plus 2014

Электросхема автоматической коробки передач АКПП (1 из 2) для Audi Q5 Premium Plus 2014 - Список элементов:

• 10a
• 12a
• 2.0l turbo
• 2.0l turbo hybrid
• 3.0l sc
• 3.0l turbo diesel
• Access/ start authorization button
• Automatic transmission pressure regulating valve 1
• Automatic transmission pressure regulating valve 2
• Automatic transmission pressure regulating valve 3
• Automatic transmission pressure regulating valve 4
• Automatic transmission pressure regulating valve 5
• Automatic transmission pressure regulating valve 6
• Automatic transmission pressure regulating valve 7
• Comfort system central control module (right side of luggage compt)
• Computer data lines system
• Drive position sensor
• Engine control module (except diesel: in left plenum chamber) (diesel: left rear of engine)
• Fuse 15a
• Fuse 5a
• Fuse carrier 1
• Fuse panel c (left end of dash)
• G12 (left rear of engine compt)
• G688 (under right front of center console)
• Hot at all times
• Instrument cluster control module
• Relay/ fuse panel b (driver's side plenum chamber on electronics box)
• Selector lever sensor system control module
• Solenoid valve 1
• T17e
• T17q
• T32b
• T32d
• T91
• T94
• Transmission control module (tcm) (left side of transmission)
• Transmission fluid temperature sensor
• Transmission input speed sensor
• Transmission output speed sensor
• Transmission park selector switch & shift lock solenoid (on shift lock solenoid assembly)
• Vehicle electrical system control module (left side of dash)

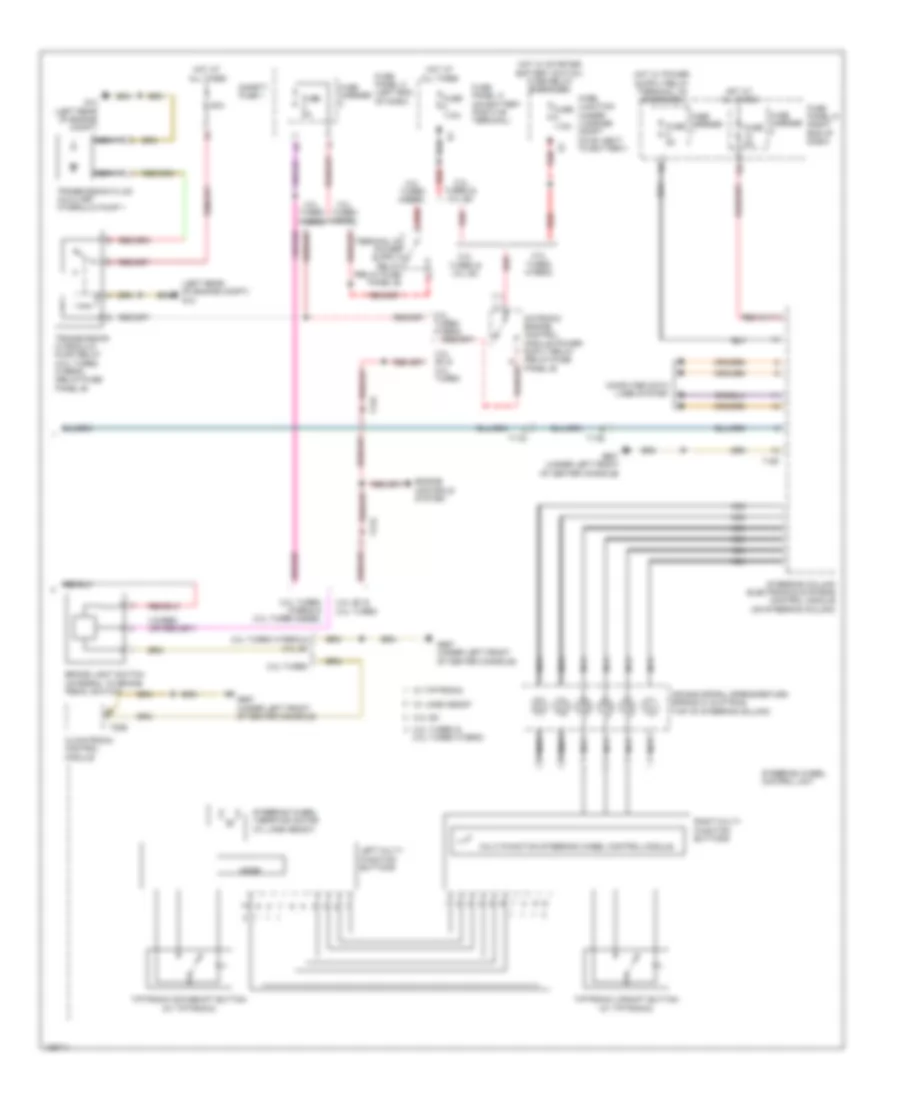

Электросхема автоматической коробки передач АКПП (2 из 2) для Audi Q5 Premium Plus 2014

Электросхема автоматической коробки передач АКПП (2 из 2) для Audi Q5 Premium Plus 2014 - Список элементов:

• (left rear of engine compt) g12
• 12a
• 2.0l turbo
• 2.0l turbo & 2.0l turbo hybrid
• 2.0l turbo & 3.0l sc
• 2.0l turbo hybrid
• 2.0l turbo hybrid & 3.0l sc
• 2.0l turbo hybrid & 3.0l turbo diesel
• 3.0l sc
• 3.0l sc & 2.0l turbo
• 3.0l turbo diesel
• 50a
• Air bag spiral spring/return spring w/ slip ring (top of steering column)
• Brake light switch (integral to brake pedal switch)
• Climatronic control module
• Computer data lines system
• Engine controls system
• Fuse 110a
• Fuse 5a
• Fuse carrier
• Fuse panel a (on battery positive terminal)
• Fuse panel c (left end of dash)
• Fuse panel d (right end of dash)
• G12 (left rear of engine compt)
• G687 (under left front of center console)
• Hot at all times
• Hot w/ starter battery switch- over relay energized
• Left multi- function buttons
• Mode
• Motronic engine control module power suply relay (relay/fuse panel b)
• Multi-function steering wheel control module
• Nca
• Red
• Right multi- function buttons
• Safety fuse 1
• Steering column electronics systems control module (on steering column)
• Steering wheel control unit
• Steering wheel vibration motor (w/ lane assist)
• T16f
• T17b
• T17e
• T17q
• T20e
• Tiptronic downshift button (w/ tiptronic)
• Tiptronic upshift button (w/ tiptronic)
• Transmission fluid auxiliary hydraulic pump 1
• Transmission hydraulic pump relay (2.0l turbo hybrid) (relay/fuse panel b)
• W/ lane assist
• W/ tiptronic
• Wire junction (under luggage compt cove, next to battery)

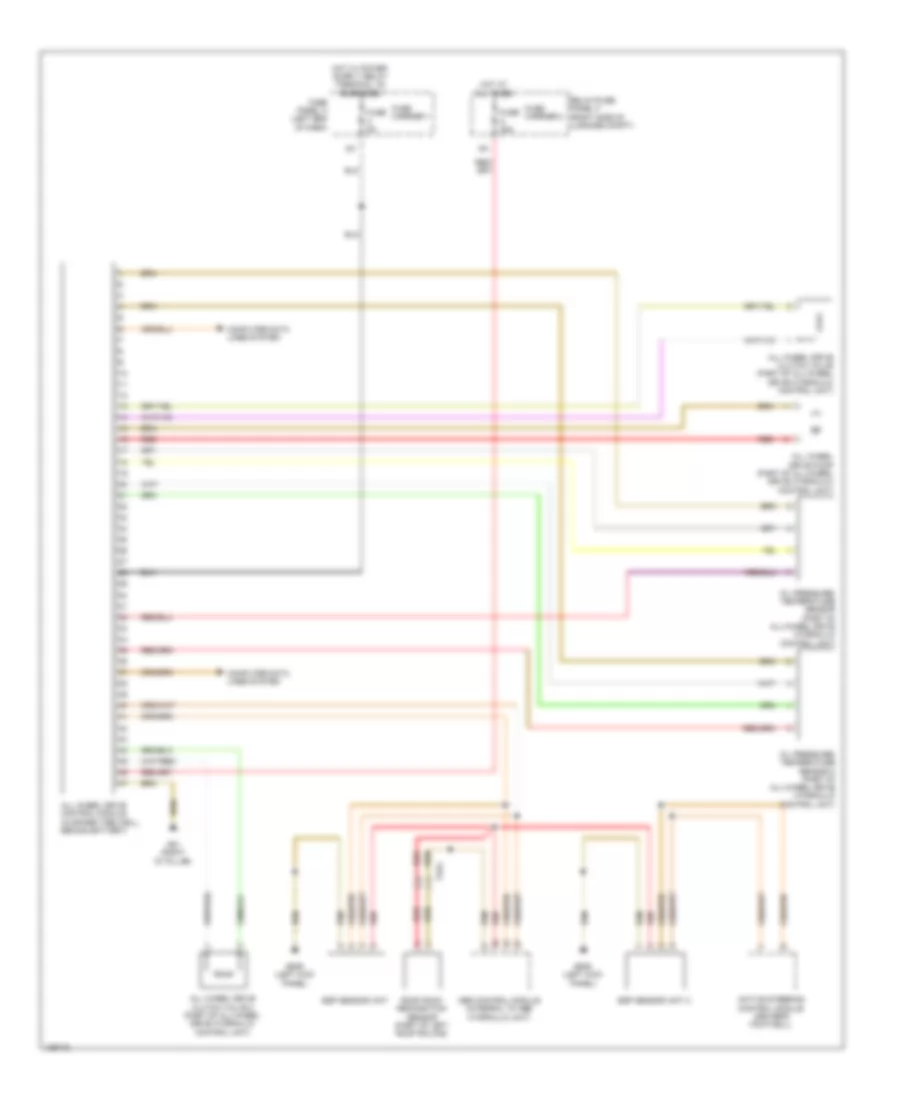

Электросхема полного привода AWD для Audi Q5 Premium Plus 2014

Электросхема полного привода AWD для Audi Q5 Premium Plus 2014 - Список элементов:

• Abs control module (integral to abs hydraulic unit)
• Active steering control module (driver's footwell)
• All wheel drive clutch valve (part of all-wheel drive hydraulic control unit)
• All wheel drive clutch valve 2 (part of all-wheel drive hydraulic control unit)
• All wheel drive control module (in spare tire well, behind battery)
• All wheel drive pump (part of all-wheel drive hydraulic control unit)
• Computer data lines system
• Esp sensor unit
• Esp sensor unit 2
• Fuse 35a
• Fuse 5a
• Fuse carrier 1
• Fuse carrier 2
• Fuse panel c (left end of dash)
• G51 (right "d" pillar)
• G639 (left kick panel)
• Hot at all times
• Oil pressure/ temperature sensor (part of all-wheel drive hydraulic control unit)
• Oil pressure/ temperature sensor 2 (part of all-wheel drive hydraulic control unit)
• Red
• Relay/fuse panel f (right side of luggage compt)
• Roof rack recognition sensor (part of left roof railing)
• T2ax
