СИСТЕМА АНТИБЛОКИРОВОЧНОЙ ТОРМОЗНОЙ СИСТЕМЫ ABS

Электросхема антиблокировочной тормозной системы АБС (ABS) (1 из 3) для Audi Q5 Premium Plus 2014

Электросхема антиблокировочной тормозной системы АБС (ABS) (1 из 3) для Audi Q5 Premium Plus 2014 - Список элементов:

• (not used)
• 40a
• Abs control module (integral to abs hydraulic unit)
• Abs control module fuse 1
• Abs hydraulic pump
• Auto hold button
• Computer data lines system
• Electro-mechanical parking brake button
• Fuse 10a
• Fuse 110a
• Fuse 5a
• Fuse carrier 1
• Fuse carrier 2
• Fuse panel a (on battery positive terminal)
• Fuse panel c (left end of dash)
• G671 (on lower left front long member)
• Hot at all times
• Left front abs wheel speed sensor (on left front brake hub)
• Left rear abs wheel speed sensor (on left rear brake hub)
• Red
• Roof rack recognition sensor (part of left roof railing)
• T17d
• T2ax
• Valve 1 pressure switch regulation high driving dynamics
• Valve 1 regulation switch driving dynamics
• Valve 2 pressure switch regulation high driving dynamics
• Valve 2 regulation switch driving dynamics
• Valve abs inlet left front
• Valve abs inlet left rear
• Valve abs inlet right front
• Valve abs inlet right rear
• Valve abs outlet left front
• Valve abs outlet left rear
• Valve abs outlet right front
• Valve abs outlet right rear

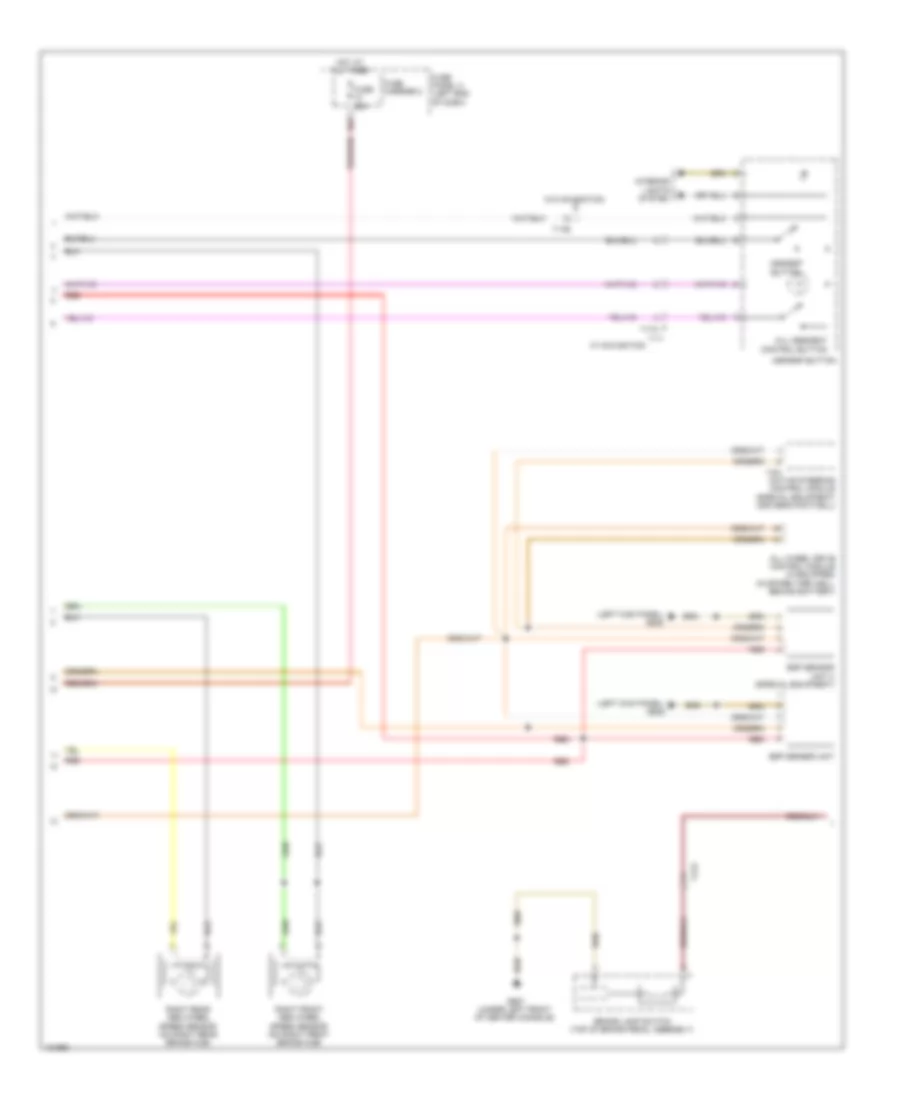

Электросхема антиблокировочной тормозной системы АБС (ABS) (2 из 3) для Audi Q5 Premium Plus 2014

Электросхема антиблокировочной тормозной системы АБС (ABS) (2 из 3) для Audi Q5 Premium Plus 2014 - Список элементов:

• (left kick panel) g639
• 10a
• Active steering control module (special equipment) (driver's footwell)
• All wheel drive control module (if equipped) (in spare tire well, behind battery)
• Asr/esp button
• Brake lamp switch (top of brake pedal assembly)
• Esp sensor unit
• Esp sensor unit 2 (special equipment)
• Fuse 25a
• Fuse carrier 2
• Fuse panel c (left end of dash)
• G687 (under left front of center console)
• Hill descent control button
• Hot at all times
• I10h
• Interior lights system
• Red
• Right front abs wheel speed sensor (on right front brake hub)
• Right rear abs wheel speed sensor (on right rear brake hub)
• T17c
• T17e
• W/ navigation
• W/o navigation

Электросхема антиблокировочной тормозной системы АБС (ABS) (3 из 3) для Audi Q5 Premium Plus 2014

Электросхема антиблокировочной тормозной системы АБС (ABS) (3 из 3) для Audi Q5 Premium Plus 2014 - Список элементов:

• (on steering column) steering column electronics control module
• Abs ind lamp
• Asr/esp ind lamp
• Comfort system central control module (right side of luggage compt)
• Computer data lines system
• Engine control module (diesel: left rear of engine) (except diesel: in left plenum chamber)
• Fuse 5a
• Fuse carrier 1
• Fuse carrier 2
• Fuse panel d (right end of dash)
• G687 (under left front of center console)
• Hot at all times
• Instrument cluster control module
• Nca
• Steering angle sensor (top of steering column)
• T17r
• T32c
• T32d
• T94
