Электросхема противоугонной сигнализации (1 из 2) для Audi Q5 Premium Plus 2014

Электросхема противоугонной сигнализации (1 из 2) для Audi Q5 Premium Plus 2014 - Список элементов:

• (if equipped) left front exterior door handle touch sensor
• (if equipped) right front exterior door handle touch sensor
• 11a
• 12a
• Alarm horn (in right plenum chamber)
• Antenna amplifier (left center of rear lid)
• Anti-theft alarm system sensor (in front interior/ reading light)
• Central locking & anti-theft alarm system antenna
• Comfort system central control module (right side of luggage compt)
• Computer data lines system
• Fuse 20a
• Fuse 5a
• Fuse carrier
• Fuse carrier 2
• Fuse carrier 3
• Fuse panel c (left end of dash)
• Fuse panel d (right end of dash)
• G638 (right kick panel)
• G639 (left kick panel)
• G663 (right "c" pillar)
• Hot at all times
• Interior access/ start authorization antenna 1 (under front of center console)
• Left access/start authorization antenna (if equipped) (in left rear door)
• Luggage compartment access/start authorization antenna (left rear of luggage compt)
• Relay/ fuse panel f (right side of luggage compt)
• T17o
• T1h
• T20m
• T27a
• T27b
• T27d
• T2de
• T32c
• T32d
• T32e

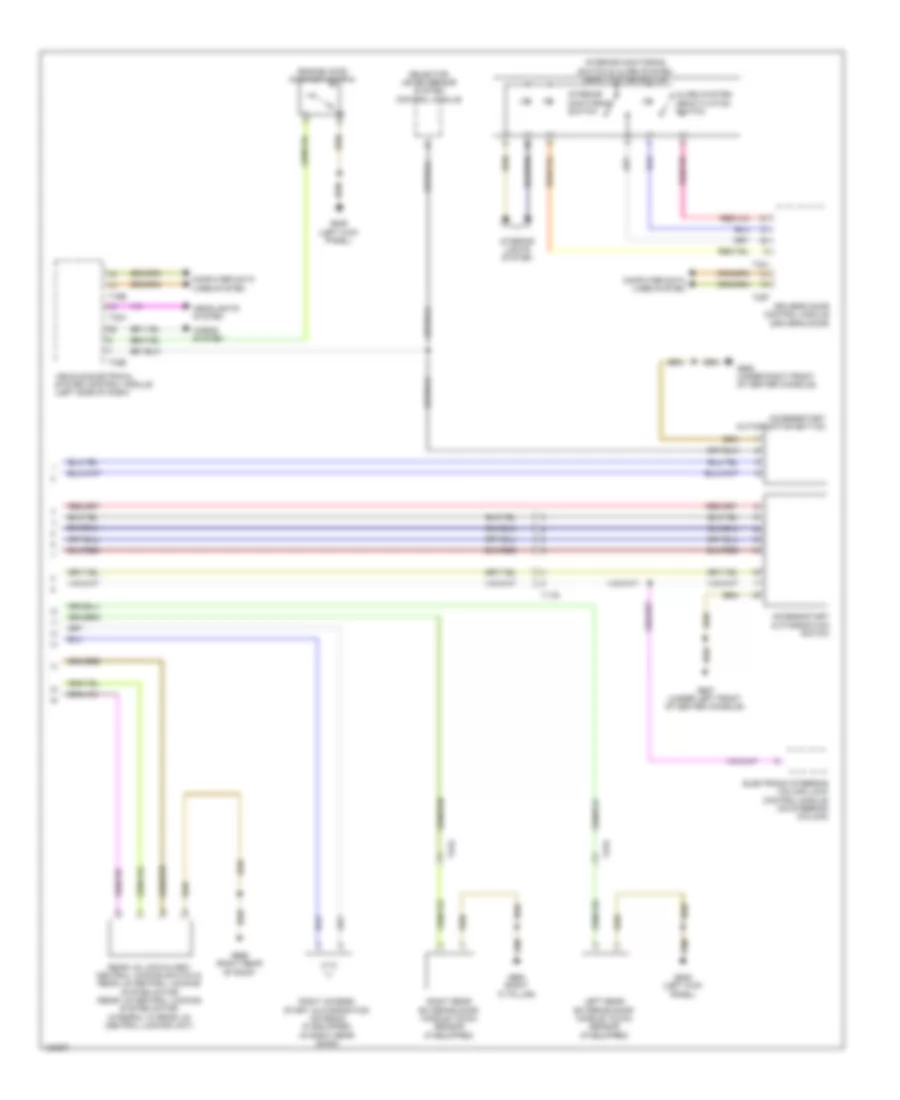

Электросхема противоугонной сигнализации (2 из 2) для Audi Q5 Premium Plus 2014

Электросхема противоугонной сигнализации (2 из 2) для Audi Q5 Premium Plus 2014 - Список элементов:

• Access/start authorization button
• Access/start authorization switch
• Alarm system deactivation switch
• Computer data lines system
• Driver's door control module (driver's door)
• Electronic steering column lock control module (on steering column)
• Engine hood contact switch
• G639 (left kick panel)
• G663 (right "c" pillar)
• G666 (right rear of roof)
• G687 (under left front of center console)
• G688 (under right front of center console)
• Headlights system
• Horns system
• Interior lights system
• Interior monitoring switch
• Interior monitoring switch & alarm system deactivation switch
• Left rear exterior door handle touch sensor (if equipped)
• Rear lid lock/alarm/ central locking switch & rear lid central locking system motor (rear lid central locking system motor: integral to rear lid central locking unit)
• Right access/ start authorization antenna (if equipped) (in right rear door)
• Right rear exterior door handle touch sensor (if equipped)
• Selector lever sensor system control module
• T16b
• T17g
• T20f
• T27b
• T27d
• T32a
• T32b
• T32j
• Vehicle electrical system control module (left side of dash)
