Электросхемы СИСТЕМЫ СИДЕНИЙ Audi Q5 Premium Plus 2014

СИСТЕМЫ СИДЕНИЙ

водитель "s Электросхема регулировки поясницы для Audi Q5 Premium Plus 2014

водитель "s Электросхема регулировки поясницы для Audi Q5 Premium Plus 2014 - Список элементов:

• Driver seat lumbar support adjustment switch
• Driver seat lumbar support curvature adjustment motor (driver's seat back)
• Driver seat lumbar support height adjustment motor (driver's seat back)
• Front passenger's seat lumbar support adjustment switch
• Fuse 10a
• Fuse carrier 3
• Fuse panel c (left end of dash)
• G639 (left kick panel)
• Hot at all times
• T10m
• T10p
• T4u

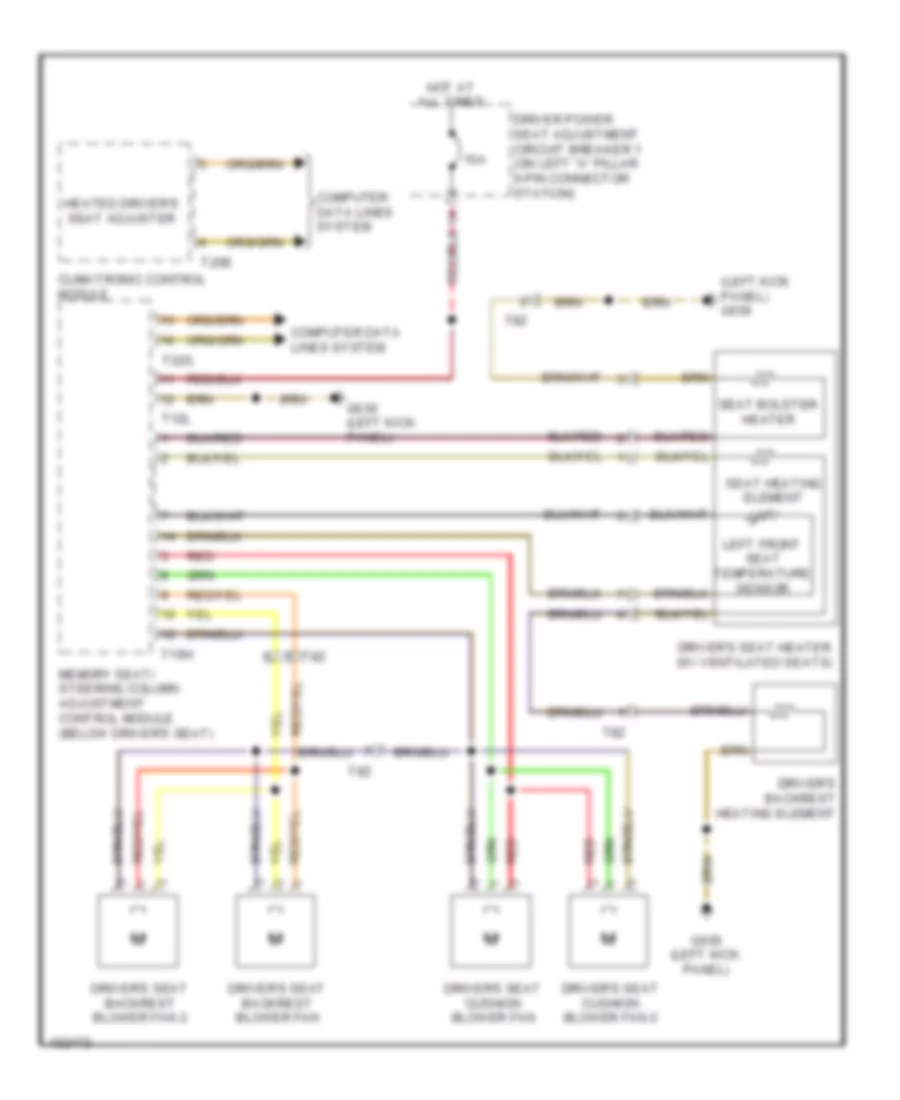

Электросхема подогрева передних сидений, С память для Audi Q5 Premium Plus 2014

Электросхема подогрева передних сидений, С память для Audi Q5 Premium Plus 2014 - Список элементов:

• (left kick panel) g639
• 15a
• Climatronic control module
• Computer data lines system
• Driver power seat adjustment circuit breaker 1 (on left "a" pillar 6-pin connector station)
• Driver's backrest heating element
• Driver's seat backrest blower fan
• Driver's seat backrest blower fan 2
• Driver's seat cushion blower fan
• Driver's seat cushion blower fan 2
• Driver's seat heater (w/ ventilated seats)
• G639 (left kick panel)
• Heated driver's seat adjuster
• Hot at all times
• Left front seat temperature sensor
• Memory seat/ steering column adjustment control module (below driver's seat)
• Red
• Seat bolster heater
• Seat heating element
• T12l
• T16h
• T20e
• T32g
• T8z

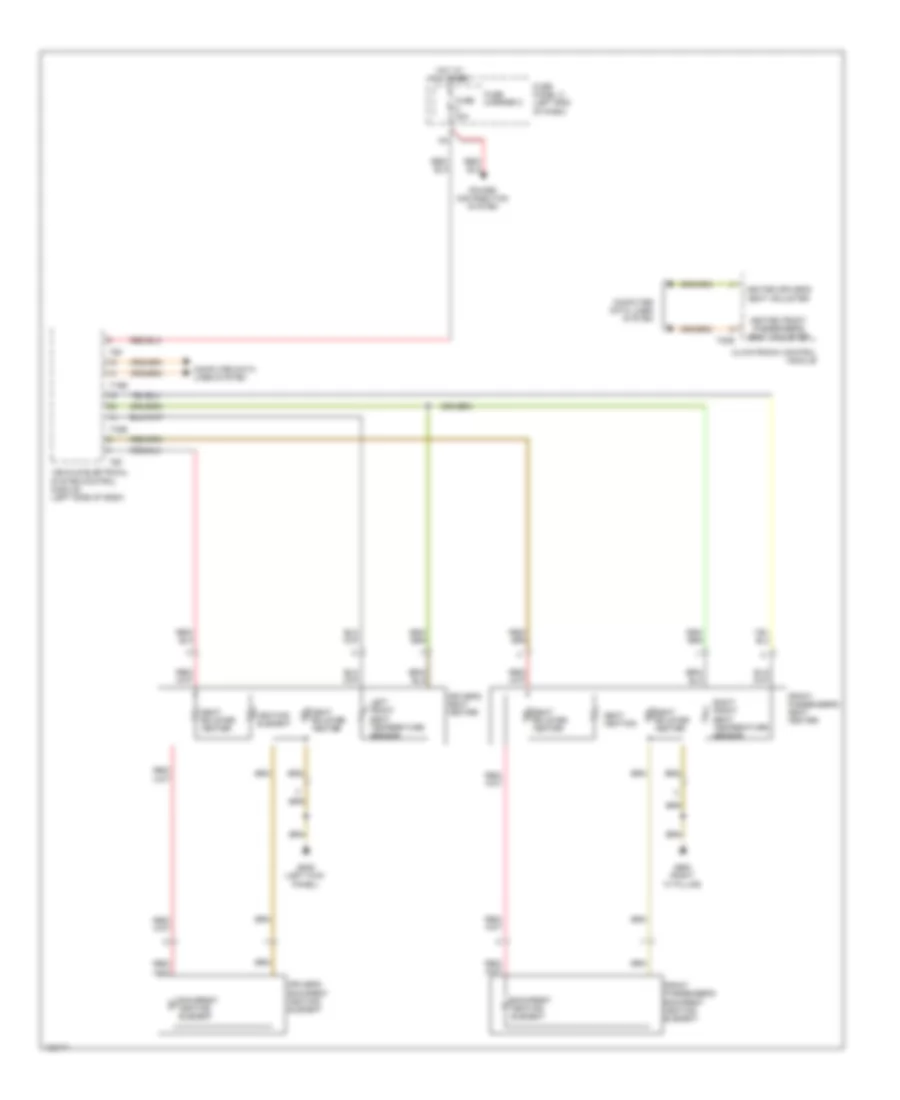

Электросхема подогрева передних сидений, без Память и Вентиляция для Audi Q5 Premium Plus 2014

Электросхема подогрева передних сидений, без Память и Вентиляция для Audi Q5 Premium Plus 2014 - Список элементов:

• Backrest heating element
• Climatronic control module
• Computer data lines system
• Driver's backrest heating element
• Driver's seat heater
• Front passenger's backrest heating element
• Front passenger's seat heater
• Fuse 30a
• Fuse carrier 2
• Fuse panel c (left end of dash)
• G639 (left kick panel)
• G663 (right "c" pillar)
• Heated driver's seat adjuster
• Heated front passenger's seat adjuster
• Heating element
• Hot at all times
• Left front seat temperature sensor
• Power distribution system
• Right front seat temperature sensor
• Seat bolster heater
• Seat heating
• T16b
• T20e
• T32b
• T6f
• Vehicle electrical system control module (left side of dash)

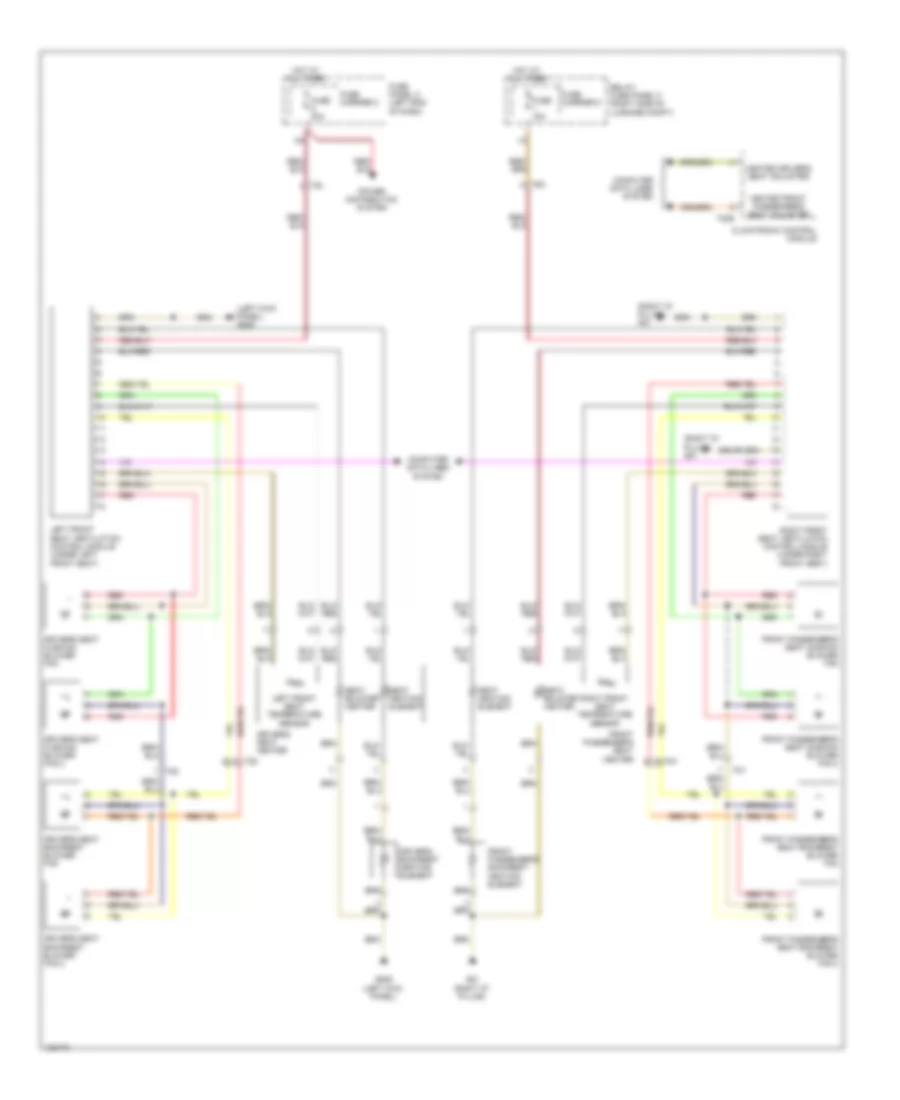

Электросхема подогрева передних сидений, без Память С Вентиляция для Audi Q5 Premium Plus 2014

Электросхема подогрева передних сидений, без Память С Вентиляция для Audi Q5 Premium Plus 2014 - Список элементов:

• (left kick panel) g639
• (right "d" pillar) g51
• Climatronic control module
• Computer data lines system
• Driver's backrest heating element
• Driver's seat backrest blower fan
• Driver's seat backrest blower fan 2
• Driver's seat cushion blower fan
• Driver's seat cushion blower fan 2
• Driver's seat heater
• Front passenger's backrest heating element
• Front passenger's seat backrest blower fan
• Front passenger's seat backrest blower fan 2
• Front passenger's seat cushion blower fan
• Front passenger's seat cushion blower fan 2
• Front passenger's seat heater
• Fuse 15a
• Fuse 30a
• Fuse carrier 2
• Fuse carrier 5
• Fuse panel c (left end of dash)
• G51 (right "d" pillar)
• G639 (left kick panel)
• Heated driver's seat adjuster
• Heated front passenger's seat adjuster
• Hot at all times
• Left front seat temperature sensor
• Left front seat ventilation control module (under left front seat)
• Power distribution system
• Red
• Relay/ fuse panel f (right side of luggage compt)
• Right front seat temperature sensor
• Right front seat ventilation control module (under right front seat)
• Seat bolster heater
• Seat heating element
• T20e
• T6k
• T6l
• T8y
• T8z

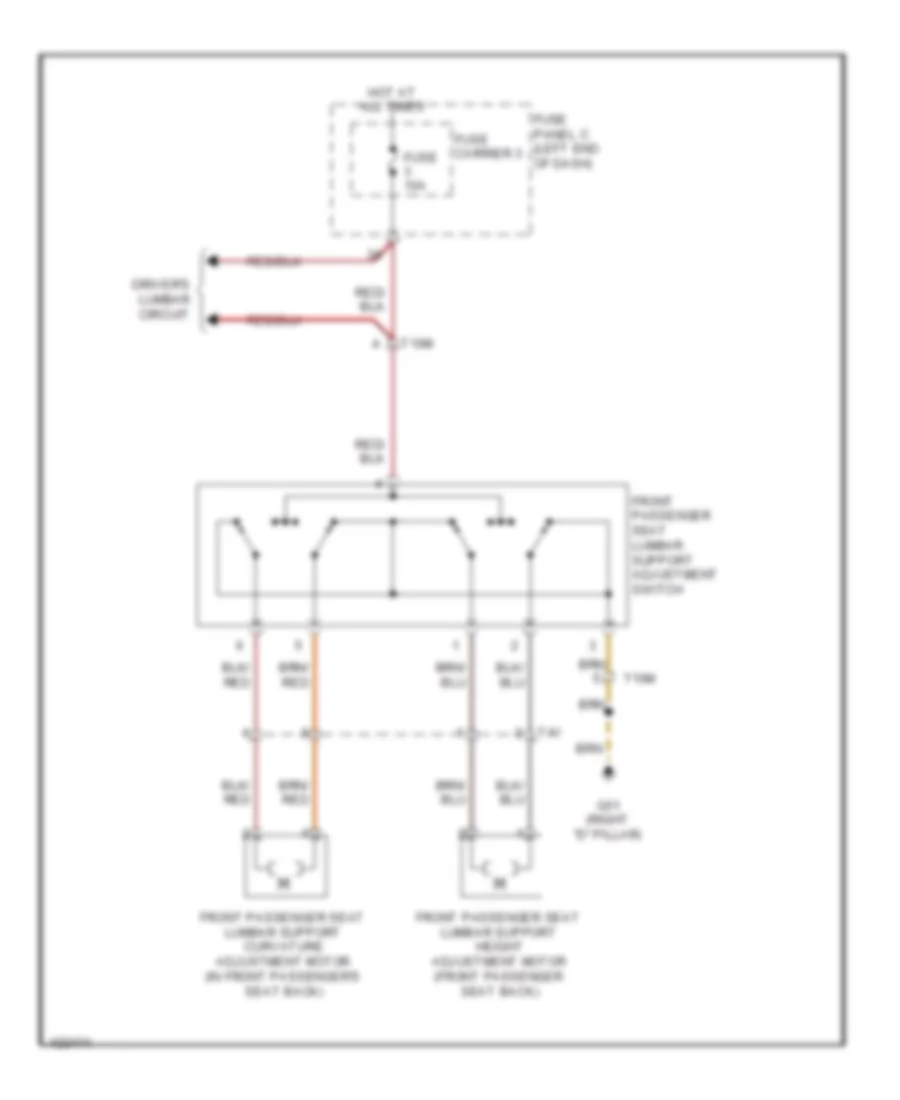

пассажир "s Электросхема регулировки поясницы для Audi Q5 Premium Plus 2014

пассажир "s Электросхема регулировки поясницы для Audi Q5 Premium Plus 2014 - Список элементов:

• Driver's lumbar circuit
• Front passenger seat lumbar support adjustment switch
• Front passenger seat lumbar support curvature adjustment motor (in front passenger's seat back)
• Front passenger seat lumbar support height adjustment motor (front passenger seat back)
• Fuse 10a
• Fuse carrier 3
• Fuse panel c (left end of dash)
• G51 (right "d" pillar)
• Hot at all times
• T10m
• T4v

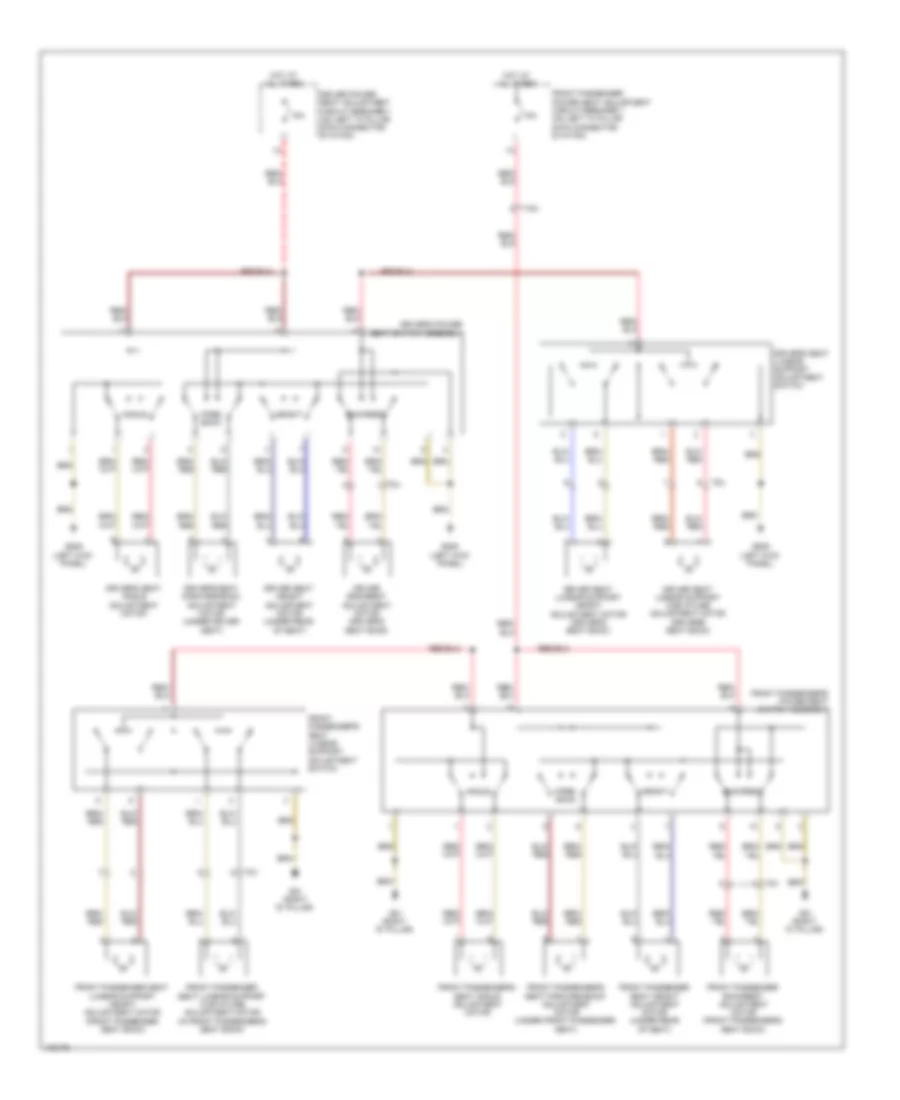

Электросхема привода сидений для Audi Q5 Premium Plus 2014

Электросхема привода сидений для Audi Q5 Premium Plus 2014 - Список элементов:

• 15a
• Angle
• Backrest
• Driver backrest adjustment motor (driver's seat back)
• Driver power seat adjustment circuit breaker 1 (on left "a" pillar 6-pin connector station)
• Driver seat height adjustment motor (under rear of seat)
• Driver seat lumbar support curvature adjustment motor (driver's seat back)
• Driver seat lumbar support height adjustment motor (driver's seat back)
• Driver's power seat switch assembly
• Driver's seat angle adjustment motor
• Driver's seat forward/back adjustment motor (under driver seat)
• Driver's seat lumbar support adjustment switch
• Fore/ back
• Front passenger backrest adjustment motor (front passenger's seat back)
• Front passenger power seat adjustment circuit breaker 1 (on left "a" pillar 6-pin connector station)
• Front passenger seat height adjustment motor (under rear of seat)
• Front passenger seat lumbar support curvature adjustment motor (in front passenger's seat back)
• Front passenger seat lumbar support height adjustment motor (front passenger seat back)
• Front passenger's power seat switch assembly
• Front passenger's seat angle adjustment motor
• Front passenger's seat forward/back adjustment motor (under front passenger seat)
• Front passenger's seat lumbar support adjustment switch
• G51 (right "d" pillar)
• G639 (left kick panel)
• Height
• Hot at all times
• T10m
• T8u
• T8v

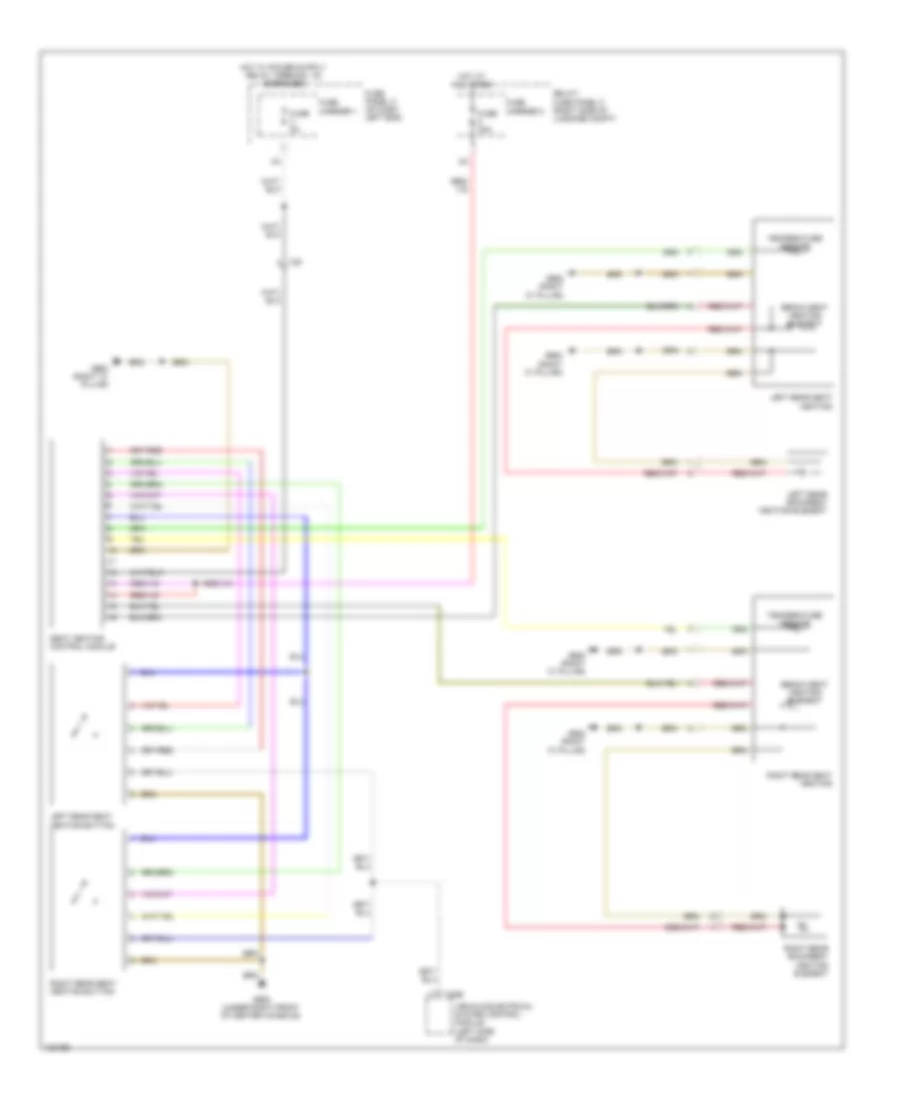

Электросхема подогрева задних сидений для Audi Q5 Premium Plus 2014

Электросхема подогрева задних сидений для Audi Q5 Premium Plus 2014 - Список элементов:

• Bench seat heating element
• Fuse 30a
• Fuse 5a
• Fuse carrier 1
• Fuse carrier 3
• Fuse panel c (of dash left end)
• G663 (right "c" pillar)
• G688 (under right front of center console)
• Hot at all times
• Left rear backrest heating element
• Left rear seat heating
• Left rear seat heating button
• Relay/ fuse panel f (right side of luggage compt)
• Right rear backrest heating element
• Right rear seat heating
• Right rear seat heating button
• Seat heating control module
• T32b
• T8f
• Temperature sensor
• Vehicle electrical system control module (left side of dash)
