Электросхемы Магнитола Мультимедия Audi Q7 3.6 2008

Магнитола Мультимедия

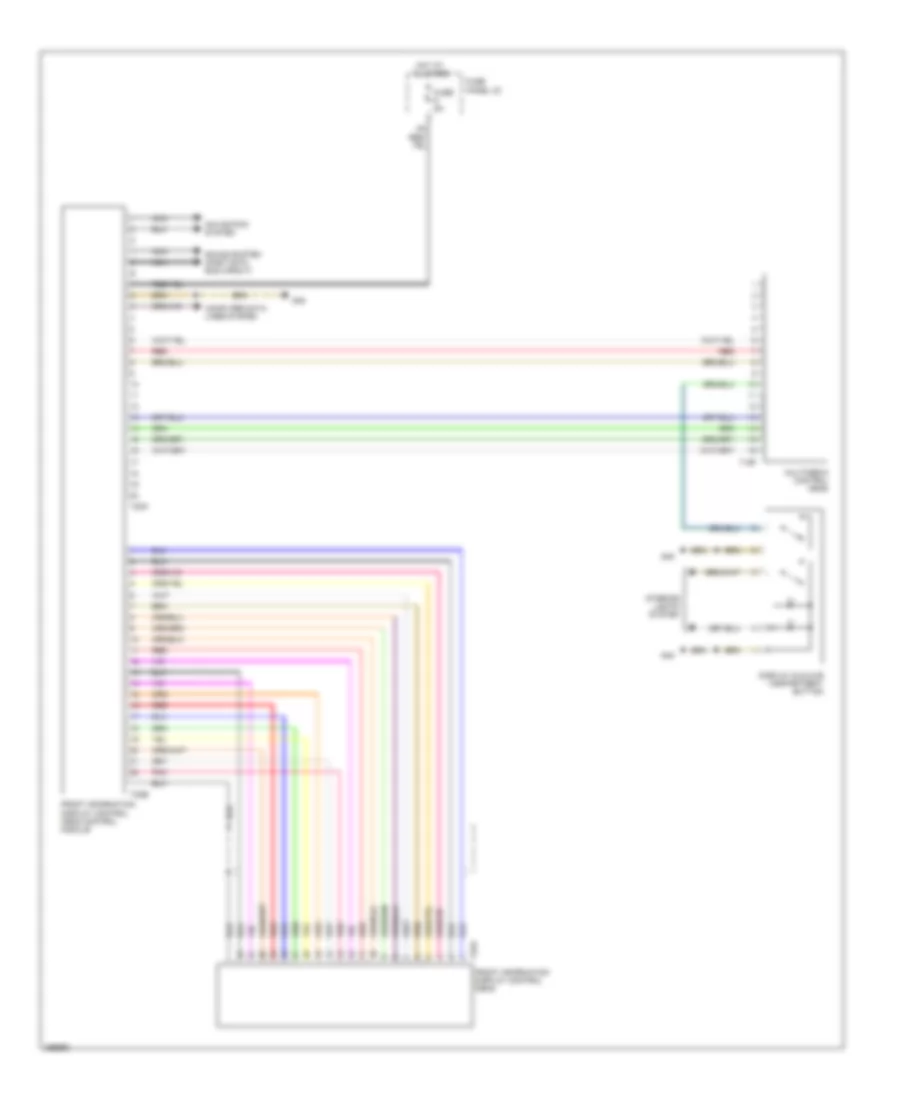

передняя информационная схема управляющего модуля показа, основная плюс для Audi Q7 3.6 2008

передняя информационная схема управляющего модуля показа, основная плюс для Audi Q7 3.6 2008 - Список элементов:

• Antenna amplifier
• Computer data lines system
• Display & glove compartment button
• Front information display control head
• Front information display control head control module
• Fuse 5a
• Fuse panel c3
• G45
• Hot at all times
• Interior lights system
• Multimedia control head
• Nca
• Red
• Sound system (most data bus circuit)
• T10b
• T12p
• T12q
• T16f
• T8o
• T8p

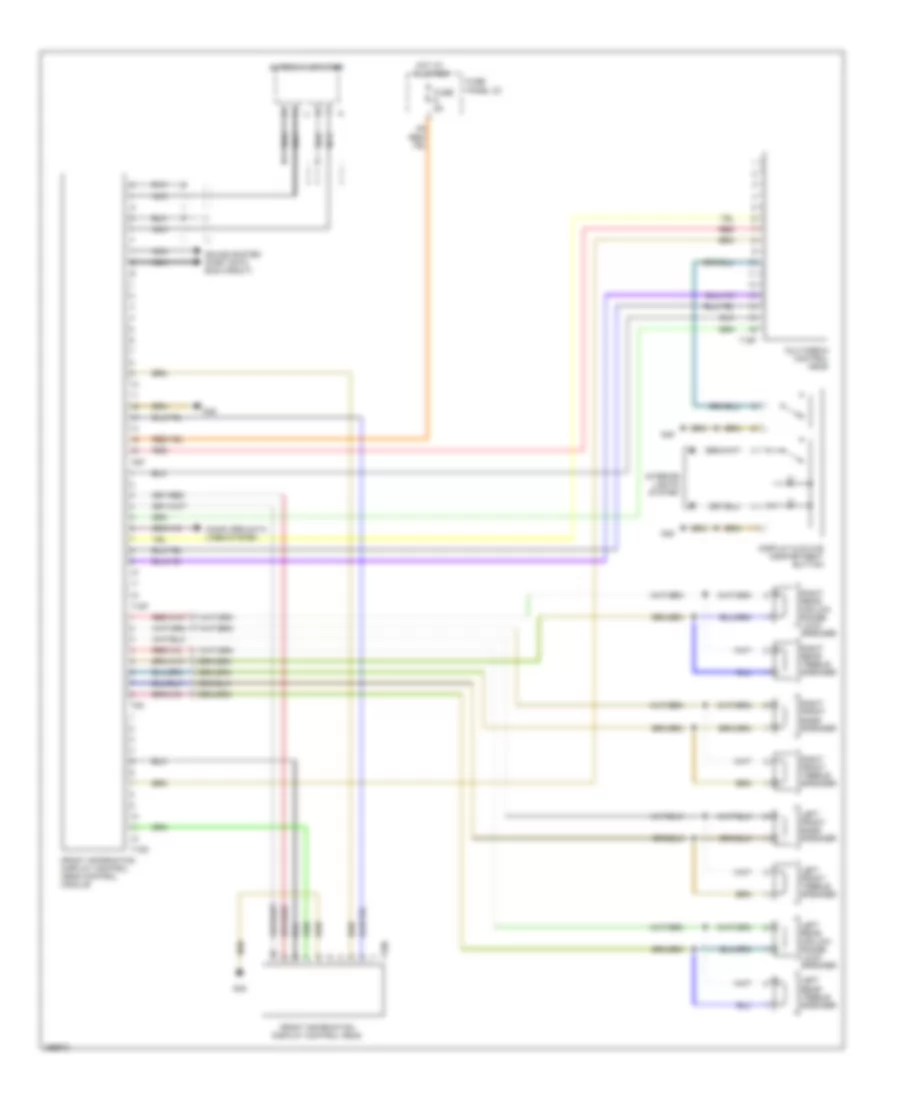

передняя информационная схема управляющего модуля показа, основная для Audi Q7 3.6 2008

передняя информационная схема управляющего модуля показа, основная для Audi Q7 3.6 2008 - Список элементов:

• Antenna amplifier
• Computer data lines system
• Display & glove compartment button
• Front information display control head
• Front information display control head control module
• Fuse 5a
• Fuse panel c3
• G45
• Hot at all times
• Interior lights system
• Left front bass speaker
• Left front treble speaker
• Left rear mid/low range loud- speaker
• Left rear treble speaker
• Multimedia control head
• Nca
• Red
• Right front bass speaker
• Right front treble speaker
• Right rear mid/low range loud- speaker
• Right rear treble speaker
• Sound system (most data bus circuit)
• T10b
• T12p
• T12q
• T16f
• T8o
• T8p

передняя информационная схема управляющего модуля показа, стандарт для Audi Q7 3.6 2008

передняя информационная схема управляющего модуля показа, стандарт для Audi Q7 3.6 2008 - Список элементов:

• Computer data lines system
• Display & glove compartment button
• Front information display control head
• Front information display control head control module
• Fuse 5a
• Fuse panel c3
• G45
• Hot at all times
• Interior lights system
• Multimedia control head
• Navigation system
• Nca
• Pnk
• Red
• Sound system (most data bus circuit)
• T16f
• T20k
• T22a
• T22b

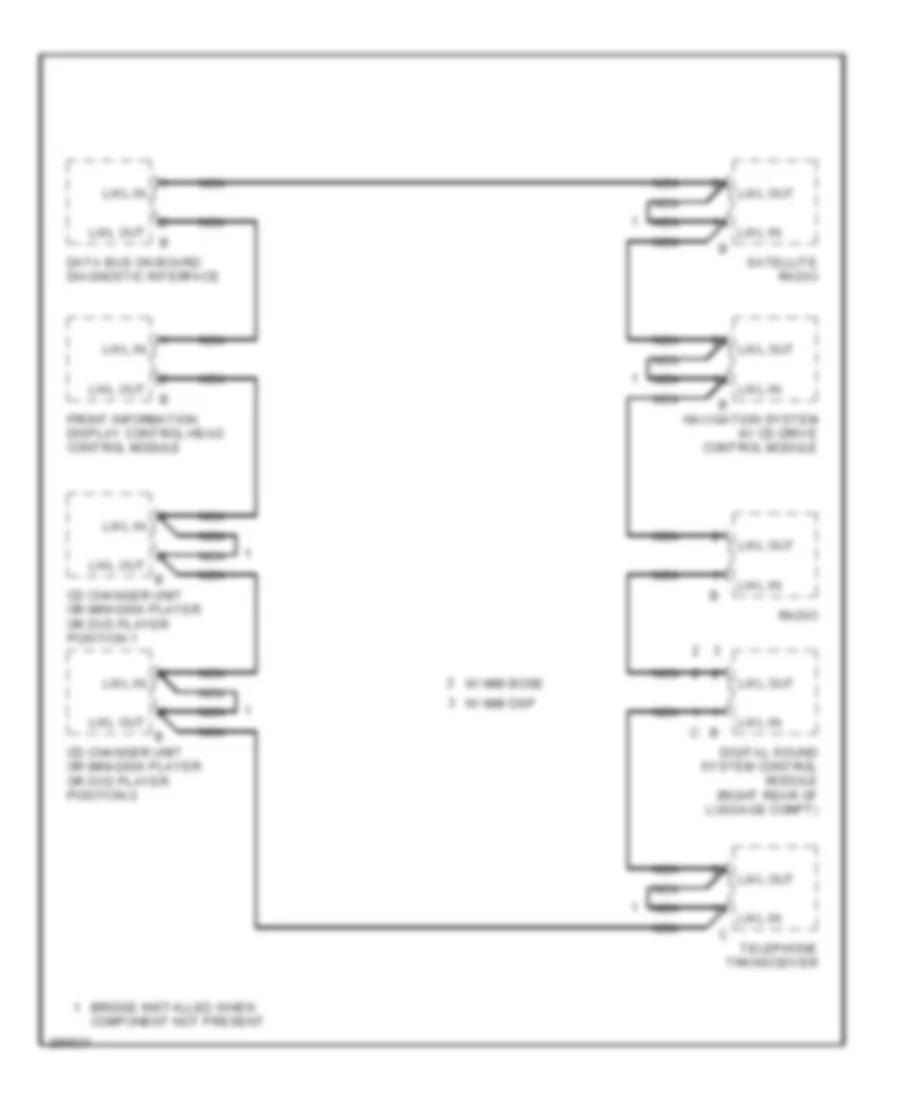

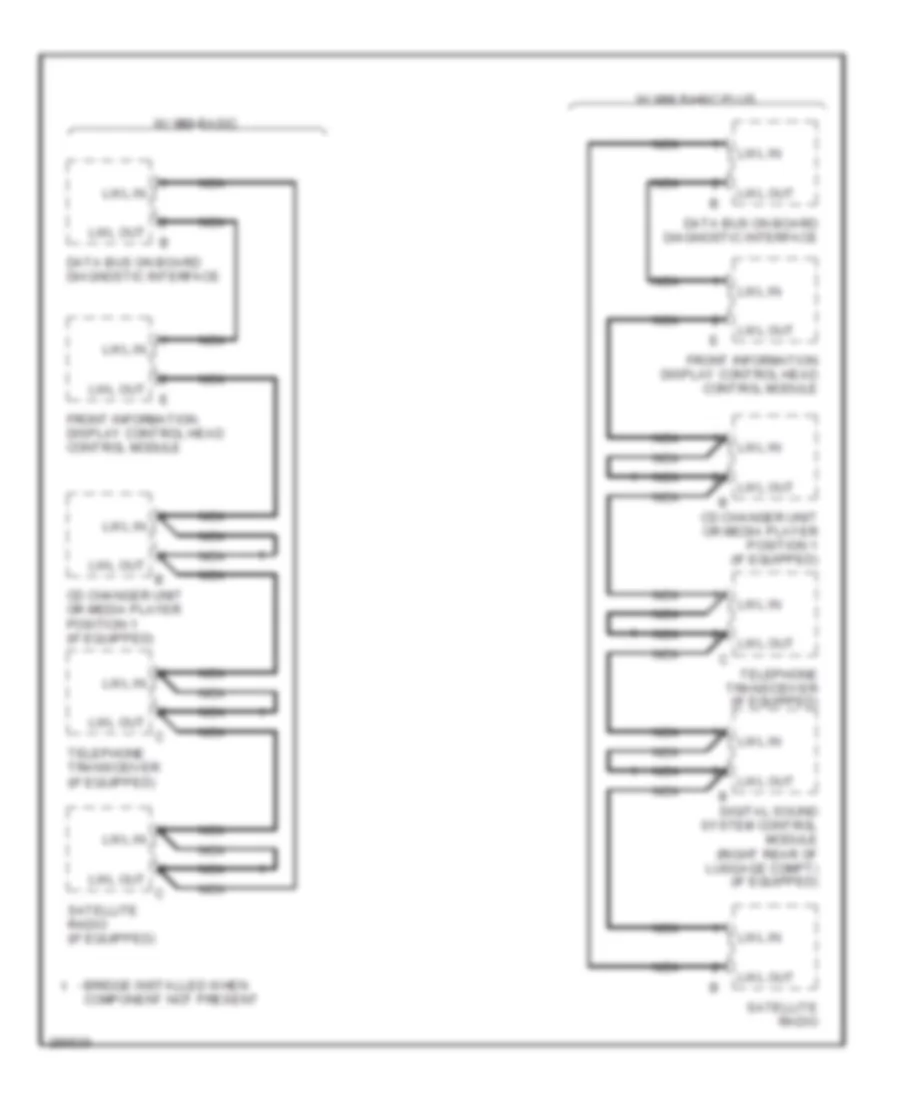

БОЛЬШАЯ ЧАСТЬ схемы шины данных, основной и основной плюс для Audi Q7 3.6 2008

БОЛЬШАЯ ЧАСТЬ схемы шины данных, основной и основной плюс для Audi Q7 3.6 2008 - Список элементов:

• component not present
• - bridge installed when
• Cd changer unit or media player position 1 (if equipped)
• Data bus on board diagnostic interface
• Digital sound system control module (right rear of luggage compt) (if equipped)
• Front information display control head control module
• Lwl in
• Lwl out
• Nca
• Satellite radio
• Satellite radio (if equipped)
• Telephone transceiver (if equipped)
• W/ mmi basic
• W/ mmi basic plus

MOST Data Bus Wiring Diagram, Bose & DSP Радио для Audi Q7 3.6 2008

MOST Data Bus Wiring Diagram, Bose & DSP Радио для Audi Q7 3.6 2008 - Список элементов:

• Bridge installed when component not present
• Cd changer unit or mini-disk player or dvd player position 1
• Cd changer unit or mini-disk player or dvd player position 2
• Data bus on board diagnostic interface
• Digital sound system control module (right rear of luggage compt)
• Front information display control head control module
• Lwl in
• Lwl out
• Navigation system w/ cd drive control module
• Nca
• Radio
• Satellite radio
• Telephone transceiver
• W/ mmi bose
• W/ mmi dsp

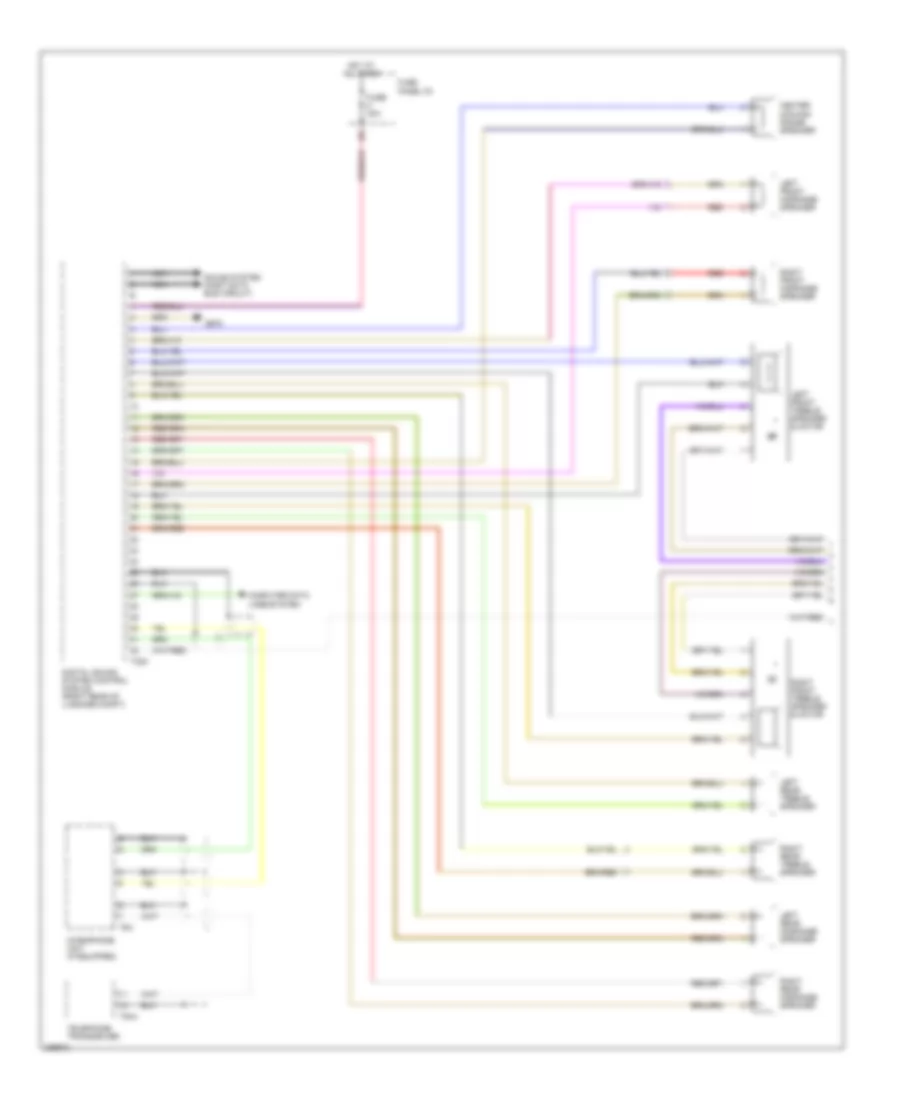

Электросхема магнитолы, радио Bose (1 из 2) для Audi Q7 3.6 2008

Электросхема магнитолы, радио Bose (1 из 2) для Audi Q7 3.6 2008 - Список элементов:

• Center loudspeaker
• Center mid/high range loud- speaker
• Computer data lines system
• Digital sound system control module (right rear of luggage compt)
• Fuse 30a
• Fuse panel f2
• G675
• Hot at all times
• Left front bass speaker
• Left front midrange speaker
• Left front treble speaker
• Left rear mid/low range loud speaker
• Left rear midrange speaker
• Left rear treble speaker
• Microphone unit (if equipped)
• Nca
• Red
• Right front bass speaker
• Right front midrange speaker
• Right front treble speaker
• Right rear mid/low range loud speaker
• Right rear midrange speaker
• Right rear treble speaker
• Sound system (most data bus circuit)
• T32c
• T54a
• T6x
• Telephone transceiver

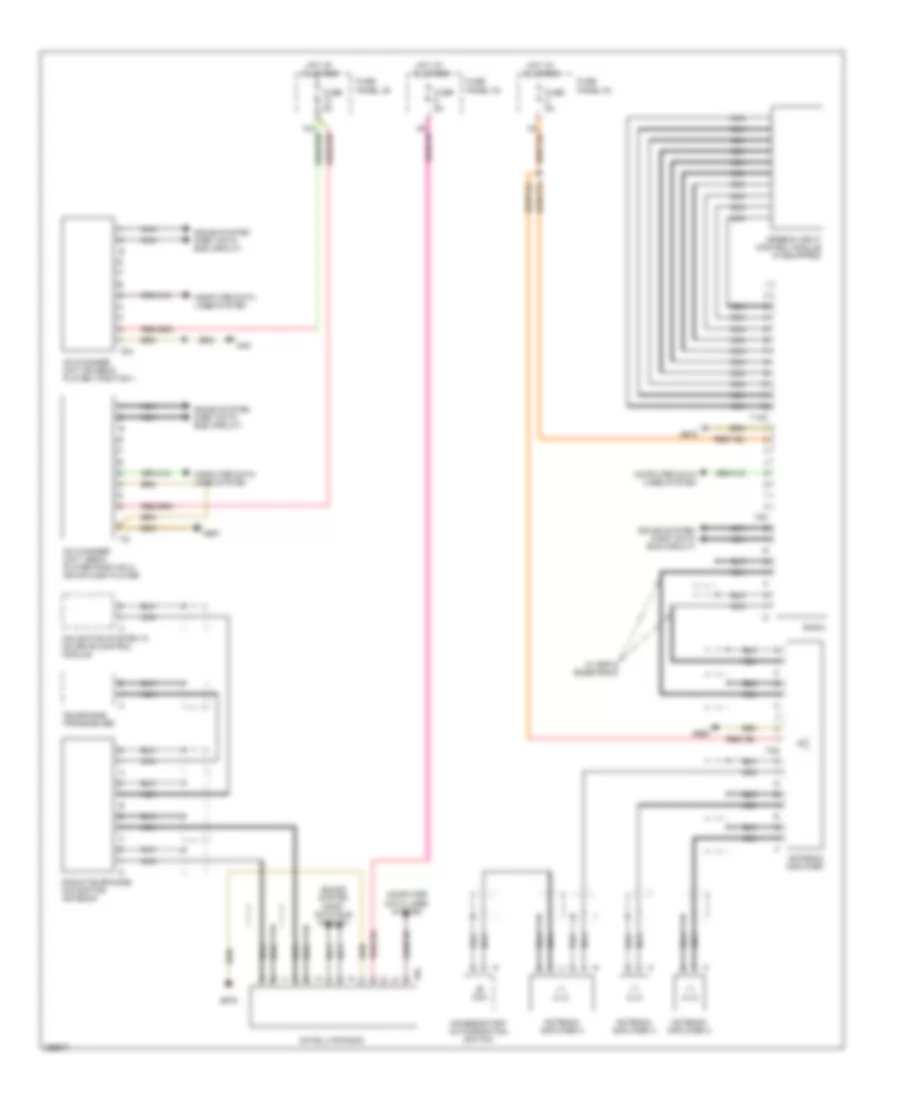

Электросхема магнитолы, радио Bose (2 из 2) для Audi Q7 3.6 2008

Электросхема магнитолы, радио Bose (2 из 2) для Audi Q7 3.6 2008 - Список элементов:

• Access/start authorization switch
• Antenna amplifier
• Antenna amplifier 2
• Antenna amplifier 3
• Antenna amplifier 4
• Cd changer unit or media player, position 1
• Cd changer unit, media player position 2, or mini disk player
• Computer data lines system
• Fuse 5a
• Fuse panel c3
• Fuse panel f2
• G45
• G666
• G675
• G687
• Hot at all times
• Navigation system w/ cd drive control module
• Nca
• Radio
• Radio/telephone/ navigation antenna
• Satellite radio
• Sound system (most data bus circuit)
• Speech input control module (if equipped)
• T12o
• T3q
• T8h
• T8i
• T8k
• T8l
• Telephone transceiver
• W/ dsp & bose radio

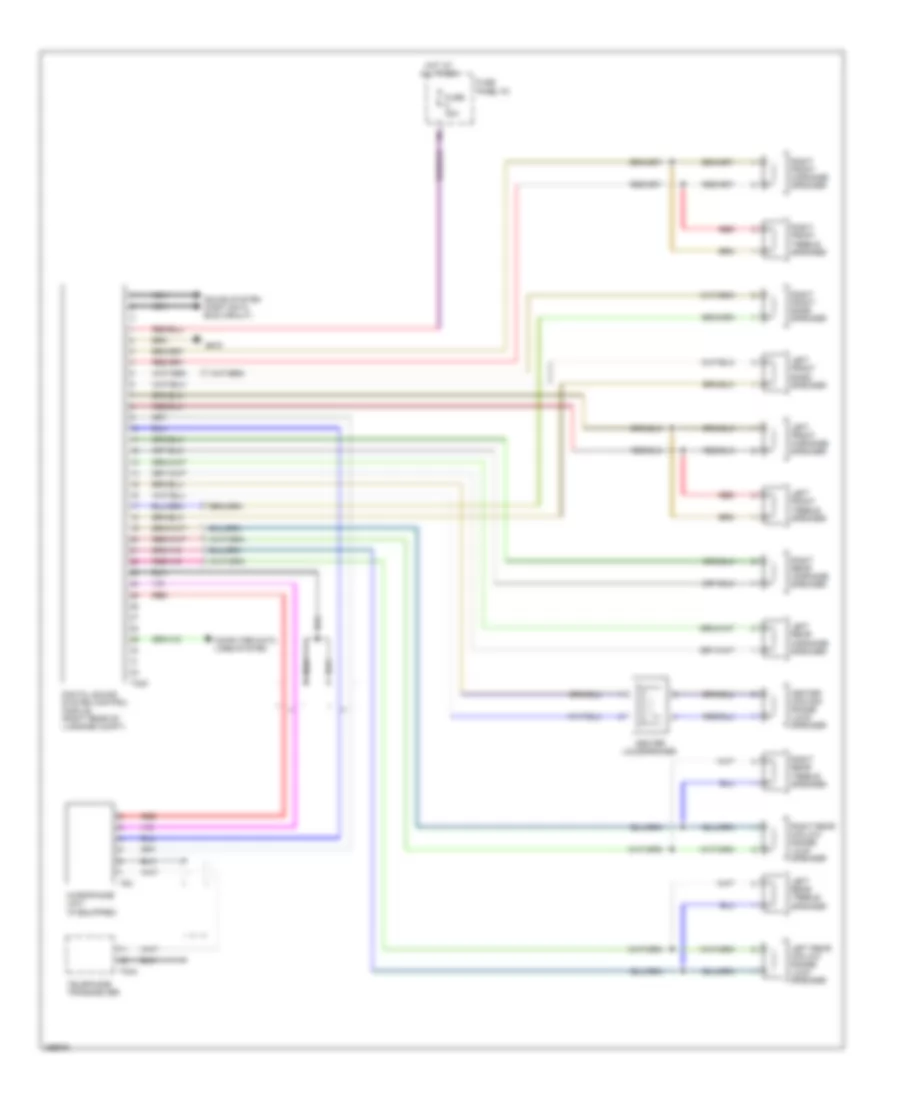

Radio Wiring Diagram, DSP Radio withBang & Olufsen (1 из 3) для Audi Q7 3.6 2008

Radio Wiring Diagram, DSP Radio withBang & Olufsen (1 из 3) для Audi Q7 3.6 2008 - Список элементов:

• Center mid/high range speaker
• Computer data lines system
• Digital sound system control module (right rear of luggage compt)
• Fuse 30a
• Fuse panel f2
• G675
• Hot at all times
• Left front midrange speaker
• Left front treble speaker & motor
• Left rear midrange speaker
• Left rear treble speaker
• Microphone unit (if equipped)
• Nca
• Red
• Right front midrange speaker
• Right front treble speaker & motor
• Right rear midrange speaker
• Right rear treble speaker
• Sound system (most data bus circuit)
• T32c
• T54a
• T6x
• Telephone transceiver

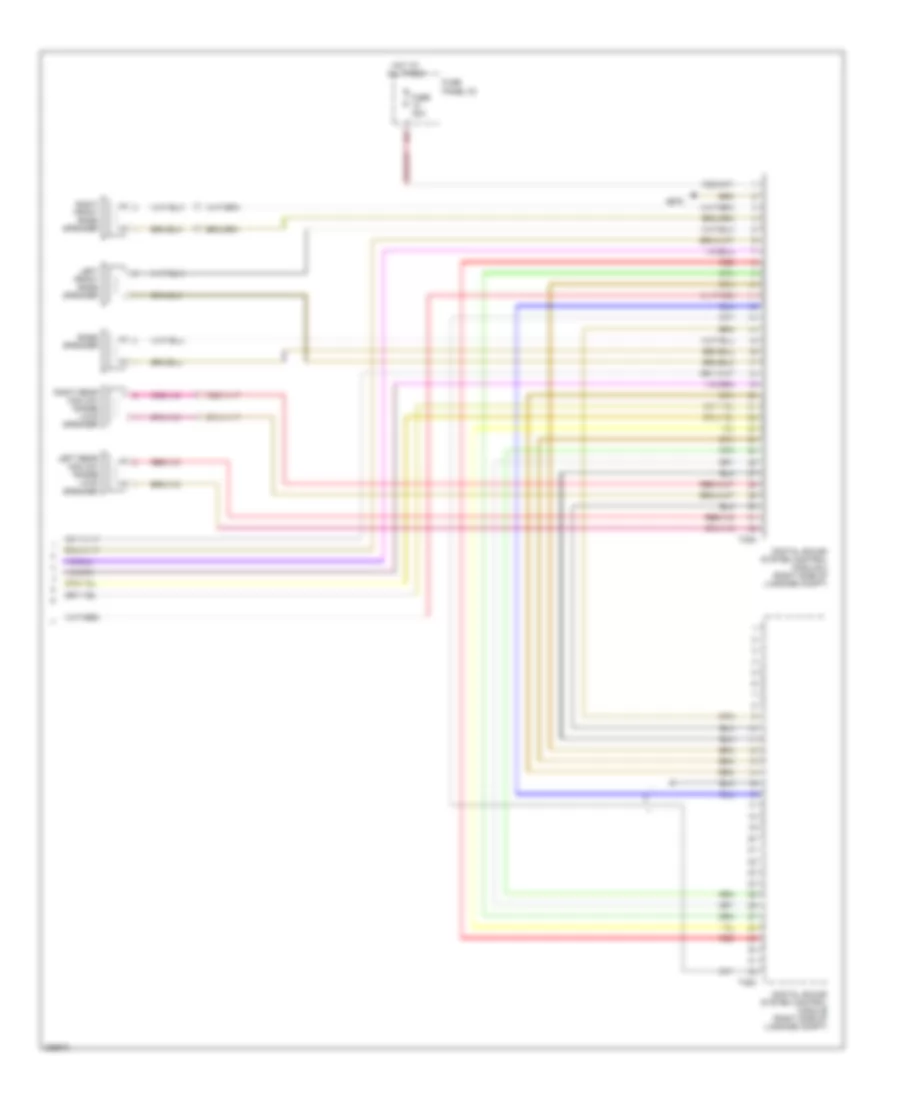

Radio Wiring Diagram, DSP Radio withBang & Olufsen (2 из 3) для Audi Q7 3.6 2008

Radio Wiring Diagram, DSP Radio withBang & Olufsen (2 из 3) для Audi Q7 3.6 2008 - Список элементов:

• 10a
• Bass speaker
• Digital sound system control module (right side of luggage compt)
• Digital sound system control module 2 (right side of luggage compt)
• Fuse 30a
• Fuse panel f2
• G675
• Hot at all times
• Left front bass speaker
• Left rear mid/low range loud speaker
• Red
• Right front bass speaker
• Right rear mid/low range loud speaker
• T32m
• T32n

Radio Wiring Diagram, DSP Radio withBang & Olufsen (3 из 3) для Audi Q7 3.6 2008

Radio Wiring Diagram, DSP Radio withBang & Olufsen (3 из 3) для Audi Q7 3.6 2008 - Список элементов:

• Access/start authorization switch
• Antenna amplifier
• Antenna amplifier 2
• Antenna amplifier 3
• Antenna amplifier 4
• Cd changer unit or media player, position 1
• Cd changer unit, media player position 2, or mini disk player
• Computer data lines system
• Fuse 5a
• Fuse panel c3
• Fuse panel f2
• G45
• G666
• G675
• G687
• Hot at all times
• Navigation system w/ cd drive control module
• Nca
• Radio
• Radio/telephone/ navigation antenna
• Satellite radio
• Sound system (most data bus circuit)
• Speech input control module (if equipped)
• T12o
• T3q
• T8h
• T8i
• T8k
• T8l
• Telephone transceiver
• W/ dsp & bose radio

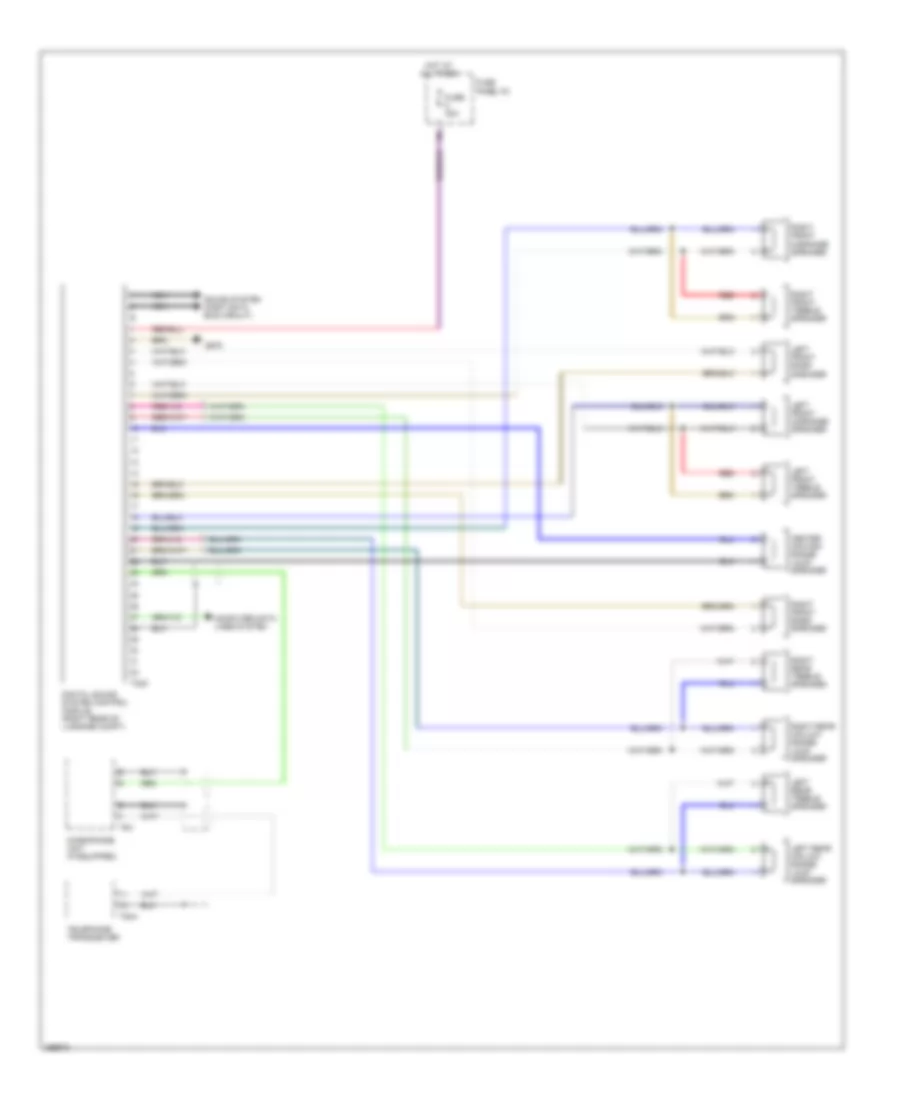

Radio Wiring Diagram, DSP Radio without Bang & Olufsen (1 из 2) для Audi Q7 3.6 2008

Radio Wiring Diagram, DSP Radio without Bang & Olufsen (1 из 2) для Audi Q7 3.6 2008 - Список элементов:

• Center mid/high range loud- speaker
• Computer data lines system
• Digital sound system control module (right rear of luggage compt)
• Fuse 30a
• Fuse panel f2
• G675
• Hot at all times
• Left front bass speaker
• Left front midrange speaker
• Left front treble speaker
• Left rear mid/low range loud speaker
• Left rear treble speaker
• Microphone unit (if equipped)
• Nca
• Red
• Right front bass speaker
• Right front midrange speaker
• Right front treble speaker
• Right rear mid/low range loud speaker
• Right rear treble speaker
• Sound system (most data bus circuit)
• T32c
• T54a
• T6x
• Telephone transceiver

Radio Wiring Diagram, DSP Radio without Bang & Olufsen (2 из 2) для Audi Q7 3.6 2008

Radio Wiring Diagram, DSP Radio without Bang & Olufsen (2 из 2) для Audi Q7 3.6 2008 - Список элементов:

• Access/start authorization switch
• Antenna amplifier
• Antenna amplifier 2
• Antenna amplifier 3
• Antenna amplifier 4
• Cd changer unit or media player, position 1
• Cd changer unit, media player position 2, or mini disk player
• Computer data lines system
• Fuse 5a
• Fuse panel c3
• Fuse panel f2
• G45
• G666
• G675
• G687
• Hot at all times
• Navigation system w/ cd drive control module
• Nca
• Radio
• Radio/telephone/ navigation antenna
• Satellite radio
• Sound system (most data bus circuit)
• Speech input control module (if equipped)
• T12o
• T3q
• T8h
• T8i
• T8k
• T8l
• Telephone transceiver
• W/ dsp & bose radio

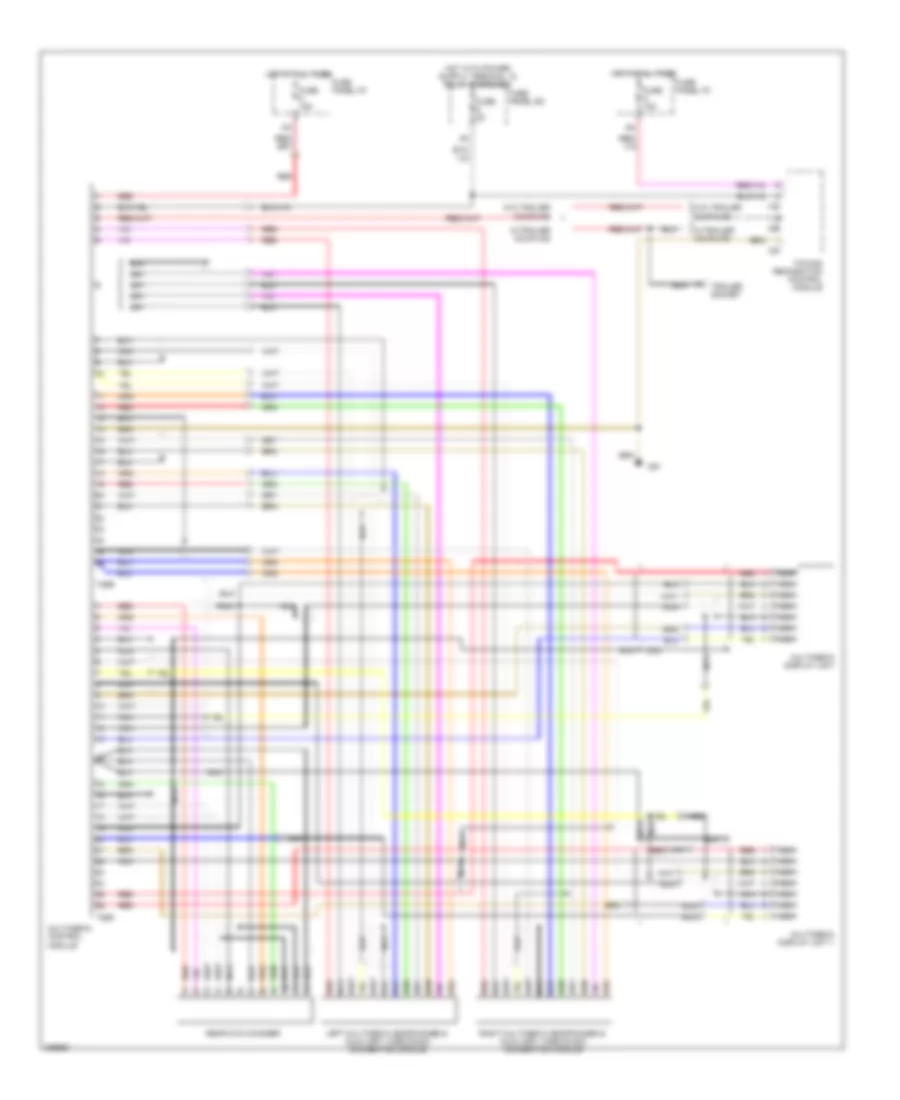

Электросхема мультимедии задних пассажиров для Audi Q7 3.6 2008

Электросхема мультимедии задних пассажиров для Audi Q7 3.6 2008 - Список элементов:

• 12d
• 16e
• Fuse 15a
• Fuse 5a
• Fuse panel b3
• Fuse panel f3
• G51
• Hot at all times
• Left multimedia headphones & auxiliary video/audio connection module
• Multimedia control module
• Multimedia display unit
• Multimedia display unit 1
• Nca
• Rear dvd changer
• Red
• Right multimedia headphones & auxiliary video/audio connection module
• T26d
• T26e
• Towing recognition control module
• Trailer socket
• W/o trailer coupling
• W/trailer coupling
