Электросхемы ВНЕШНЕЕ ОСВЕЩЕНИЕ Audi Q7 3.6 2008

ВНЕШНЕЕ ОСВЕЩЕНИЕ

Электросхема заднего хода для Audi Q7 3.6 2008

Электросхема заднего хода для Audi Q7 3.6 2008 - Список элементов:

• Comfort system central control module (right side of luggage compt)
• Comfort system central control module 2 (right side of luggage compt)
• Computer data lines system
• Fuse 15a
• Fuse 5a
• Fuse panel c2
• Fuse panel f1
• G51
• Hot at all times
• Left taillamp assembly
• Multi-function transmission range switch (back-up switch)
• Nca
• Reverse
• Right taillamp assembly
• T20f
• T32d
• T52
• Transmission control module (4.2l engine)

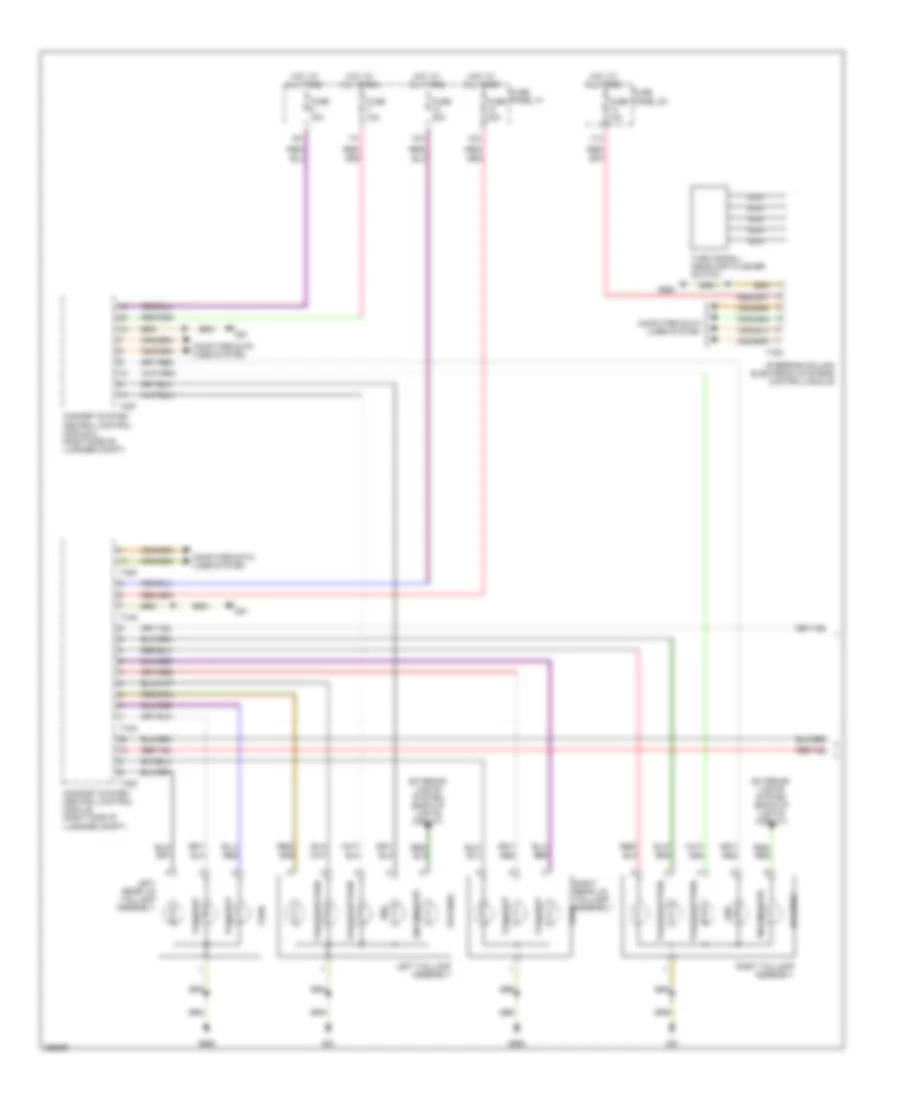

Электросхема внешнего освещения (1 из 2) для Audi Q7 3.6 2008

Электросхема внешнего освещения (1 из 2) для Audi Q7 3.6 2008 - Список элементов:

• 10a
• 11a
• 12a
• Comfort system central control module (right side of luggage compt)
• Comfort system central control module 2 (right side of luggage compt)
• Computer data lines system
• Exterior lights system (back-up lights circuit)
• Fog
• Fuse 10a
• Fuse 15a
• Fuse 20a
• Fuse 30a
• Fuse panel b1
• Fuse panel f1
• G51
• G664
• G668
• Hot at all times
• Left rear lid taillamp assembly
• Left taillamp assembly
• Nca
• Reverse
• Right rear lid taillamp assembly
• Right taillamp assembly
• Side marker
• Steering column electronic systems control module
• T10g
• T15a
• T16a
• T20f
• T32d
• Tail/stop
• Tail/stop/turn
• Turn
• Turn signal/ headlamp flasher switch

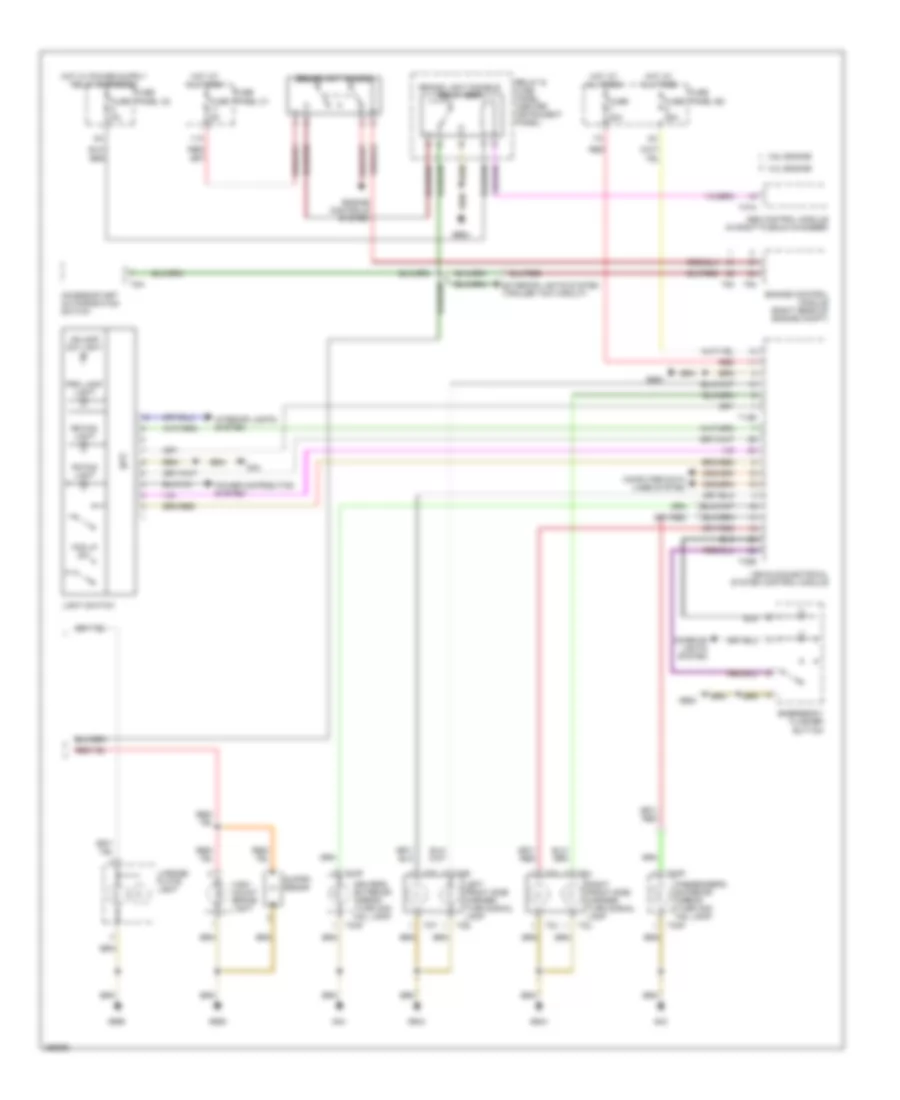

Электросхема внешнего освещения (2 из 2) для Audi Q7 3.6 2008

Электросхема внешнего освещения (2 из 2) для Audi Q7 3.6 2008 - Список элементов:

• 11a
• 3.6l engine
• 4.2l engine
• Abs control module (in right plenum chamber)
• Access/start authorization switch
• Brake light disable relay (esp)
• Brakelight switch
• Computer data lines system
• Driver's exterior mirror (turn sig- nal lamp)
• Emergency flasher button
• Engine control module (right rear of engine compt)
• Engine controls system
• Exterior lights system (trailer tow circuit)
• Fog lp sw
• Fr fog light
• Fuse 25a
• Fuse 30a
• Fuse 5a
• Fuse panel b2
• Fuse panel c1
• Fuse panel c2
• G43
• G44
• G644
• G658
• G664
• G668
• Hdlamp sw light
• High- mount brake light
• Hot at all times
• Interior lights system
• Left front side marker/ turn signal lamp
• License plate light
• Light switch
• Passenger's exterior mirror (turn sig- nal lamp)
• Power distribution system
• Prk lamp light
• Red
• Relay & fuse panel (center instrument panel)
• Right front side marker/ turn signal lamp
• Rr fog light
• Suppr- essor
• T12b
• T2af
• T2s
• T2t
• T2u
• T2v
• T32b
• T47a
• T8a
• T94
• Vehicle electrical system control module

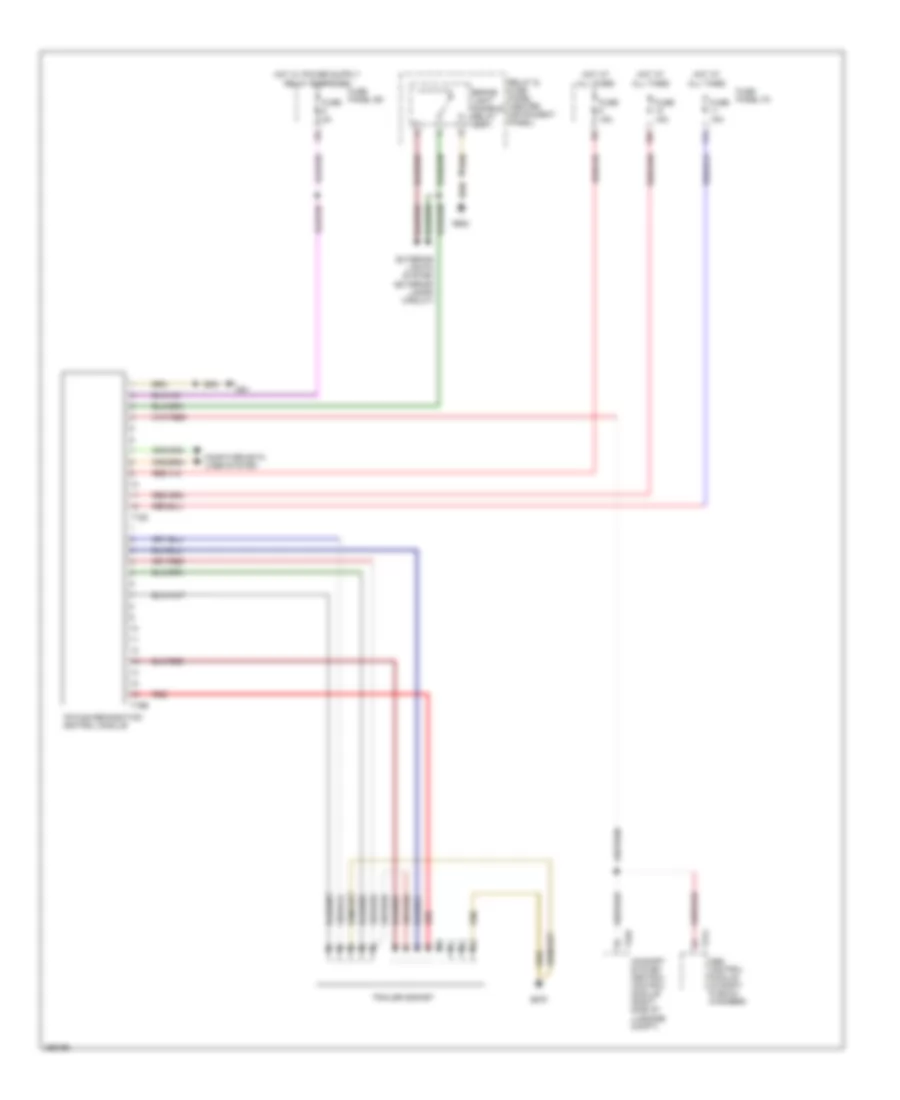

Электросхема розетки подключения прицепа для Audi Q7 3.6 2008

Электросхема розетки подключения прицепа для Audi Q7 3.6 2008 - Список элементов:

• 10a
• 11a
• Abs control module (in right plenum chamber)
• Brake light disable relay (esp)
• Comfort system central control module (right side of luggage compt)
• Computer data lines system
• Exterior lights system (exterior lamps circuit)
• Fuse 15a
• Fuse 5a
• Fuse panel b3
• Fuse panel f3
• G51
• G664
• G675
• Hot at all times
• Red
• Relay & fuse panel (center instrument panel)
• T12d
• T16e
• T32d
• T47a
• Towing recognition control module
• Trailer socket
