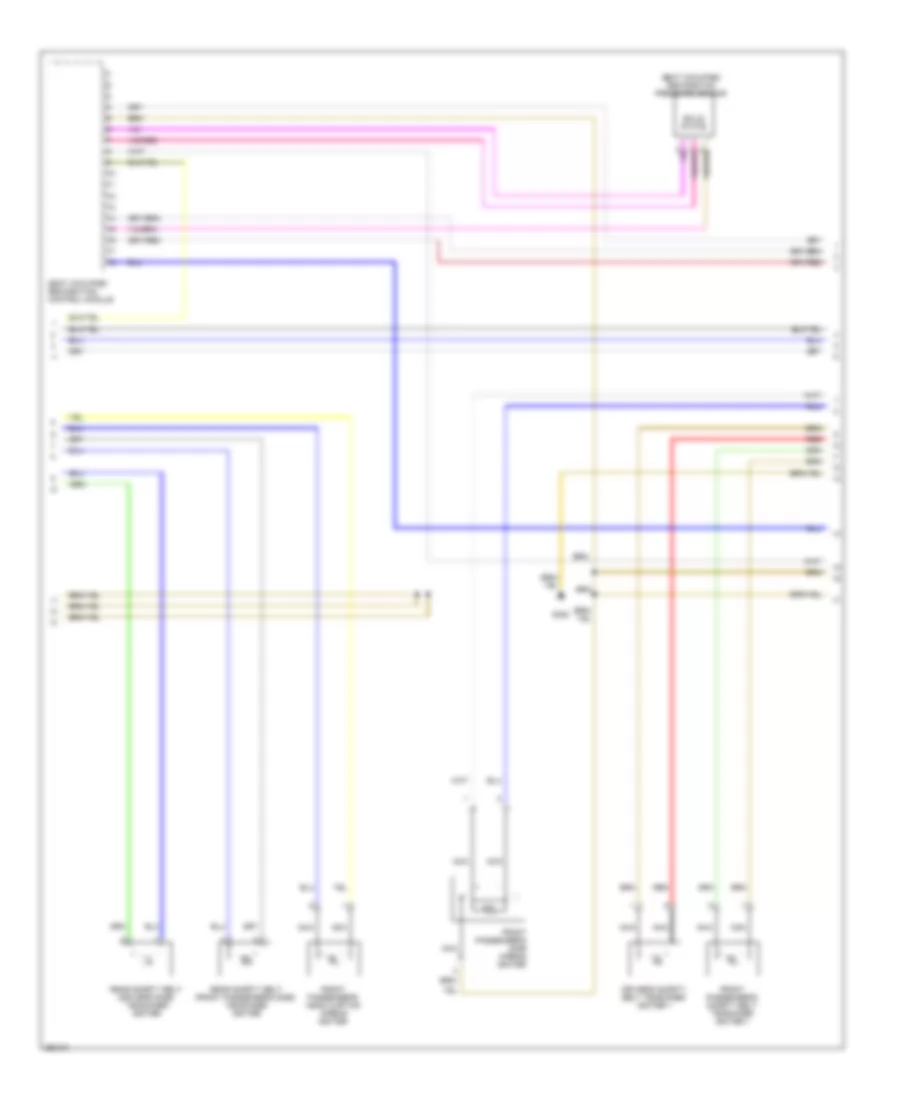

Электросхема подушек безопасности SRS AirBag (1 из 3) для Audi Q7 3.6 2008

Электросхема подушек безопасности SRS AirBag (1 из 3) для Audi Q7 3.6 2008 - Список элементов:

• 10a
• Air bag spiral spring/return spring w/slip ring
• Airbag control module
• Battery interrupt igniter
• Driver's air bag igniter
• Driver's head curtain airbag igniter
• Driver's side airbag igniter
• Front passenger's side airbag igniter
• Fuse 5a
• Fuse panel c
• G43
• Hot in on or start
• Igniter
• Igniter 1
• Igniter 2
• Nca
• Power distribution system
• Rear passenger's side airbag (driver's side) igniter
• Rear passenger's side airbag (front passenger's side) igniter
• Red
• Short circuit bridge (it shorts the pins when connector is unplugged)
• Solid state
• T4b

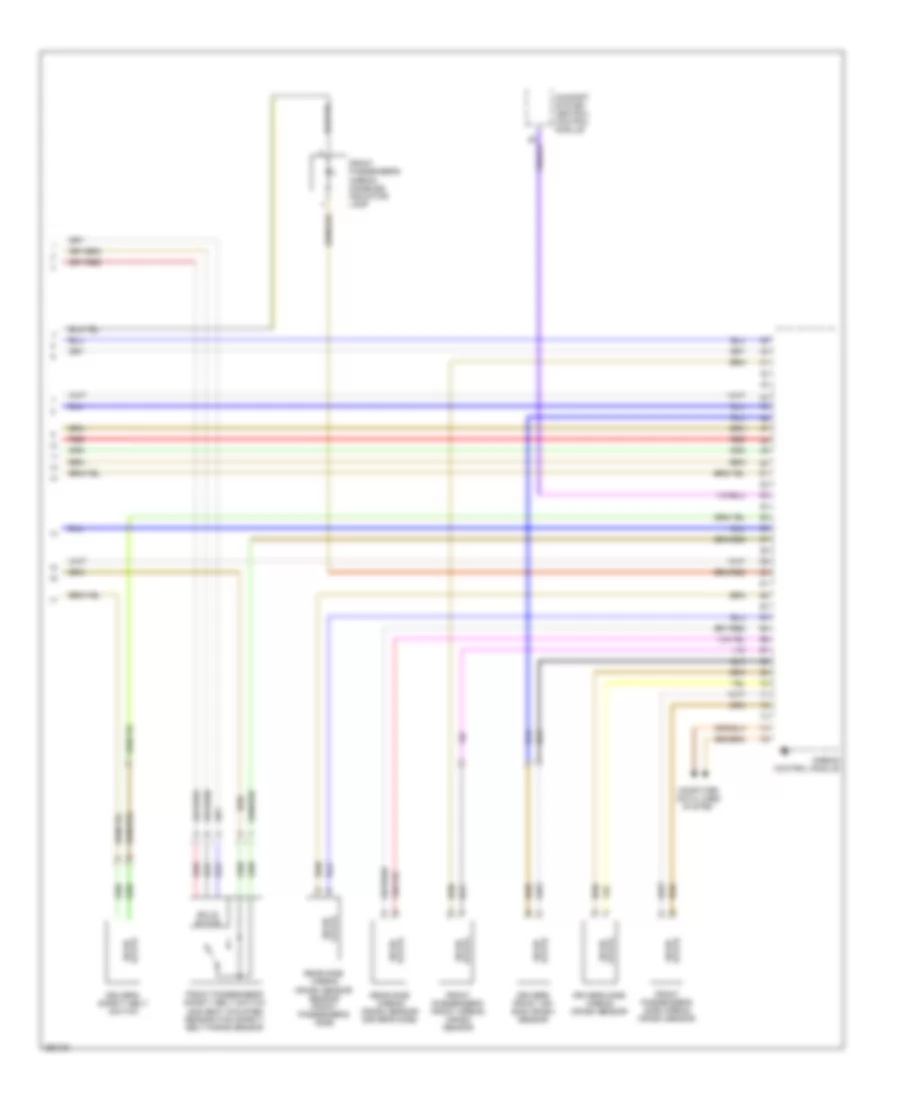

Электросхема подушек безопасности SRS AirBag (2 из 3) для Audi Q7 3.6 2008

Электросхема подушек безопасности SRS AirBag (2 из 3) для Audi Q7 3.6 2008 - Список элементов:

• Driver's safety belt tensioner igniter 1
• Front passenger's head curtain airbag igniter
• Front passenger's safety belt tensioner igniter 1
• Front passenger's side airbag igniter
• G382
• Nca
• Rear safety belt (driver's side) tensioner igniter
• Rear safety belt (front passenger's side) tensioner igniter
• Red
• Seat occupied recognition control module
• Seat occupied recognition pressure sensor
• Solid state

Электросхема подушек безопасности SRS AirBag (3 из 3) для Audi Q7 3.6 2008

Электросхема подушек безопасности SRS AirBag (3 из 3) для Audi Q7 3.6 2008 - Список элементов:

• Airbag control module
• Comfort system central control module
• Computer data lines system
• Driver's front air- bag crash sensor
• Driver's safety belt switch
• Driver's side airbag crash sensor
• Front passenger's airbag disabled indicator lamp
• Front passenger's front airbag crash sensor
• Front passenger's safety belt switch and seat occupied recognition safety belt force sensor
• Front passenger's side airbag crash sensor
• Rear side airbag crash sensor (driver's side)
• Rear side airbag crash sensor sensor (front passenger's side)
• Red
• Solid state
• State solid
