СИСТЕМА АНТИБЛОКИРОВОЧНОЙ ТОРМОЗНОЙ СИСТЕМЫ ABS
Электросхема антиблокировочной тормозной системы АБС (ABS) (1 из 2) для Audi A4 2.0T Avant Quattro 2011
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO
Электросхема антиблокировочной тормозной системы АБС (ABS) (1 из 2) для Audi A4 2.0T Avant Quattro 2011 - Список элементов:
- (not used)
- (on left front long member) g671
- 40a
- Abs control module (left side of engine compt)
- Abs control module fuse 1
- Abs hydraulic pump
- Abs hydraulic unit
- Asr/esp button
- Auto hold button
- Computer data lines system
- Discontinued phase in modification
- Driver's side fuse panel (behind left end of dash)
- Driving dynamics regulation high pressure switch valve 1
- Driving dynamics regulation high pressure switch valve 2
- Driving dynamics regulation switch valve 1
- Driving dynamics regulation switch valve 2
- Electro-mechanical parking brake button
- Fuse 10a
- Fuse 5a
- Fuse carrier
- G671 (on left front long member)
- Hot at all times
- Interior lights system
- Left front abs inlet valve
- Left front abs outlet valve
- Left front abs wheel speed sensor (left front wheel hub assembly)
- Left rear abs inlet valve
- Left rear abs outlet valve
- Left rear abs wheel speed sensor (left rear wheel hub assembly)
- Luggage compartment relay/fuse carrier (right side of luggage compt)
- Passenger's side fuse panel (behind right end of dash)
- Red
- Right front abs inlet valve
- Right front abs outlet valve
- Right front abs wheel speed sensor (right front wheel hub assembly)
- Right rear abs inlet valve
- Right rear abs outlet valve
- Right rear abs wheel speed sensor (right rear wheel hub assembly)
- T17c
- T17d
- T17g
- W/ navigation
- W/o navigation

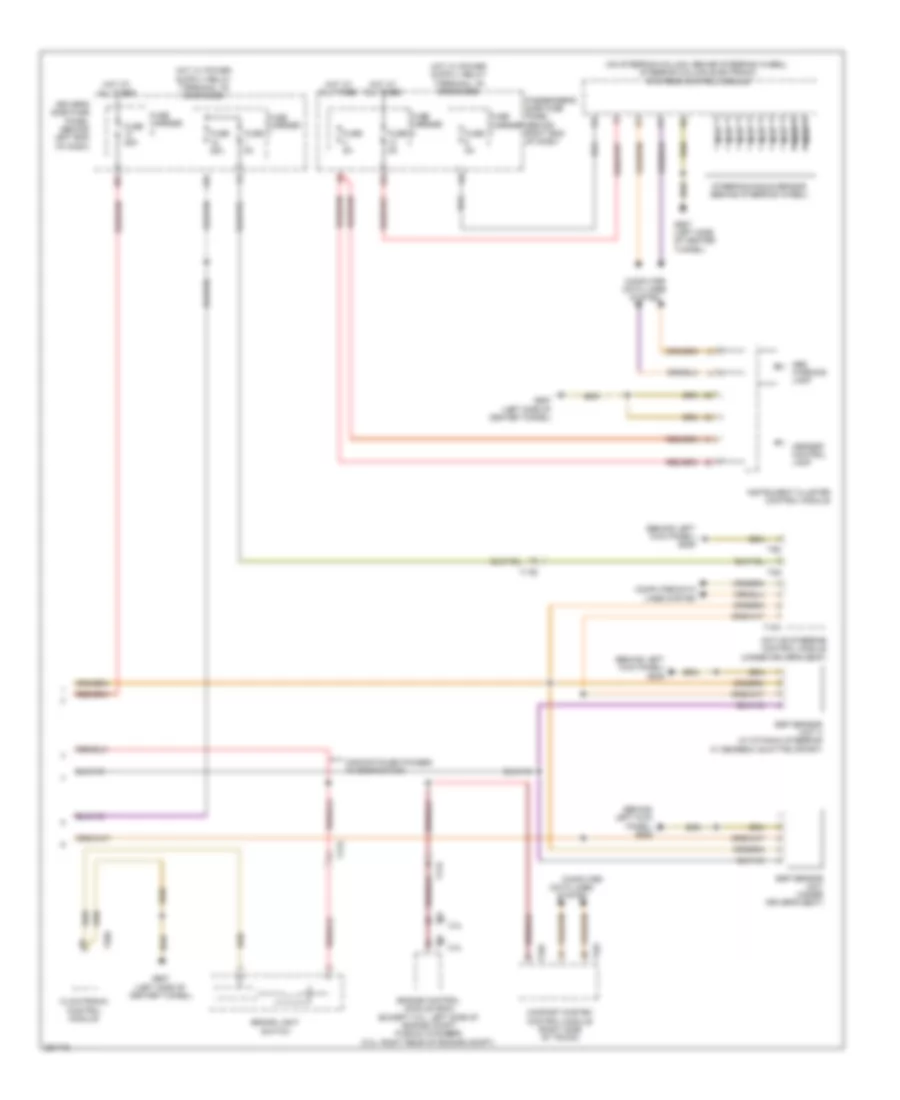

Электросхема антиблокировочной тормозной системы АБС (ABS) (2 из 2) для Audi A4 2.0T Avant Quattro 2011
Электросхема антиблокировочной тормозной системы АБС (ABS) (2 из 2) для Audi A4 2.0T Avant Quattro 2011 - Список элементов:
- (behind left kick panel) g639
- (on steering column, behind steering wheel) steering column electronic systems control module
- 10a
- 12a
- 15a
- 2.0l
- 3.0l
- Abs warning lamp
- Active steering control module (under driver's seat)
- Asr/esp control lamp
- Brake light switch
- Climatronic control module
- Comfort system control module (right side of trunk)
- Computer
- Computer data
- Computer data lines system
- Data lines system
- Discontinued phased in modification
- Driver's side fuse panel (behind left end of dash)
- Engine control module (ecm) (except 3.0l: left side of engine compt plenum chamber) (3.0l: right rear of engine compt)
- Esp sensor unit (under driver's seat)
- Esp sensor unit 2 (w/ dynamic steering w/ gearbox quattro sport)
- Fuse 25a
- Fuse 5a
- Fuse carrier
- G687 (left side of center tunnel)
- Hot at all times
- Instrument cluster control module
- Lines system
- Nca
- Passenger's side fuse panel (behind right end of dash)
- Steering angle sensor (behind steering wheel)
- T10h
- T17e
- T17r
- T20e
- T32c
- T32d
- T5d
- T8g
- T94
