Электросхемы ПОДУШКИ БЕЗОПАСНОСТИ AIR BAG Audi A4 2.0T Avant Quattro 2011

ПОДУШКИ БЕЗОПАСНОСТИ AIR BAG

Электросхема подушек безопасности SRS AirBag (1 из 3) для Audi A4 2.0T Avant Quattro 2011

Электросхема подушек безопасности SRS AirBag (1 из 3) для Audi A4 2.0T Avant Quattro 2011 - Список элементов:

• (base of right "c" pillar) g730
• (left side of luggage compt) g50
• 14a
• Air bag control module (below center console)
• Air bag spiral return/slipring (in steering column)
• Battery interrupt igniter
• Computer data lines system
• Discontinued phased in modification
• Driver air bag igniter & igniter 2 (in steering wheel)
• Driver's front air bag crash sensor
• Driver's side air bag crash sensor
• Driver's side fuse panel (behind left end of dash)
• Front passenger's air bag disabled indicator lamp
• Front passenger's front air bag crash sensor
• Front passenger's side air bag crash sensor
• Fuse 5a
• Fuse carrier
• Hot at all times
• Igniter
• Igniter 2
• Main fuse panel sa
• Nca
• Phased in modification
• Power distribution system
• Rear passenger's side air bag igniter (driver's side)
• Rear passenger's side air bag igniter (front passenger's side)
• Rear side air bag crash sensor (driver's side)
• Rear side air bag crash sensor (front passenger's side)
• Red
• Solid state
• T10n
• T17f
• T17x
• T27a
• T27c

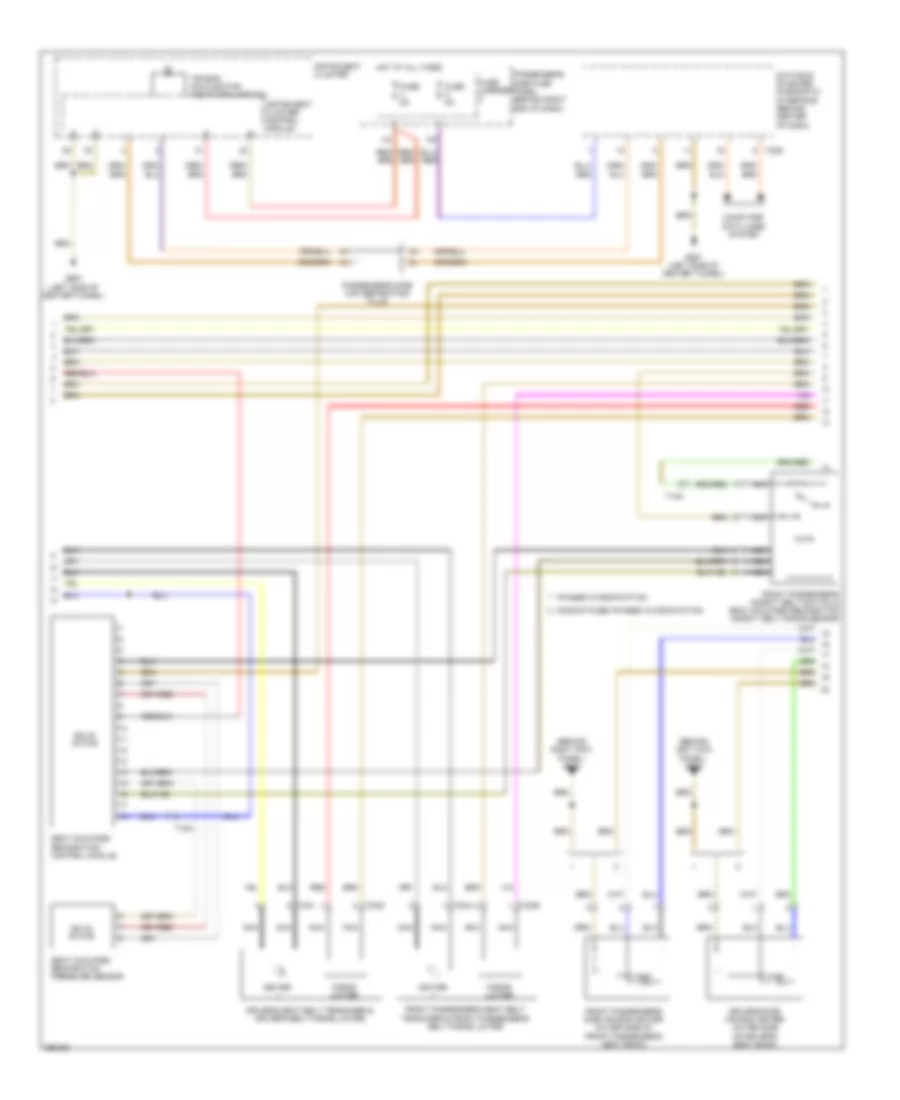

Электросхема подушек безопасности SRS AirBag (2 из 3) для Audi A4 2.0T Avant Quattro 2011

Электросхема подушек безопасности SRS AirBag (2 из 3) для Audi A4 2.0T Avant Quattro 2011 - Список элементов:

• (behind left kick panel) g639
• (behind right kick panel) g638
• Air bag malfunction indicator lamp (mil)
• Computer data lines system
• Data bus on board diagnostic interface (behind center of dash)
• Discontinued phased in modification
• Driver's seat belt tensioner & driver's belt force limiter
• Driver's side air bag igniter (outer side of driver's seat back)
• Force limiter
• Front passenger's safety belt switch & seat occupied recognition safety belt force sensor
• Front passenger's seat belt tensioner & front passenger's belt force limiter
• Front passenger's side air bag igniter (outer side of front passenger's seat back)
• Fuse 5a
• Fuse carrier
• G687 (left side of center tunnel)
• Hot at all times
• Igniter
• Instrument cluster
• Instrument cluster control module
• Nca
• Passenger's side can separating plug
• Passenger's side fuse panel (behind right end of dash)
• Phased in modification
• Red
• Seat occupied recognition control module
• Seat occupied recognition pressure sensor
• Solid state
• T10n
• T20d
• T2ai
• T2ca
• T2cd
• T2ce

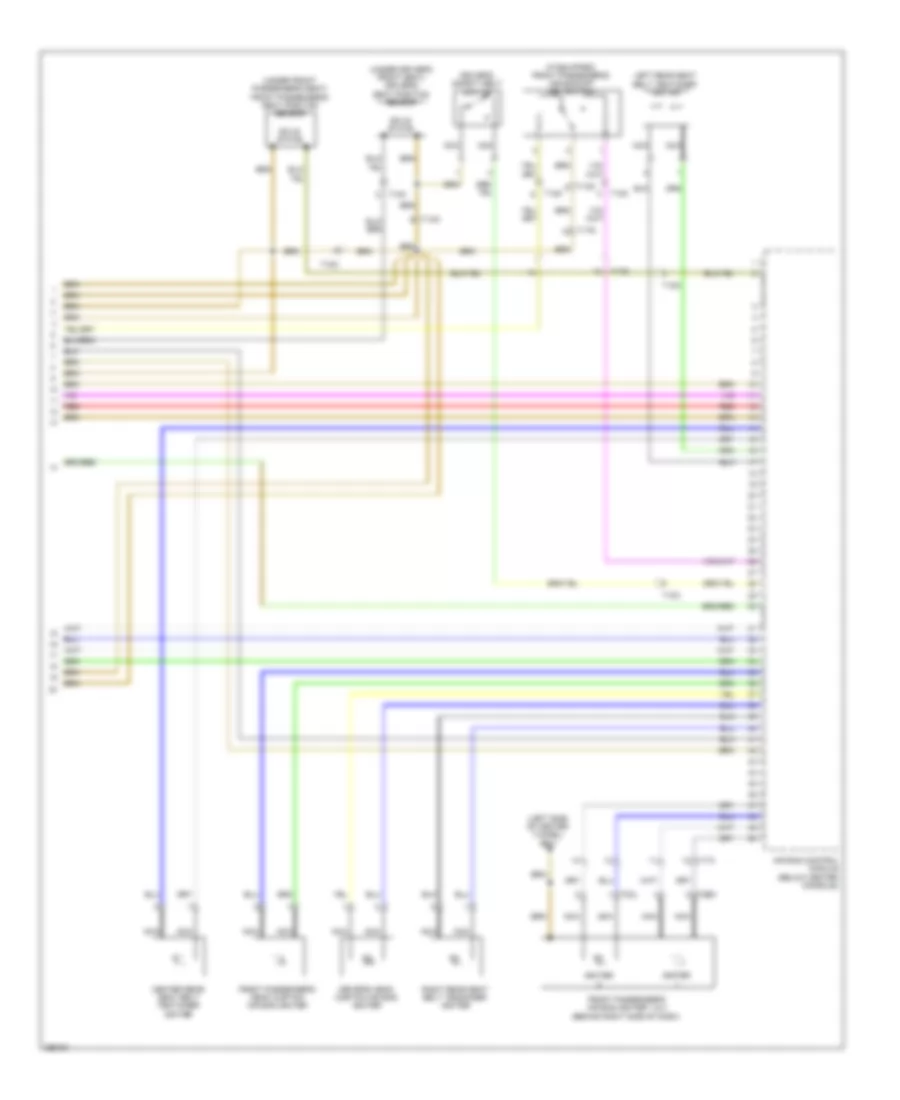

Электросхема подушек безопасности SRS AirBag (3 из 3) для Audi A4 2.0T Avant Quattro 2011

Электросхема подушек безопасности SRS AirBag (3 из 3) для Audi A4 2.0T Avant Quattro 2011 - Список элементов:

• (if equipped) front passenger's air bag-off key switch
• (left side of center tunnel) g687
• (under driver's front seat) driver's seat position sensor
• (under front passenger's seat) front passenger's seat position sensor
• Air bag control module (below center console)
• Center rear seat belt tentioner igniter
• Driver's head curtain air bag igniter
• Driver's safety belt switch
• Front passenger's air bag igniter 1 & 2 (behind right side of dash)
• Front passenger's head curtain air bag igniter
• Igniter
• Left rear seat belt tentioner igniter
• Nca
• Red
• Right rear seat belt tensioner igniter
• Solid state
• T10n
• T10o
• T12k
• T17g
• T17x
• T2bh
• T2cl
