Электросхемы ПРИВОД ЗЕРКАЛ Audi A4 2.0T Avant Quattro 2011

ПРИВОД ЗЕРКАЛ

Электросхема автозатемнения зеркала заднего вида, С Датчик Влажности для Audi A4 2.0T Avant Quattro 2011

Электросхема автозатемнения зеркала заднего вида, С Датчик Влажности для Audi A4 2.0T Avant Quattro 2011 - Список элементов:

• 11a
• Automatic day/night interior mirror
• Beam control
• Comfort system control module (right side of trunk)
• Computer data lines system
• Day/night
• Driver door control module (in driver front door)
• Driver side fuse panel (behind left end of dash)
• Driver's exterior mirror assembly
• Exterior lights system
• Front passenger's door control module (in passenger front door)
• Front passenger's exterior mirror assembly
• Fuse 15a
• Fuse 5a
• Fuse carrier
• G638 (behind right kick panel)
• G639 (behind left kick panel)
• Hot at all times
• Humidity sensor (if equipped)
• Interior lights system
• Light recog- nition sensor
• Luggage compartment relay/fuse carrier (right side of luggage compt)
• Power distribution system
• T16m
• T16n
• T17p
• T20f
• T20g
• T27a
• T27c
• W/ automatic high
• W/o automatic high

Электросхема автозатемнения зеркала заднего вида, без Датчик Влажности для Audi A4 2.0T Avant Quattro 2011

Электросхема автозатемнения зеркала заднего вида, без Датчик Влажности для Audi A4 2.0T Avant Quattro 2011 - Список элементов:

• 11a
• Automatic day/night interior mirror
• Comfort system control module (right side of trunk)
• Computer data lines system
• Day/night
• Driver door control module (in driver front door)
• Driver's exterior mirror assembly
• Driver's side fuse panel (behind left end of dash)
• Exterior lights system
• Front passenger's door control module (in front passenger front door)
• Front passenger's exterior mirror assembly
• Fuse 15a
• Fuse 5a
• Fuse carrier
• Fuse carrier 2
• G638 (behind right kick panel)
• G639 (behind left kick panel)
• Hot at all times
• Interior lights system
• Light recog- nition sensor
• Luggage compartment relay/fuse carrier (right side of luggage compt)
• Power distribution system
• T16m
• T16n
• T17p
• T20f
• T20g
• T27a
• T27c

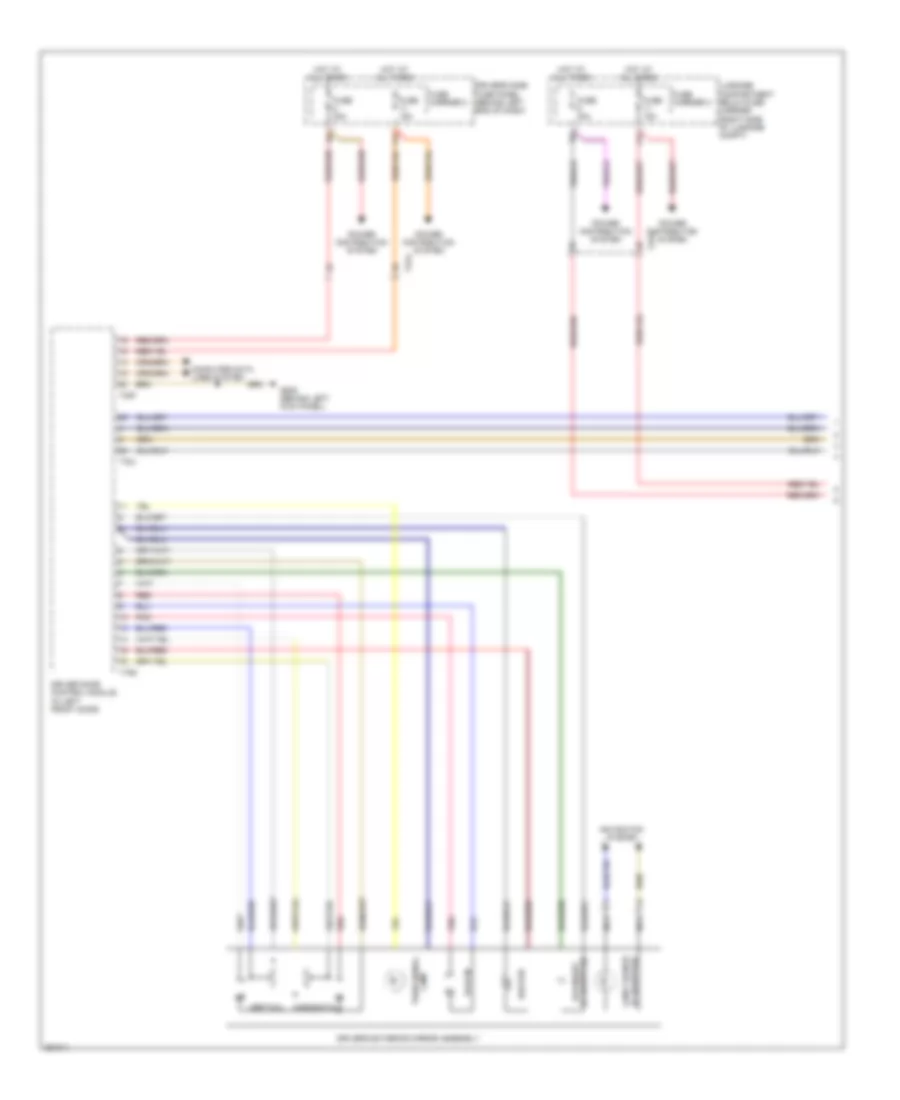

Электросхема привода зеркал (1 из 2) для Audi A4 2.0T Avant Quattro 2011

Электросхема привода зеркал (1 из 2) для Audi A4 2.0T Avant Quattro 2011 - Список элементов:

• 11a
• Computer data lines system
• Day/night (if equipped)
• Driver door control module (in left front door)
• Driver's exterior mirror assembly
• Driver's side fuse panel (behind left end of dash)
• Fold-in
• Fuse 15a
• Fuse 30a
• Fuse carrier 2
• Fuse carrier 3
• G639 (behind left kick panel)
• Heater
• Horizontal
• Hot at all times
• Lane change (if equipped)
• Luggage compartment relay/fuse carrier (right side of luggage compt)
• Navigation system
• Nca
• Pnk
• Power distribution system
• Red
• T16m
• T20f
• T27a
• T27c
• T32j
• Turn signal lamp
• Vertical

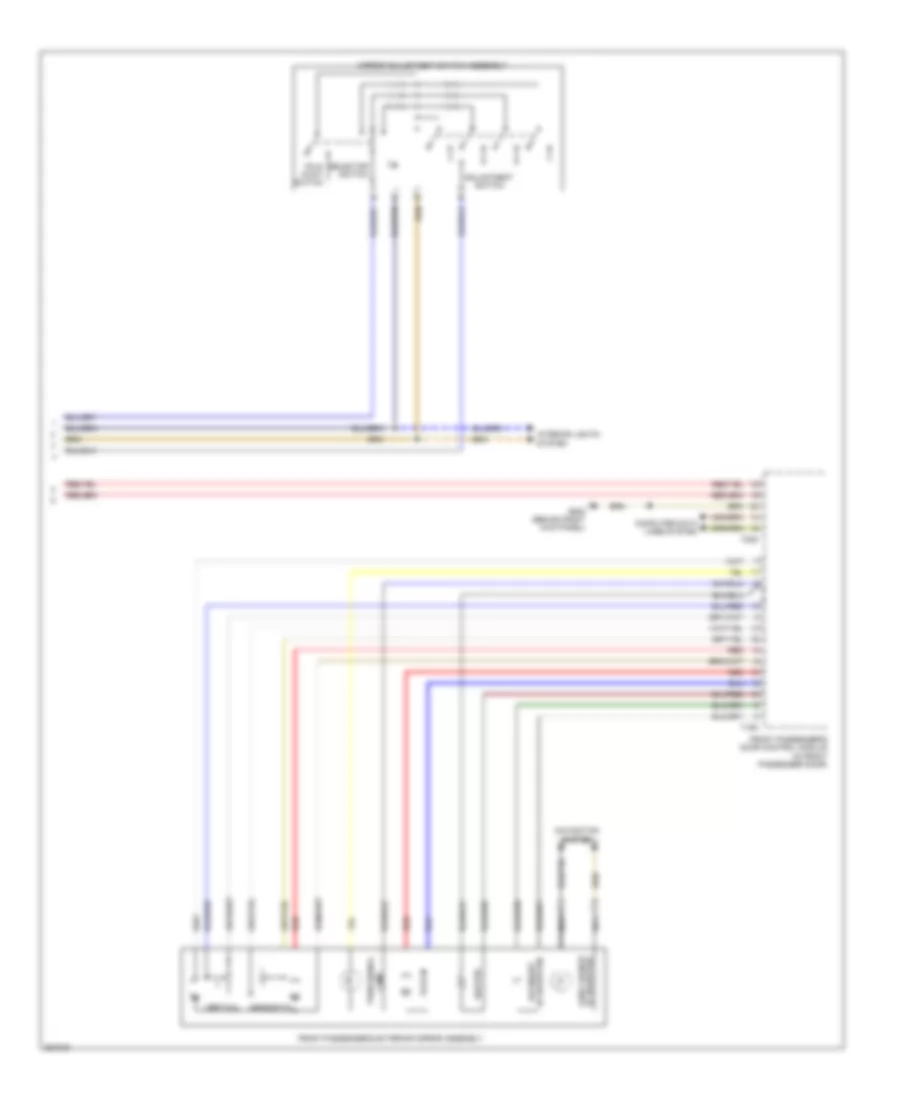

Электросхема привода зеркал (2 из 2) для Audi A4 2.0T Avant Quattro 2011

Электросхема привода зеркал (2 из 2) для Audi A4 2.0T Avant Quattro 2011 - Список элементов:

• Adjustment switch
• Computer data lines system
• Day/night (if equipped)
• Fold away switch
• Fold-in
• Front passenger's door control module (in front passenger door)
• Front passenger's exterior mirror assembly
• G638 (behind right kick panel)
• Heater
• Horizontal
• Interior lights system
• Lane change (if equipped)
• Mirror adjustment switch assembly
• Navigation system
• Nca
• Red
• Selector switch
• T16n
• T20g
• Turn signal lamp
• Vertical
