Электросхемы БЛОКИРОВКИ СЕЛЕКТОРА СТОЯНОЧНЫЙ ТОРМОЗ Audi A4 2.0T Avant Quattro 2011

БЛОКИРОВКИ СЕЛЕКТОРА СТОЯНОЧНЫЙ ТОРМОЗ

Электросхема стояночного тормоза для Audi A4 2.0T Avant Quattro 2011

Электросхема стояночного тормоза для Audi A4 2.0T Avant Quattro 2011 - Список элементов:

• 12a
• Abs control module (left side of engine compt)
• Auto- hold
• Clutch position sensor (m/t)
• Computer data lines system
• Discontinued phased in modification
• Electro- mechanical parking brake control module (right side of trunk)
• Electro-mechanical parking brake button
• Fuse 30a
• Fuse 5a
• Fuse carrier 2
• Fuse carrier 3
• Fuse carrier 4
• G51 (right side of luggage compt)
• Hot at all times
• Interior lights system
• Left parking brake motor
• Luggage compartment relay/fuse carrier (right side of luggage compt)
• Right parking brake motor
• Solid state

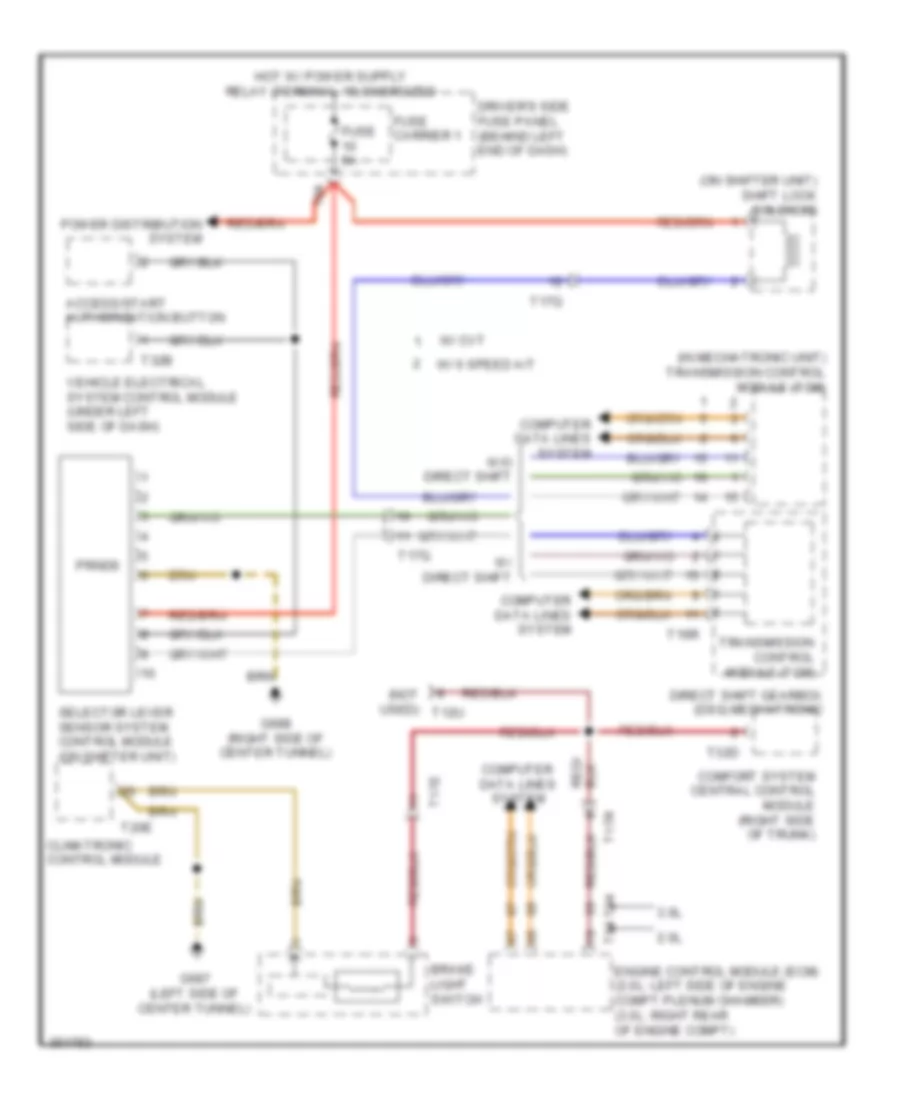

Электросхема блокировки селектора для Audi A4 2.0T Avant Quattro 2011

Электросхема блокировки селектора для Audi A4 2.0T Avant Quattro 2011 - Список элементов:

• (in mechatronic unit) transmission control module (tcm)
• (not used)
• (on shifter unit) shift lock solenoid
• 10a
• 2.0l
• 3.0l
• Access/start authorization button
• Brake light switch
• Climatronic control module
• Comfort system central control module (right side of trunk)
• Computer data lines system
• Direct shift gearbox (dsg) mechatronic
• Driver's side fuse panel (behind left end of dash)
• Engine control module (ecm) (2.0l: left side of engine compt plenum chamber) (3.0l: right rear of engine compt)
• Fuse 5a
• Fuse carrier 1
• G687 (left side of center tunnel)
• G688 (right side of center tunnel)
• Power distribution system
• Prnds
• Selector lever sensor system control module (on shifter unit)
• T12u
• T16r
• T17e
• T17q
• T17r
• T20e
• T32b
• T32d
• T94
• Transmission control module (tcm)
• Vehicle electrical system control module (under left side of dash)
• W/ 6 speed a/t
• W/ cvt
• W/ direct shift
• W/o direct shift

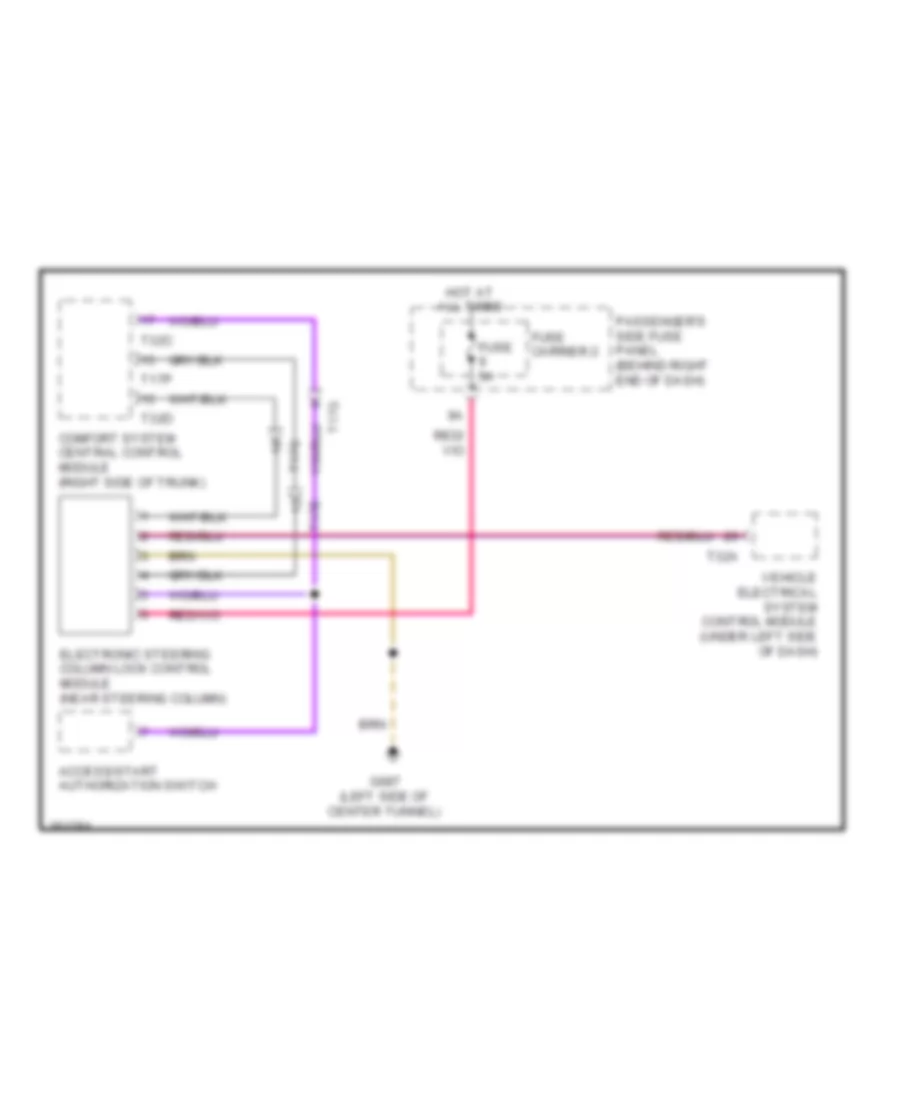

схема рулевой колонки для Audi A4 2.0T Avant Quattro 2011

схема рулевой колонки для Audi A4 2.0T Avant Quattro 2011 - Список элементов:

• Access/start authorization switch
• Comfort system central control module (right side of trunk)
• Electronic steering column lock control module (near steering column)
• Fuse 5a
• Fuse carrier 2
• G687 (left side of center tunnel)
• Hot at all times
• Passenger's side fuse panel (behind right end of dash)
• T17e
• T17g
• T17p
• T32a
• T32c
• T32d
• Vehicle electrical system control module (under left side of dash)
