Электросхемы ЦЕНТРАЛЬНЫЙ ЗАМОК Land Rover Discovery 4 HSE 2013

ЦЕНТРАЛЬНЫЙ ЗАМОК

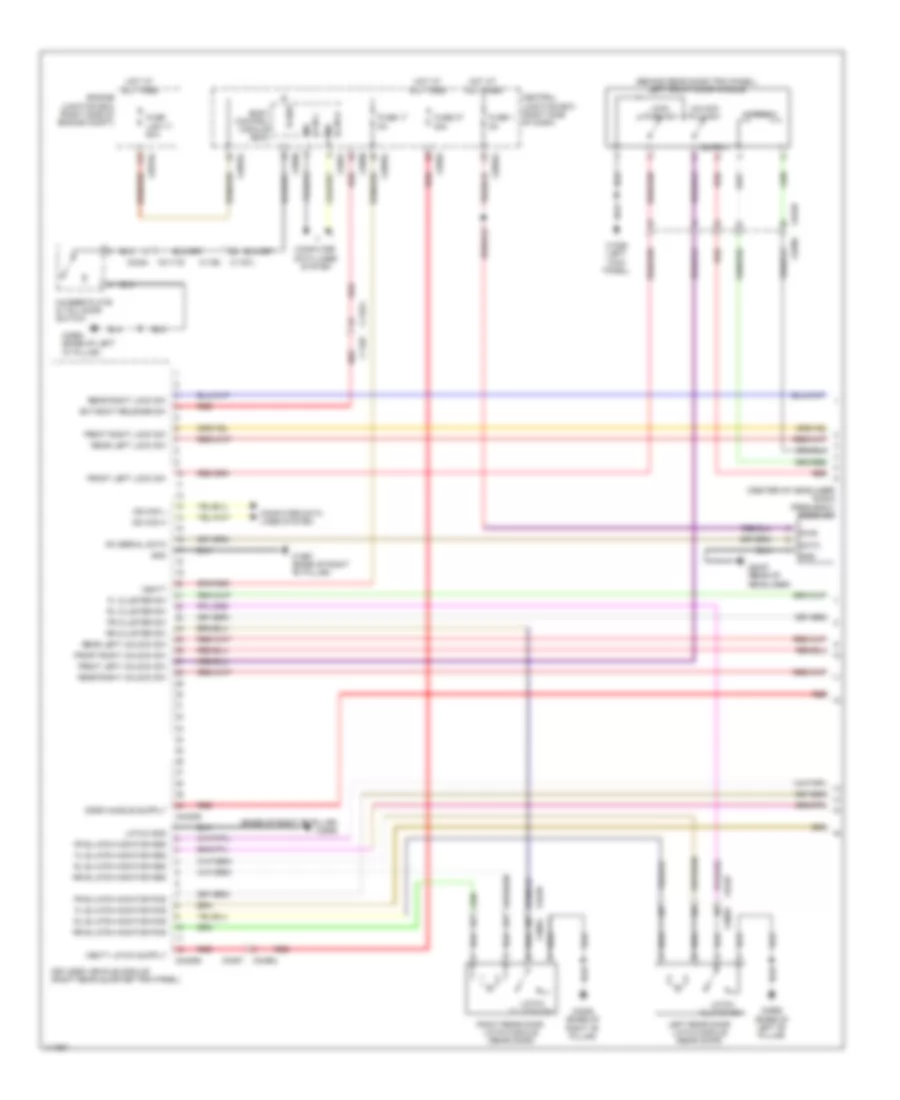

Электросхема центрального замка, С Вход Без ключа (1 из 3) для Land Rover Discovery 4 HSE 2013

Электросхема центрального замка, С Вход Без ключа (1 из 3) для Land Rover Discovery 4 HSE 2013 - Список элементов:

• (base of right "b" pillar) c2598
• (behind rear door trim panel) left front door handle
• (center of headliner) radio frequency receiver
• Antenna
• Body control module (bcm)
• C0117s
• C0384
• C0396
• C0435
• C0436
• C0439
• C0467
• C0469l
• C0570l
• C0580
• C0581
• C0582
• C0583l
• C0585l
• C0803
• C0804
• C0809 (base of right "b" pillar)
• C1165
• C1167l
• C1536 (left kick panel)
• C1967 (base of right "b" pillar)
• C2428s
• C2429s
• C2565 (base of left "b" pillar)
• C2568 (base of left "d" pillar)
• C2597 (rear of headliner)
• Can h ms
• Central junction box (right side of dash)
• Computer data lines system
• Data
• Engine junction box (right side of engine compt)
• Ext boot release sw
• Fl cluster sw
• Fl e-latch monitor pos
• Fr cluster sw
• Fr e-latch monitor pos
• Front left lock sw
• Front left unlock sw
• Front right lock sw
• Front right unlock sw
• Fuse 1 5a
• Fuse 17 5a
• Fuse 37 20a
• Fuse link 17 50a
• Gnd
• Hot at all times
• Keyless vehicle module (right rear quarter trim panel)
• Kl30a
• Latch clutch sw
• Latch gnd
• Left rear door latch module (rear door)
• Lock push sw
• Ms can h
• Ms can l
• Number plate & tail door switch
• Pwr
• Rear left lock sw
• Rear left unlock sw
• Rear right lock sw
• Rear right unlock sw
• Red
• Right rear door latch module (rear door)
• Rl cluster sw
• Rl e-latch monitor pos
• Rr cluster sw
• Rr e-latch monitor pos
• Rx serial data
• Unlock pull sw
• Vbatt

Электросхема центрального замка, С Вход Без ключа (2 из 3) для Land Rover Discovery 4 HSE 2013

Электросхема центрального замка, С Вход Без ключа (2 из 3) для Land Rover Discovery 4 HSE 2013 - Список элементов:

• (behind rear door trim panel) left rear door handle
• Antenna
• C0084
• C0396
• C0398
• C0435
• C0439
• C0610
• C0803
• C1413 (right "a" pillar)
• C1536 (left kick panel)
• C2565 (base of left "b" pillar)
• C3646
• Latch clutch sw
• Left front door latch module
• Lock push sw
• Red
• Right front door handle
• Right front door latch module
• Right side headliner antenna
• Unlock pull sw

Электросхема центрального замка, С Вход Без ключа (3 из 3) для Land Rover Discovery 4 HSE 2013

Электросхема центрального замка, С Вход Без ключа (3 из 3) для Land Rover Discovery 4 HSE 2013 - Список элементов:

• (behind rear door trim panel) right rear door handle
• Ant rhs pos
• Antenna
• C0084
• C0436
• C0610
• C0804
• C0809 (base of right "b" pillar)
• C0876s
• C1165
• C1167l
• C2003
• C2160s
• C3643s
• C3644
• Ex trunk ant pos
• Front cabin ant pos
• Headliner lhs ant pos
• Headliner rhs ant pos
• Interior front cabin antenna
• Keyless vehicle module (right rear quarter trim panel)
• Left ant pos
• Left side headliner antenna
• Left side loadspace antenna
• Loadspace ant lhs pos
• Lock push sw
• Rear left ant pos
• Rear right ant pos
• Red
• Right ant pos
• Right luggage compartment antenna
• Unlock pull sw

Электросхема центрального замка, без Вход Без ключа (1 из 2) для Land Rover Discovery 4 HSE 2013

Электросхема центрального замка, без Вход Без ключа (1 из 2) для Land Rover Discovery 4 HSE 2013 - Список элементов:

• (base of left "b" pillar) c2565
• (left kick panel) c1536
• Ajar sw
• Batt
• Body control module (bcm)
• C lock
• C0396
• C0398
• C0435
• C0439
• C0570l
• C0583l
• C0585l
• C0803
• C1355s (base of right "d" pillar)
• C1413 (right "a" pillar)
• C1536 (left kick panel)
• C2016
• C2017
• C2057
• C2058
• C2563 (left side of engine compt)
• C2928s (base of left "d" pillar)
• C3556 (right front side of engine compt)
• C3646
• Central junction box (right side of dash)
• Common
• Computer data lines system
• D lock
• Di left sply
• Di rh
• Driver door lock motor (behind driver door trim panel)
• Driver door module (behind driver door trim panel)
• Engine junction box (right side of engine compt)
• Fuse 30 25a
• Fuse 32 25a
• Fuse 39 25a
• Fuse 44 25a
• Fuse link 17 50a
• Gnd
• Gnd latch
• Hot at all times
• Left front side repeater lamp
• Left front turn signal indicator/hazard warning lamp
• Left headlamp
• Left indicator fet
• Left rear door lock motor (behind rear door trim panel)
• Left rear door module (behind rear door trim)
• Left tail lamp unit
• Lin
• Lock fb
• Lock m3
• Ms can h
• Ms can l
• Passenger central door locking motor
• Passenger door module
• Red
• Right front side repeater lamp
• Right front turn signal indicator/hazard warning lamp
• Right headlamp
• Right indicator fet
• Right tail lamp unit
• Sply
• Sw lock
• Sw unlock
• Unlock
• Unlock fb

Электросхема центрального замка, без Вход Без ключа (2 из 2) для Land Rover Discovery 4 HSE 2013

Электросхема центрального замка, без Вход Без ключа (2 из 2) для Land Rover Discovery 4 HSE 2013 - Список элементов:

• (base of right "b" pillar) c0809
• Ajar sw
• Batt
• Body control module (bcm)
• Bonnet ajar
• C lock
• C0117s
• C0383s
• C0384
• C0396
• C0398
• C0399
• C0436
• C0439
• C0440
• C0467
• C0469l
• C0556 (left kick panel)
• C0580
• C0581
• C0582
• C0583l
• C0584l
• C0585l
• C0586l
• C0616s
• C0804
• C1165
• C1166l
• C1167l
• C1168l
• C1413 (right "a" pillar)
• C1971 (right "a" pillar)
• C2568 (base of left "d" pillar)
• C2700 (base of left "d" pillar)
• C2927 (right front side of engine compt)
• C3007
• C3008
• C3646
• Central junction box (right side of dash)
• Computer data lines system
• D lock
• D-lock
• Driv ajar
• Driver seat switch pack
• Fuel flap lock relay
• Fuel flap release motor (right rear trim panel)
• Fuel flap unlock relay
• Fuse 34 10a
• Gnd
• Hood switch (at right front of engine compt)
• Kl30a
• Latch gnd
• Lck sw master
• Left lower tailgate release motor (at left side of tailgate)
• Lin
• Lock master switch
• Lower tailgate release request switch
• Master unlck sw
• Ms can h
• Ms can l
• Number plate & tail door switch lamp
• Pass ajar
• Passenger seat switch pack
• Pnk/red
• Right lower tailgate release motor (at right side of tailgate)
• Right rear door lock motor (behind rear door trim panel)
• Right rear door module (behind rear door trim)
• Rl ajar
• Rr ajar
• Sec tailgate rel
• Secondary tailgate release fet
• Tailgate ajar
• Tailgate open switch (at center of tailgate)
• Tailgate upper cdl motor (right side of tailgate)
• Tailgate/ trunk rel
• Tailgate/ trunk release fet
• Unlck sw master
• Unlock
• Unlock master switch
• Upper tailgate release request switch
