Электросхемы СИСТЕМЫ СИДЕНИЙ Land Rover Discovery 4 HSE 2013

СИСТЕМЫ СИДЕНИЙ

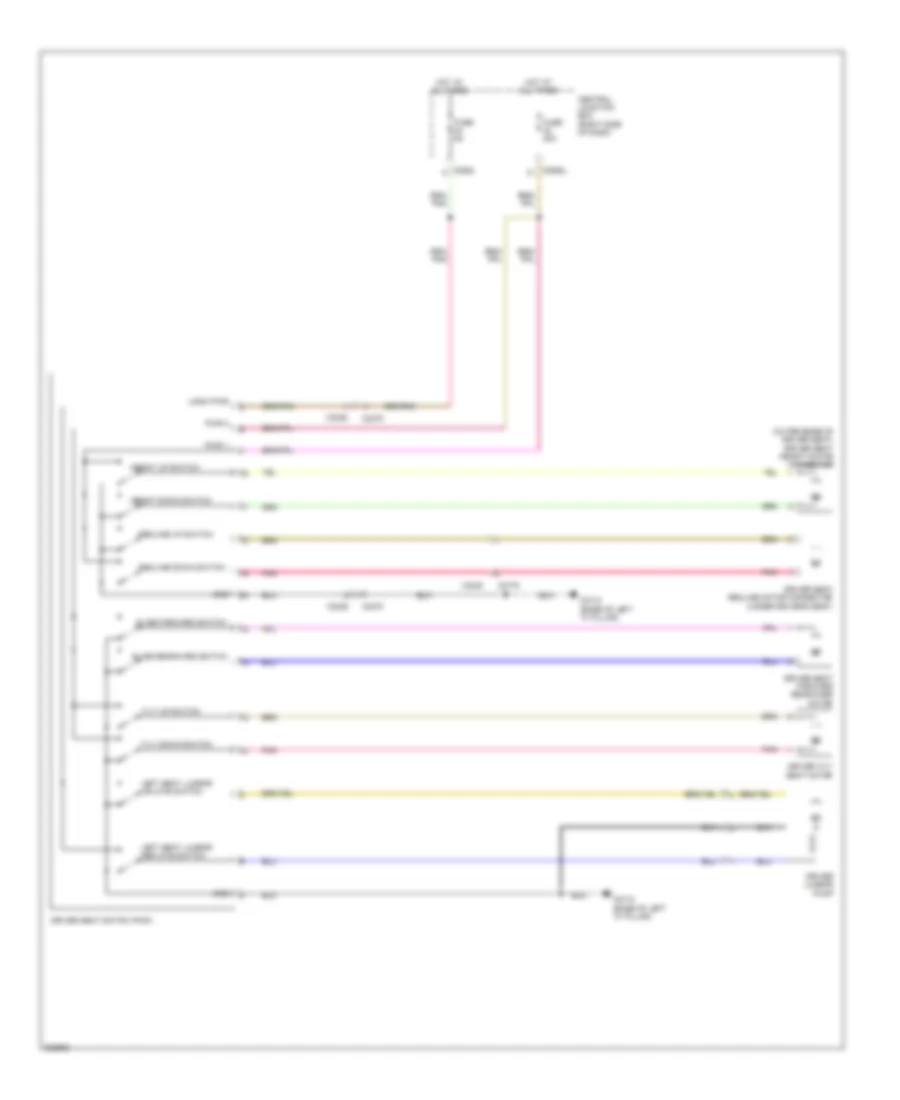

Электросхема привода водительского сиденья для Land Rover Discovery 4 HSE 2013

Электросхема привода водительского сиденья для Land Rover Discovery 4 HSE 2013 - Список элементов:

• (outer edge of driver seat) driver seat height motor connector
• C0582
• C0585l
• C0775
• C2378
• C2712 (base of left "a" pillar)
• C3025
• C3026
• C3030
• Central junction box (right side of dash)
• Driver lumbar pump
• Driver seat forward rearward motor
• Driver seat recline motor connector (under driver's seat)
• Driver seat switch pack
• Driver tilt seat motor
• Fuse 30a
• Fuse 5a
• Gnd
• Height down switch
• Height up switch
• Hot at all times
• Left seat lumbar deflate switch
• Left seat lumbar inflate switch
• Logic pwr
• Pnk
• Pwr 1
• Pwr 2
• Recline down switch
• Recline up switch
• Slide forward switch
• Slide rearward switch
• Tilt down switch
• Tilt up switch

Электросхема подогрева передних сидений для Land Rover Discovery 4 HSE 2013

Электросхема подогрева передних сидений для Land Rover Discovery 4 HSE 2013 - Список элементов:

• (left kick panel) c0810
• (right "a" pillar) c2696
• Batt
• Body control module (bcm)
• C0560 (right front side of engine compt)
• C0570l
• C0581
• C0582
• C0586l
• C0755
• C2243l
• C2245l
• C2368
• C2378
• C2379
• C2411l
• C2412l
• C2629 (right "a" pillar)
• C2630 (right "a" pillar)
• C3470
• C3471
• C3542
• C3543
• Center instrument panel switch pack
• Central junction box (right side of dash)
• Climate control module (behind left side of dash)
• Computer data lines system
• Driver heated seat module
• Driver seat backrest heater
• Driver seat cushion heater (under rear seat)
• Engine junction box (right side of engine compt)
• Front heated seat relay
• Fuse 10a
• Fuse 25a
• Gnd
• Hot at all times
• Ign
• Left seat heater sw
• Lin
• Ms can h
• Ms can l
• Passenger heated seat module
• Passenger seat backrest heater
• Passenger seat cushion heater (under rear seat)
• Red
• Right seat heater sw
• Thermistor

Электросхема подогрева руля для Land Rover Discovery 4 HSE 2013

Электросхема подогрева руля для Land Rover Discovery 4 HSE 2013 - Список элементов:

• C0374l
• C0582
• C2206
• C2285
• C2287
• C2288
• C2289
• C2627 (left kick panel)
• Central junction box (right side of dash)
• Clock spring (top of steering column)
• Fuse 10a
• Gnd
• Heated steering wheel
• Heated steering wheel module
• Heating mat
• Hot w/ ignition relay energized
• Illum
• Key
• Ntc
• Pwr
• Red
• Right steering wheel module
• Steering wheel heater
• Vbatt

Электросхема привода пассажирского сиденья для Land Rover Discovery 4 HSE 2013

Электросхема привода пассажирского сиденья для Land Rover Discovery 4 HSE 2013 - Список элементов:

• C0585l
• C0775
• C1970 (right "a" pillar)
• C2368
• C3025
• C3030
• Central junction box (right side of dash)
• Down tilt switch
• Fuse 30a
• Gnd
• Height down switch
• Height up switch
• Hot at all times
• Passenger seat forward rearward motor
• Passenger seat height motor connector (outer edge of passenger seat)
• Passenger seat recline motor
• Passenger seat switch pack
• Passenger tilt seat motor
• Pnk
• Pwr 1
• Pwr 2
• Recline down switch
• Recline up switch
• Slide forward switch
• Slide rearward switch
• Up tilt switch

Электросхема подогрева задних сидений для Land Rover Discovery 4 HSE 2013

Электросхема подогрева задних сидений для Land Rover Discovery 4 HSE 2013 - Список элементов:

• (base of left "b" pillar) c0809
• (base of left "b" pillar) c2565
• Body control module (bcm)
• C0560 (right front side of engine compt)
• C0570l
• C0581
• C0586l
• C2042
• C2043
• C2149b
• C2411l
• C2412l
• C2566 (base of left "b" pillar)
• C2754s
• C2755
• C3097
• C3097m
• Central junction box (right side of dash)
• Computer data lines system
• Engine junction box (right side of engine compt)
• Fuse 25a
• High
• Hot at all times
• Interior lights system
• Left rear cushion heater (under rear seat)
• Left rear seat backrest heater
• Left rear seat heat switch
• Left rear seat heater module
• Low
• Ms can h
• Ms can l
• Pnk
• Rear heated seat relay
• Red
• Right rear cushion heater (under rear seat)
• Right rear seat backrest heater
• Right rear seat heat switch
• Right rear seat heater module
• Thermistor
