Электросхемы ПОДУШКИ БЕЗОПАСНОСТИ AIR BAG Land Rover Discovery 4 HSE 2013

ПОДУШКИ БЕЗОПАСНОСТИ AIR BAG

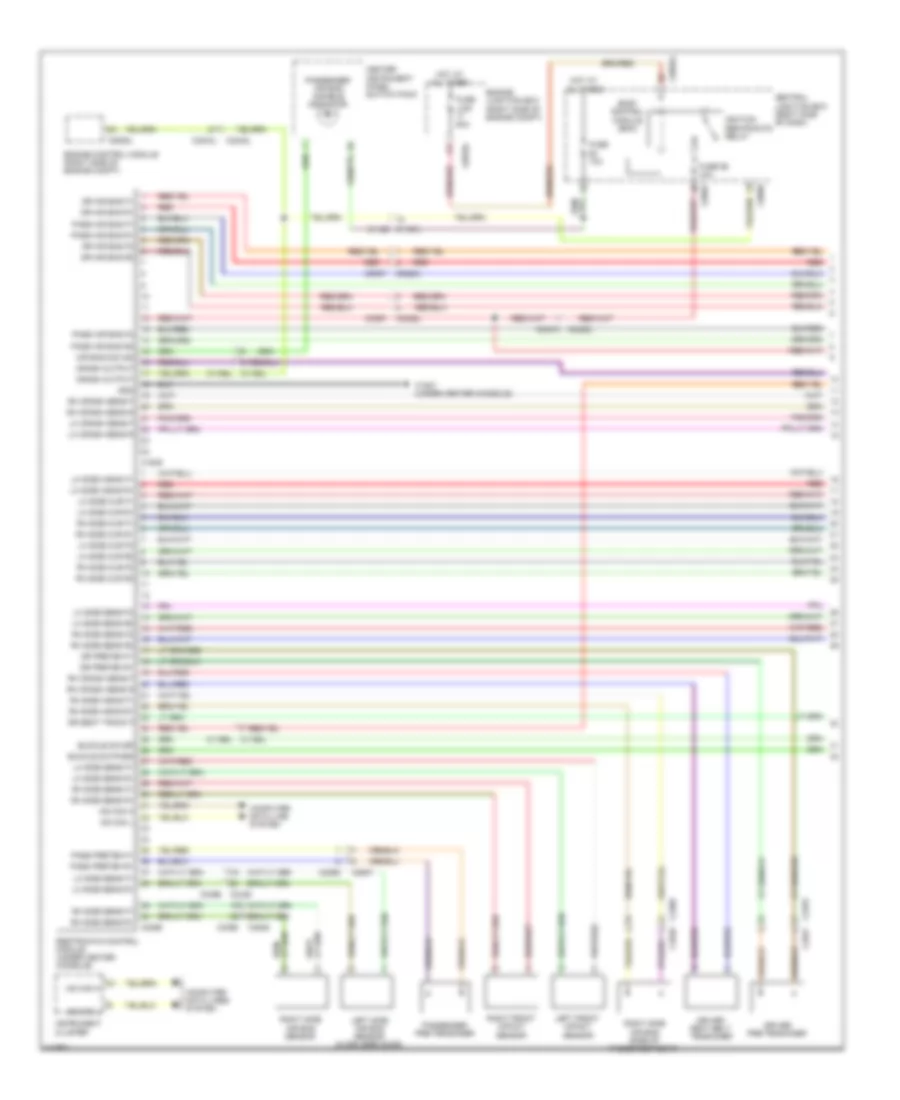

Электросхема подушек безопасности SRS AirBag (1 из 2) для Land Rover Discovery 4 HSE 2013

Электросхема подушек безопасности SRS AirBag (1 из 2) для Land Rover Discovery 4 HSE 2013 - Список элементов:

• Air bag dis ind
• Body control module (bcm)
• Buckle sw-dr
• Buckle sw-pass
• C0067
• C0223l c0047l
• C0229l
• C0256
• C0396
• C0398
• C0439
• C0570l
• C0580
• C0582
• C0583l
• C0635l
• C1166l c1168l
• C1167l c1165
• C1168l c1166l
• C1649
• C1947 (under center console)
• C2242l
• C2244l
• C2368
• C2368 c2946
• C2378 c2947
• C2947
• C3646
• Center instrument panel switch pack
• Central junction box (right side of dash)
• Computer data line system
• Computer data lines system
• Crash output
• Dr air bag f1
• Dr air bag f2
• Dr air bag r1
• Dr air bag r2
• Dr preten f1
• Dr preten r1
• Dr seat track f
• Driver pre-tensioner
• Driver seat belt tensioner
• Engine control module (right side of engine compt)
• Engine junction box (right side of engine compt)
• Fuse 10a
• Fuse 56 10a
• Fuse link 50a
• Gnd
• Hot at all times
• Hs can h
• Hs can l
• Ignition restraints relay
• Instrument cluster
• Left front impact sensor
• Left side air bag sensor (in driver's door)
• Lh crash sens f
• Lh crash sens r
• Lh side a/bag f1
• Lh side a/bag r1
• Lh side cur f1
• Lh side cur f2
• Lh side cur r1
• Lh side cur r2
• Lh side sens f1
• Lh side sens f2
• Lh side sens r1
• Lh side sens r2
• Pass air bag f1
• Pass air bag f2
• Pass air bag r1
• Pass air bag r2
• Pass preten f1
• Pass preten r1
• Passenger air bag disable indicator
• Passenger pre-tensioner
• Red
• Restraints control module (under center console)
• Rh crash sens f
• Rh crash sens r
• Rh side a/bag f1
• Rh side a/bag r1
• Rh side cur f1
• Rh side cur f2
• Rh side cur r1
• Rh side cur r2
• Rh side sens f1
• Rh side sens f2
• Rh side sens r1
• Rh side sens r2
• Right front impact sensor
• Right side air bag (side of passenger seat)
• Right side air bag sensor

Электросхема подушек безопасности SRS AirBag (2 из 2) для Land Rover Discovery 4 HSE 2013

Электросхема подушек безопасности SRS AirBag (2 из 2) для Land Rover Discovery 4 HSE 2013 - Список элементов:

• (left kick panel) c2627
• (right side of seat) seat belt tension sensor
• (under center console) c3196
• (under front passenger's seat) mat pressure sensor
• C0082l
• C0083
• C0231l
• C0251l
• C0257
• C0261l
• C0406
• C1254
• C1948
• C2242l
• C2244l
• C2363
• C2368
• C2368 c2363
• C2368 c2938
• C2378
• C2561 (under center console)
• C2636
• C2637l
• C2946
• C2948
• C2999 (right "a" pillar)
• C3110
• Clock spring (top of steering column) c2641l
• Computer data lines system
• Driver air bag (center of steering wheel)
• Driver buckle switch
• Driver seat track sensor (under driver seat)
• Driver side curtain air bag (under left front of headliner)
• Gnd
• Hs can h
• Hs can l
• Ign
• Left front side impact sensor (left side of engine compt)
• Left rear side curtain air bag (left "d" pillar)
• Left rear side impact sensor
• Left side air bag
• Nca
• Occupancy seat module (under front passenger's seat)
• Passenger air bag (right side of dash)
• Passenger air bag disable switch
• Passenger buckle switch
• Passenger side curtain air bag (under right front of headliner)
• Red
• Right front side impact sensor (right front side of engine compt)
• Right rear side curtain air bag (right "d" pillar)
• Right rear side impact sensor
• Sig
• V-ref
