СИСТЕМА УПРАВЛЕНИЯ ДВИГАТЕЛЯ
5.0L

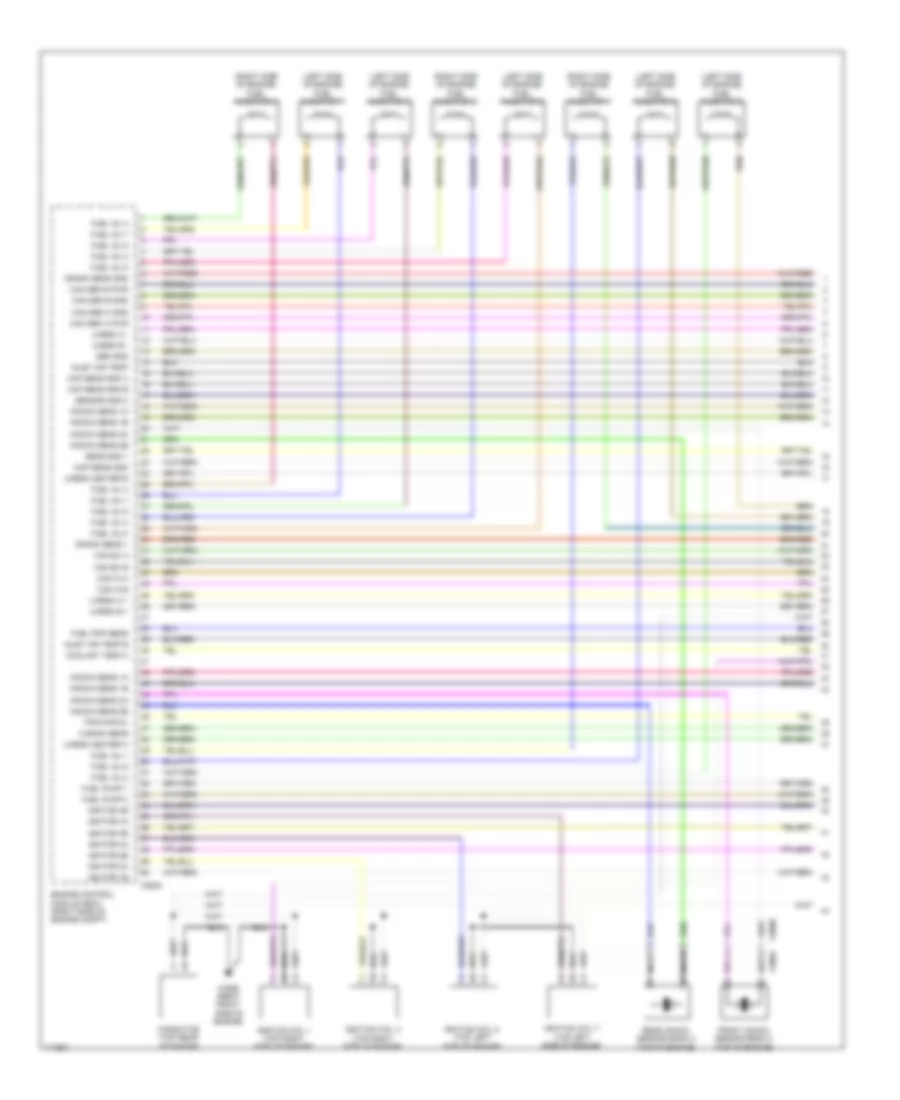

5.0L, Электросхема системы управления двигателем (1 из 6) для Land Rover Discovery 4 HSE 2013
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO
5.0L, Электросхема системы управления двигателем (1 из 6) для Land Rover Discovery 4 HSE 2013 - Список элементов:
- (left side of engine) fuel injector 2
- (left side of engine) fuel injector 5
- (left side of engine) fuel injector 6
- (left side of engine) fuel injector 7
- (left side of engine) fuel injector 8
- (right side of engine) fuel injector 1
- (right side of engine) fuel injector 3
- (right side of engine) fuel injector 4
- A bank sens
- C0634
- C0904
- C0909
- C3555 (right front side of engine)
- Cam ex a
- Cam ex b
- Cam in a
- Cam in b
- Cam sen a gnd
- Cam sen a pwr
- Cam sen b gnd
- Cam sen b pwr
- Capacitor (top rear of engine)
- Coolant temp 2
- Crank sens +
- Crank sens gnd
- Engine control module (ecm) (right side of engine compt)
- Front knock sensor bank 2 (top of engine)
- Fuel inj 1
- Fuel inj 2
- Fuel inj 3
- Fuel inj 4
- Fuel inj 5
- Fuel inj 6
- Fuel inj 7
- Fuel inj 8
- Fuel pmp sens
- Fuel pump 1
- Fuel pump 2
- Ignition coil 1 (top right side of engine)
- Ignition coil 3 (top right side of engine)
- Ignition coil 5 (top left side of engine)
- Ignition coil 7 (top left side of engine)
- Ignitor 1b
- Ignitor 2a
- Ignitor 2b
- Ignitor 3a
- Ignitor 3b
- Ignitor 4a
- Ignitor 4b
- Inlet air temp
- Inlet air temp b
- Knock sens 1a
- Knock sens 1b
- Knock sens 2a
- Knock sens 2b
- Maf sens gnd a
- Maf sens gnd b
- Map sens gnd
- Nca
- Rear knock sensor bank 2 (top of engine)
- Sen gnd
- Sens gnd 1
- Sensor gnd 2
- Tps pwr 5v
- Uhego a +
- Uhego a -
- Uhego b +
- Uhego b -
- Uhego heater a
- Uhego heater b
5.0L, Электросхема системы управления двигателем (2 из 6) для Land Rover Discovery 4 HSE 2013
5.0L, Электросхема системы управления двигателем (2 из 6) для Land Rover Discovery 4 HSE 2013 - Список элементов:
- (front right side of engine) inlet camshaft position sensor (bank 1)
- (left front side of engine) inlet camshaft position sensor (bank 2)
- (left front side of engine) outlet camshaft position sensor (bank 2)
- (left side of engine) crankshaft position sensor
- (right front side of engine) outlet camshaft position sensor (bank 1)
- (top of engine) front knock sensor bank 1
- (top of engine) rear knock sensor bank 1
- C0904 c0909
- C3554 (left front side of engine)
- Engine coolant temperature sensor (center rear of engine)
- Engine coolant temperature sensor 2
- Gnd
- High pressure fuel pump 1
- High pressure fuel pump 2
- Ignition coil 2 (top left side of engine)
- Ignition coil 4 (top left side of engine)
- Ignition coil 6 (top left side of engine)
- Ignition coil 8 (top left side of engine)
- Out
- Vref
5.0L, Электросхема системы управления двигателем (3 из 6) для Land Rover Discovery 4 HSE 2013
5.0L, Электросхема системы управления двигателем (3 из 6) для Land Rover Discovery 4 HSE 2013 - Список элементов:
- (behind center of front bumper) ambient air temperature sensor
- (front center of engine) temperature & manifold absolute pressure sensor (tmap)
- (front left side of engine compt) viscous cooling fan
- (left rear side of engine) left pre-catalyst heated oxygen sensor (bank 2)
- (right rear side of engine) fuel rail pressure sensor
- (right rear side of engine) right pre-catalyst heated oxygen sensor (bank 1)
- C0634
- C2724
- C2725l
- C3126
- C3127
- Coolant temp 1
- Cps sol a
- Cps sol b
- E box fan
- Electric throttle unit (top of engine)
- Engine control module (ecm) (right side of engine compt)
- Fuel inj 1
- Fuel inj 2
- Fuel inj 6
- Fuel pump 1
- Fuel pump 2
- Ignitor 1a
- Inlet air temp a
- Lin
- Low fuel pressure sensor
- Maf sensor a
- Maf sensor b
- Manifold valve
- Map sensor
- Oil quality
- Purge valve
- Starting/charging system
- Throttle +
- Throttle -
- Tps gnd
- Tps1
- Tps2
- Viscous fan ctrl
- Viscous fan spd
- Vvt sol ex a
- Vvt sol ex b
- Vvt sol in a
- Vvt sol in b
5.0L, Электросхема системы управления двигателем (4 из 6) для Land Rover Discovery 4 HSE 2013
5.0L, Электросхема системы управления двигателем (4 из 6) для Land Rover Discovery 4 HSE 2013 - Список элементов:
- (left front side of engine compt) maf/iat sensor (bank 2)
- (left rear of engine) oil temperature level sensor
- (not used)
- (right front of engine compt) maf/iat sensor (bank 1)
- C0570l
- C0904
- C0909
- C2724
- C2725l
- Camshaft profile switching solenoid (bank 1) (right rear side of engine)
- Control switching solenoid (bank 2)
- Engine control module relay
- Engine junction box (right side of engine compt)
- Exhaust vvt solenoid (bank 1) (right front side of engine)
- Exhaust vvt solenoid (bank 2) (left front side of engine)
- Fuse 10a
- Fuse 15a
- Fuse 25a
- Fuse 5a
- Hot at all times
- Intake vvt solenoid (bank 1) (right front side of engine)
- Intake vvt solenoid (bank 2) (left front side of engine)
- Manifold tuning valve (top of engine)
- Purge control valve (left side of engine)
5.0L, Электросхема системы управления двигателем (5 из 6) для Land Rover Discovery 4 HSE 2013
5.0L, Электросхема системы управления двигателем (5 из 6) для Land Rover Discovery 4 HSE 2013 - Список элементов:
- C0390 c0376
- C0570l
- C2293
- C2294sb
- C2724
- C2725l
- C3426l
- C3427l
- E box fan (right rear of engine compt)
- Engine junction box (right side of engine compt)
- Fuel pump relay
- Fuel tank unit (on top of fuel tank)
- Fuse 25a
- Hot at all times
- Leak detection pump (under center of vehicle)
- Left post catalyst heated oxygen sensor (bank 2) (left side of transmission)
- Red
- Right post catalyst heated oxygen sensor (bank 1) (right side of transmission)
5.0L, Электросхема системы управления двигателем (6 из 6) для Land Rover Discovery 4 HSE 2013
5.0L, Электросхема системы управления двигателем (6 из 6) для Land Rover Discovery 4 HSE 2013 - Список элементов:
- (left side of luggage compt) fuel pump driver module
- (right front wheel arch liner) c3557
- 5v ref 1
- Accelerator pedal position sensor (driver's side footwell)
- Active
- Analog out 1
- B bank sensor gnd
- B-bank sens gnd 2
- Batt
- Body control module (bcm)
- Brake pedal switch (base of left "a" pillar)
- Brake sw 1
- Brake sw 2
- Brk sw 1
- C0584l
- C0585l
- C0586l
- C0635l
- C2242l
- C2243l
- C2244l
- C2245l
- C2411l
- C2412l
- C2564 (left side of engine compt)
- C2650 (right front wheel arch liner)
- C2928
- Ccp can+
- Ccp can-
- Central junction box (right side of dash)
- Change over valve
- Computer data lines system
- Crank request
- Diag
- Dnm
- Ecm power vvt diode
- Ecm pwr
- Engine control module (ecm) (right side of engine compt)
- Exterior lights system
- Fpdm ctrl
- Fpdm monitor
- Fuel leak pump
- Fuse 5a
- Gnd
- Hego a +
- Hego a -
- Hego b +
- Hego b -
- Hego htr a
- Hego htr b
- Hot at all times
- Hot w/ ignition relay energized
- Hs can h
- Hs can l
- Ign
- Instrument cluster
- Lp fuel press
- Main relay
- Motor +
- Motor -
- Ms can h
- Ms can l
- Nca
- Park/neutral sw
- Passive
- Pedal 1 gnd
- Pedal 1 signal
- Pedal 2 sig
- Power gnd 1
- Power gnd 2
- Pump heater ctrl
- Red
- Sig out 2
- Signal gnd
- Sply gnd 1
- Sply gnd 2
- Srs
- Start relay
- Starting/charging system
- Tamb +
- Throttle power
- Transmissions system
- Vref sply 1
- Vref sply 2
