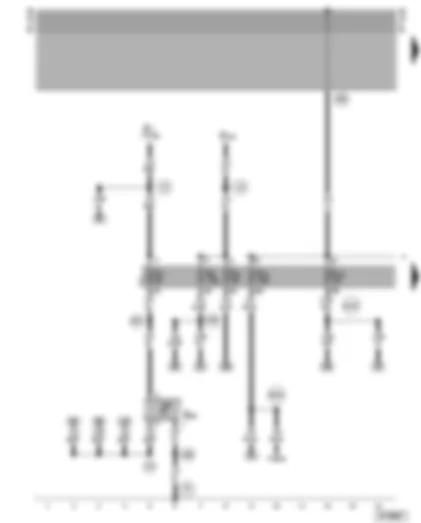

| D | Ignition/starter switch |
| E1 | Lighting switch |
| E20 | Switches and instruments-lighting control |
| S3 | Fuse in relay plate fuse holder |
| S5 | Fuse in relay plate fuse holder |
| S6 | Fuse in relay plate fuse holder |
| S12 | Fuse in relay plate fuse holder |
| S15 | Fuse in relay plate fuse holder |
| T16 | 16-pin connector, diagnostic connector |
| T17 | 17-pin connector, connector on lighting switch |
| 42 | Earth point, next to steering column |
| 279 | Earth connection -5-, in interior wiring harness |
| 500 | Screw connection -1- (30), on relay plate |
| A2 | Positive (+) connection (15), in dash panel wiring harness |
| A3 | Positive (+) connection (58), in dash panel wiring harness |
| A4 | Positive (+) connection (58b), in dash panel wiring harness |
| A20 | Connection (15a), in dash panel wiring harness |
| A37 | Connection (58a), in dash panel wiring harness |
| A167 | Positive connection -3- (30a), in dash panel wiring harness |
| B231 | Positive connection -5- (30a), in interior wiring harness |
| D | Ignition/starter switch |
| S1 | Fuse in relay plate fuse holder |
| S111 | Anti-theft alarm system and immobilizer fuse |
| S144 | Anti-theft alarm system central locking fuse |
| S230 | Fuse in fuse holder |
| S237 | Fuse in fuse holder |
| S238 | Fuse in fuse holder |
| 500 | Screw connection -1- (30), on relay plate |
| 503 | Screw connection (75x), on relay plate |
| A21 | Connection (86s), in dash panel wiring harness |
| A32 | Positive connection (30), in dash panel wiring harness |
| A33 | Connection (75), in dash panel wiring harness |
| A40 | Positive connection -1- (30), in dash panel wiring harness |
| A66 | Connection (30a, CL/A.TWS/IR), in dash panel wiring harness |
| A164 | Positive connection -2- (30a), in dash panel wiring harness |
| F4 | Reversing light switch |
| F147 | Vanity mirror contact switch, driver's side |
| F148 | Vanity mirror contact switch, front passenger's side |
| G17 | Ambient temperature sensor |
| J29 | Diode |
| J226 | Starter inhibitor and reversing light relay |
| T12a | 12-pin connector, in wiring harness heaven |
| W | Interior light, front |
| W14 | Illuminated vanity mirror, front passenger's side |
| W20 | Illuminated vanity mirror, driver's side |
| Y2 | Digital clock |
| 332 | Earth connection -4-, in dash panel wiring harness |
| A168 | Positive connection -4- (30a), in dash panel wiring harness |
| B182 | Connection (RL), in interior wiring harness |
| R5 | Connection -2-, in interior light wiring harness |
| R6 | Positive connection -1-, in interior light wiring harness |
| * | With manual gearbox only |
| ** | With automatic gearbox only |
| E183 | Interior monitor switch |
| G170 | Left ultra-sonic sensor for anti-theft alarm system |
| G171 | Right ultra-sonic sensor for anti-theft alarm system |
| T8t | 8-pin connector, in wiring harness heaven |
| T12a | 12-pin connector, in wiring harness heaven |
| W11 | Reading lamp, rear left |
| W12 | Reading lamp, rear right |
| 332 | Earth connection -4-, in dash panel wiring harness |
| A168 | Positive connection -4- (30a), in dash panel wiring harness |
| B161 | Connection (ATA), in interior wiring harness |
| R4 | Connection -1-, in interior light/door contact switch wiring harness |
| R5 | Connection -2-, in interior light wiring harness |
| R6 | Positive connection -1-, in interior light wiring harness |
| E43 | Mirror adjustment switch |
| E48 | Mirror adjustment change-over switch |
| E231 | Exterior mirror heating button |
| J99 | Heated exterior mirror relay |
| T8 | 8-pin connector, black, mirror driver's side |
| T10i | 10-pin connector, black, coupling station left A-pillar |
| T10t | 10-pin connector, blue, coupling station left A-pillar |
| T10y | 10-pin connector, black, left, mirror adjustment switch in driver's side |
| V17 | Mirror adjustment motor, driver's side |
| V149 | Mirror adjustment motor, driver's side |
| Z4 | Heated exterior mirror, driver's side |
| 205 | Earth connection, in driver's door wiring harness |
| R27 | Connection (mirror adjustment), in driver's side door wiring harness |
| Z1 | Connection -1-, in mirror adjustment/heating wiring harness |
| L78 | Mirror adjustment switch illumination |
| T8g | 8-pin connector, mirror, front passenger's side |
| T10r | 10-pin connector, black, connector point, right A-pillar |
| T10x | 10-pin connector, blue, connector point, right A-pillar |
| T10y | 10-pin connector, black, left, mirror adjustment switch in driver's door |
| V25 | Mirror adjustment motor, front passenger's side |
| V150 | Mirror adjustment motor, front passenger's side |
| Z5 | Heated exterior mirror, front passenger's side |
| 205 | Earth connection, in door wiring harness-driver's side |
| R36 | Connection (mirror adjustment), in door wiring harness-front passenger's side |
| R51 | Connection (58b), in door wiring harness-driver's side |
| E150 | Interior locking switch, driver's side |
| E188 | Bootlid/tailgate remote control switch |
| E204 | Tank filler flap remote release switch |
| J393 | Convenience system central control unit |
| L99 | Interior lock switch illumination |
| L104 | Remote release switch illumination |
| T5h | 5-pin connector, in driver's door |
| T10i | 10-pin connector, black, connector point, left A-pillar |
| T10v | 10-pin connector, brown, connector point, left A-pillar |
| T24 | 24-pin connector, black, connector C, central control unit |
| V155 | Tank filler flap release motor |
| 205 | Earth connection, in door wiring harness-driver's side |
| B133 | Connection (central locking open), in interior wiring harness |
| B134 | Connection (central locking closed), in interior wiring harness |
| R51 | Connection (58b), in door wiring harness-driver's side |
| F220 | Central locking lock unit, driver's side |
| J29 | Diode |
| J393 | Convenience system central control unit |
| K133 | Central locking warning lamp -SAFE- |
| M27 | Door warning lamp, left |
| T8j | 8-pin connector, left, positioning motor central locking |
| T10i | 10-pin connector, black, coupling station left A-pillar |
| T10v | 10-pin connector, brown, coupling station left A-pillar |
| T23 | 23-pin connector, connector A, central module |
| T24 | 24-pin connector, connector C, central module |
| 205 | Earth connection, in driver's door wiring harness |
| A13 | Connection (door contact switch), in dash panel wiring harness |
| A168 | Positive connection -4- (30a), in dash panel wiring harness |
| R47 | Connection (87a), in driver's door wiring harness |
| E198 | Interior locking switch, front passenger's side |
| F221 | Central locking lock unit, front passenger's side |
| J29 | Diode |
| J393 | Convenience system central control unit |
| L99 | Interior lock switch illumination |
| M28 | Door warning lamp, right |
| T5n | 5-pin connector, in front passenger door |
| T8k | 8-pin connector, right, positioning motor central locking |
| T10r | 10-pin connector, black, coupling station right A-pillar |
| T10u | 10-pin connector, brown, coupling station right A-pillar |
| T23 | 23-pin connector, connector A, central module |
| T24 | 24-pin connector, connector C, central module |
| 206 | Earth connection, in front passenger's door wiring harness |
| A168 | Positive connection -4- (30a), in dash panel wiring harness |
| R48 | Connection (87a), in front passenger's door wiring harness |
| F5 | Luggage compartment light switch |
| F124 | Contact switch in lock cylinder for tailgate/boot lid anti-theft alarm system/central locking system |
| E165 | Tailgate/boot lid release switch |
| J393 | Convenience system central control unit |
| T5 | 5-pin connector, black, coupling station left C-pillar |
| T5a | 5-pin connector, black, in the tailgate |
| T5b | 5-pin connector, brown, in the tailgate |
| T5g | 5-pin connector, brown, coupling station left C-pillar |
| T23 | 23-pin connector, connector A, central module |
| T24 | 24-pin connector, connector C, central module |
| V139 | Tailgate/boot lid release motor |
| W3 | Luggage compartment light |
| 50 | Earth point, on left luggage compartment |
| 98 | Earth connection, in tailgate/boot lid wiring harness |
| 218 | Earth connection -1-, in tailgate/boot lid wiring harness |
| A99 | Connection -1- (87), in dash panel wiring harness |
| A168 | Positive connection -4- (30a), in dash panel wiring harness |
| A126 | Connection (tailgate/boot lid contact switch), in dash panel wiring harness |
| B128 | Connection (luggage compartment light), in interior wiring harness |
| J234 | Airbag control unit |
| J285 | Control unit with display in dash panel insert |
| J393 | Convenience system central control unit |
| K116 | Tailgate/boot lid released warning lamp |
| T15 | 15-pin connector, connector B, central module |
| T16 | 16-pin connector, diagnostic connector |
| T23 | 23-pin connector, connector A, central module |
| T24 | 24-pin connector, connector C, central module |
| T32 | 32-pin connector, blue, on dash panel insert |
| T32a | 32-pin connector, green, on dash panel insert |
| A27 | Connection (speed signal), in dash panel wiring harness |
| A76 | Connection (diagnosis wire K), in dash panel wiring harness |
| A125 | Connection (crash signal), in dash panel wiring harness |
| B128 | Connection (luggage compartment light), in interior wiring harness |
| L2 | Connection in air conditioner wirning harness |
| * | For heating only |
| ** | For air conditioning system only |
| E139 | Sliding sunroof adjustment regulator |
| F266 | Bonnet contact switch |
| J245 | Sliding sunroof adjustment control unit |
| J393 | Convenience system central control unit |
| T4h | 4-pin connector, in wiring harness heaven |
| T6 | 6-pin connector, on sliding/tilting sunroof |
| T8t | 8-pin connector, in wiring harness heaven |
| T15 | 15-pin connector, connector B, central module |
| T23 | 23-pin connector, connector A, central module |
| 29 | Earth point, near longitudinal |
| 81 | Earth connection -1-, in dash panel wiring harness |
| 85 | Earth connection -1-, in engine compartment wiring harness |
| 131 | Earth connection -2-, in engine compartment wiring harness |
| 199 | Earth connection -3-, in dash panel wiring harness |
| B155 | Connection -2- (DC), in interior wiring harness |
| H8 | Anti-theft alarm system horn |
| H12 | Alarm horn |
| J393 | Convenience system central control unit |
| M... | Turn signal bulb |
| R47 | Central locking and anti-theft alarm system aerial |
| T15 | 15-pin connector, connector B, central module |
| 12 | Earth point, in engine compartment, left |
| 42 | Earth point, next to steering column |
| 81 | Earth connection -1-, in dash panel wiring harness |
| 135 | Earth connection -2-, in dash panel wiring harness |
| A5 | Positive (+) connection (right turn signal), in dash panel wiring harness |
| A6 | Positive (+) connection (left turn signal), in dash panel wiring harness |
