VW NEW BEETLE 2002 – Telematics . Wiring diagrams, Pin Connector, Location

  1. Home
  2. >VW
  3. >VW NEW BEETLE
  4. >VW NEW BEETLE 2002
  5. >VW NEW BEETLE 2002 ALL WIRING DIAGRAMS - ENGLISH

Download PDF file

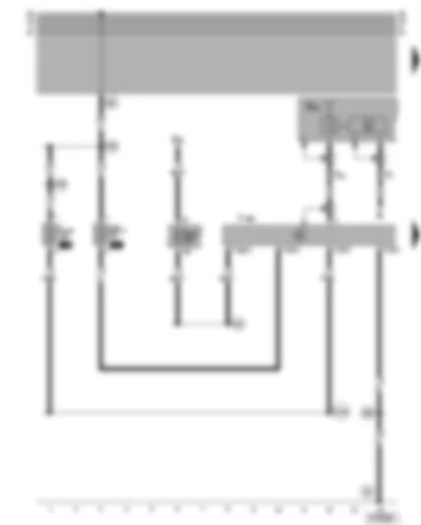

Wiring Diagram VW NEW BEETLE 2002 - Fuses - aerial



Wiring Diagram VW NEW BEETLE 2002 - Fuses - aerial https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Download PDF file
DIgnition/starter switch
J499Telematics control unit
RRadio
R51Radio/telephone aerial
S144Anti-theft alarm system/ central locking fuse
S237Fuse in fuse box
SB2Fuse -2- on fuse box
T1Single connector
T1a1-pin connector
T12g12-pin connector, on telematics control unit
T12h12-pin connector, on telematics control unit
   45 Earth point, behind dash panel - centre
   255 Earth connection -1-, in radio wiring harness
   501 Screw connection -2- (30), on relay plate
   A21 Connection (86s), in dash panel wiring harness
   A32 Positive (+) connection (30), in dash panel wiring harness
   A40 Positive (+) connection -1- (30), in dash panel wiring harness
   A164 Positive (+) connection -2- (30a), in dash panel wiring harness

Wiring Diagram VW NEW BEETLE 2002 - Telematics operating unit



Wiring Diagram VW NEW BEETLE 2002 - Telematics operating unit https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Get access to all wiring diagrams of the carDownload PDF file
E264Telematics operating unit
J393Convenience system central control unit
J499Telematics control unit
R54Mobile telephone
T3j3-pin connector, on telematics operating unit
T4l4-pin connector, on telematics operating unit
T10v10-pin connector, brown, connector point, left A pillar
T12g12-pin connector, on telematics control unit
T12h12-pin connector, on telematics control unit
T1313-pin connector
T2424-pin connector, connector C, central control unit
   B133 Connection (central locking open), in interior wiring harness
   B134 Connection (central locking closed), in interior wiring harness
*Only models without window lifter
**Only models with window lifter

Wiring Diagram VW NEW BEETLE 2002 - Telephone microphone



Wiring Diagram VW NEW BEETLE 2002 - Telephone microphone https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Get access to all wiring diagrams of the carDownload PDF file
J234Airbag control unit
J499Telematics control unit
M...Turn signal bulbs
RRadio
R38Telephone microphone
T8a8-pin connector, on radio
T8t8-pin connector, in headlining wiring harness
T12g12-pin connector, on telematics control unit
T12h12-pin connector, on telematics control unit
T2020-pin connector, yellow/green/blue, on radio
   A5 Positive (+) connection (right turn signal), in dash panel wiring harness
   A6 Positive (+) connection (left turn signal), in dash panel wiring harness
   A125 Connection (crash signal), in dash panel wiring harness
