Электросхемы Мультимедия Hyundai Veracruz Limited 2009

Мультимедия

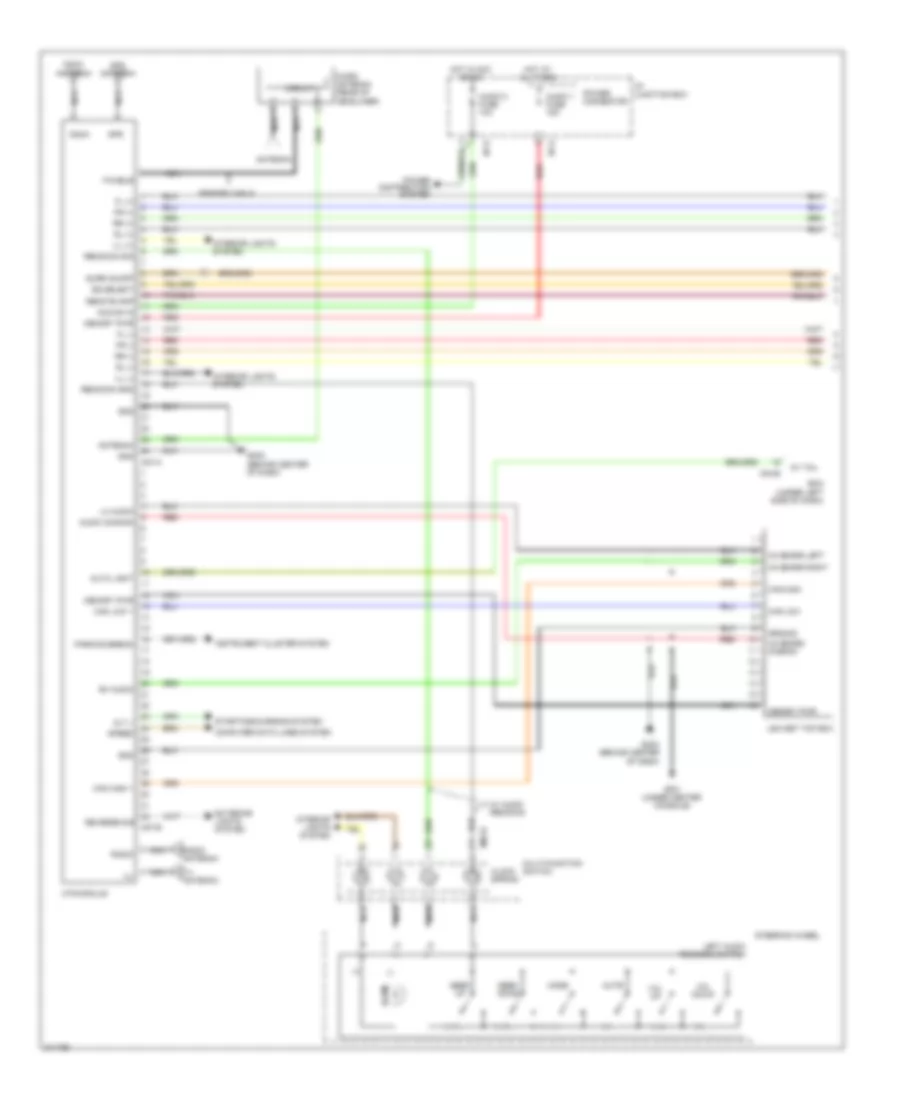

Электросхема мультимедии (1 из 2) для Hyundai Veracruz Limited 2009

Электросхема мультимедии (1 из 2) для Hyundai Veracruz Limited 2009 - Список элементов:

• (+)
• (-)
• Acc/on in
• Alt l
• Antenna
• Audio 1 fuse 15a
• Audio 2 fuse 10a
• Audio common
• Auto light
• Av tail
• Bcm (under left side of dash)
• Can high
• Can high 1
• Can low
• Can low 1
• Cdma
• Cdma antenna
• Circuit
• Clock spring
• Computer data lines system
• Eq select
• Exterior lights system
• F/cable
• Feeder cable
• Fl (+)
• Fl (-)
• Fr (+)
• Fr (-)
• Gf01 (under center console)
• Gm03 (behind center of dash)
• Gnd
• Gps
• Gps antenna
• Ground
• Hot at all times
• Hot in acc or on
• I/p junction box
• I/p-g
• I/p-k
• Ill (+)
• Ill (-)
• Illum
• Instrument cluster system
• Interior lights system
• Left audio remocon switch
• Lh audio
• M02-r
• M04-b
• M07-a
• M07-b
• Memory pwr
• Micro antenna (rear of headliner)
• Mode
• Mts module
• Multi-function switch
• Mute
• Nca
• Parking break
• Power connector
• Power distribution system
• Radio
• Radio antenna
• Red
• Remocon gnd
• Remocon sig
• Remote amp
• Reverse sig
• Rh audio
• Rl (+)
• Rl (-)
• Rr (+)
• Rr (-)
• Seek down
• Seek up
• Speed
• Starting/charging system
• Steering wheel
• Surr on/off
• Tv antenna
• Usa set top box
• Vol down
• Vol up
• W/ audio remocon
• Xm sdars common
• Xm sdars left
• Xm sdars right

Электросхема мультимедии (2 из 2) для Hyundai Veracruz Limited 2009

Электросхема мультимедии (2 из 2) для Hyundai Veracruz Limited 2009 - Список элементов:

• (+)
• (-)
• Amp fuse 30a
• Center speaker
• Computer data lines system
• E/r sub box (right front of engine compt)
• Eq sel
• F06-a
• F06-b
• Fl (+)
• Fl (-)
• Fr (+)
• Fr (-)
• Frt ctr (+)
• Frt ctr (-)
• Gf04 (at left "c" pillar)
• Ground
• Hot at all times
• Jbl amp (behind left quarterpanel)
• Left front door speaker
• Left front tweeter speaker
• Left rear door speaker
• Left tail gate speaker
• Lh twtr (+)
• Mem power
• Nca
• Re on/off
• Red
• Rh twtr (+)
• Rh twtr (-)
• Right front door speaker
• Right front tweeter speaker
• Right rear door speaker
• Right tail gate speaker
• Rl (+)
• Rl (-)
• Rr (+)
• Rr (-)
• Sub wfr l (+)
• Sub wfr l (-)
• Sub wfr r (+)
• Sub wfr r (-)
• Sub woofer speaker
• Surr on/off
• Tgat lh (+)
• Tgat lh (-)
• Tgat rh (+)
• Tgat rh (-)
• Vss

Электросхема парктроников для Hyundai Veracruz Limited 2009

Электросхема парктроников для Hyundai Veracruz Limited 2009 - Список элементов:

• B/up lp fuse 10a
• Backup
• Backup lamp relay
• Buzzer
• Clg09
• E/r junction box
• E/r-clg
• E/r-frta
• Exterior lights system
• Gf08 (base of left "c" pillar)
• Gnd
• Hot at all times
• Hot in on or start
• I/p junction box
• I/p-c
• I/p-d
• I/p-g
• Key sol fuse 10a
• Left rear parking assist sensor
• Left rear side parking assist sensor
• Nca
• Pnk
• Rear parking assist buzzer
• Rear parking assist control module
• Red
• Right rear parking assist sensor
• Right rear side parking assist sensor
• Tcm (top of transaxle)
