Электросхемы СИСТЕМА УПРАВЛЕНИЯ ДВИГАТЕЛЯ Hyundai Veracruz Limited 2009

СИСТЕМА УПРАВЛЕНИЯ ДВИГАТЕЛЯ

3.8L

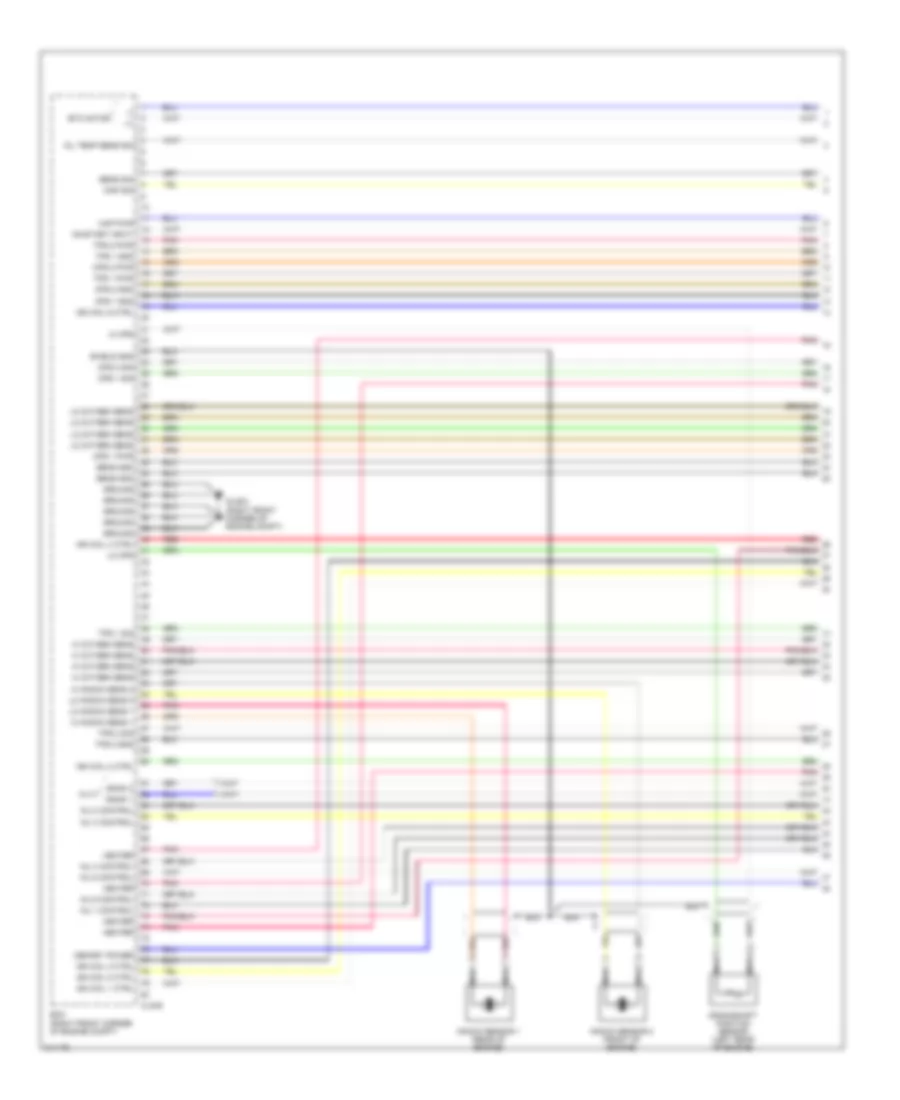

3.8L, Электросхема системы управления двигателя (1 из 5) для Hyundai Veracruz Limited 2009

3.8L, Электросхема системы управления двигателя (1 из 5) для Hyundai Veracruz Limited 2009 - Список элементов:

• (+)
• (-)
• Bank 1
• Bank 2
• Clg-b
• Cps 1 gnd
• Cps 1 pwr
• Cps 1 sig
• Cps 2 gnd
• Cps 2 pwr
• Cps 2 sig
• Crankshaft position sensor (left rear of engine)
• Cvvt
• Ecm (right front corner of engine compt)
• Etc motor
• Glg03 (right front corner of engine compt)
• Ground
• Heater
• Hi cps
• Hi knock sens 1
• Hi knock sens 2
• Hi oxygen sens
• Ign coil 1 ctrl
• Ign coil 2 ctrl
• Ign coil 3 ctrl
• Ign coil 4 ctrl
• Ign coil 5 ctrl
• Ign coil 6 ctrl
• Inj 1 control
• Inj 2 control
• Inj 3 control
• Inj 4 control
• Inj 5 control
• Inj 6 control
• Knock sensor 1 (rear of engine)
• Knock sensor 2 (front of engine)
• Lo cps
• Lo knock sens 1
• Lo knock sens 2
• Lo oxygen sens
• Map pwr
• Map sig
• Memory power
• Nca
• Oil temp sens sig
• On/start input
• Pnk
• Red
• Sens gnd
• Sens sig
• Shield gnd
• Tps 1 gnd
• Tps 1 pwr
• Tps 1 sig
• Tps 2 gnd
• Tps 2 pwr
• Tps 2 sig

3.8L, Электросхема системы управления двигателя (2 из 5) для Hyundai Veracruz Limited 2009

3.8L, Электросхема системы управления двигателя (2 из 5) для Hyundai Veracruz Limited 2009 - Список элементов:

• (rear of engine) manifold absolute pressure sensor
• (rear of engine) oil temperature sensor
• (top of engine)
• Camshaft position sensor 1 (rear of engine)
• Camshaft position sensor 2 (rear of engine)
• Engine coolant temperature sensor (at rear of engine)
• Etc motor & throttle position sensor (on throttle body)
• Ignition coil 1
• Ignition coil 3
• Ignition coil 5
• Injectors (top of engine)
• Nca
• Pnk
• Red

3.8L, Электросхема системы управления двигателя (3 из 5) для Hyundai Veracruz Limited 2009

3.8L, Электросхема системы управления двигателя (3 из 5) для Hyundai Veracruz Limited 2009 - Список элементов:

• (top of engine)
• Condenser (top front of engine)
• E/r junction box
• E/r-clg
• E/r-frta
• Ecu 1 fuse 10a
• Ecu 2 fuse 10a
• Ecu 3 fuse 10a
• Ecu fusible link 30a
• F/pump fuse 20a
• Fuel pump relay
• Glg03 (right front corner of engine compt)
• Glg04 (top of engine)
• Hot at all times
• Hot in or or start
• Ign coil fuse 20a
• Ignition coil 2
• Ignition coil 4
• Ignition coil 6
• Main relay
• Nca
• Pnk
• Red
• Snsr 1 fuse 15a
• Snsr 2 fuse 15a
• Snsr 3 fuse 10a

3.8L, Электросхема системы управления двигателя (4 из 5) для Hyundai Veracruz Limited 2009

3.8L, Электросхема системы управления двигателя (4 из 5) для Hyundai Veracruz Limited 2009 - Список элементов:

• (front center of engine, under intake) oil control valve 1
• (front center of engine, under intake) oil control valve 2
• (front of engine) oxygen sensor 2 (b2/s1)
• (left rear of engine) oxygen sensor 4 (b2/s2)
• (right front of engine) oxygen sensor 1 (b1/s1)
• (right front of engine) oxygen sensor 3 (b1/s2)
• (under center of vehicle) canister close valve
• Afs
• Ats
• Cluster fuse 10a
• E53-a
• F53-a
• Fuel in
• Fuel low gnd
• Fuel sender
• Fuel sender & fuel pump motor (inside fuel tank, beneath rear seat)
• Gauge sender
• Gf08 (base of left "c" pillar)
• Glg03 (right front corner of engine compt)
• Hot at all times
• Hot in on or start
• I/p junction box
• I/p-h
• I/p-k
• Immo ind
• Immobilizer module (under left side of dash)
• Instrument cluster
• M01-a
• M01-c
• Mass air flow sensor (on air intake)
• Micom
• Mil ind
• Nca
• Pnk
• Power connector
• Red
• Room lp fuse 15a
• Smart key control module
• Sub sender (top of fuel tank, below rear seat)
• W/ smart key
• W/o smart key

3.8L, Электросхема системы управления двигателя (5 из 5) для Hyundai Veracruz Limited 2009

3.8L, Электросхема системы управления двигателя (5 из 5) для Hyundai Veracruz Limited 2009 - Список элементов:

• (above fuel tank, beneath rear seat) fuel tank pressure sensor
• (left front of engine compt) semi active engine mounting solenoid
• A/c output signal
• A/c pressure transducer (right rear of engine compt)
• A/c relay control
• A/c sw on in
• Accelerator pedal position sensor (top of accelerator pedal assembly)
• Afs
• Air conditioning system
• Analog fuel lvl in (middle)
• Analog fuel lvl in (total)
• Anti-lock brakes system
• Aps 1 ground
• Aps 1 power
• Aps 1 signal
• Aps 2 ground
• Aps 2 power
• Aps 2 signal
• Atm cont fuse 10a
• Ats
• Brake lamp
• Brake sw
• Can-high
• Can-low
• Ccv
• Clg-a
• Cluster fuse 10a
• Computer data lines system
• Cooling fans system
• Cruise control system
• Cruise sw
• E/r junction box
• E/r-clg
• E/r-frta
• Ecm (right front corner of engine compt)
• Eng in
• Eng spd
• Eng spd out (tacho)
• Fan relay control
• Fuel pump rly ctrl
• Generator
• Glg01 (right rear corner of engine compt)
• Gnd
• High
• Hot at all times
• Hot in on or start
• I/p junction box
• I/p-c
• I/p-g
• I/p-j
• Immo indicator control
• Immo sig
• Low
• Main rly ctrl
• Main rly on pwr
• Mil indicator control
• On/st
• Pcsv
• Pnk
• Power
• Power steering pressure sensor (right rear of engine compt)
• Pre excitation resistor
• Purge control solenoid valve (rear of engine)
• Red
• Semi active engine mounting control module (behind center of dash)
• Sens gnd
• Sens gnd (cruise sw)
• Sens sig
• Signal
• Sol ctrl
• Starting/charging system
• Stop lamp switch (above brake pedal, on bracket)
• Stop lp fuse 15a
• Tcu 2 fuse 10a
• Tpms fuse 10a
• Variable intake manifold valve (right rear of engine compt)
• Veh spd in/ abs buffered wheel in ats ground
• Viv
• W/ immobilizer
• W/o immobilizer
