Электросхемы СИСТЕМА КОНДИЦИОНЕРА Hyundai Veracruz Limited 2009

СИСТЕМА КОНДИЦИОНЕРА

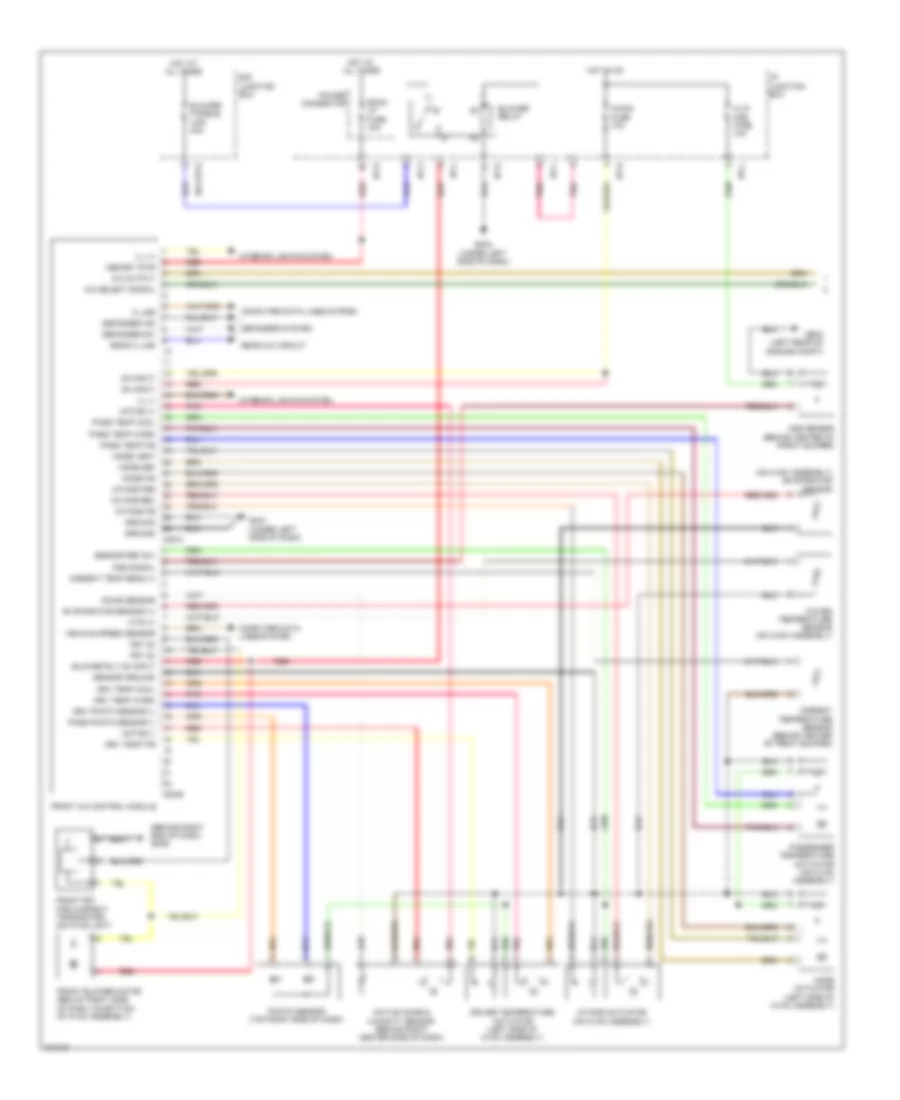

Электросхема кондиционера (1 из 2) для Hyundai Veracruz Limited 2009

Электросхема кондиционера (1 из 2) для Hyundai Veracruz Limited 2009 - Список элементов:

• (behind right end of dash) gm05
• (on hvac assembly) evaporator sensor
• A/c output
• A/c select signal
• A/con fuse 10a
• Active incar & humidity sensor (behind right center side of dash)
• Ambient temp sens (+)
• Ambient temperature sensor (behind center of front bumper)
• Aqs sensor (behind center of front bumper)
• Aqs signal
• Blower fusible link 40a
• Blower relay
• Blower rly on input
• Computer data lines system
• Defogger ind
• Defogger sw
• Defogger system
• Driver temperature actuator (left side of hvac assembly)
• Drv photo sensor (-)
• Drv temp cool
• Drv temp f/b
• Drv temp warm
• E/r junction box
• E/r-frta
• Evaporator sensor (+)
• Fet (d)
• Fet (g)
• Front a/c control module
• Front blower motor (below right side of dash, on bottom of hvac assembly)
• Front fet (field effect transistor) (on hvac unit)
• Ge03 (left rear of engine compt)
• Gm01 (under left side of dash)
• Gm04 (under left side of dash)
• Ground
• H/lp aqs fuse 10a
• Hot at all times
• Hot in on
• I/p junction box
• I/p-a
• I/p-c
• I/p-h
• I/p-k
• I/p-l
• Ill (+)
• Ill (-)
• Incar sensor
• Intake actuator (on hvac assembly)
• Intake f/b
• Intake fre
• Intake rec
• Interior lights system
• K line
• M05-a
• M05-b
• Memory pwr
• Mode actuator (left side of hvac assembly)
• Mode def
• Mode f/b
• Mode vent
• Motor (+)
• Motor (-)
• On input
• Pass photo sensor (-)
• Pass temp cool
• Pass temp f/b
• Pass temp warm
• Passenger temperature actuator (on hvac assembly)
• Photo sensor (top right side of dash)
• Pnk
• Power connector
• Rear a/c circuit
• Rear c line
• Red
• Room lp fuse 15a
• Sensor ground
• Sensor ref (5v)
• Vehicle speed sensor
• Water temperature sensor (on hvac assembly)
• Wts (+)

Электросхема кондиционера (2 из 2) для Hyundai Veracruz Limited 2009

Электросхема кондиционера (2 из 2) для Hyundai Veracruz Limited 2009 - Список элементов:

• (lower left front of engine) a/c compressor
• A/c output signal
• A/c pressure transducer (right rear of engine compt)
• A/c rly ctrl
• A/c sw on input
• A/con fuse 10a
• A/con relay
• C/fan fusible link 40a
• Clg-a
• Clg-b
• Condenser fan relay 1
• Condenser fan relay 2
• E/r junction box
• E/r sub box (right front of engine compt)
• E/r-clg
• E/r-frta
• E/r-frtb
• Ecm (right front corner of engine compt)
• Ecu fusible link 30a
• Engine controls system
• Engine coolant temperature sensor (at rear of engine)
• Fan motor condenser (right side of radiator)
• Fan rly ctrl (hi)
• Fan rly ctrl (lo)
• Glg05 (right front of engine compt)
• Gnd
• Ground
• Hot at all times
• Main relay
• Main rly ctrl
• Nca
• Pnk
• R/fan fusible link 40a
• Radiator fan motor (at front of engine compt)
• Radiator fan relay
• Red
• Sig
• Signal
• Snsr 3 fuse 10a
• Sply (5v)

Электросхема кондиционера с ручный управлением (1 из 2) для Hyundai Veracruz Limited 2009

Электросхема кондиционера с ручный управлением (1 из 2) для Hyundai Veracruz Limited 2009 - Список элементов:

• (behind right end of dash) gm05
• A/c output (thermo)
• A/c select signal (hi)
• A/con fuse 10a
• Blower fusible link 40a
• Blower relay
• Blower rly on input
• Defogger ind
• Defogger sw
• Defogger system
• E/r junction box
• E/r-frta
• Evaporator sensor (on hvac assembly)
• Fet drain
• Fet gate
• Front a/c control module
• Front blower motor (below right side of dash, on bottom of hvac assembly)
• Front fet (field effect transistor) (on hvac unit)
• Gm01 (under left side of dash)
• Gm04 (under left side of dash)
• Ground
• Hot at all times
• Hot in on
• I/p junction box
• I/p-a
• I/p-h
• I/p-k
• I/p-l
• Ill (+)
• Ill (-)
• Intake actuator (on hvac assembly)
• Intake f/b
• Intake fre
• Intake rec
• Interior lights system
• M06-a
• M06-b
• Memory power
• Mode actuator (left side of hvac assembly)
• Mode def
• Mode f/b
• Mode vent
• On input
• Pnk
• Power connector
• Rear a/c circuit
• Rear c line
• Red
• Room lp fuse 15a
• Sensor (+)
• Sensor ground
• Sensor ref (+5v)
• Temp cool
• Temp f/b
• Temp warm
• Temperature actuator

Электросхема кондиционера с ручный управлением (2 из 2) для Hyundai Veracruz Limited 2009

Электросхема кондиционера с ручный управлением (2 из 2) для Hyundai Veracruz Limited 2009 - Список элементов:

• (lower left front of engine) a/c compressor
• A/c output signal
• A/c pressure transducer (right rear of engine compt)
• A/c rly ctrl
• A/c sw on input
• A/con fuse 10a
• A/con relay
• C/fan fusible link 40a
• Clg-a
• Clg-b
• Condenser fan relay 1
• Condenser fan relay 2
• E/r junction box
• E/r sub box (right front of engine compt)
• E/r-clg
• E/r-frta
• E/r-frtb
• Ecm (right front corner of engine compt)
• Ecu fusible link 30a
• Engine controls system
• Engine coolant temperature sensor (at rear of engine)
• Fan motor condenser (right side of radiator)
• Fan rly ctrl (hi)
• Fan rly ctrl (lo)
• Glg05 (right front of engine compt)
• Gnd
• Ground
• Hot at all times
• Main relay
• Main rly ctrl
• Nca
• Pnk
• R/fan fusible link 40a
• Radiator fan motor (at front of engine compt)
• Radiator fan relay
• Red
• Sig
• Signal
• Snsr 3 fuse 10a
• Sply (5v)

Электросхема кондиционера Задний контур для Hyundai Veracruz Limited 2009

Электросхема кондиционера Задний контур для Hyundai Veracruz Limited 2009 - Список элементов:

• (behind right quarterpanel) rear blower motor
• A/con fuse 10a
• Automatic a/c
• E/r sub box (right front of engine compt)
• F70-a
• F70-b
• Field effect drain
• Field effect gate
• Front a/c control module
• Gf02 (under center console)
• Gf07 (base of right "c" pillar)
• Glg05 (right front of engine compt)
• Ground
• Hot at all times
• Hot in on
• I/p junction box
• I/p-e
• I/p-f
• I/p-h
• Ill (+)
• Ill (-)
• Interior lights system
• M05-a
• M06-a
• Manual a/c
• Memory power
• On input
• Power connector
• Rear a/c control module
• Rear a/c relay
• Rear blower motor
• Rear c line
• Rear fet (field effect transistor) (on rear hvac unit)
• Rear mode actuator (on rear hvac assembly)
• Rear temperature actuator (on rear hvac assembly)
• Red
• Room lp fuse 15a
• Rr blower fuse 20a red
• Rr mode actr 5v
• Rr mode actr f/b
• Rr mode actr flr
• Rr mode actr gnd
• Rr mode actr vent
• Rr temp actr cool
• Rr temp actr f/b
• Rr temp actr warm
