Электросхемы ПРИБОРНАЯ ПАНЕЛЬ Hyundai Veracruz Limited 2009

ПРИБОРНАЯ ПАНЕЛЬ

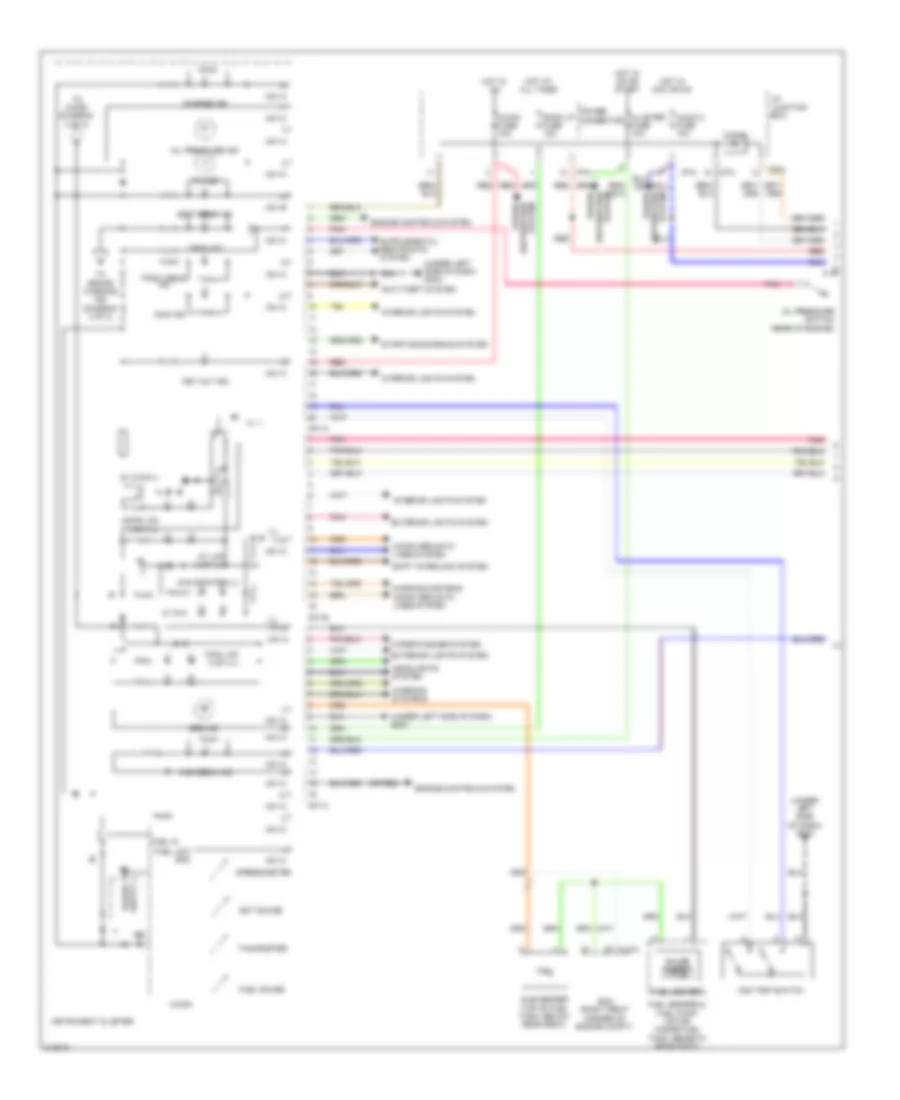

Электросхема панели приборов (1 из 2) для Hyundai Veracruz Limited 2009

Электросхема панели приборов (1 из 2) для Hyundai Veracruz Limited 2009 - Список элементов:

• (or red)
• (under left side of dash) gm01
• (under left side of dash) gm04
• A/con fuse 10a
• Anti-theft system
• At lcd (lcd ill)
• Audio 2 fuse 10a
• Charge ind
• Clg-a
• Cluster fuse 10a
• Computer data lines system
• Dial/pointer ill
• Diode
• Distribution power
• Distribution system
• Door lcd (lcd ill)
• Ecm (right front corner of engine compt)
• Ect gauge
• Engine controls system
• Exterior lights system
• Fuel gauge
• Fuel in
• Fuel low gnd
• Fuel sender
• Fuel sender & fuel pump motor (inside fuel tank, beneath rear seat)
• Gauge sender
• Headlights system
• High beam ind
• Hot at all times
• Hot in acc or on
• Hot in on
• Hot in on or start
• I/p junction box
• I/p-c
• I/p-h
• I/p-k
• Ign
• Ill (+)
• Ill (-)
• Ill +
• Immo ind
• Instrument cluster
• Interior lights system
• Key out ind
• M01-a
• M01-b
• M01-c
• Main lcd (lcd ill)
• Micom
• Mil ind
• Odo trip switch
• Oil pressure ind
• Oil pressure switch (rear of engine)
• Pnk
• Power
• Power connector
• Red
• Room lp fuse 15a
• Seat belt ind
• Shift interlock system
• Speedometer
• Srs ind
• Starting/charging system
• Sub sender (top of fuel tank, below rear seat)
• System
• Tachometer
• To brake warning ind (diagram 2 of 2)
• To micom (diagram 2 of 2)
• Tpms ind
• Tpms tread ind
• Warning systems
• Wiper/washer system

Электросхема панели приборов (2 из 2) для Hyundai Veracruz Limited 2009

Электросхема панели приборов (2 из 2) для Hyundai Veracruz Limited 2009 - Список элементов:

• (left rear of engine compt) esc control module
• (on base of parking brake lever) foot brake switch
• (on brake master cylinder) brake oil level sensor
• (under left side of dash) bcm
• 4 pulse out
• 4wd ind
• 4wd lock ind
• Abs ind
• Acc/on in
• Ambient temperature clock sensor (behind center of front bumper)
• Brake warning ind
• Buzzer
• C-can high
• C-can low
• Can transceiver
• Computer data lines system
• Cruise ind
• Cruise set ind
• Digital clock
• Door ajar
• Ebd
• Eeprom
• Esc ind
• Esc off ind
• Fr-lh
• Fr-rh
• From seat belt ind (diagram 1 of 2)
• From tpms ind a (diagram 1 of 2)
• Ge03 (left rear of engine compt)
• Gm01 (under left side of dash)
• Gnd
• Ill (+)
• Ill (-)
• Instrument cluster
• Interior lights system
• Left front door switch (at left "b" pillar)
• Left rear door switch (base of left "c" pillar)
• Left turn ind
• Low fuel ind
• Low washer ind
• M01-a
• M01-b
• M01-c
• M04-d
• Memory power
• Micom
• Mode sw
• Mts module
• Nca
• Pnk
• Red
• Reset sw
• Right front door switch (at right "b" pillar)
• Right rear door switch (base of right "c" pillar)
• Right turn ind
• Rr-lh
• Rr-rh
• Snsr (+) temp
• Snsr (-) temp
• Speed
• Trip/odo meter
• Trunk lid open in
