Электросхемы ВНЕШНЕЕ ОСВЕЩЕНИЕ Hyundai Veracruz Limited 2009

ВНЕШНЕЕ ОСВЕЩЕНИЕ

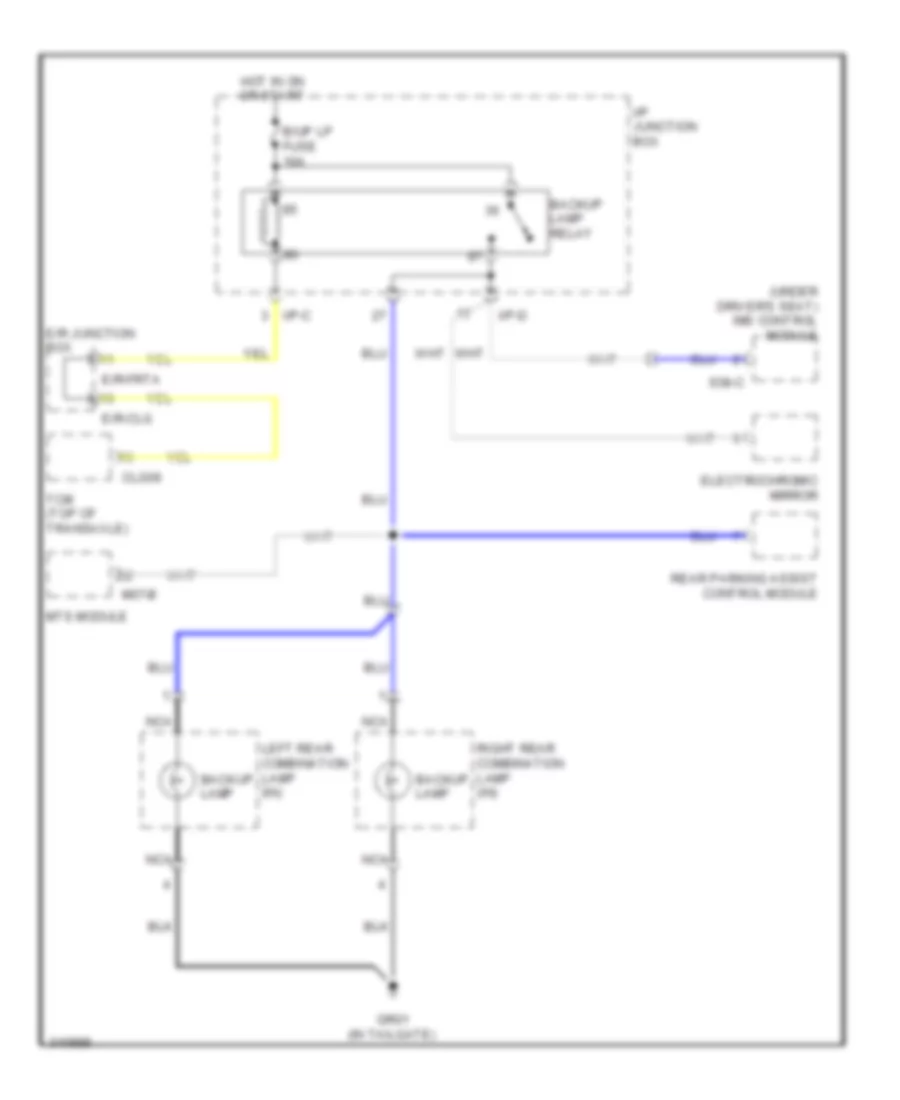

Электросхема заднего хода для Hyundai Veracruz Limited 2009

Электросхема заднего хода для Hyundai Veracruz Limited 2009 - Список элементов:

• (under driver's seat) ims control module
• B/up lp fuse 10a
• Backup lamp
• Backup lamp relay
• Clg09
• E/r junction box
• E/r-clg
• E/r-frta
• Electrochromic mirror
• Gr01 (in tailgate)
• Hot in on or start
• I/p junction box
• I/p-c
• I/p-d
• Left rear combination lamp (in)
• M07-b
• Mts module
• Nca
• Rear parking assist control module
• Right rear combination lamp (in)
• S38-c
• Tcm (top of transaxle)

Электросхема внешнего освещения (1 из 2) для Hyundai Veracruz Limited 2009

Электросхема внешнего освещения (1 из 2) для Hyundai Veracruz Limited 2009 - Список элементов:

• (in tailgate) gr01
• (right front corner of engine compartment) ecm
• Abs control module (left rear of engine compt)
• Bcm (under left side of dash)
• Clg-a
• E/r junction box
• E/r- clg
• E/r-clg
• E/r-frta
• E/r-frtb
• Esc control module (left rear of engine compt)
• Ge01 (left side of engine compt)
• Gf03 (behind left kick panel)
• Gf08 (base of left "c" pillar)
• Hazard sw
• High mounted stop lamp
• Hot at all times
• Hot in on or start
• I/p junction box
• I/p-b
• I/p-c
• I/p-d
• I/p-j
• I/p-l
• Joint connector jd01 (in left front door)
• Left
• Left head- lamp
• Left power outside mirror motor & defogger (at mirror)
• Left rear combi- nation lamp (in)
• Left rear combi- nation lamp (out)
• Left tail fuse 10a
• Left turn signal lamp
• Lin
• M04-a
• M04-b
• M04-c
• M04-d
• Mem pwr
• Nca
• Par- king lamp
• Pnk
• Red
• Right
• Right turn signal lamp
• Side marker lamp
• Stop lamp
• Stop lamp switch (above brake pedal, on bracket)
• Stop lp fuse 15a
• Tail lamp
• Tail lamp relay
• Tail lp rly
• Tcu 2 fuse 10a
• To right tail fuse (diagram 2 0f 2)
• Trailer lamp connector
• Turn signal lamp
• W/ esc
• W/ led
• W/o esc
• W/o led

Электросхема внешнего освещения (2 из 2) для Hyundai Veracruz Limited 2009

Электросхема внешнего освещения (2 из 2) для Hyundai Veracruz Limited 2009 - Список элементов:

• (in tailgate) gr01
• Atm cont fuse 10a
• Auto
• E/r jun- ction box
• E/r sub box (right front of engine compt)
• E/r-frta
• E/r-frtb
• From tail lamp relay (diagram 1 0f 2)
• Gf06 (behind right kick panel)
• Gf07 (base of right "c" pillar)
• Glg05 (right front of engine compt)
• Gm01 (under left side of dash)
• Gnd nca
• Gr01 (in tailgate)
• Hazard switch
• Hot at all times
• Hot in on or start
• I/p b+ 1 fusible link 50a
• I/p junction box
• I/p-d
• I/p-g
• I/p-h
• I/p-j
• I/p-l
• Ill
• Instrument cluster
• Interior lights system
• Left
• License lamp
• Light switch
• M/f ecu
• M01-a
• M01-b
• M01-c
• M02-l
• Multi-function switch
• Nca
• Off
• Par- king lamp
• Pnk
• Power connector
• Red
• Right
• Right head- lamp
• Right power outside mirror motor & defogger (at mirror)
• Right rear combi- nation lamp (in)
• Right rear combi- nation lamp (out)
• Right tail fuse 10a
• Right turn ind
• Room lp fuse 15a
• Side marker lamp
• Sig nca
• Stop lamp
• T/sig fuse 15a
• Tail lamp
• Tailgate handle switch
• Tailgate handle switch & license lamp
• Trailer fusible link 30a
• Trailer power outlet
• Trunk, tailgate, fuel doors system
• Turn ind left
• Turn signal lamp
• Turn signal lamp switch
• W/ led
• W/o led
• Wiper/washer system
