Электросхемы ПРИВОД ЗЕРКАЛ Hyundai Veracruz Limited 2009

ПРИВОД ЗЕРКАЛ

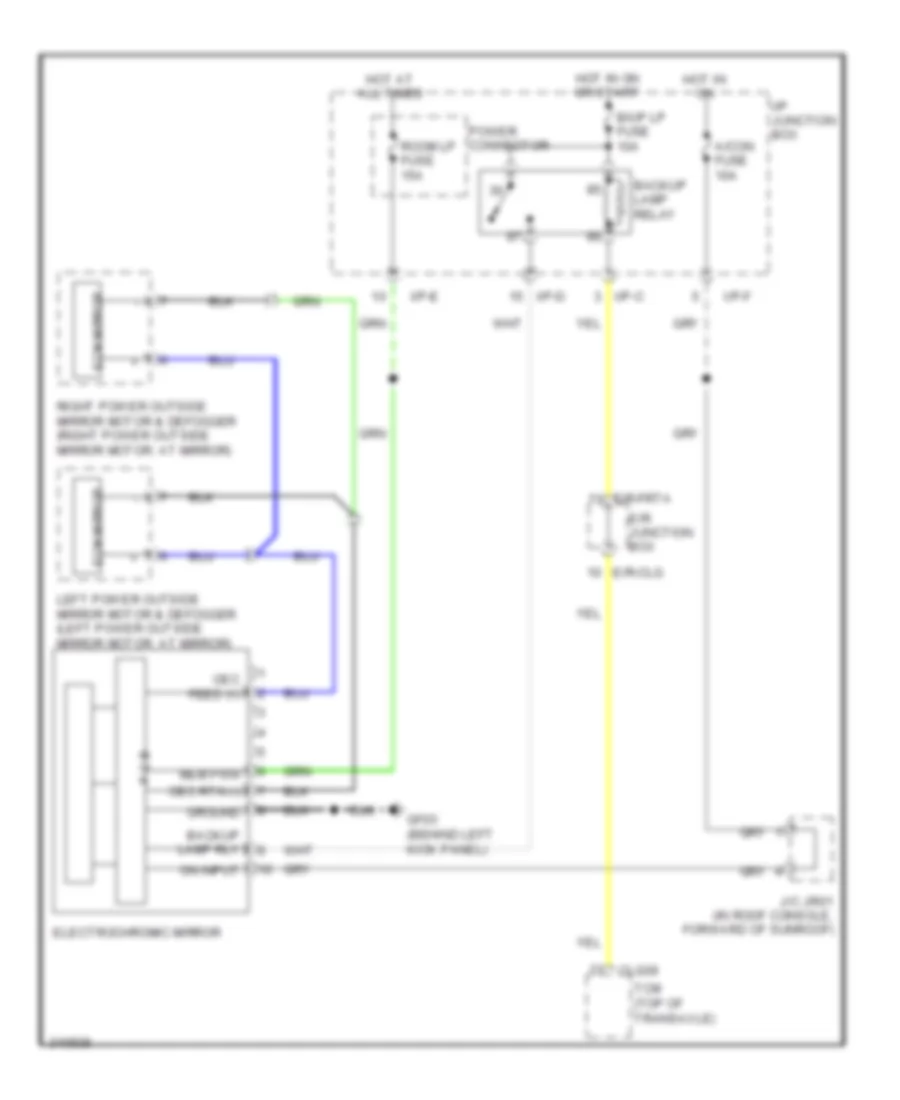

Электросхема затемняющегося зеркала заднего вида для Hyundai Veracruz Limited 2009

Электросхема затемняющегося зеркала заднего вида для Hyundai Veracruz Limited 2009 - Список элементов:

• A/con fuse 10a
• B/up lp fuse 10a
• Backup lamp relay
• Backup lamp rly
• Clg09
• E/r junction box
• E/r-clg
• E/r-frta
• Ecm mirror
• Electrochromic mirror
• Gf03 (behind left kick panel)
• Ground
• Hot at all times
• Hot in on
• Hot in on or start
• I/p junction box
• I/p-c
• I/p-d
• I/p-e
• I/p-f
• J/c jr01 (in roof console, forward of sunroof)
• Left power outside mirror motor & defogger (left power outside mirror motor: at mirror)
• Mem pwr
• Oec feed (+)
• Oec rtn (-)
• On input
• P c b
• Power connector
• Right power outside mirror motor & defogger (right power outside mirror motor: at mirror)
• Room lp fuse 15a
• Tcm (top of transaxle)

Электросхема привода зеркал для Hyundai Veracruz Limited 2009

Электросхема привода зеркал для Hyundai Veracruz Limited 2009 - Список элементов:

• (+)
• (-)
• D03-a
• D03-b
• D14-a
• D14-b
• Defogger
• Defogger system
• Down
• Dr lock fuse 20a
• Eps fuse 10a
• Gf03 (behind left kick panel)
• Gf06 (behind right kick panel)
• Gnd
• Hot at all times
• Hot in on
• I/p junction box
• I/p-d
• I/p-e
• Input circuit
• J/c jd01 (in left front door)
• Left
• Left power outside mirror motor & defogger (left power outside mirror motor: at mirror)
• Left/ right
• Mcu
• Mirr h
• Mirr snsr vcc
• Mirr v
• Mirror control ic
• Mirror motor
• Nca
• Power connector
• Power distribution system
• Power window main switch
• Red
• Regulator ic
• Right
• Right front power window switch
• Right power outside mirror motor & defogger (right power outside mirror motor: at mirror)
• Room lp fuse 15a
• Up/ down
