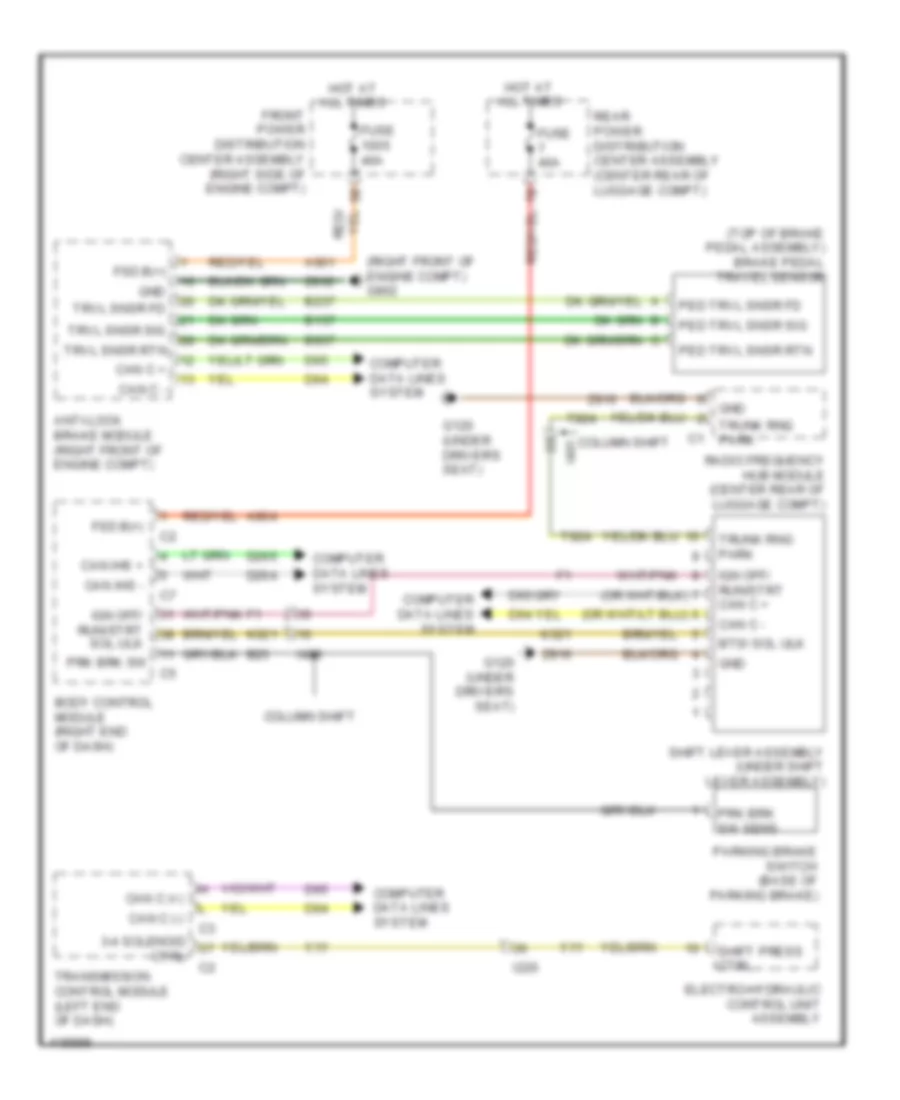

Электросхема блокировки селектора, 5 скоростей A/T для Dodge Charger SRT-8 2014

Электросхема блокировки селектора, 5 скоростей A/T для Dodge Charger SRT-8 2014 - Список элементов:

• (right front of engine compt) g802
• (top of brake pedal assembly) brake pedal travel sensor
• 3-4 solenoid
• A901
• A904
• Anti-lock brake module (right front of engine compt)
• B137
• B237
• B25
• B937
• Body control module (right end of dash)
• Btsi sol ulk
• Can c (+)
• Can c (-)
• Can c +
• Can c -
• Can ihs +
• Can ihs -
• Column shift
• Column shift i401
• Computer data lines system
• Ctrl
• D264
• D265
• D64
• D65
• Electro-hydraulic control unit assembly
• Front power distribution center assembly (right side of engine compt)
• Fsd b(+)
• Fuse 40a
• G120 (under driver's seat)
• Gnd
• Hot at all times
• I220
• I420
• Ign off/ run/strt can c +
• Ign off/ run/strt sol ulk
• K321
• Parking brake switch (base of parking brake)
• Ped trvl snsr fd
• Ped trvl snsr rtn
• Ped trvl snsr sig
• Prk brk sw
• Prk brk sw sens
• Radio frequency hub module (center rear of luggage compt)
• Rear power distribution center assembly (center rear of luggage compt)
• Shift lever assembly (under shift lever assembly)
• Shift press ctrl
• T77
• T824
• Transmission control module (left end of dash)
• Trunk rng park
• Trvl snsr fd
• Trvl snsr rtn
• Trvl snsr sig
• Z802
• Z916

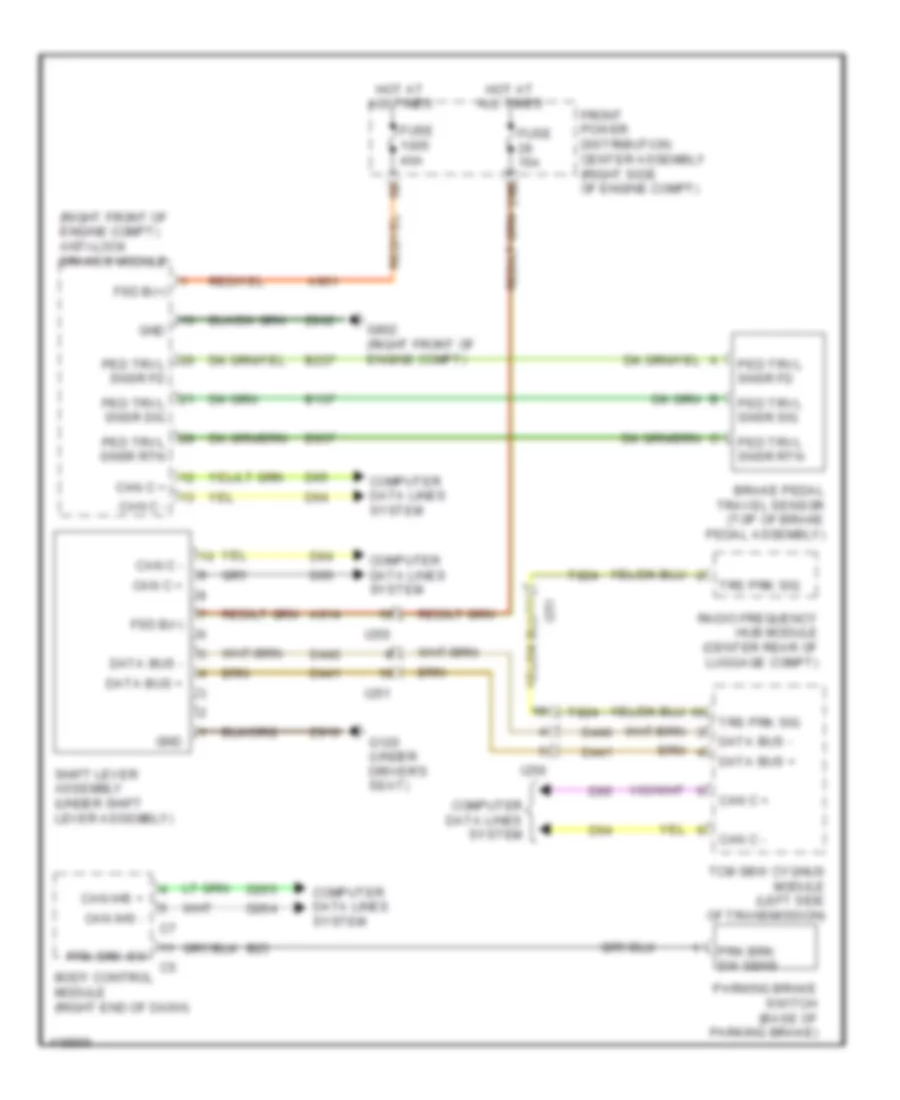

Электросхема блокировки селектора, 8 скоростей A/T для Dodge Charger SRT-8 2014

Электросхема блокировки селектора, 8 скоростей A/T для Dodge Charger SRT-8 2014 - Список элементов:

• (right front of engine compt) anti-lock brakes module
• 29b
• A901
• A914
• B137
• B237
• B25
• B937
• Body control module (right end of dash)
• Brake pedal travel sensor (top of brake pedal assembly)
• Can c +
• Can c -
• Can ihs +
• Can ihs -
• Computer data lines system
• D264
• D265
• D440
• D441
• D64
• D65
• Data bus +
• Data bus -
• Front power distribution center assembly (right side of engine compt)
• Fsd b(+)
• Fuse 15a
• Fuse 40a
• G120 (under driver's seat)
• G802 (right front of engine compt)
• Gnd
• Hot at all times
• I250
• I251
• Parking brake switch (base of parking brake)
• Ped trvl snsr fd
• Ped trvl snsr rtn
• Ped trvl snsr sig
• Prk brk sw
• Prk brk sw sens
• Radio frequency hub module (center rear of luggage compt)
• Shift lever assembly (under shift lever assembly)
• T824
• Tcm sbw cygnus module (left side of transmission)
• Trs prk sig
• Z802
