Электросхемы ЗАЗЕМЛЕНИЕ ПОДКЛЮЧЕНИЕ МАССЫ Dodge Charger SRT-8 2014

ЗАЗЕМЛЕНИЕ ПОДКЛЮЧЕНИЕ МАССЫ

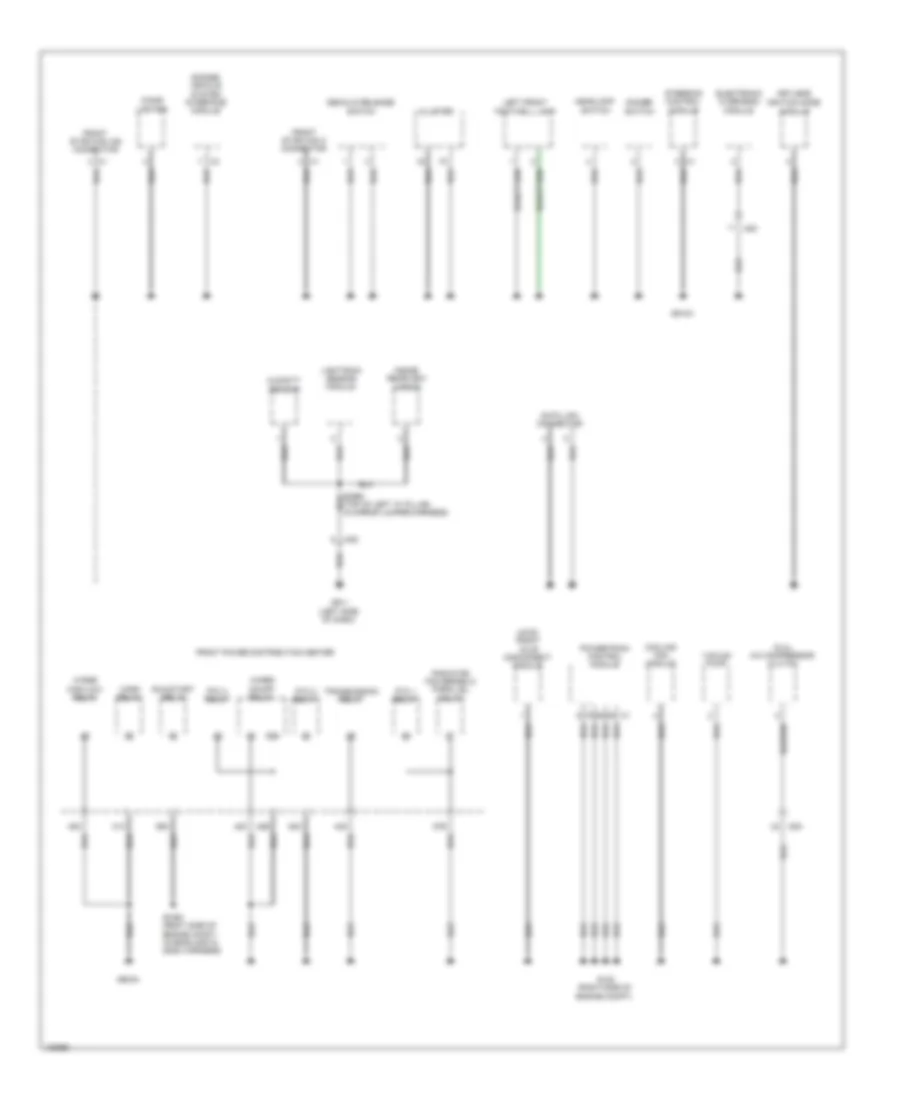

Электросхема подключение массы заземления (1 из 5) для Dodge Charger SRT-8 2014

Электросхема подключение массы заземления (1 из 5) для Dodge Charger SRT-8 2014 - Список элементов:

54

• (5 spd a/t) transmission control module
• (awd) drive train control module
• (chrysler) advanced front lighting system module
• (chrysler) left front lamp assembly
• (chrysler) right front lamp assembly
• (dodge)
• 5 speed a/t
• 60c
• 8 speed a/t
• A c2
• Adaptive cruise control module
• B c1
• Chrysler
• Driver door latch
• Driver door module
• Driver lumbar seat adjuster switch
• Driver seat switch
• Driver window/door lock switch
• Front power distribution center
• Front wiper motor
• Fuel door switch
• Fuel pump module
• G101 (right front of engine compt)
• G120 (under driver's seat)
• G901a (left front of engine compt)
• G902a
• G916a
• Headlamp washer motor
• Headlamp washer relay
• I100
• I460
• I601
• I700
• Left front fog lamp
• Left front lamp assembly
• Left rear door handle lamp
• Left rear door latch
• Left rear door trim puddle lamp
• Left rear map pocket lamp
• Left rear power window switch
• Left seat back vent
• Left seat cushion heater
• Memory seat module
• Prndl lamp
• Radio frequency hub module
• Right front fog lamp
• Right front lamp assembly
• S100a (driver seat harness, under seat)
• S750 (in left rear door harness)
• Shift lever assembly
• Siren
• To g1a (diagram 4 of 5)
• Underhood lamp
• Windshield washer pump

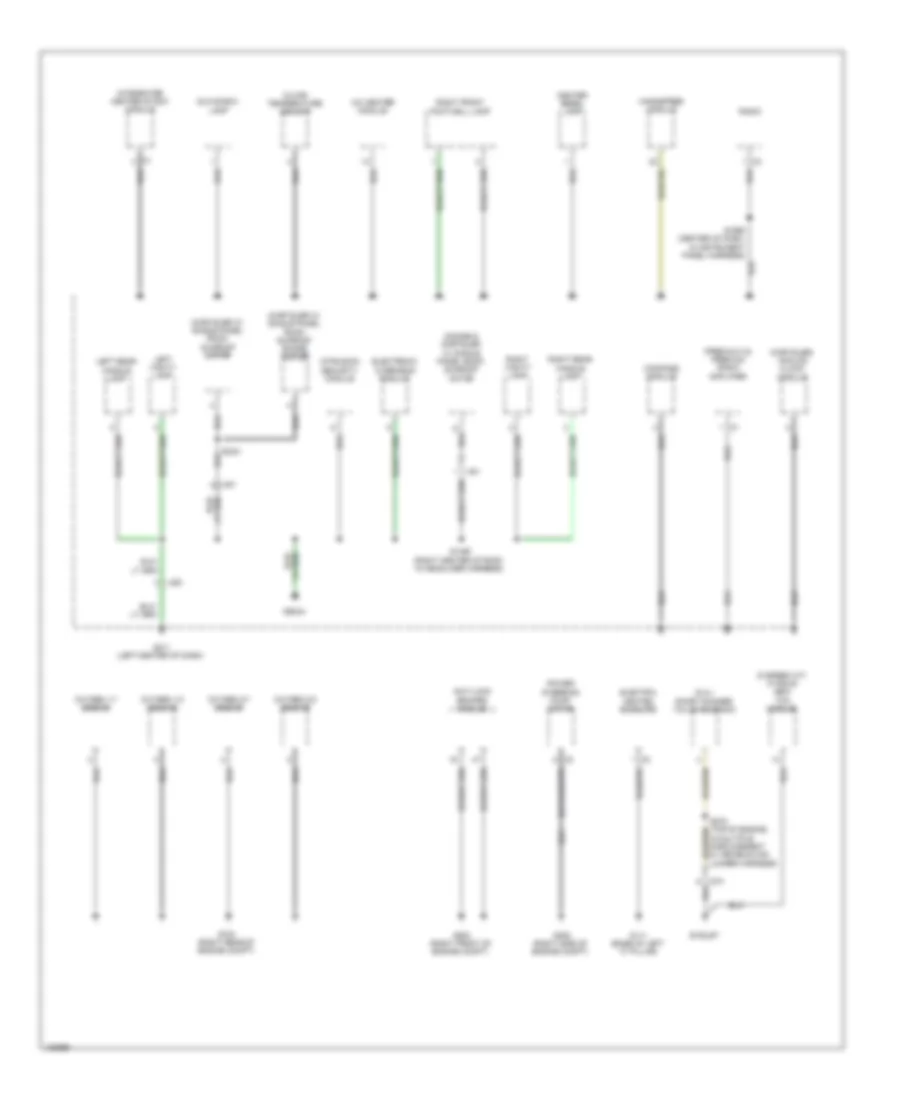

Электросхема подключение массы заземления (2 из 5) для Dodge Charger SRT-8 2014

Электросхема подключение массы заземления (2 из 5) для Dodge Charger SRT-8 2014 - Список элементов:

49

• (6.4l) a/c compressor clutch
• (awd) front axle disconnect module
• (dodge) vehicle system interface module
• 41c
• 42c
• 42e
• 44d
• 45c
• 57b
• 59c
• 60c
• 87a
• Cigar lighter
• Cluster
• Cooling fan module
• Data link connector
• Decklid release switch
• Dimmer switch
• Electronic overhead module
• Front power distribution center
• Front star can c connector
• Front star can ihs connector
• G102 (right side of engine compt)
• G903a
• G910a
• G911 (left side of dash)
• Headlamp switch
• Horn relay
• Humidity sensor
• I200
• I480
• I482
• Ignition node module
• Inside rearview mirror
• Keyless
• Left front footwell lamp
• Light/rain sensor module
• Powertrain control module
• Ptc 1 relay
• Ptc 2 relay
• Ptc 3 relay
• Radiator fan series 2/ parallel relay
• Run/start relay
• S1390 (right side of engine compt, in headlamp & dash harness)
• Steering control module
• Transmission relay
• Vacuum pump
• Wiper high/low relay
• Wiper on/off relay

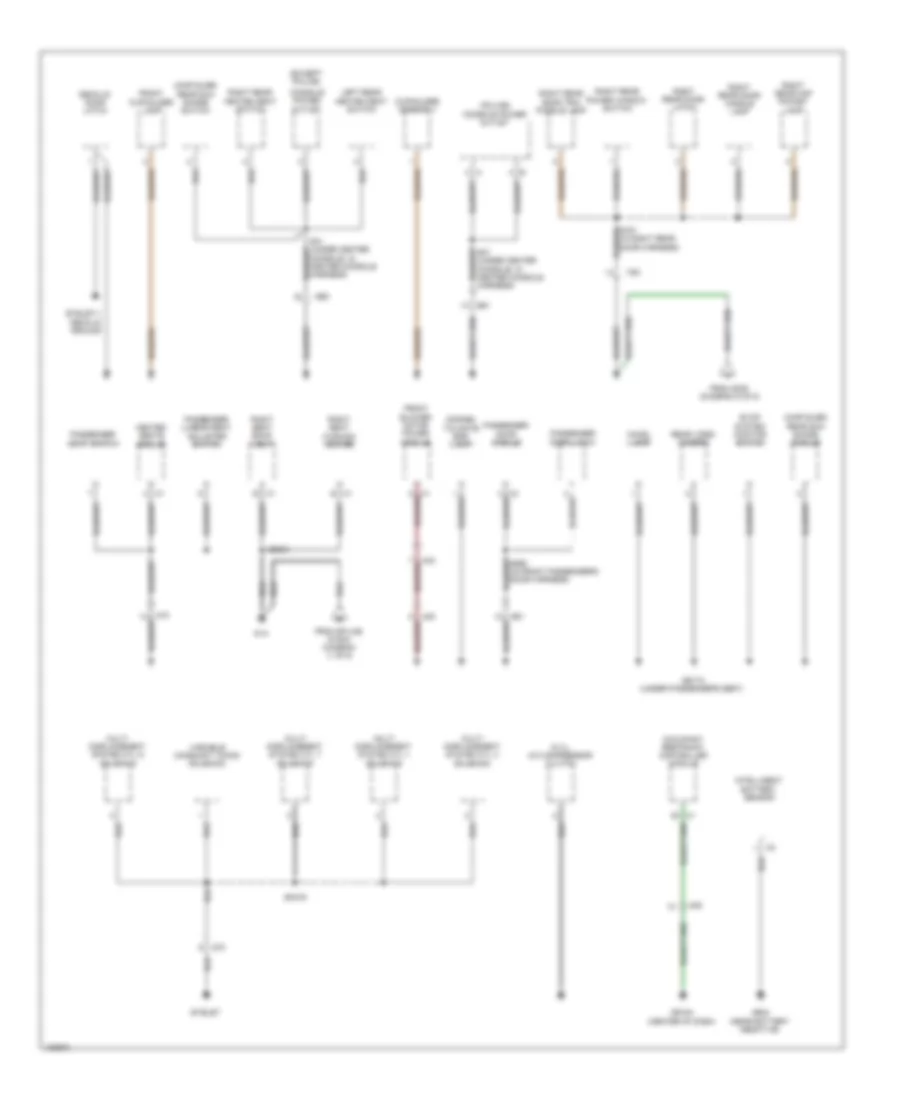

Электросхема подключение массы заземления (3 из 5) для Dodge Charger SRT-8 2014

Электросхема подключение массы заземления (3 из 5) для Dodge Charger SRT-8 2014 - Список элементов:

42

• (5 speed a/t) cygnus sbw tcm module
• (6.4l) short runner valve solenoid
• (chrysler w/ single panel roof) sunroof motor
• (chrysler w/ single panel roof) sunroof shade motor
• (chrysler) analog clock module
• (dodge & chrysler w/ single panel roof) sunroof motor
• (premium 2 & premium) radio amplifier
• A/c heater module
• Anti-lock brakes module
• Center bezel lamp
• Compass module
• Electric heated backlite
• Electronic overhead module
• G111 (base of left "c" pillar)
• G211 (left center of dash)
• G306 (right side of engine compt)
• G703 (right rear of engine compt)
• G802 (right front of engine compt)
• G924a
• Glove box lamp
• Handsfree module
• I270
• I480
• I481
• In car temperature sensor
• In multiple displacement & variable cam jumper harness)
• Integrated center stack module
• Intrusion security module
• Left rear handle lamp
• Left vanity lamp
• Oxygen 1/1 sensor
• Oxygen 1/2 sensor
• Oxygen 2/1 sensor
• Oxygen 2/2 sensor
• Power steering pump motor
• Radio
• Right front footwell lamp
• Right rear handle lamp
• Right vanity lamp
• S02a
• S1490 (right center of roof, in headliner harness)
• S1690 (center of dash, in instrument panel harness)

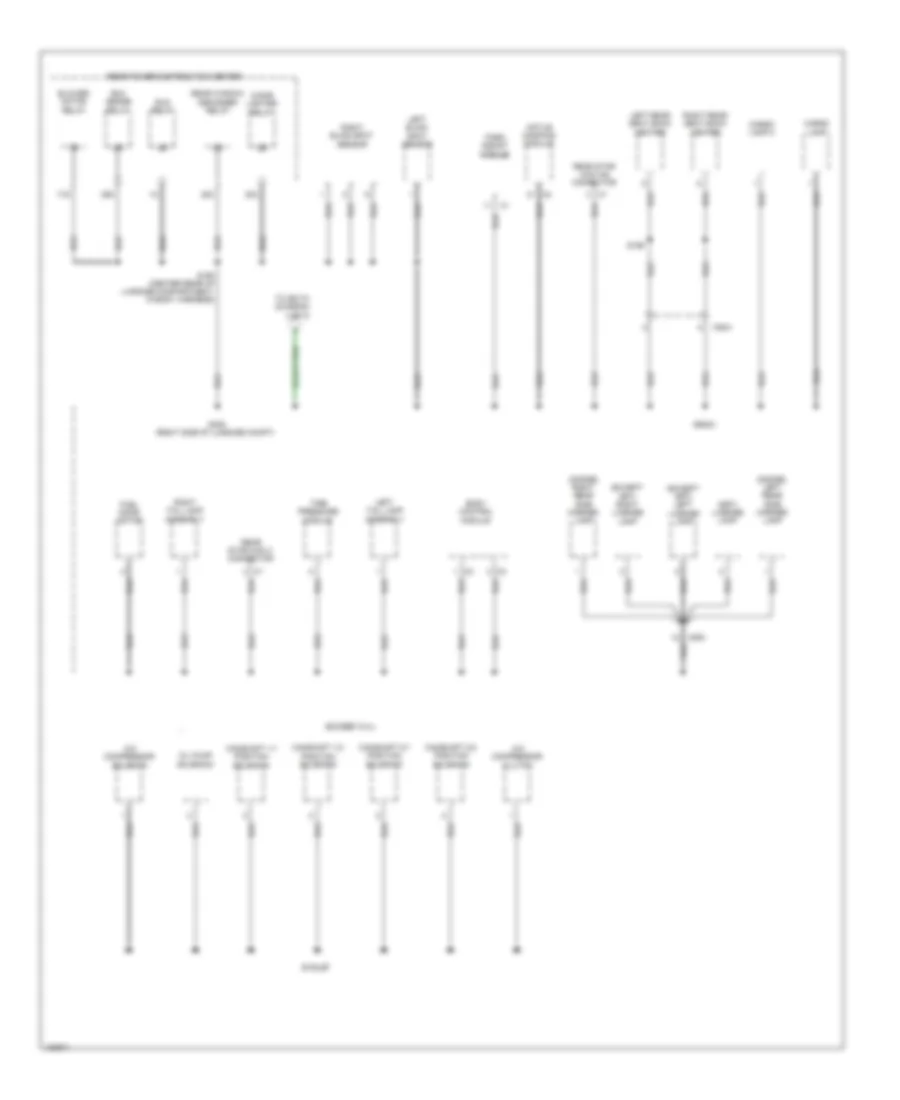

Электросхема подключение массы заземления (4 из 5) для Dodge Charger SRT-8 2014

Электросхема подключение массы заземления (4 из 5) для Dodge Charger SRT-8 2014 - Список элементов:

51

• (5.7l) a/c compressor clutch
• (chrysler) rear sun shade module
• (chrysler) rear sun shade switch
• (dodge) tailgate bar lamp
• (except police)
• (police) console power outlet
• C1 b
• Chmsl lamp
• Console power outlet
• Console, in center console harness)
• Cupholder assembly
• Decklid door latch
• Door trim puddle lamp
• Evap system monitor switch
• From g305 (diagram 5 of 5)
• From splice s100a diagram (1 of 5)
• Front blower motor power module
• Front cupholder lamp
• G1a
• G917a (under passenger's seat)
• G918a (center of dash)
• Heated seats module
• I270
• I405
• I420
• I660
• I661
• I750
• Intelligent battery sensor
• Left rear heated seat switch
• Multi displacement system cyl 1 solenoid
• Multi displacement system cyl 4 solenoid
• Multi displacement system cyl 6 solenoid
• Multi displacement system cyl 7 solenoid
• Occupant restraint controller module
• Passenger door latch
• Passenger door module
• Passenger lumbar seat adjuster switch
• Passenger seat switch
• Rear video camera
• Right rear
• Right rear door handle lamp
• Right rear door latch
• Right rear heated seat switch
• Right rear map pocket lamp
• Right rear power window switch
• Right seat back vent
• Right seat cushion heater
• S200a
• Sp479
• Variable camshaft timing solenoid

Электросхема подключение массы заземления (5 из 5) для Dodge Charger SRT-8 2014

Электросхема подключение массы заземления (5 из 5) для Dodge Charger SRT-8 2014 - Список элементов:

45

• (dodge) left rear side marker lamp
• (dodge) right rear side marker lamp
• (except 6.4l)
• (except srt) left license lamp
• (except srt) right license lamp
• (srt) license lamp
• 28c
• 29c
• 30c
• 71d
• A/c compressor clutch
• A/c compressor solenoid
• Active damping module
• Blower motor relay
• Body control module
• C500
• Camshaft 1/1 position solenoid
• Camshaft 1/2 position solenoid
• Camshaft 2/1 position solenoid
• Camshaft 2/2 position solenoid
• Cargo lamp
• Cargo lamp 2
• Cigar lighter relay
• Fuel door motor
• G305 (right side of luggage compt)
• G922a
• I760a
• Left blind spot sensor
• Left rear seat back heater
• Left tail lamp assembly
• Oil pump solenoid
• Park assist module
• Rear power distribution center
• Rear star can c connector
• Rear star can ihs connector
• Rear window defogger relay
• Right blind spot sensor
• Right rear seat back heater
• Right tail lamp assembly
• Run relay
• Run sense relay
• S190 (center rear of luggage compartment, in body harness)
• S199
• Tire pressure module
• To g917a (diagram 4 of 5)
