Электросхемы ПРЕДУПРЕЖДАЮЩИЕ СИСТЕМЫ Dodge Charger SRT-8 2014

ПРЕДУПРЕЖДАЮЩИЕ СИСТЕМЫ

Электросхема сигнала для Dodge Charger SRT-8 2014

Электросхема сигнала для Dodge Charger SRT-8 2014 - Список элементов:

• (right end of dash) body control module
• 32b
• 33b
• A905
• A910
• Ajar sw in driv ft dr
• Ajar sw in pass ft dr
• B20
• B25
• Batt feed
• Brake fluid level sensor (on brake fluid reservoir)
• Brk lvl gnd
• Brk lvl sw sig
• Can c (+)
• Can c (-)
• Can ihs (+)
• Can ihs (-)
• Cluster
• Computer data lines system
• D122
• D264
• D265
• D64
• D65
• Decklid door latch (center rear of trunk lid)
• Dimmer switch
• Dr ajar lt rr sig
• Dr ajar rt rr sig
• Driv ft dr ajar sw in
• Driver door latch
• Driver seat belt switch (integral to driver seat belt buckle assembly)
• Drv seat belt sw gnd
• Drv seat belt sw sens
• Fsd b(+)
• Fuse 15a
• Fuse 30a
• G120 (under driver's seat)
• G201
• G305 (right side of luggage compt)
• G74
• G75
• G76
• G77
• G78
• G911 (left side of dash)
• G917a (under passenger's seat)
• Gnd
• Hdlp sw mux
• Hdlp sw mux rtn
• Headlamp switch
• Hot at all times
• I401
• I420
• I460
• I600
• I650
• I700
• I750
• Ign sw pos
• Keyless ignition node module (left side of dash)
• L307
• L900
• Left rear door latch
• Lgate ajar sig
• Lin bus
• Occupant restraint controller module (in center console)
• Park brake sw sig
• Parking brake switch (base of parking brake)
• Pass ft dr ajar sw in
• Passenger door latch
• R57
• R59
• Radio frequency hub module (center rear of luggage compt)
• Rear power distribution center (center rear of luggage compt)
• Red
• Right rear door latch
• Right steering wheel switch
• S110
• S1630 (left end of dash, in instrument panel harness)
• S1631
• S490
• S590
• S750
• S751
• Security k line
• Z420
• Z910
• Z916
• Z922

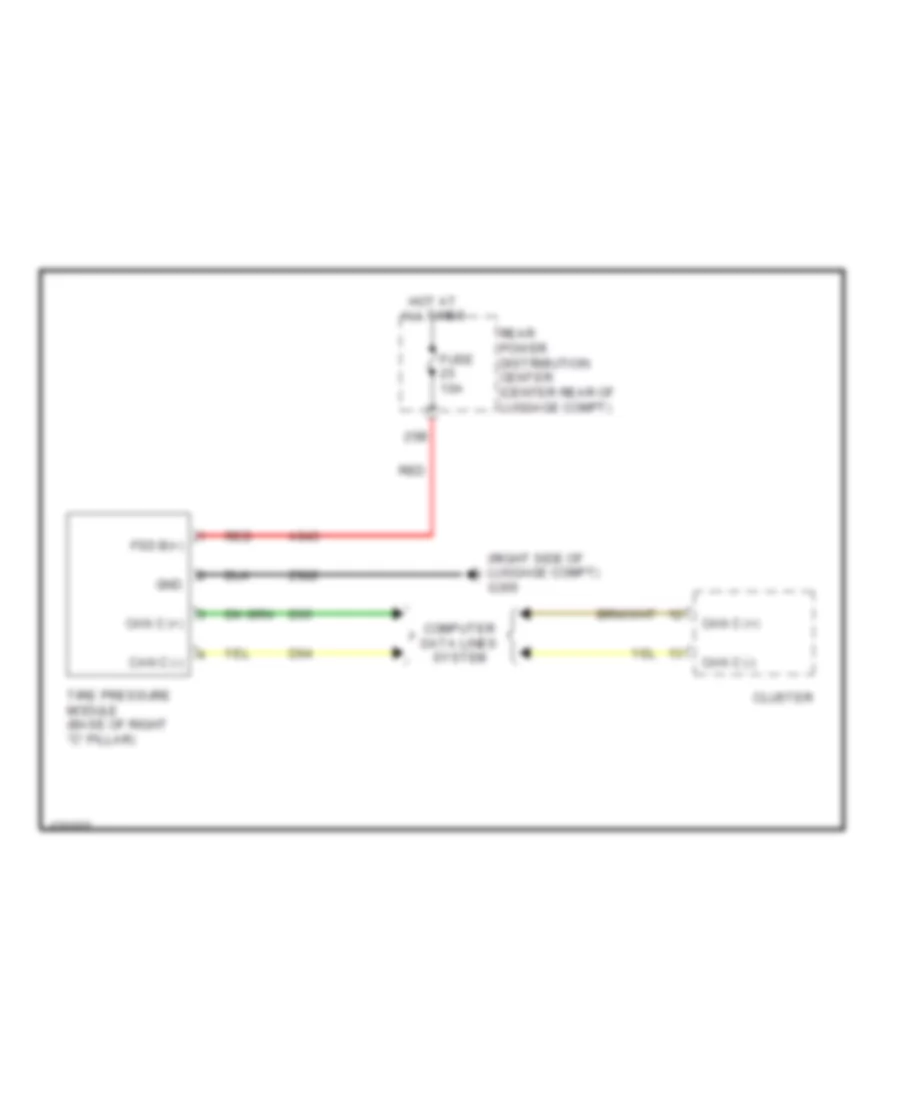

Электросхема системы контроля давления в шинах для Dodge Charger SRT-8 2014

Электросхема системы контроля давления в шинах для Dodge Charger SRT-8 2014 - Список элементов:

• (right side of luggage compt) g305
• 25b
• A943
• Can c (+)
• Can c (-)
• Cluster
• Computer data lines system
• D64
• D65
• Fsd b(+)
• Fuse 10a
• Gnd
• Hot at all times
• Rear power distribution center (center rear of luggage compt)
• Red
• Tire pressure module (base of right "c" pillar)
• Z922
