Электросхемы СИСТЕМА КРУИЗКОНТРОЛЯ Dodge Charger SRT-8 2014

СИСТЕМА КРУИЗКОНТРОЛЯ

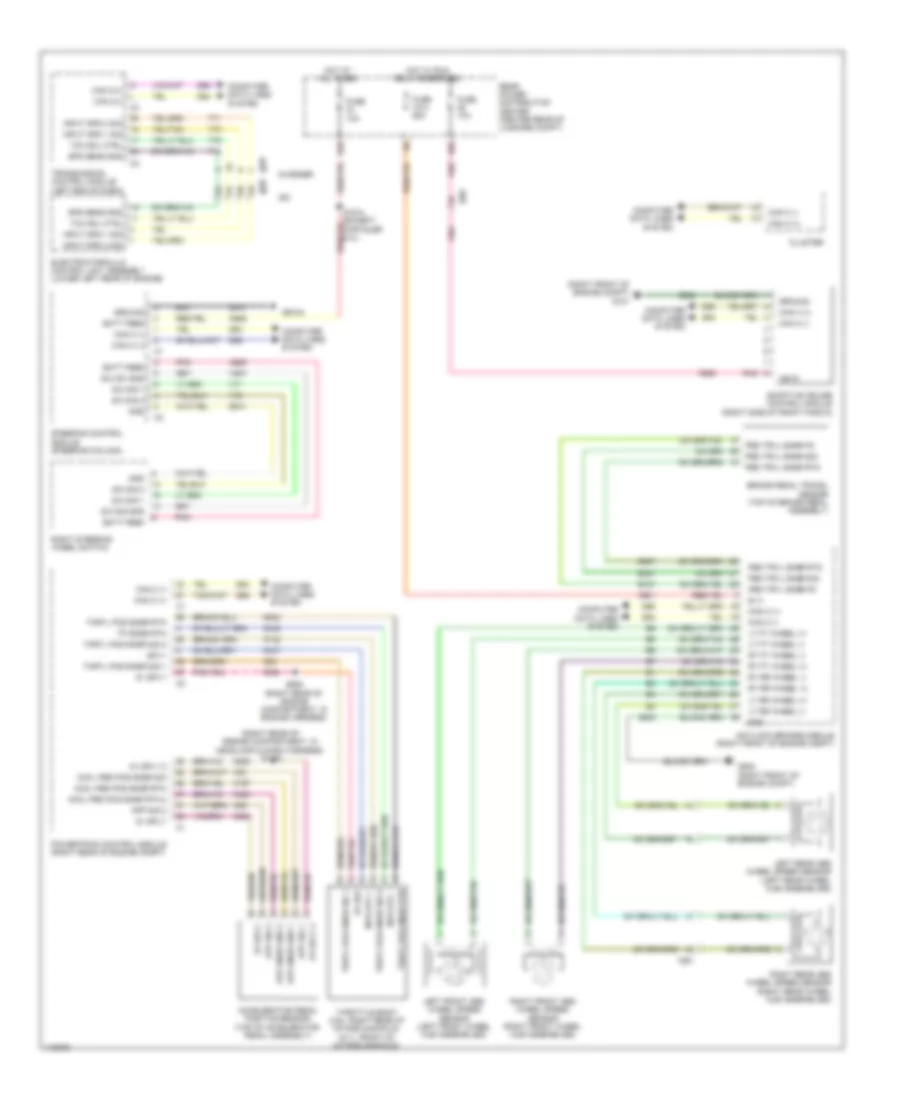

Электросхема системы круизконтроля для Dodge Charger SRT-8 2014

Электросхема системы круизконтроля для Dodge Charger SRT-8 2014 - Список элементов:

• (right front of engine compt) g101
• (right rear of engine compartment, in headlamp & dash harness) s1343
• 34b
• 46b
• 5v ref
• 5v sply
• 5v sply 2
• A901
• A929
• Accelerator pedal position sensor (top of accelerator pedal assembly)
• Accl ped pos snsr rtn
• Accl ped pos snsr rtn 2
• Accl ped pos snsr sig
• Adaptive cruise control module (right side of front fascia)
• Antilock brakes module (right front of engine compt)
• App sig 1
• App sig 2
• App snsr gnd 1
• App snsr gnd 2
• B (+)
• B137
• B237
• B937
• Batt feed
• Brake pedal travel sensor (top of brake pedal assembly)
• Can c (+)
• Can c (-)
• Can c(+)
• Can c(-)
• Charger
• Cluster
• Computer data lines system
• D64
• D65
• Electrohydraulic control unit assembly (lower left rear of engine)
• F855
• F926
• Fuse 10a
• Fuse 25a
• G802 (right front of engine compt)
• G910a
• Gnd
• Ground
• Hot at all times
• Hot w/ run relay energized
• I220
• I250
• Ign r
• Input spd 1 sig
• Input spd 2 sig
• K122
• K167
• K22
• K23
• K29
• K400
• K447
• K448
• K852
• K854
• K922
• Left front abs wheel speed sensor (left front wheel hub assemblies)
• Left rear abs wheel speed sensor (left rear wheel hub assemblies)
• Lt ft wheel (+)
• Lt ft wheel (-)
• Lt rr wheel (+)
• Lt rr wheel (-)
• Mtr etc +
• Mtr etc -
• Ped trvl snsr fd
• Ped trvl snsr rtn
• Ped trvl snsr sig
• Pnk
• Powertrain control module (right rear of engine compt)
• Rear power distribution center (center rear of luggage compt)
• Right front abs wheel speed sensor (right front wheel hub assemblies)
• Right rear abs wheel speed sensor (right rear wheel hub assemblies)
• Right steering wheel switch
• Rt ft wheel (+)
• Rt ft wheel (-)
• Rt rr wheel (+)
• Rt rr wheel (-)
• S/c sig 1
• S/c sig 2
• S/c sig gnd
• S/c sw gnd
• S925 (right rear of engine compartment, in engine harness)
• Spd sens gnd
• Sply
• Steering control module (steering column)
• T13
• T70
• T71
• T75
• Tcc sol ctrl
• Throttle body (3.6l: right rear of intake manifold) (5.7l: front of intake manifold)
• Thrtl pos snsr rtn
• Thrtl pos snsr sig 1
• Thrtl pos snsr sig 2
• Tp snsr rtn
• Transmission control module (left end of dash)
• V71
• V72
• V937
• Z802
• Z902
• Z910
