Электросхемы ЦЕНТРАЛЬНЫЙ ЗАМОК Dodge Charger SRT-8 2014

ЦЕНТРАЛЬНЫЙ ЗАМОК

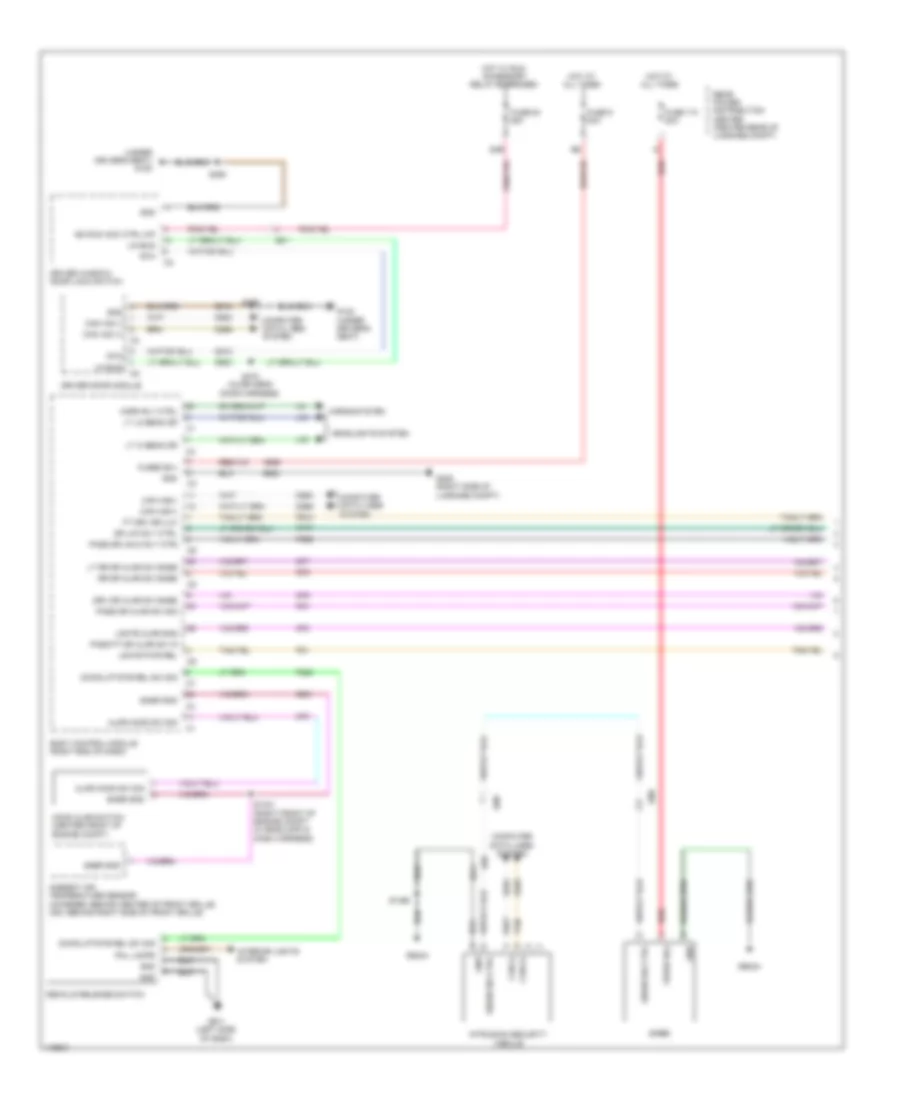

Электросхема центрального замка (1 из 2) для Dodge Charger SRT-8 2014

Электросхема центрального замка (1 из 2) для Dodge Charger SRT-8 2014 - Список элементов:

• (under driver's seat) g120
• 64b
• A906
• Ajar hood sw sig
• Ambient air temperature sensor (charger: behind center of front grille) (300: behind right side of front grille)
• Body control module (right end of dash)
• Can (+)
• Can (-)
• Can ihs (+)
• Can ihs (-)
• Can ihs(+)
• Can ihs(-)
• Computer data lines system
• D264
• D265
• D512
• D903
• D96
• Dckd/liftgte rel sw sig
• Decklid release switch
• Dr lck rly ctrl
• Driver door module
• Driver window/ door lock switch
• Drv dr ajar sw snse
• Ft drv dr ulk
• Fuse 174 20a
• Fuse 64 25a
• Fuse 9 30a
• Fused b(+)
• G120 (under driver's seat)
• G305 (right side of luggage compt)
• G70
• G74
• G75
• G76
• G77
• G78
• G902a
• G911 (left side of dash)
• G924a
• G931
• Gnd
• Headlights system
• Hood ajar switch (center front of engine compt)
• Horn rly ctrl
• Horns system
• Hot at all times
• Hot w/ run accessory relay energized
• I280
• I480
• I601
• Ign run acc ctrl o/p
• Interior lights system
• Intrusion security module
• L33
• L43
• Lgate ajar sns
• Lgate pwr rel
• Lin bus
• Lt hi beam dr
• Lt lo beam dr
• Lt rr dr ajar sw snse
• P223
• P292
• P31
• P777
• P910
• Pass dr ajar sw sig
• Pass dr unlk rly ctrl
• Pass ft dr ajar sw in
• Pnl lamps
• Rear power distribution center (center rear of luggage compt)
• Red
• Rr dr ajar sw snse
• Rtn
• S1341 (right front of engine compt, in headlamp & dash harness)
• S1490
• S470 (in driver's door harness)
• S490
• Siren
• Siren sig ctrl
• Snsr gnd
• Tan
• Z911
• Z916
• Z922

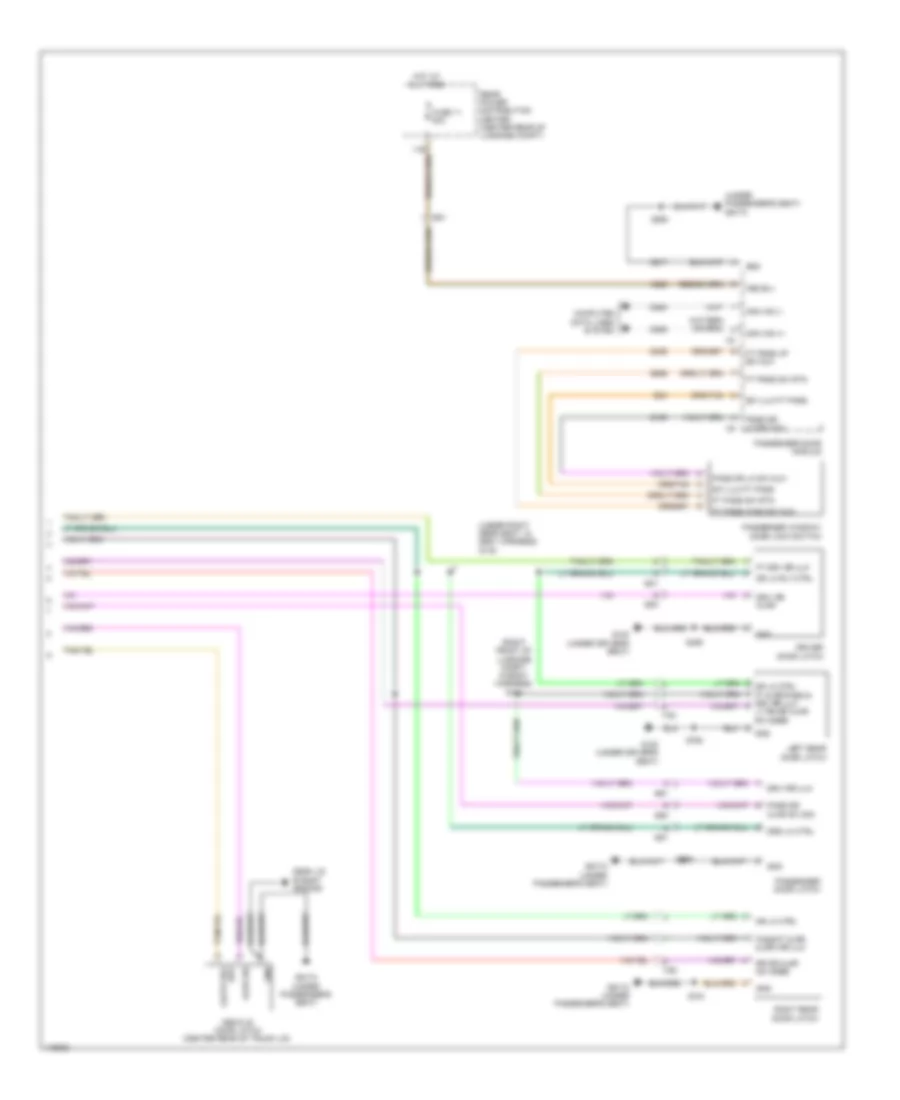

Электросхема центрального замка (2 из 2) для Dodge Charger SRT-8 2014

Электросхема центрального замка (2 из 2) для Dodge Charger SRT-8 2014 - Список элементов:

• (right front of luggage compt, in body harness) s144
• (under passenger's seat) g917a
• (under right rear seat, in body harness) s145
• A925
• Ajar sig
• Can ihs (+)
• Can ihs (-)
• Computer data lines system
• D264
• D265
• Decklid door latch (center rear of trunk lid)
• Dr lk ctrl
• Dr lk rly ctrl
• Driv dr ajar
• Driv rr ulk
• Driver door latch
• Drs lk ctrl
• Drv lgate rel
• E34
• Fsd b(+)
• Ft drv dr ulk
• Ft pass sw rtn
• Ft pass up sw mux
• Ft pass wind sw mux
• Fuse 11 30a
• G120 (under driver's seat)
• G160
• G917a (under passenger's seat)
• Gnd
• Hot at all times
• I600
• I601
• I650
• I651
• I700
• I750
• Left rear door latch
• Pass dr ajar sw sig
• Pass dr lk sw mux
• Pass ft & rr & drv rr ulk
• Passenger door latch
• Passenger door module
• Passenger window/ door lock switch
• Q336
• Q936
• Rear power distribution center (center rear of luggage compt)
• Right rear door latch
• Rr dr ajar sw snse
• S490
• S590
• S750
• S751
• Sw illm ft pass
• Z917
