СИСТЕМА АНТИБЛОКИРОВОЧНОЙ ТОРМОЗНОЙ СИСТЕМЫ ABS

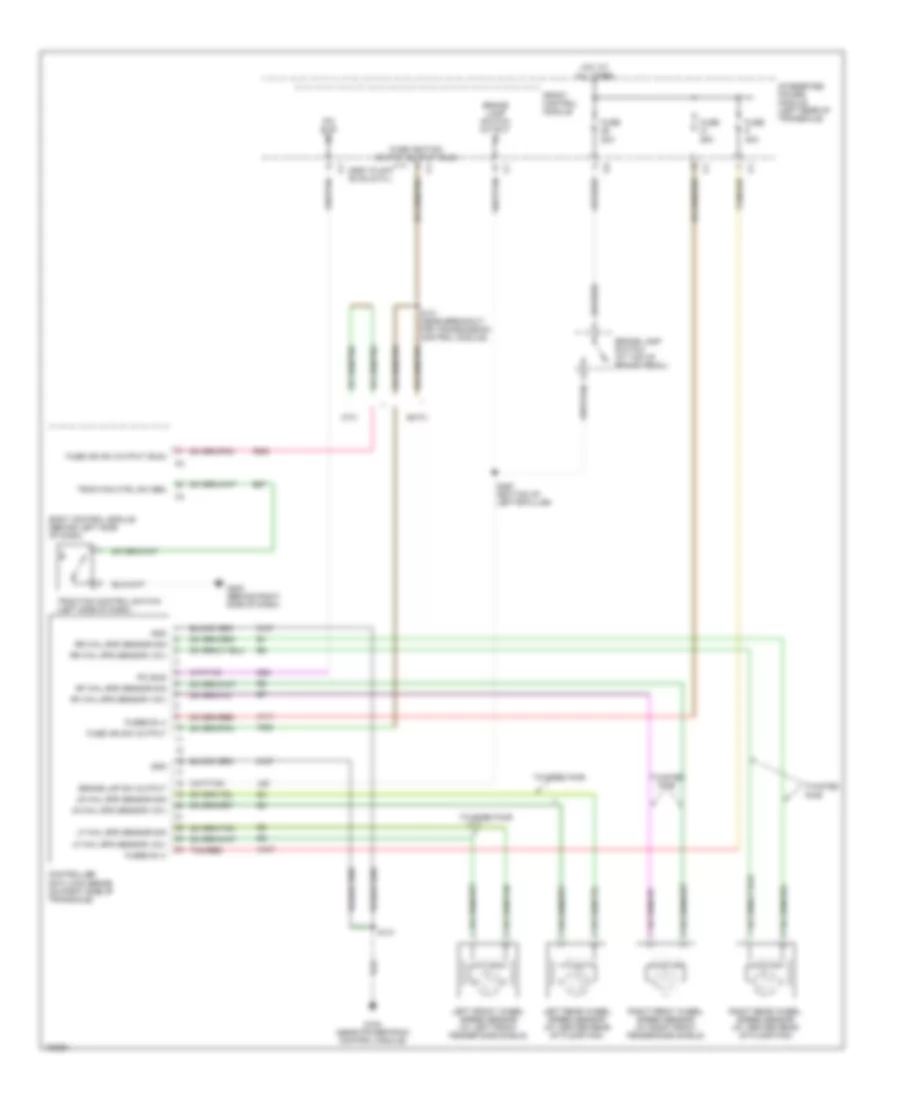

Электросхема антиблокировочной тормозной системы АБС (ABS) для Dodge Caravan SE 2004

Электросхема антиблокировочной тормозной системы АБС (ABS) для Dodge Caravan SE 2004 - Список элементов:

• 20a
• 25a
• 40a
• A107
• A111
• Assy plant evac & fill
• B27
• Body control module (behind left side of dash)
• Brake lamp switch (at top of brake pedal)
• Brake lamp switch output
• Brake lmp sw output
• Controller anti-lock brake (on right side of transaxle)
• D25
• Eatx
• F500
• Front control module
• Fuse
• Fuse ign sw output
• Fuse ign sw output (run)
• Fuse ignition switch output (run)
• Fused b (+)
• G100 (near powertrain control module)
• G200 (behind right side of dash)
• Gnd
• Hot at all times
• Integrated power module (left rear of transaxle)
• L50
• Left front wheel speed sensor (at left front fender side shield)
• Left rear wheel speed sensor (at center rear of floor pan)
• Lf whl spd sensor (12v)
• Lf whl spd sensor sig
• Lr whl spd sensor (12v)
• Lr whl spd sensor sig
• Mtx
• Pci bus
• Rf whl spd sensor (12v)
• Rf whl spd sensor sig
• Right front wheel speed sensor (at right front fender side shield)
• Right rear wheel speed sensor (at center rear of floor pan)
• Rr whl spd sensor (12v)
• Rr whl spd sensor sig
• S131 (near breakout for transmission control module)
• S141
• S367 (bottom of left"b"pillar)
• Tan/red
• Traction control switch (left side of dash)
• Traction ctrl sw sen
• Twisted pair
• Z107
• Z127
