Электросхемы ЗАЗЕМЛЕНИЕ ПОДКЛЮЧЕНИЕ МАССЫ Dodge Caravan SE 2004

ЗАЗЕМЛЕНИЕ ПОДКЛЮЧЕНИЕ МАССЫ

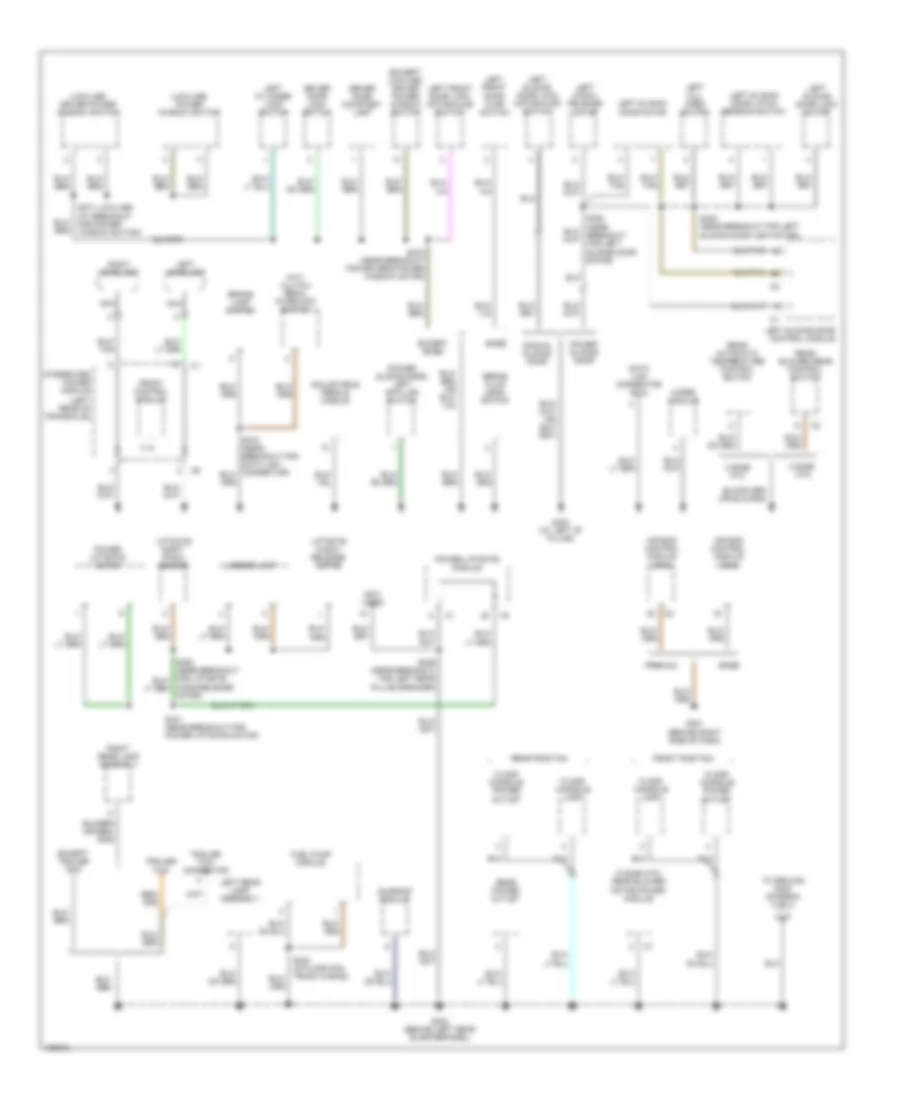

Электросхема подключение массы заземления (1 из 3) для Dodge Caravan SE 2004

Электросхема подключение массы заземления (1 из 3) для Dodge Caravan SE 2004 - Список элементов:

• (3 zone manual a/c) rear blower front control switch
• (3.3l)
• (except lowline) power power outlet outlet
• (left rear of transaxle) (a/t) integrated power module
• (left rear of transaxle) integrated power module
• (left rear of transaxle) powertrain control module
• (m/t) back-up lamp switch
• (not used)
• A/c compressor clutch
• A/c- heater control
• Adjustable pedals module
• Auto temp control
• Automatic a/c
• Battery
• Controller anti-lock brake
• Data link connector (dlc)
• Driver heated seat
• Driver heated seat module
• Driver power seat switch
• Dvd/cd changer
• Egr solenoid
• Except driver heated seat
• Except heated seats
• Except memory
• Front blower module
• Front cigar lighter
• Front control module
• G100 (near powertrain control module)
• G101 (near starter)
• G102 (near left headlight)
• G200 (behind right side of dash)
• G300 (at left ``b" pillar)
• Generator
• Headlamp switch
• Heated seats
• High note horn
• Horn switch
• Instrument cluster
• Instrument panel switch bank
• Left fog lamp
• Left front park/turn signal lamp
• Left power mirror
• Low note horn
• Manual a/c
• Memory
• Memory seat/ mirror module
• Natural vacuum leak detection assembly
• Oxygen sensor 1/1 upstream
• Oxygen sensor 1/2 down stream
• Power mirror switch
• Powertrain control module (a/t)
• Radiator fan 1
• Radiator fan 2
• Radiator fan relay
• Right fog lamp
• Right front park/turn signal lamp
• Right power mirror
• S106 (2.4l: near breakout for torque converter clutch solenoid) (3.3l & 3.8l: near breakout for g103)
• S111 (2.4l: near breakout for c101) (3.3l & 3.8l: near breakout for output speed sensor)
• S361
• Sentry key remote entry module (skreem)
• Speed control servo
• Traction control switch
• Transmission control relay
• W/ abs
• W/o abs
• Washer fluid level switch

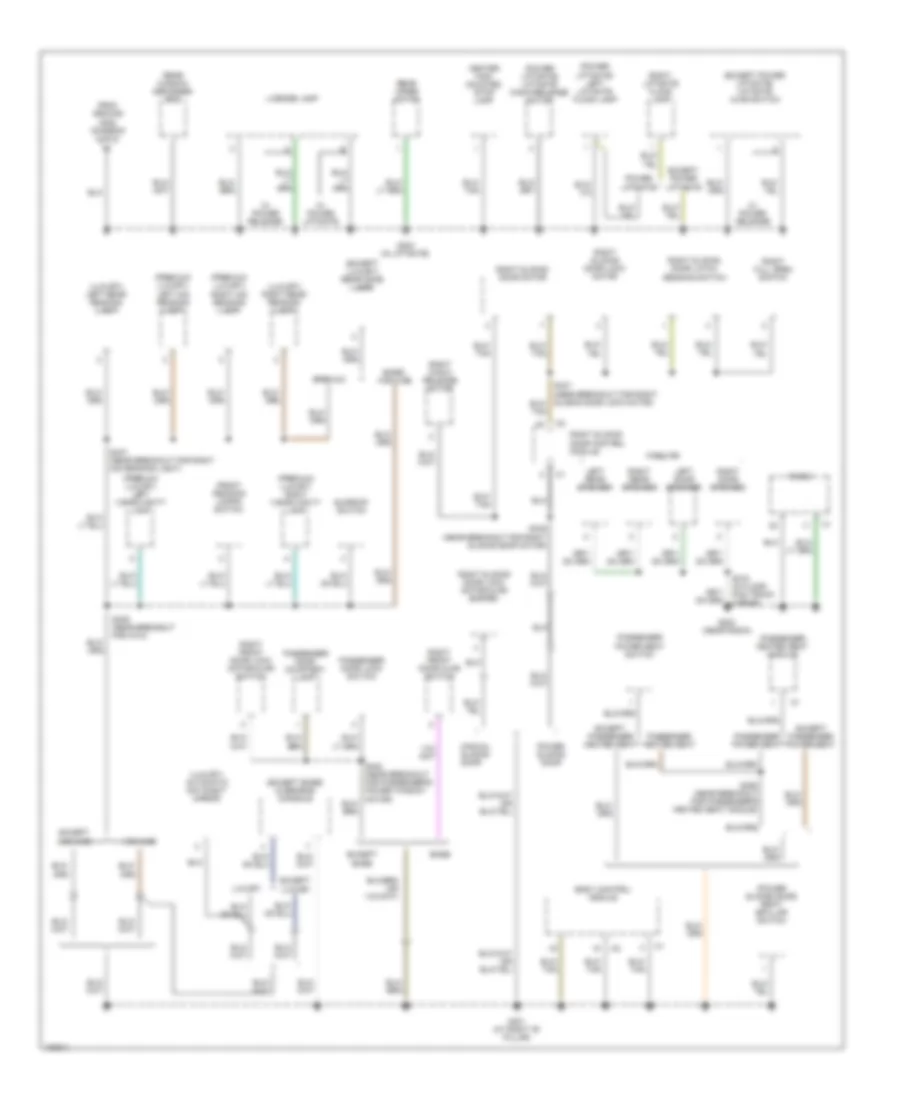

Электросхема подключение массы заземления (2 из 3) для Dodge Caravan SE 2004

Электросхема подключение массы заземления (2 из 3) для Dodge Caravan SE 2004 - Список элементов:

• (3 zone atc) rear blower motor power module
• (except lowline) driver power window switch
• (left rear of transaxle)
• (lowline) driver power window switch
• (lowline) power window switch
• (m/t) clutch pedal interlock switch
• (not used)
• (power sliding door) left b-pillar switch
• 3 zone atc
• 3 zone mtc
• Adjustable pedals module
• Air bag control module (orc)
• Base
• Brake fluid level switch
• Brake lamp switch
• Cinch/release motor)
• Data link connector (dlc)
• Driver door courtesy lamp
• Driver door lock switch
• Except base
• Except trailer tow
• Floor console lamp
• Floor console power outlet
• Front control module
• Front position
• Fuel pump module
• G201 (behind right side of dash)
• G300 (at left "b" pillar)
• G302 (behind left rear quarterpanel)
• Integrated power module
• Left cinch/ release motor
• Left cylinder lock switch
• Left front door ajar switch
• Left front door lock motor/ajar switch
• Left full open switch
• Left headlamp
• Left rear lamp assembly
• Left sliding door control module
• Left sliding door latch sensing switch
• Left sliding door lock motor
• Left sliding door lock motor/ajar switch
• Left sliding door motor
• License lamp
• Liftgate cinch/ release motor
• Liftgate right pinch sensor
• Manual sliding door
• Nca
• Power liftgate module
• Power liftgate motor
• Power sliding door
• Premium
• Rear automatic temperature control switch
• Rear blower rear control switch
• Rear position
• Rear power outlet
• Right headlamp
• Right rear lamp assembly
• S329 (near breakout for left rear pillar speaker)
• S331 (near breakout for power liftgate motor)
• S343 (near breakout for driver's power window motor)
• S348 (near breakout for left sliding door lock motor)
• S371 (lowline) (at breakout for power window switch)
• Sunroof module
• To ground g303 (diagram 3 of 3)
• Trailer tow
• Trailer tow connector
• Wiper module

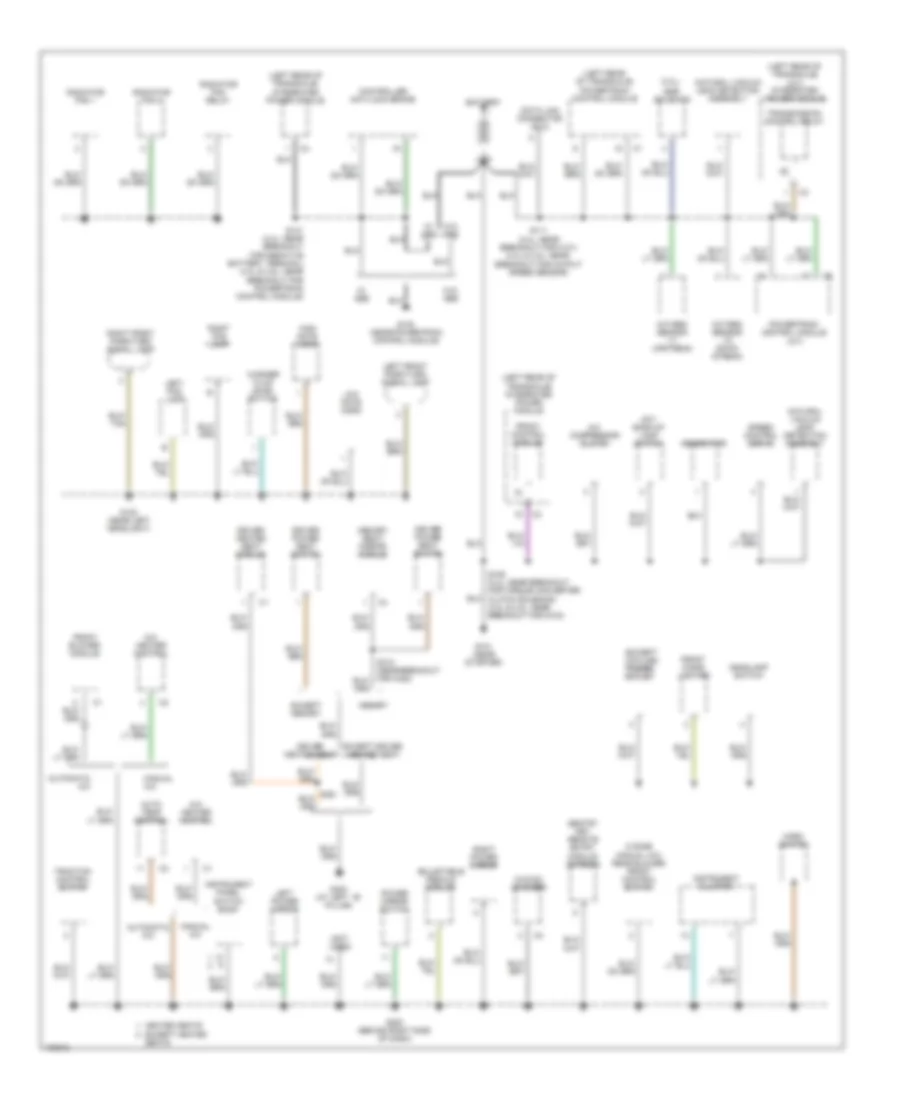

Электросхема подключение массы заземления (3 из 3) для Dodge Caravan SE 2004

Электросхема подключение массы заземления (3 из 3) для Dodge Caravan SE 2004 - Список элементов:

• (except base) overhead console
• (except luxury) rear dome lamp
• (except power liftgate) liftgate ajar switch
• (luxury) automatic day/night mirror
• (luxury) left rear reading lamp
• (luxury) right rear reading lamp
• (power liftgate) left liftgate flood lamp
• (power liftgate) liftgate cinch/release motor
• (power sliding door) right b-pillar switch
• (premium/ luxury) left mid reading lamp
• (premium/ luxury) left visor/vanity lamp
• (premium/ luxury) right mid reading lamp
• (premium/ luxury) right visor/vanity lamp
• Base
• Base/ highline
• Body control module
• Center high mounted stop lamp
• Door
• Except base
• Except highline
• Except luxury
• Except passenger heated seat
• Except passenger power seat
• Except power liftgate
• From ground g302 (diagram 2 of 3)
• Front reading lamps/ switch
• G202 (near radio)
• G301 (at right "b" pillar)
• G303 (in liftgate)
• Highline
• Left door speaker
• Left rear speaker
• License lamp
• Luxury
• Manual sliding
• Passenger door courtesy lamp
• Passenger door lock switch
• Passenger heated seat
• Passenger heated seat module
• Passenger power seat
• Passenger power seat switch
• Power liftgate
• Power sliding door
• Premium
• Radio
• Rear window defogger grid
• Rear wiper motor
• Right cinch/ release motor
• Right door speaker
• Right front door ajar switch
• Right front door lock motor/ajar switch
• Right full open switch
• Right liftgate flood lamp
• Right rear speaker
• Right sliding door control module
• Right sliding door latch sensing switch
• Right sliding door lock motor
• Right sliding door lock motor/ajar switch
• Right sliding door motor
• S315 (in floor pan track wiring)
• S337 (near breakout for right mid reading light)
• S339 (near breakout for c312)
• S345 (near breakout for right sliding door motor)
• S355 (near breakout for passenger's heated seat module)
• Sunroof switch
• W/ power liftgate
• W/ power release
