Электросхемы СИСТЕМА КОНДИЦИОНЕРА Dodge Caravan SE 2004

СИСТЕМА КОНДИЦИОНЕРА

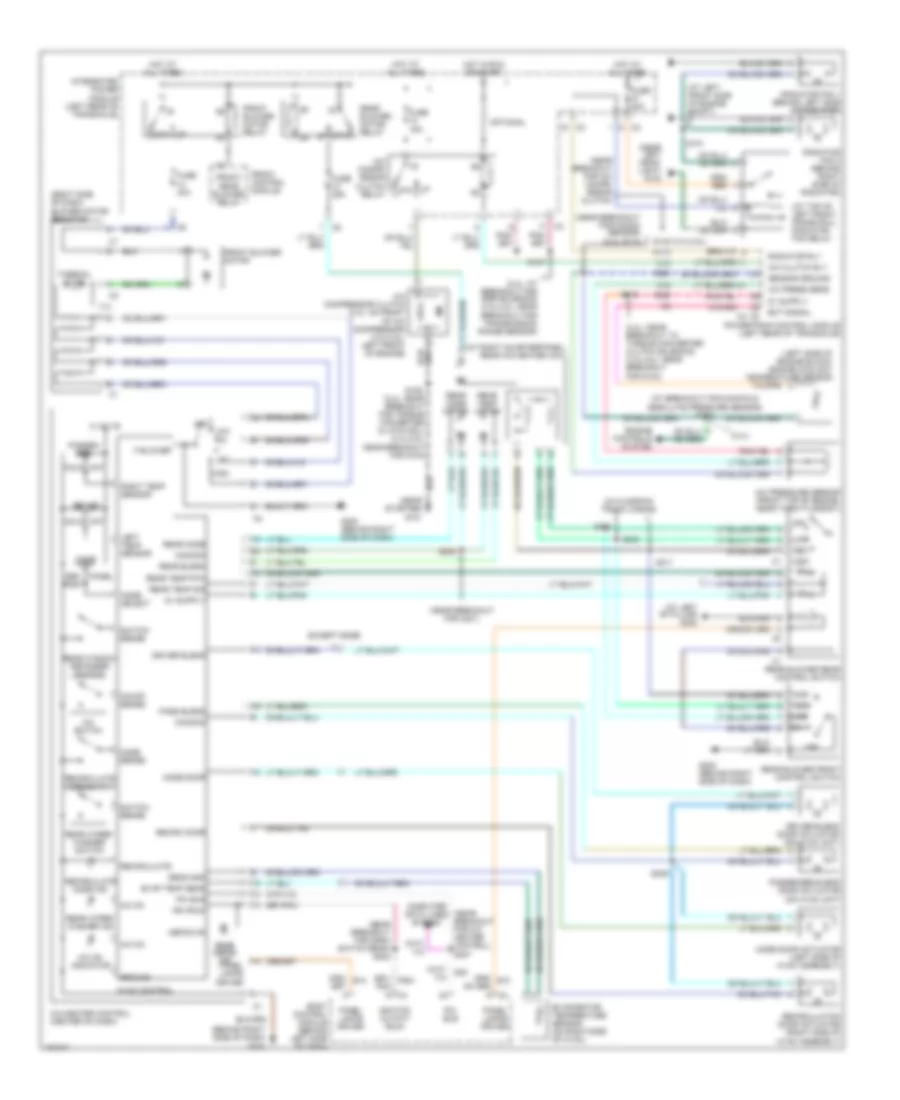

Электросхема кондиционера с ручный управлением для Dodge Caravan SE 2004

Электросхема кондиционера с ручный управлением для Dodge Caravan SE 2004 - Список элементов:

• (2.4l)
• (2.4l) s118
• (2.4l: at breakout for egr solenoid) (3.3l/3.8l: near breakout for transmission range sensor)
• (2.4l: near breakout to torque converter clutch solenoid) (3.3l/3.8l: near breakout for g103)
• (at breakout for manifold absolute pressure sensor) s125
• (at left "b" pillar) g300
• (at left front side of engine compt)
• (at right quarterpanel) rear a/c-heater unit
• (at top of left front frame rail) radiator fan relay
• (behind right side of dash) g200
• (in floorpan track wiring)
• (left side of engine block) engine coolant temperature sensor
• (near breakout for a/c compr- essor clutch)
• (near breakout for a/c heater control) s207
• (near breakout for c201)
• (near breakout for dash switch bank) s202
• (near breakout for knock sensor)
• (near left head- light) g102
• (near starter) g101
• (right side of dash) blower motor resistor
• 5 volts
• 87a
• A/c clutch rly
• A/c compr- essor clutch relay
• A/c compressor clutch (2.4l: on front of a/c compressor) (3.3l/3.8l: left front of engine)
• A/c on
• A/c on indicator
• A/c press sens
• A/c pressure sensor (front top of engine, near throttle body)
• A/c switch
• A/c-heater control (center of dash)
• Body control module (behind left side of dash)
• C13
• C18
• Cold
• Common
• Computer data lines system
• Def- rost
• Defog on
• Driver
• Driver blend
• Driver blend door actuator (on hvac unit)
• Ect signal
• Engine controls system
• Evap temp sens
• Evaporator temperature sensor (on right side of hvac)
• Except base
• F blower
• F855
• Front blower motor
• Front blower motor relay
• Front control module
• Front/ rear blower relay
• Fuse 15a
• Fuse 25a
• Fuse 40a
• G200 (behind right side of dash)
• Ground
• High
• Hot
• Hot at all times
• Hot in run or start
• Hvac control
• Ign (run)
• Ignition output (run)
• Integrated power module (left rear of transaxle)
• K173
• K900
• Left temp sensor
• Low
• Med
• Mode
• Mode door
• Mode door actuator (left side of hvac assembly)
• Mode select
• Mode sense
• Off
• On/off sense
• Optional
• Panel
• Panel lamps driver
• Pass blend
• Passen- ger
• Passenger blend door actuator (on hvac unit)
• Pci bus
• Pnk c4
• Powertrain control module (left rear of transaxle)
• Radiator fan 1 (behind left side of radiator)
• Radiator fan 2 (behind right side of radiator)
• Radiator rly
• Rear blend
• Rear blower front control switch
• Rear blower motor relay
• Rear blower rear control switch
• Rear defog ind
• Rear mode
• Rear mode motor
• Rear temp motor
• Rear temp rtn
• Rear temp sig
• Rear window defogger switch
• Rear wiper/ washer ind
• Rear wiper/ washer switch
• Recirc door
• Recirculate
• Recirculate mode ind
• Recirculate mode switch
• Recirculation door actuator (right side of hvac assembly)
• Right temp sensor
• S101
• S106 (2.4l: near breakout for torque converter clutch sol) (3.3l/3.8l: near breakout for g103)
• S107
• S116
• S142 (3.3l/3.8l)
• S205
• S209
• S311
• S332
• S333
• Sens gnd
• Sensor ground
• Switch sense
• Thermal fuse
