Электросхемы Система Фар Audi A4 2.0T Quattro 2011

Система Фар

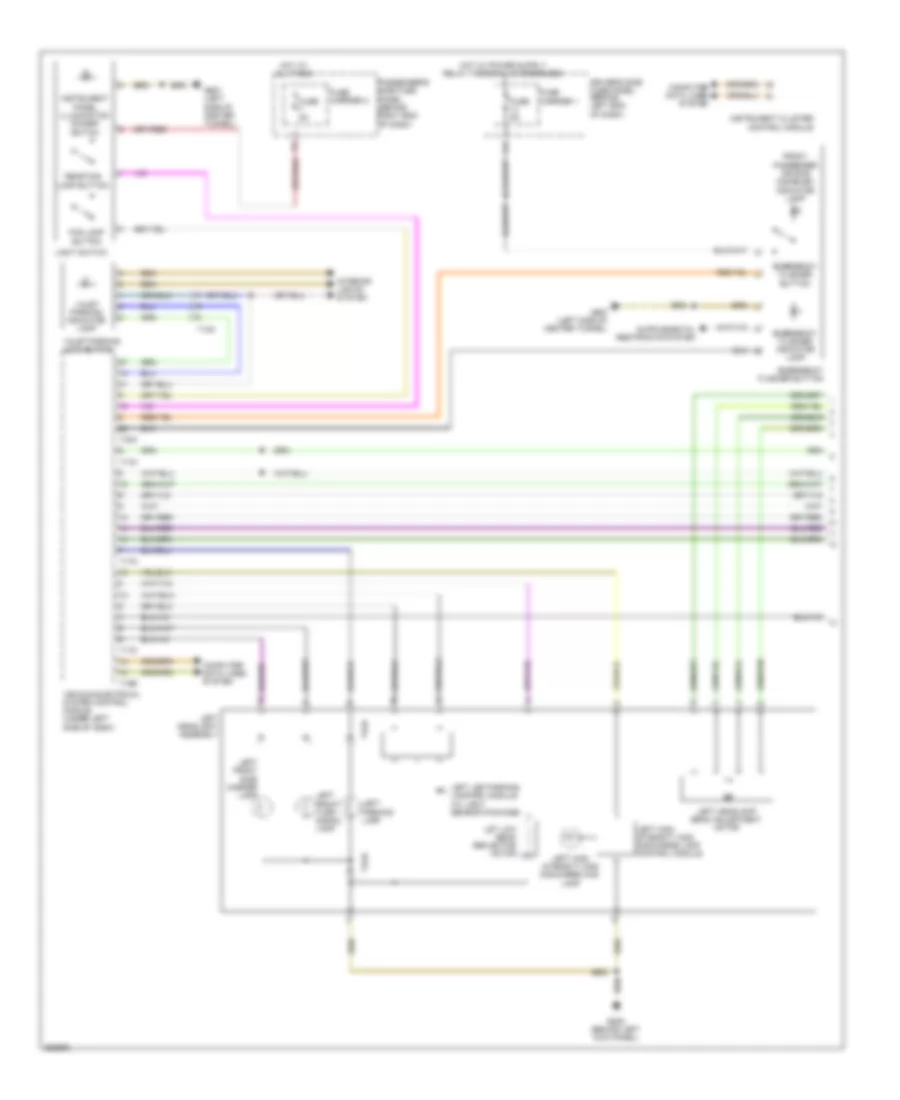

Электросхема фар, С Ксенон висмута, С Загоняющий Фары в угол (1 из 2) для Audi A4 2.0T Quattro 2011

Электросхема фар, С Ксенон висмута, С Загоняющий Фары в угол (1 из 2) для Audi A4 2.0T Quattro 2011 - Список элементов:

• 14a
• Computer data lines system
• Driver's side fuse panel (behind left end of dash)
• Emergency flasher button
• Emergency flasher indicator lamp
• Fog lamp button
• Front passenger air bag disabled indicator lamp
• Fuse 5a
• Fuse carrier 1
• Fuse carrier 2
• G639 (behind left kick panel)
• G687 (left side of center tunnel)
• Hot at all times
• Instrument cluster control module
• Instrument panel illumination dimmer switch
• Interior lights system
• Lamp left parking
• Left dynamic cornering light motor
• Left headlamp beam adjustment motor
• Left headlamp power output stage
• Left headlight assembly
• Left high intensity gas discharge (hid) lamp
• Left high intensity gas discharge (hid) lamp control module
• Left led parking lamp/drl module (w/ light sensor package)
• Left low beam reflector motor
• Light switch
• Marker lamp left front side
• Passenger's side fuse panel (behind right end of dash)
• Rear fog lamp button
• Signal lamp left front turn
• T12k
• T16b
• T17m
• T17n
• T32a
• T4ad
• Valet parking indicator lamp
• Valet parking lock button
• Vehicle electrical system control module (under left side of dash)

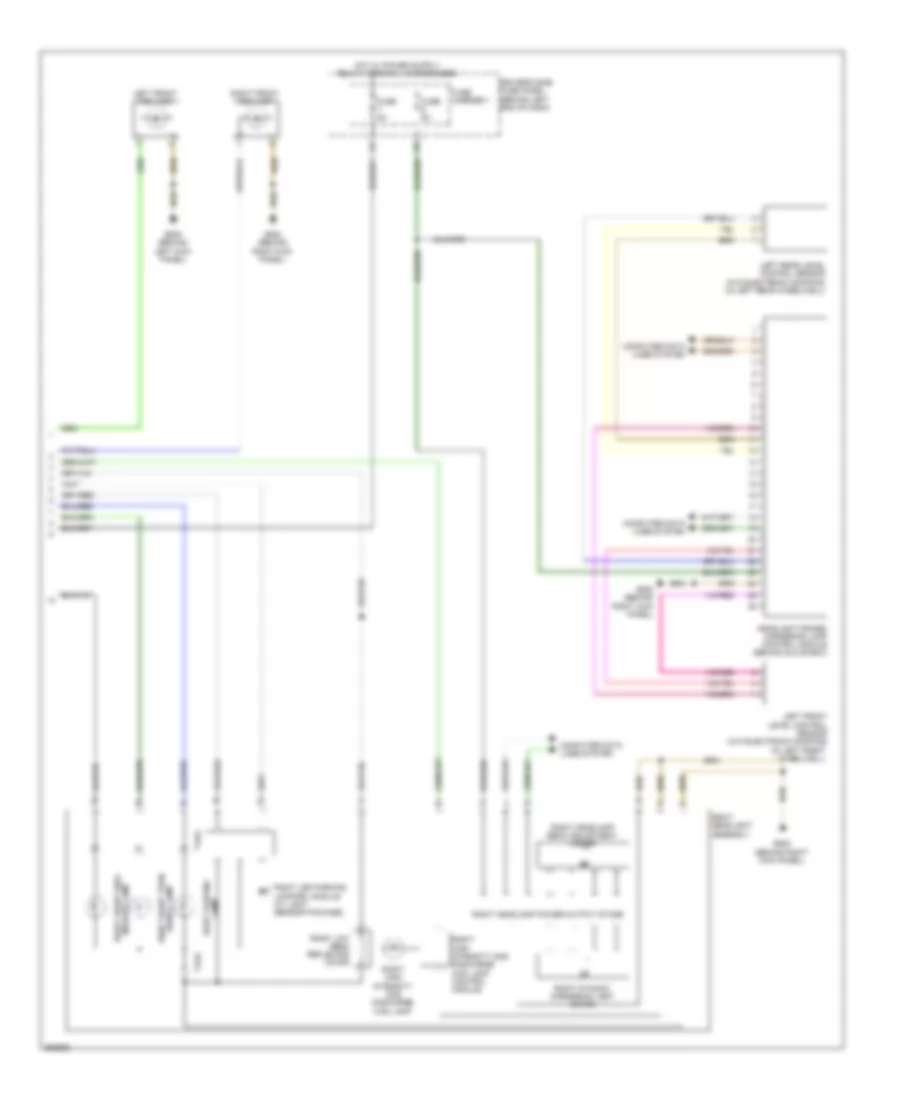

Электросхема фар, С Ксенон висмута, С Загоняющий Фары в угол (2 из 2) для Audi A4 2.0T Quattro 2011

Электросхема фар, С Ксенон висмута, С Загоняющий Фары в угол (2 из 2) для Audi A4 2.0T Quattro 2011 - Список элементов:

• Computer data lines system
• Driver's side fuse panel (behind left end of dash)
• Fuse 5a
• Fuse carrier 1
• G638 (behind right kick panel)
• G639 (behind left kick panel)
• Headlight range/ cornering lamp control module (behind glove box)
• Lamp
• Left front fog lamp
• Left front level control sensor (w/o electronic damping) (in left front wheelwell)
• Left rear level control sensor (w/o electronic damping) (in left rear wheelwell)
• Marker lamp right front side
• Right dynamic cornering light motor
• Right front fog lamp
• Right front turn signal lamp
• Right headlamp beam adjustment motor
• Right headlamp power output stage
• Right headlight assembly
• Right high intensity gas discharge (hid) lamp
• Right high intensity gas discharge (hid) lamp control module
• Right led parking lamp/drl module (w/ light sensor package)
• Right low beam reflector motor
• Right parking
• T4ae

Электросхема фар, С Ксенон висмута, без Загоняющий Фары в угол (1 из 2) для Audi A4 2.0T Quattro 2011

Электросхема фар, С Ксенон висмута, без Загоняющий Фары в угол (1 из 2) для Audi A4 2.0T Quattro 2011 - Список элементов:

• 14a
• Computer data lines system
• Driver's side fuse panel (behind left end of dash)
• Emergency flasher button
• Emergency flasher indicator lamp
• Fog lamp button
• Front passenger air bag disabled indicator lamp
• Fuse 5a
• Fuse carrier 1
• Fuse carrier 2
• G639 (behind left kick panel)
• G687 (left side of center tunnel)
• Hot at all times
• Instrument cluster control module
• Instrument panel illumination dimmer switch
• Interior lights system
• Left front side marker lamp
• Left front turn signal lamp
• Left headlamp beam adjustment motor
• Left headlight assembly
• Left high intensity gas discharge (hid) lamp
• Left high intensity gas discharge lamp control module
• Left led parking lamp/drl module (w/ light sensor package)
• Left parking lamp
• Let low beam reflector motor
• Light switch
• Passenger's side fuse panel (behind right end of dash)
• Rear fog lamp button
• T12k
• T16b
• T17m
• T17n
• T32a
• T4ad
• Valet parking indicator lamp
• Valet parking lock button
• Vehicle electrical system control module (under left side of dash)

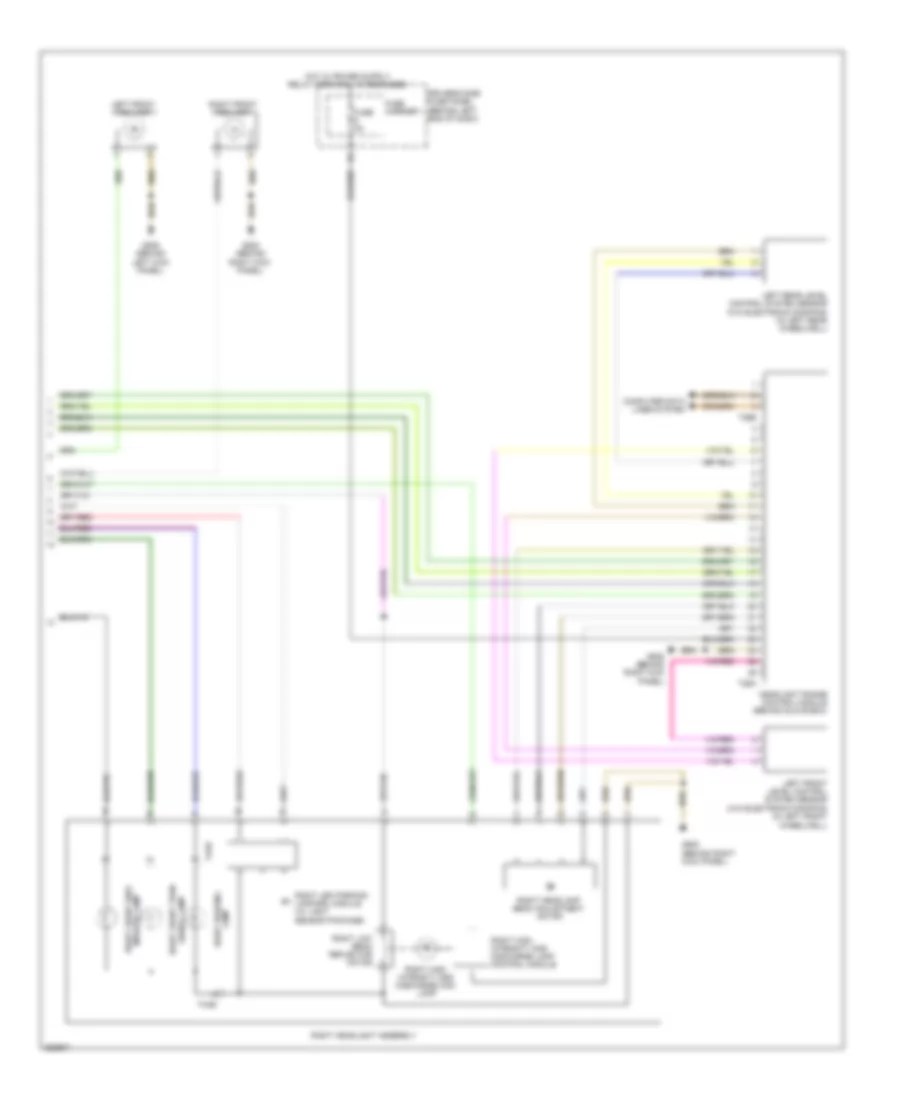

Электросхема фар, С Ксенон висмута, без Загоняющий Фары в угол (2 из 2) для Audi A4 2.0T Quattro 2011

Электросхема фар, С Ксенон висмута, без Загоняющий Фары в угол (2 из 2) для Audi A4 2.0T Quattro 2011 - Список элементов:

• Computer data lines system
• Driver's side fuse panel (behind left end of dash)
• Fuse 5a
• Fuse carrier 1
• G638 (behind right kick panel)
• G639 (behind left kick panel)
• Headlight range control module (behind glove box)
• Left front fog lamp
• Left front level control system sensor (w/o electronic damping) (in left front wheelwell)
• Left rear level control system sensor (w/o electronic damping) (in left rear wheelwell)
• Marker lamp right front side
• Right front fog lamp
• Right front turn signal lamp
• Right headlamp beam adjustment motor
• Right headlight assembly
• Right high intensity gas discharge (hid) lamp
• Right high intensity gas discharge lamp control module
• Right led parking lamp/drl module (w/ light sensor package)
• Right low beam reflector motor
• Right parking lamp
• T26a
• T26b
• T4ae

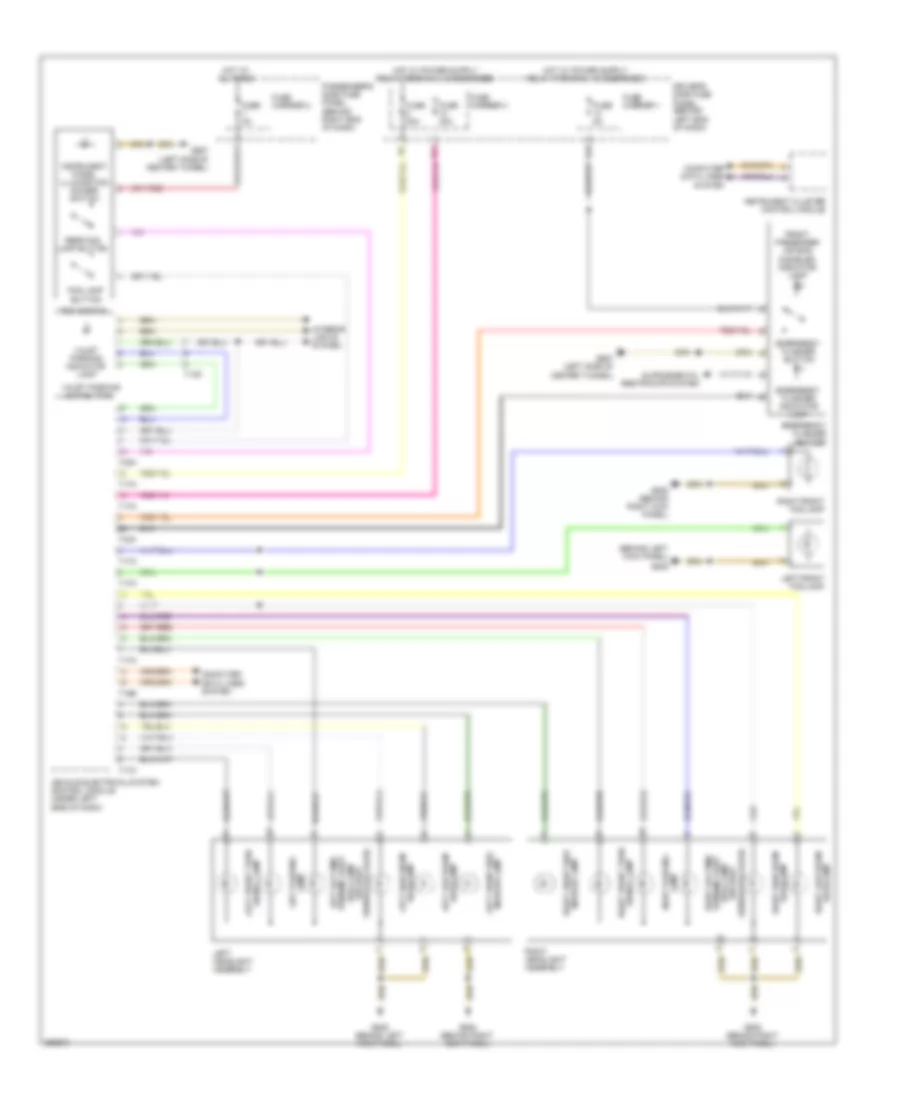

Электросхема фар, без Фары Ксенона висмута для Audi A4 2.0T Quattro 2011

Электросхема фар, без Фары Ксенона висмута для Audi A4 2.0T Quattro 2011 - Список элементов:

• (behind left kick panel)
• 10a
• 14a
• Computer data lines system
• Driver's side fuse panel (behind left end of dash)
• Emergency flasher button
• Emergency flasher indicator lamp
• Fog lamp button
• Front passenger air bag disabled indicator lamp
• Fuse 30a
• Fuse 5a
• Fuse carrier 1
• Fuse carrier 2
• Fuse carrier 3
• G638 (behind right kick panel)
• G639
• G639 (behind left kick panel)
• G687 (left side of center tunnel)
• Headlamp right low beam
• Hot at all times
• Instrument cluster control module
• Instrument panel illumination dimmer switch
• Interior lights system
• Lamp left parking
• Lamp right parking
• Left front fog lamp
• Left front side marker lamp
• Left headlight assembly
• Left high beam headlamp
• Left low beam headlamp
• Light switch
• Marker lamp right front side
• Passenger's side fuse panel (behind right end of dash)
• Rear fog lamp button
• Right front fog lamp
• Right headlight assembly
• Right high beam headlamp
• Sensor package) (w/ light (drl) lamp running light left daytime
• Sensor package) (w/ light (drl) lamp running light right daytime
• Signal lamp left front turn
• Signal lamp right front turn
• T12k
• T16b
• T17m
• T17n
• T32a
• Valet parking indicator lamp
• Valet parking lock button
• Vehicle electrical system control module (under left side of dash)
